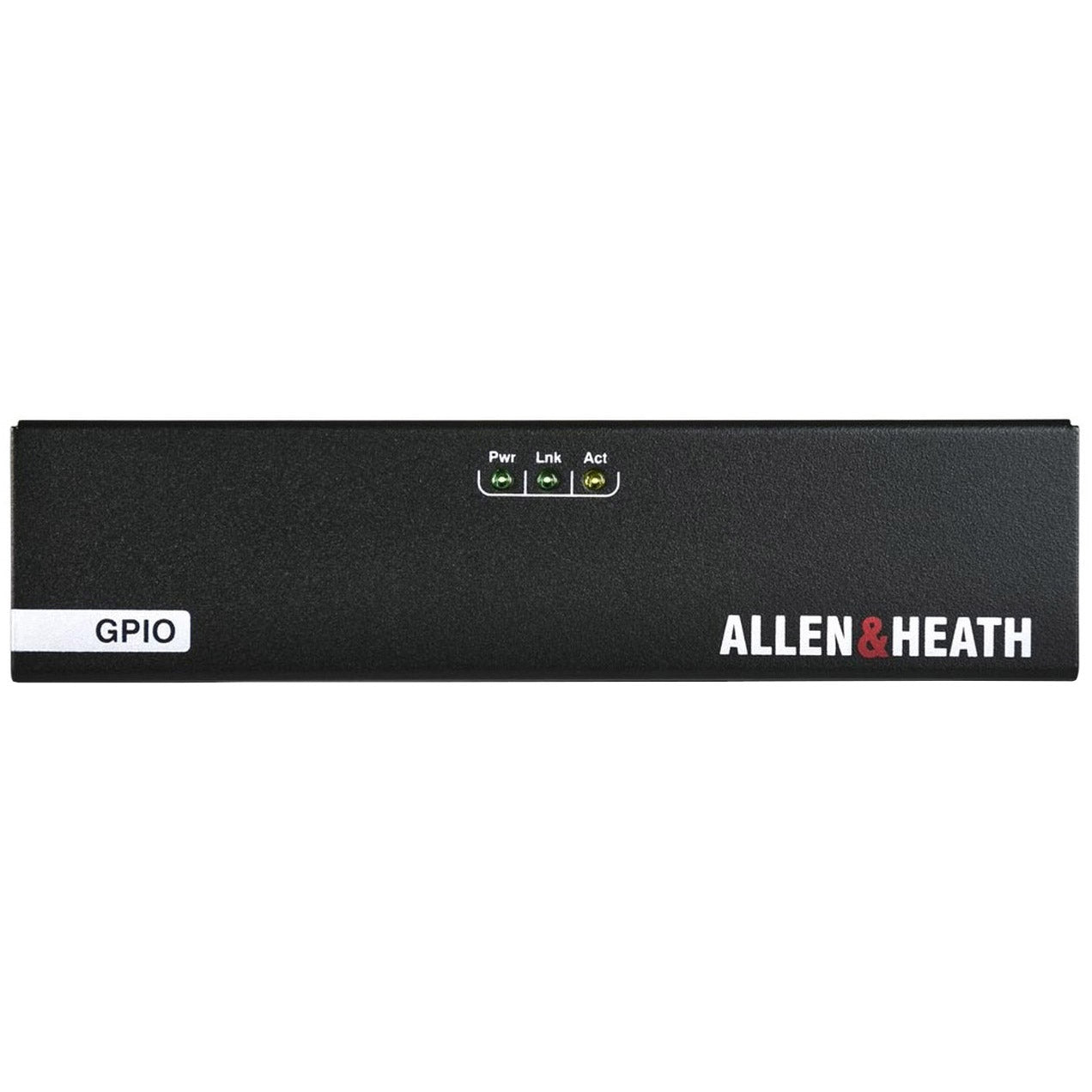

Allen & Heath GPIO General Purpose I/O Interface

Allen & Heath GPIO General Purpose I/O Interface

SoundPro Item: 23589 | Part Number: AH-DLIVE-GPIO

$899.00
$1,199.00 $899.00
Your Price Sold out
MSRP: $1,199.00 | MAP: $899.00

Usually ships in 5-7 business days

  • Up to 8 networked GPIO units can be added to a dLive/Avantis system
  • Networked Cat5 connection to Avantis mixer, dLive MixRack or Surface (<100m)

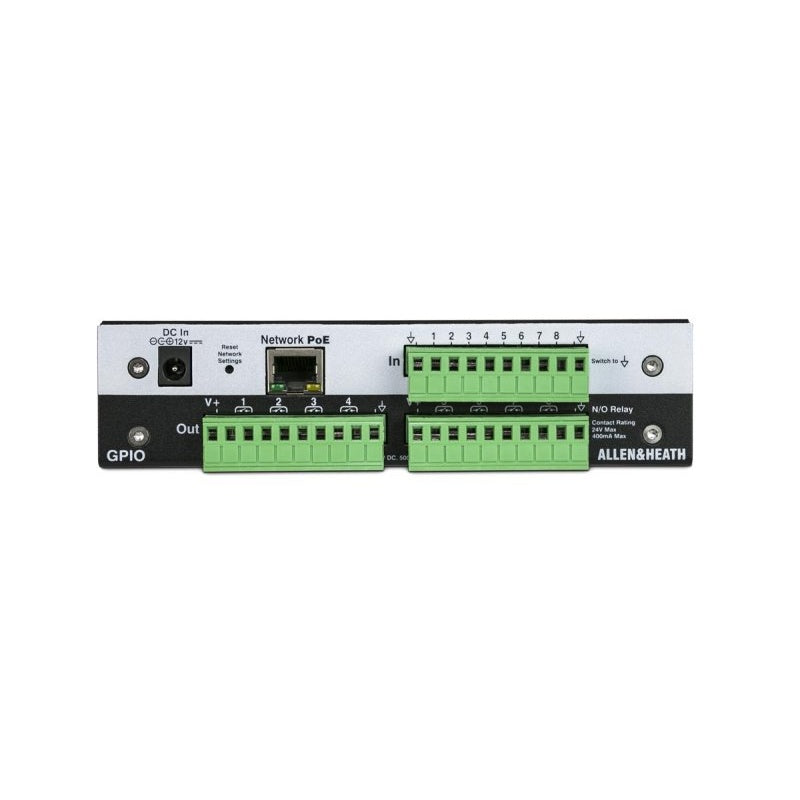

  • 8 opto-isolated inputs
  • 8 normally open (N/O) relay outputs, one of them configurable to Normally Closed output (N/C)
  • Industry standard Phoenix connectors
  • Freestanding or rack-mount (1u / 1/2 Width) operation
  • PoE (IEEE 802.3af-2003) compliant
  • IO parameters configured via Avantis mixer, or dLive Surface or Director
  • 2 10V outputs (500mA max)
Log in or register for YOUR best price

Use the Allen & Heath GPIO interface for control integration of an AHM-64 processor or dLive/Avantis system with 3rd party hardware.

NOTE: GPIO requires dLive firmware V1.6 or higher.

View full details
  • System
    • Relay Output Max Voltage: 24V
    • Relay Output Max Current: 400mA
    • Input: Switched to ground
    • External Power Output: +10VDC / 500mA max
    • Operating Temperature Range: 32°F to 95°F (0°C to 35°C)
    • Power Supply: 12V DC via external PSU (1A max) or PoE (IEEE 802.3af-2003) (0.9A max)
  • Dimensions and Weight (WxDxH)
    • Unboxed: 6.75x8x1.7", 2.7 lbs (171x203x43mm , 1.2kg)
    • Boxed: 14.25x12x3.5", 6.6 lbs (360x306x88 mm, 3kg)
