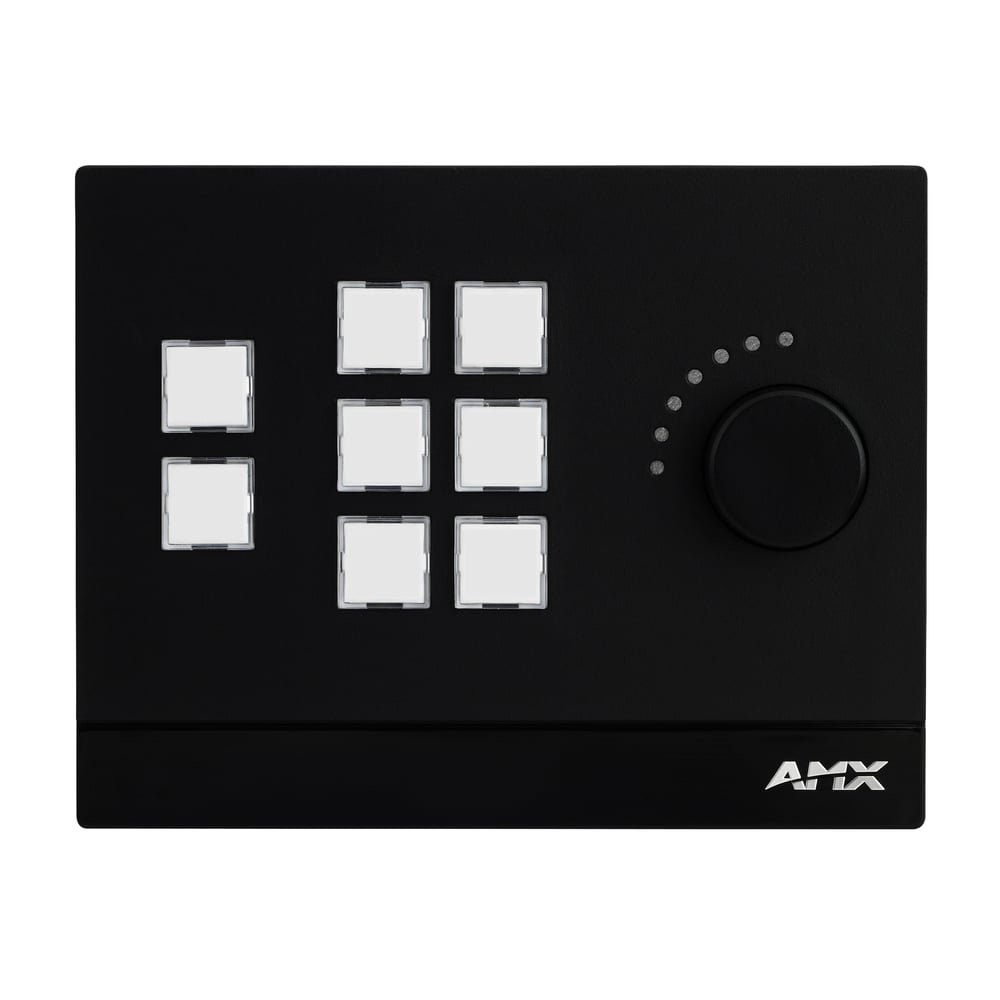

AMX FG2102-08-BL Massio 8-Button Ethernet Controlpad, Portrait, Mcp-108-Bl (Us, Uk Or Eu)

AMX FG2102-08-BL Massio 8-Button Ethernet Controlpad, Portrait, Mcp-108-Bl (Us, Uk Or Eu)

SoundPro Item: 40204 | Part Number: FG2102-08-BL

$1,202.00
$1,202.00 $1,202.00
Your Price Sold out
MSRP: $1,202.00 | MAP: $1,202.00

Usually ships in 5-7 business days

  • Product Color: Black
  • Form Factor: Gang Box Mount
  • Height: 4.7"
  • Width: 6"
  • Depth: 1"
  • Weight (Approximate): 6.70 oz
  • Environmentally Friendly: Yes
  • Environmental Certification: RoHS
  • Environmental Certification: WEEE
  • Country of Origin: Mexico
Log in or register for YOUR best price
The MCP-108 / 8-Button Massio™ ControlPad with Knob combines AMX control and a stylish keypad into a single unit that can be mounted in a standard 2 gang US, UK or EU back box to provide dedicated room control. Massio ControlPads provide high performance, intuitive usability and modern styling, and are simple to configure using AMX's Rapid Project Maker or custom programmed using NetLinx Studio software. The MCP-108 shares its controller technology with AMX's flagship NX-series, enabling it to provide the latest networking and security features, along with outstanding processing power.

COMMON APPLICATION

  • NX Master Security firmware is ideal for enterprise, education, and government policies requiring secure communication over a computer network in line with security standards expected by the IT industry of any equipment running on an enterprise.
  • Massio ControlPads are a perfect solution for huddle spaces and small conference rooms, where Massio's combination of controller, user interface and configuration with RPM provides an inexpensive way to add AV control to small spaces
  • The MCP-108's security features and secure wall-mount options make it ideal for Higher Education breakout rooms and small classrooms.
  • The MCP-108's rugged design and attractive price point also make it perfect for K-12 (Primary Education) classrooms.
View full details

Specifications

'General Information
Manufacturer
AMX
Manufacturer Part Number
FG2102-08-BL
Brand Name
AMX
Product Line
Massio
Product Model
FG2102-08-BL
Product Name
Massio 8-Button ControlPad with Knob (US, UK, EU)
Product Type
A/V Control Panel
Physical Characteristics
Color
Black
Form Factor
Gang Box Mount
Miscellaneous
Package Contents
Massio 8-Button ControlPad with Knob (US, UK, EU) 1 x Metal Mounting Bracket 1 x 2-Pin Female Connector 1 x 3-Pin Female Connector 1 x Sheet of 70 Pre-Printed Button Labels 2 x M3.5 x 30MM Screws 2 x #6-32 x 1.25 Screws
Additional Information
POWER CONSUMPTION Fully loaded with I/O Port utilized: 11 W (max) Typical: 5 W Voltage, DC (Typical): PoE (37V-57V) Voltage DC Range: 37 V-57 V per 802.3af spec Power Connector: (1) RJ-45 Ethernet POWER SUPPLY External, Required: Any POE injector or switch, conforming to the 802.3af standard including AMX's PS-POE-AF-TC (FG423-83), not included ENVIRONMENTAL Temperature (Operating): 32° F to 104° F (0° C to 40° C) Temperature (Storage): 14° F to 140° F (-10° C to 60°C) Humidity (Operating): 5% to 85% RH ETHERNET Ethernet Connection: (1) 10/100; Port provides TCP/IP communication. This is an Auto MDI/MDI-X enabled port, which allows you to use either straight-through or crossover Ethernet cables. The Ethernet Port LEDs show communication activity, connection status, speeds, and mode information. CONTROL PORTS & INDICATORS RS-232 Port: (2), 3-position 3.5mm Screw Terminal; 300 - 115,200 baud IR Serial Port: (2), 2-position 3.5mm Screw Terminal; IR Transmit / 1-way Serial ports Support high-frequency carriers up to 1.142 MHz I/O Channels: (2) 4-position 3.5 mm Screw Terminal 2-channel binary I/O port for contact closure with each input being capable of voltage sensing Relay Connection: (1) 4-position 3.5mm Screw Terminal (2) single-pole, single-throw relays Each relay can switch up to 24 VDC or 28 VAC @ 1 A Each relay is independently controlled Program Port: (1) USB Mini-B, USB ID Pushbutton: Reset factory settings, reset factory image, toggle between DHCP or static IP addressing mode MEMORY Flash: 4 GB Memory Card: 4 GB SD DDRAM: 256 MB
Environmentally Friendly
Yes
Environmental Certification
RoHS
WEEE
