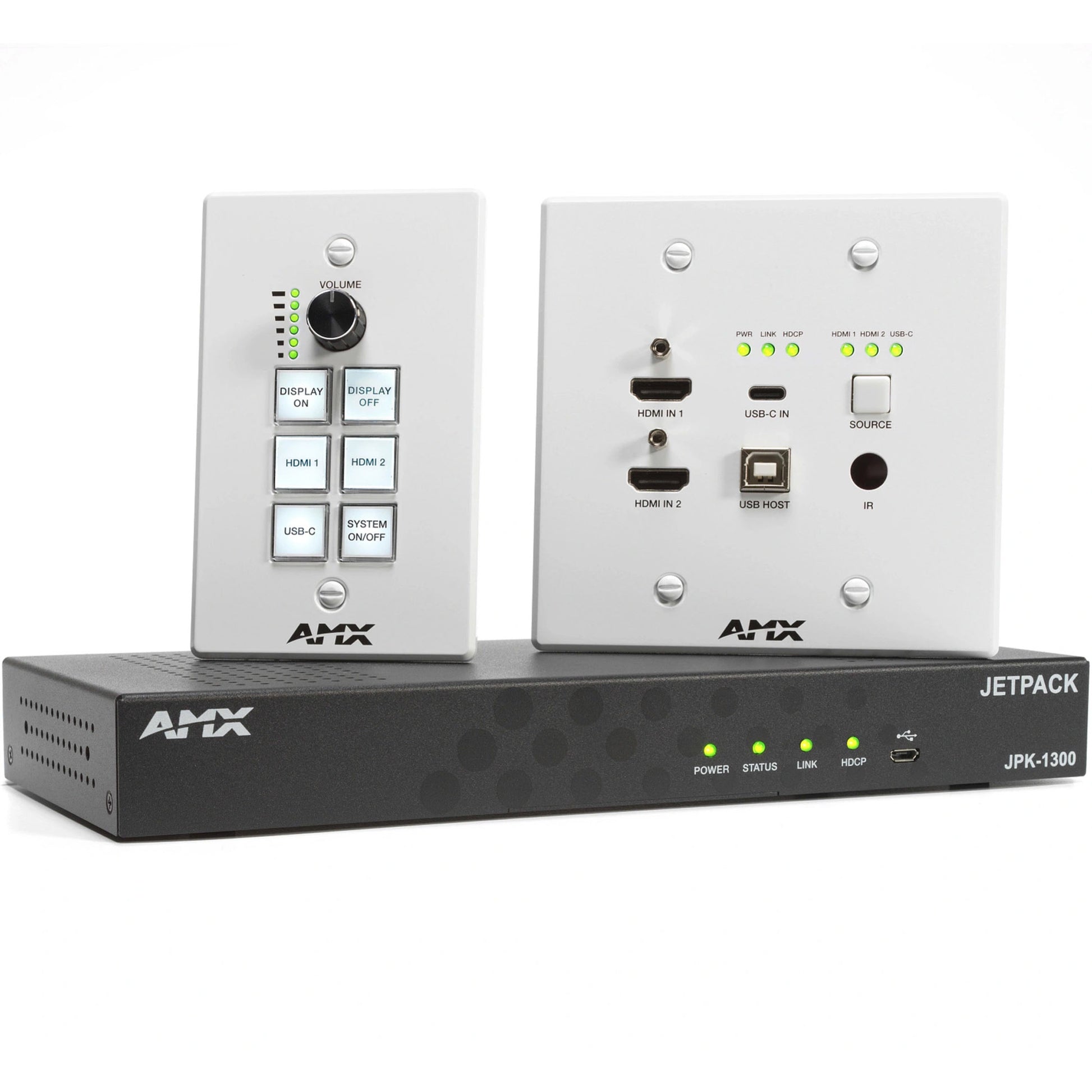

AMX JPK-1300 Jetpack 3x1 Switching, Transport, and Control Solution

AMX JPK-1300 Jetpack 3x1 Switching, Transport, and Control Solution

SoundPro Item: 139563 | Part Number: AMX-VTK0001

$2,116.00
$2,116.00 $2,116.00
Your Price Sold out
MSRP: $2,116.00 | MAP: $2,116.00

Usually ships in 5-7 business days

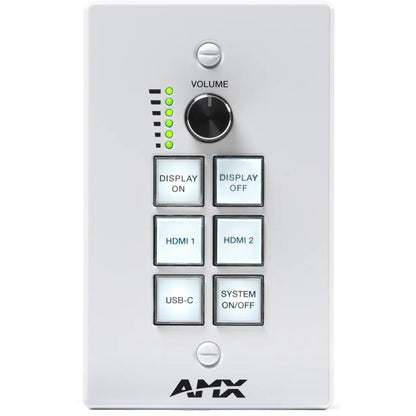

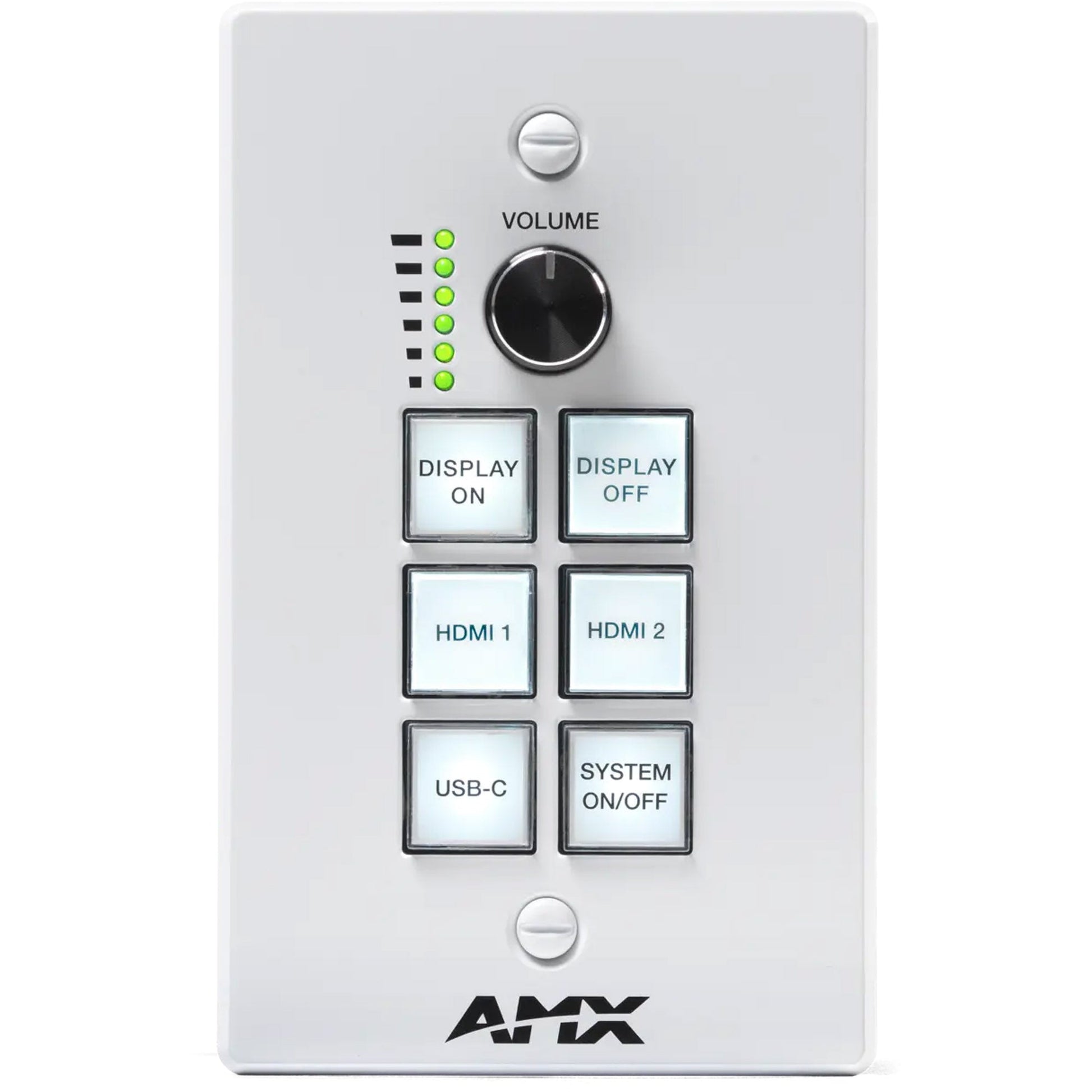

  • 6-Button Keypad with volume knob

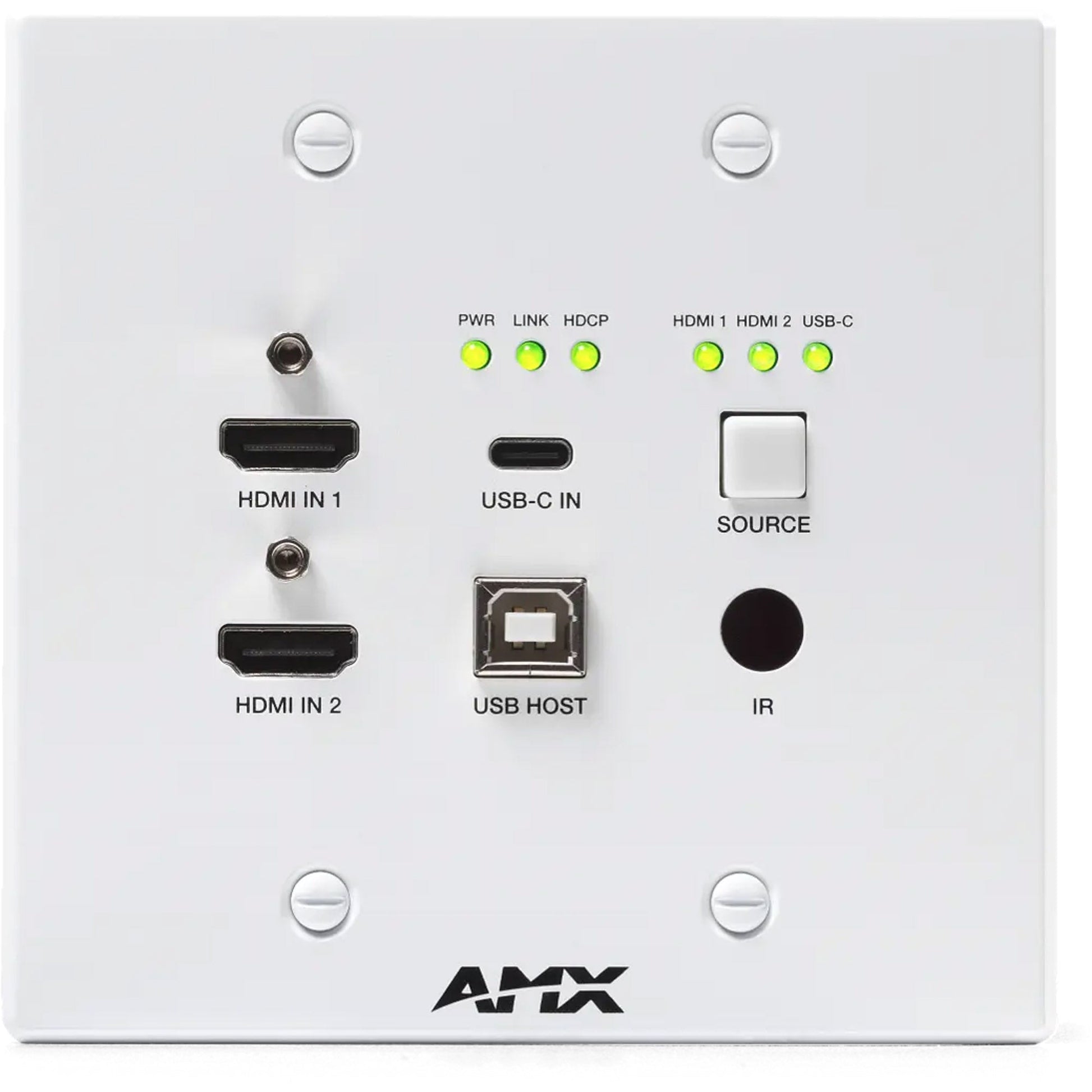

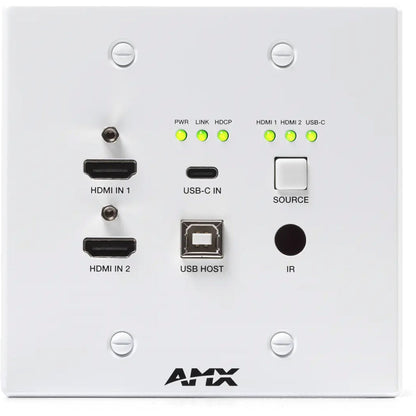

  • 3-Input Switching Wallplate Transmitter (2 HDMI, 1 USB-C) includes auto and manual switching modes, and support for transmission of uncompressed video and audio up to 40m/131ft at 4K or 70m/230ft at 1080P over shielded Cat 6/6A/7 cable

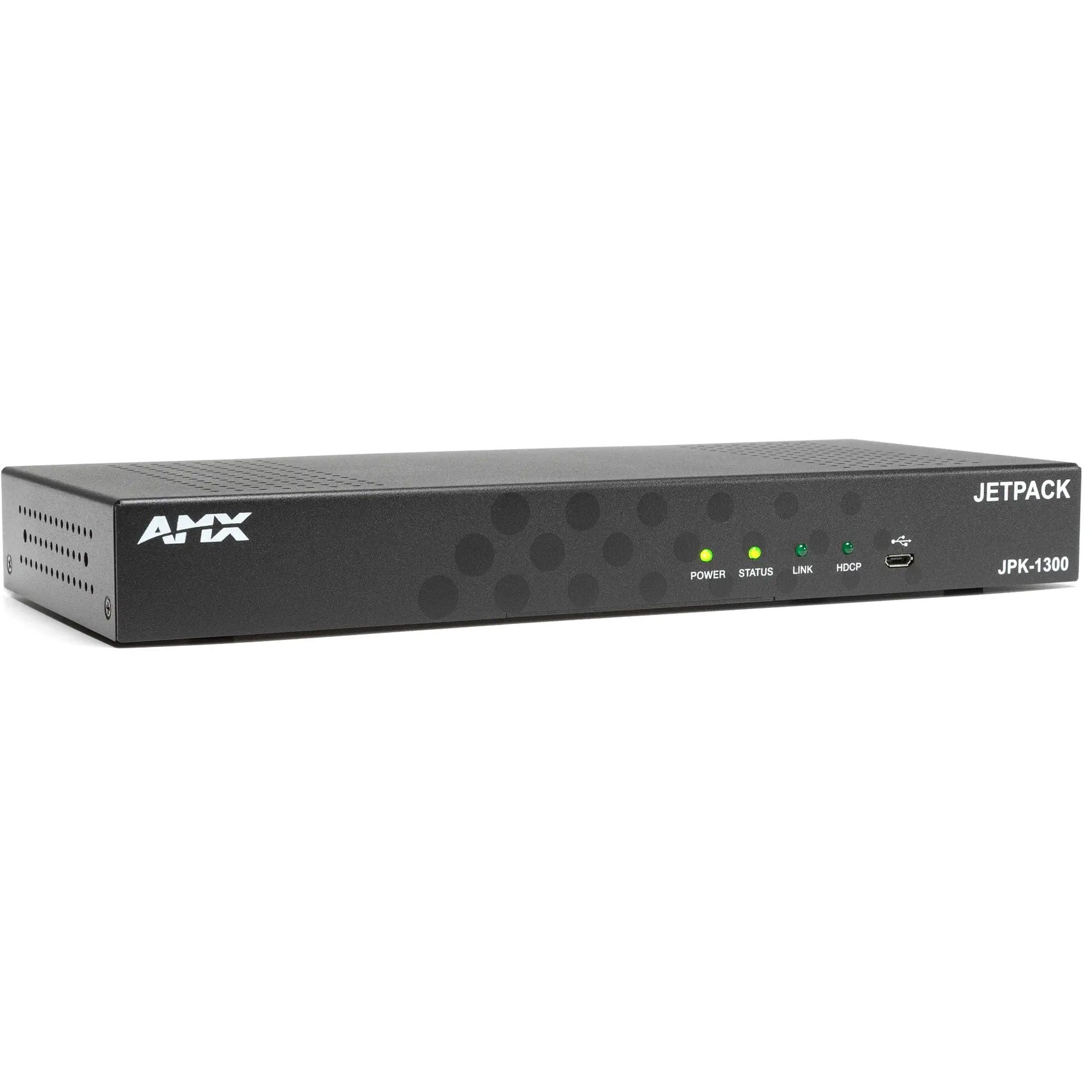

  • Multi-Function Receiver with Built-In 2x25W 4/8-ohm Amplifier, USB signal pass-through, RS232 control, Relay, IR, mic/line input, line out, remote mute, audio de-embedding, USB-AUDIO, ARC function, and CEC control (Embedded HDBaseT™ technology allows for full usage of HDMI and controls over Cat 6/6A/7 cable.)
  • Web Configuration for simplified installation
  • Jetpack Management PC tool included for campus wide room and device management
Log in or register for YOUR best price

AMX Jetpack is an incredibly affordable switching, transport, and control solution for K12 classrooms and small-to-medium meeting spaces that provides simple to operate room controls, multiple video inputs, and enables voice lift for clear communication with everyone in the space. The JPK-1300 combines 4K60 4:2:0 HDMI and USB-C video switching and distance transport, room control, wallplate accessibility, and audio amplification in a kit that requires zero programming and provides the security and reliability that AMX is well known to provide.

The kit is fully loaded to support a wide range of classroom and meeting space applications and can be controlled through panel buttons, RS-232, Telnet, SSH, a Web GUI, and the Jetpack Manager application.

View full details

Specifications

Video Inputs
PK-1300 TX
  • (2) HDMI; supports HDMI/HDCP
  • (1) USB-C; supports HDMI/HDCP
Video Outputs
PK-1300 RX
  • (1) HDMI; supports HDMI/HDCP
Video Resolution Support
Various up to 4096 x 2160@ 60 Hz - Reference Data Sheet for Specific Resolution Support
Audio Inputs
PK-1300 TX
  • (2) HDMI; Embedded audio on HDMI; supports 2 CH L-PCM de-embedding and pass-through of PCM 2-Channel
  • (1) USB-C; Embedded audio on HDMI; supports 2 CH L-PCM de-embedding and pass-through of PCM 2-Channel; USB 2.0 Audio
JPK-1300 RX
  • (1) MIC/LINE; analog audio
Audio Outputs
PK-1300 RX
  • (1) AMP OUT, 2x25W 4/8 Ohm
  • (1) AUDIO OUT, 2 channel analog line level audio output
USB Pass-Through Bandwidth
Maximum Supported: 220 Mbps
Ports
PK-1300 TX
  • (2) HDMI Type A Port (Audio, Video)
  • (1) USB Type C Port (Audio, Video, USB 2.0)
  • (1) USB Type B Port (USB Host)
  • (1) MICRO USB Port (Program)
  • (1) RJ-45; (AV Link - Connection to RX)
  • (1) RJ-45; (Control - Connection to Keypad)

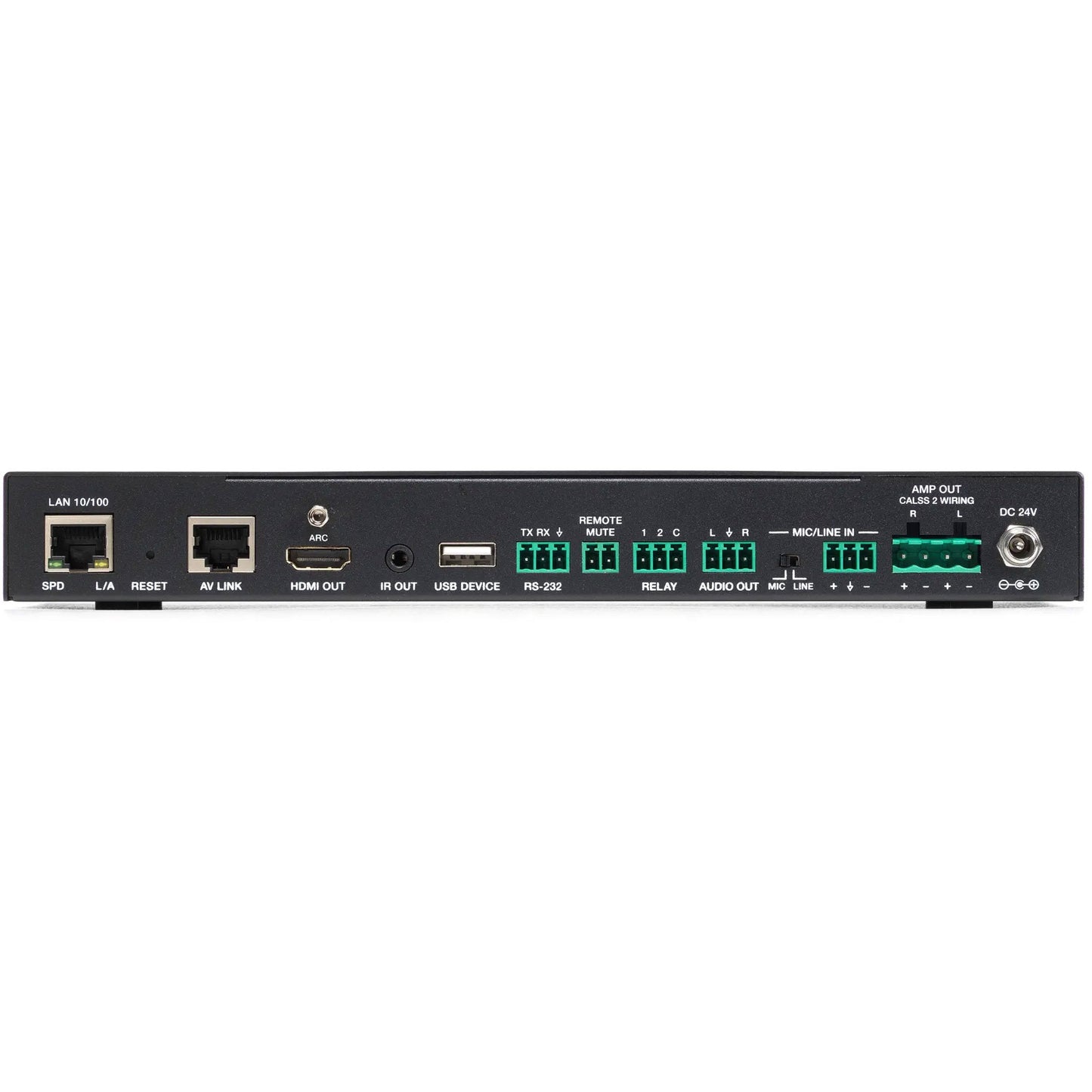

JPK-1300 RX
  • (1) Screw Down Locking Power Connector (DC Power)
  • (1) HDMI Type A Port (Audio, Video)
  • (1) USB Type A Port (USB Device)
  • (1) MICRO USB Port (Program)
  • (1) 3.5 mm Mini-Stereo Jack (IR Out)
  • (1) RJ-45 Connector, TCP/IP Port (LAN 10/100)
  • (1) RJ-45 (AV Link – Connection to TX)
  • (1) 3-pin 3.81 mm pluggable Phoenix Terminal Blocks (RS-232)
  • (1) 3-pin 3.81 mm pluggable Phoenix Terminal Blocks (Relays)
  • (1) 2-pin 3.81 mm pluggable Phoenix Terminal Blocks (REMOTE MUTE)
  • (1) 3-pin 3.81 mm pluggable Phoenix Terminal Blocks (Audio Out)
  • (1) 4-pin 5.08 mm pluggable Phoenix Terminal Blocks (AMP OUT)
  • (1) 3-pin 3.81 mm pluggable Phoenix Terminal Blocks (MIC/LINE IN)
Environmental
Temperature (Operating): 32°F (0°C) to 104°F (40°C)
Temperature (Storage): -4°F (-20°C) to 140°F (60°C)
Humidity (Operating): 20% to 90% RH (non-condensing)
Humidity (Storage): 20% to 90% RH (non-condensing)
Thermal Dissipation (Typical): JPK-1300 Kit, 80 Watts BTU/hr
Regulatory Compliance
FCC Part 15 Class B
EN 55032
EN 55035
CB IEC/EN 60950
CB IEC/EN 62368-1
UL 62368-1
RoHS/REACH
EMC (Australia)
EMC (Canada)
EMC (UKCA)
Prop65
Dimensions (H x W x D)
UA version:
  • Keypad:
    Front panel: 70mm x 114mm x 22.2mm / 2.76” x 4.49” x 0.87”
    Rear case: 69.4mm x 48.4mm x 17.2mm / 2.73” x 1.91” x 0.68”
  • Wall-plate Transmitter:
    Front panel: 116mm x 114mm x 39.2mm / 4.57” x 4.49” x 1.54”
    Rear case: 85.8mm x 52.6mm x 34.2mm / 3.38” x 2.07” x 1.35”
  • Receiver: 250mm x 30mm x 104mm / 9.84” x 1.18” x 4.09”
EK version:
  • Keypad:
    Front panel: 146mm x 85mm x 22.2mm / 5.75” x 3.35” x 0.87”
    Rear case: 69.4mm x 48.4mm x 17.2mm / 2.73” x 1.91” x 0.68”
  • Wall-plate Transmitter:
    Front panel: 146mm x 85mm x 39.2mm / 5.75” x 3.35” x 1.54”
    Rear case: 85.8mm x 52.6mm x 34.2mm / 3.38” x 2.07” x 1.35”
  • Receiver: 250mm x 30mm x 104mm / 9.84” x 1.18” x 4.09”
Weight
UA version:
  • Keypad: 0.19kg/0.42lb
  • Wall-plate Transmitter: 0.35kg/0.77lb
  • Receiver: 0.81kg/1.79lb
EK version:
  • Keypad: 0.23kg/0.51lb
  • Wall-plate Transmitter: 0.33kg/0.73lb
  • Receiver: 0.81kg/1.79lb
FG Numbers
AMX-VTK-0001 (JPK-1300-UA)
AMX-VTK-0001-EK (JPK-1300-EK)
