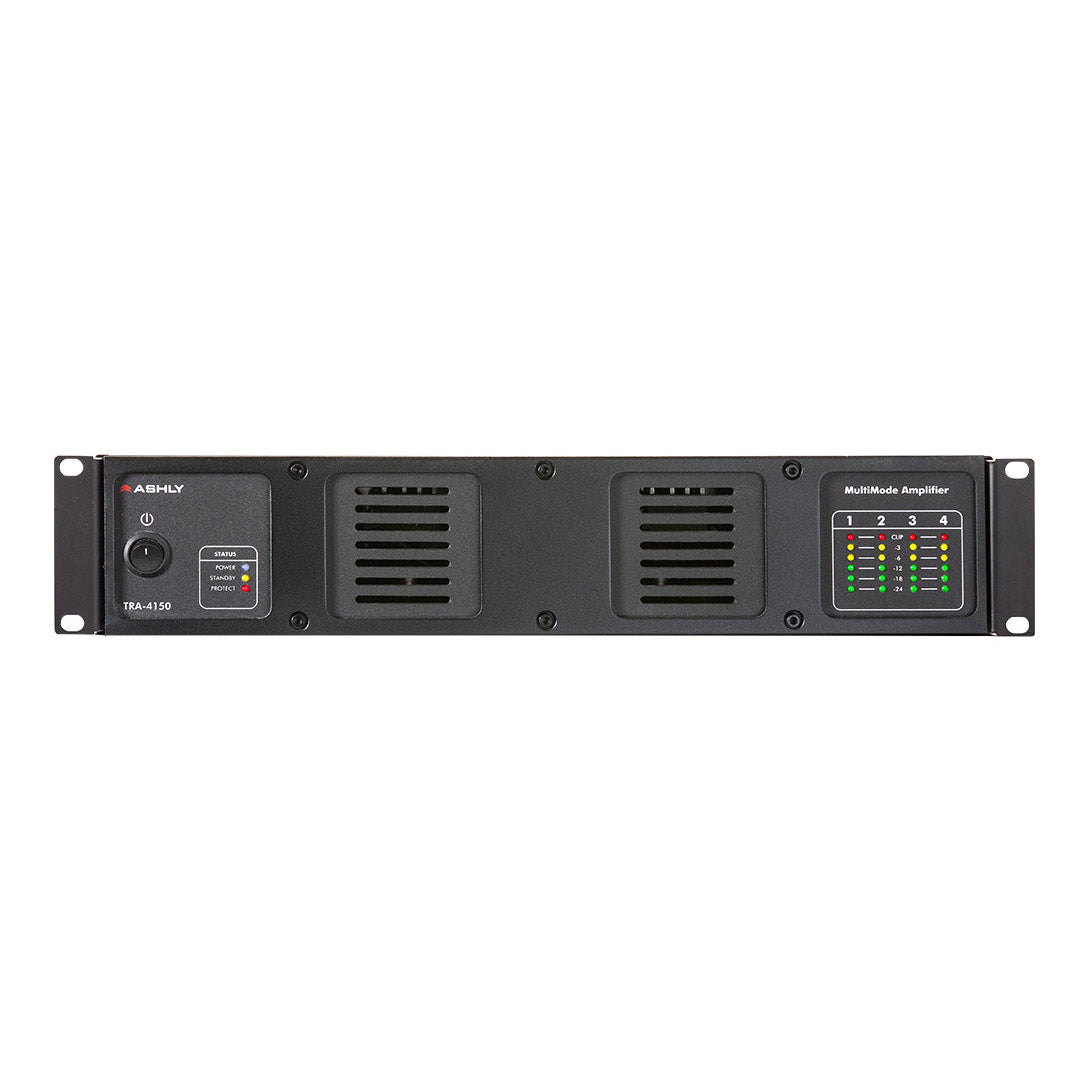

• Ashly TRA-4150 Power Amplifier
1 1

Ashly TRA-4150 Power Amplifier

Ashly TRA-4150 Power Amplifier

SoundPro Item: 41434 | Part Number: TRA-4150-120V-U

$1,819.00
$2,274.00 $1,819.00
Your Price Sold out
MSRP: $2,274.00 | MAP: $1,819.00

Usually ships in 5-7 business days

  • Convection cooling
  • 2RU configuration
  • Extremely low ambient noise
  • Internally-mounted constant voltage transformers
  • Extensive protection circuitry including output overcurrent protection, DC output protection, main supply rail overvoltage protection, in-rush limiting and mains fuse
  • 6-step signal level and clip LEDs
  • Rear panel level attenuators for each channel
  • Rear panel Gain Switch: +36 dB or +26dB input sensitivity
  • Euroblock inputs/outputs
  • Selectable input sensitivity (voltage gain)
  • Remote stand-by control
  • Adjustable turn-on delay up to eight seconds
  • Safety/Compliance: TUV, CE, FCC, RoHS
  • 5-Year Warranty
Log in or register for YOUR best price

These 2 rack space amplifiers utilize Ashly's advanced, efficient amplifiers perfect for low impedance, 25V, 70V or 100V installations with modest power requirements.They also feature a switch-mode power supply with Class-D circuitry, providing an extremely power-efficient solution. All TRA Series amplifiers are convection-cooled, so there’s little maintenance after the installation, and no annoying fan noise.

A 6-step LED meter for each channel lets you monitor all levels. TRA amplifiers can drive 4 or 8 Ohm loads and 25V or 70V and 100V Constant Voltage lines simultaneously. Output transformers are internally mounted. All TRA audio controls are on the rear panel.

The TRA-4150 is 4 channels with 150 watts per channel. The 150W models are capable of driving 25V Constant Voltage lines using the direct coupled 4 Ohm output.

View full details

Specifications

Dimensions
Dimensions (WxHxD)
19" x 3.5" x 12"
Electrical
Distortion (THD-N, typical)
< 0.5%–8 Ohm load, 10dB below rated power, 20Hz–20kHz
Constant Voltage Options
80Hz - 20kHz, 1% THD, All Channels Driven
Line Current Draw
All Channels Driven @ 4Ω
Audio
Frequency Response (8Ω)
20Hz–20kHz, ± 1.0 dB, -3dBu @ 80Hz Due to internal HPF
Input Impedance
20k ohms, balanced
Input Sensitivity
1dBu (75W), 4dBu (150W)
Sensitivity
+26dB, +36dB, Remote Stand-by, Delay
Channels
4
Max Output Power
Per Channel, 80Hz - 20kHz, 1% THD, All Channels Driven
Connectivity
Max. Input Level
+21dBu
Output Circuitry
Class D
Construction
Gain
26dBu, 36dBu, selectable
Included Items
Front Panel
Indicators (LED color)
Shipping
Weight
30 pounds
General
Distortion (SMPTE, typical)
< 0.5%–8 Ohm load, 10dB below rated power
Damping Factor (8Ω Load, <1kHz)
> 200 into 8 Ohms
HPF
80Hz 2nd Order, defeatable
Cooling
convection
Amplifier/Load Protection
Output Overcurent, DC Output, Main Supply Rail Overvoltage, Chassis Temperature, Inrush Limiting, Mains Fuse
Environmental
40°-120°F (4-49°C) noncondensing
Controls
AC power switch
Rear Panel
Connectors (each channel)
Cordset
3-prong IEC
4Ω
150W
8Ω
80W
25V (per channel)
150W
70V (per channel)
150W
100V (per channel)
150W
Standby Mode
102mA
No Signal (idle)
660mA
Typical (1/8 Power Pink noise)
1.95A
Max (1/3 Power Sine wave)
3.80A
Thermal Dissipation
BTU/hr, All Channels Driven @ 4Ω
No Signal
137
20Hz - 20kHz, Unweighted
>103dB
Power Req.
120VAC, 240VAC ±10%, 50/60Hz (factory set)
