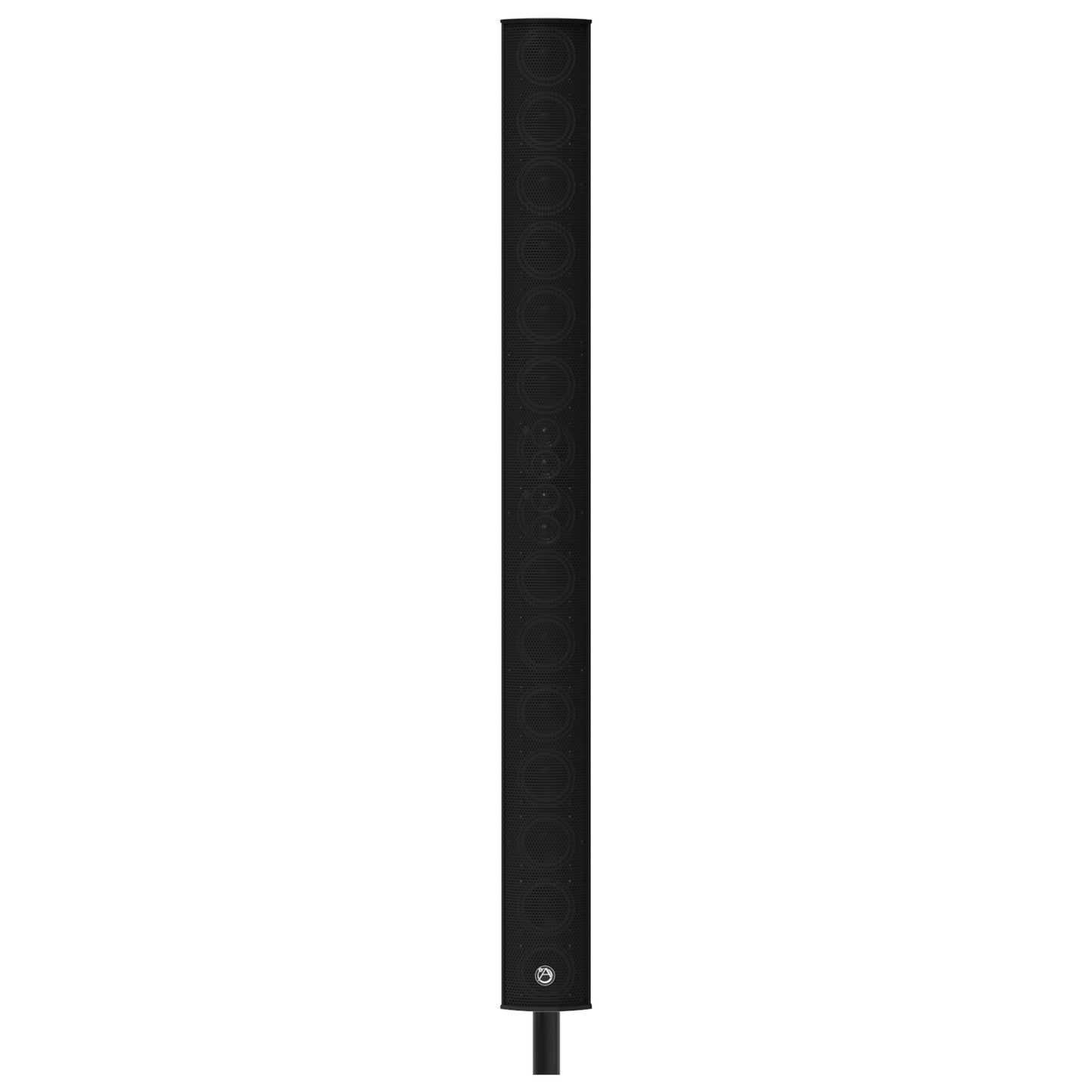

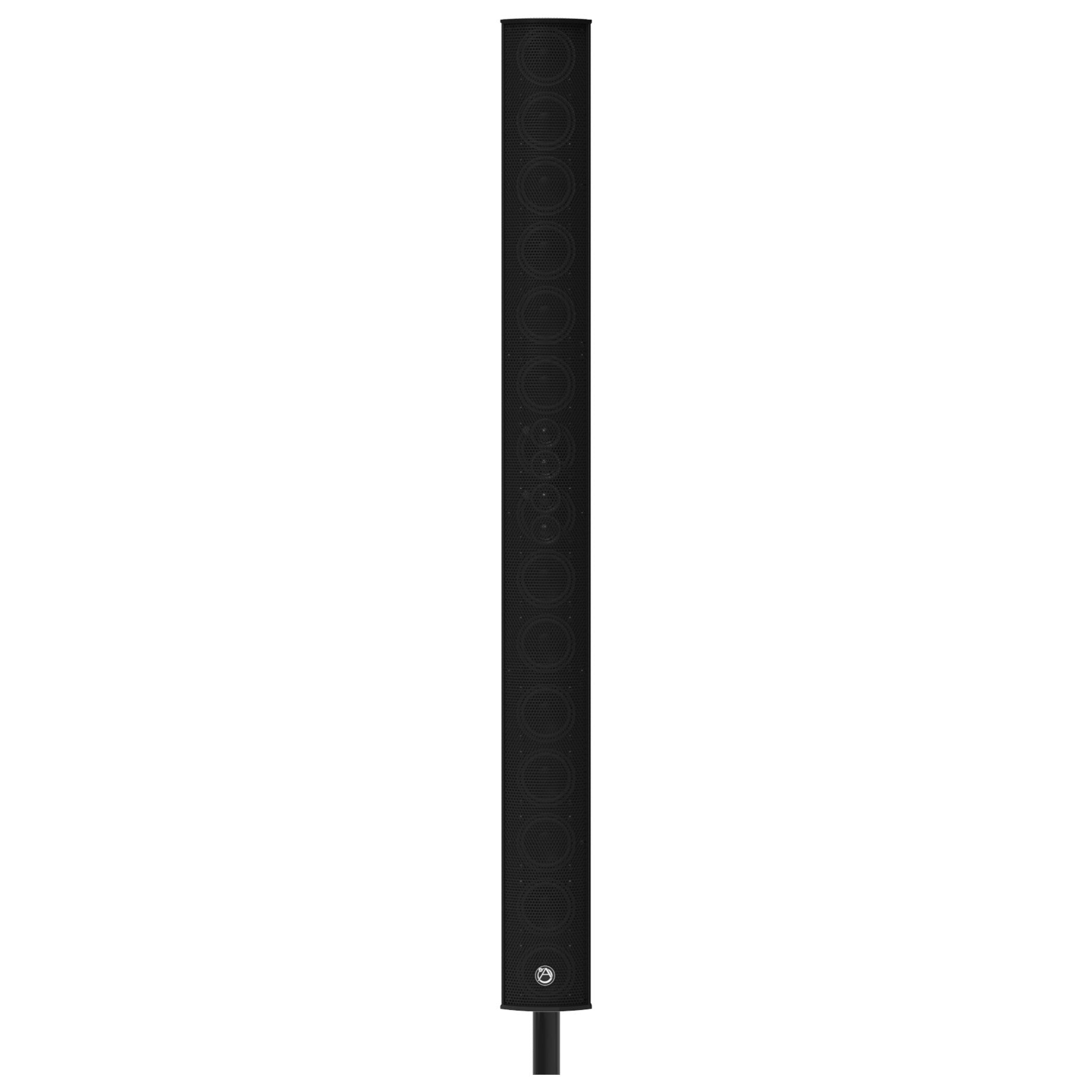

AtlasIED ALA15TAW Surface-Mount Column Line Array Speaker | Color: Black
AtlasIED ALA15TAW Surface-Mount Column Line Array Speaker | Color: Black
SoundPro Item: 124356 | Part Number: ALA15TAW-B
Usually ships in 5-7 business days
- 45° Vertical Coverage
- 135° Horizontal Coverage
- Fifteen (15) Proprietary 3" (76mm) Full Range Drivers
- Four (4) High Frequency Tweeters
- Barrier Strip and NL-4 Terminals
- Lightweight Aluminum Housing
- Wall Mount Bracket Included

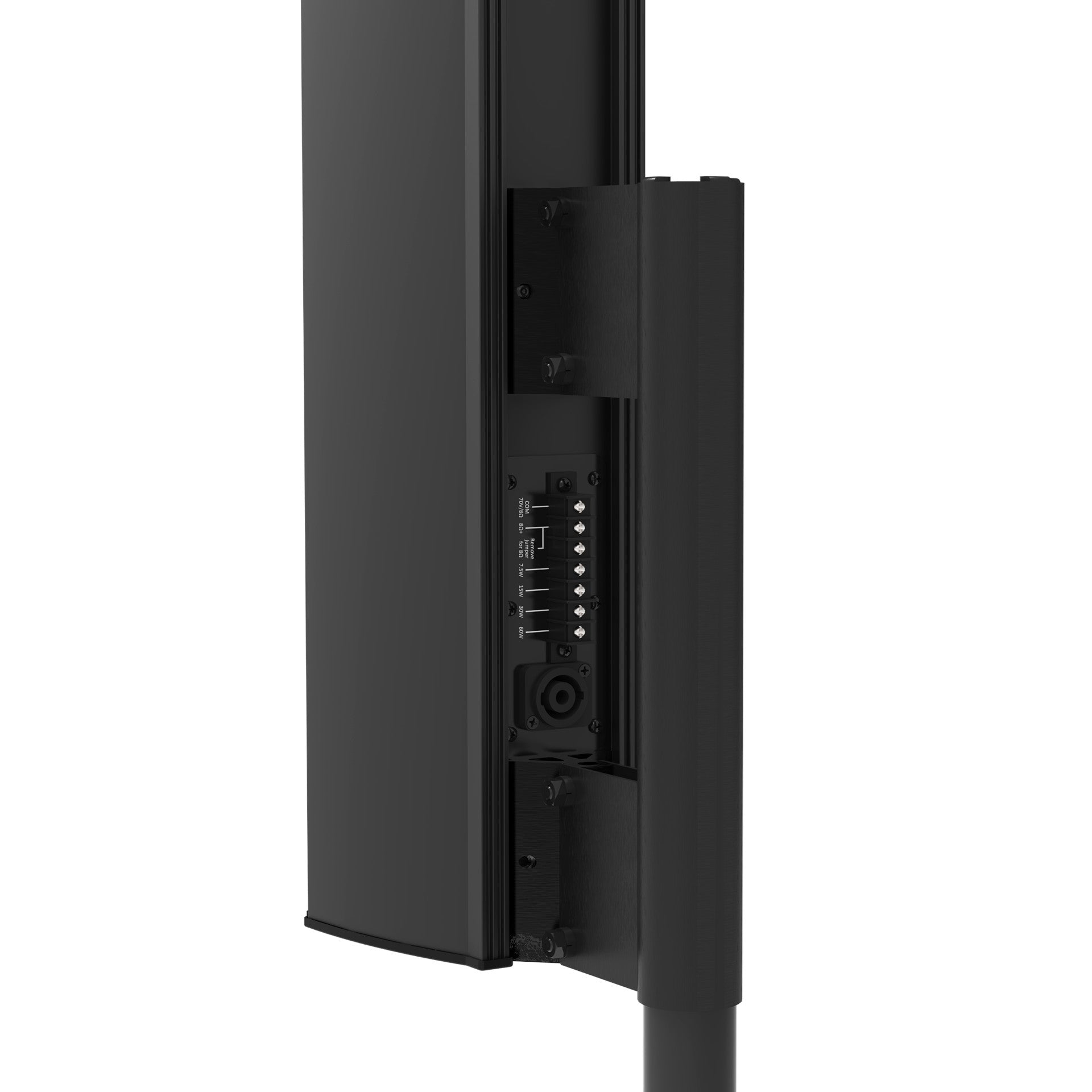

The EN54-24 certified ALA15TAW column line array loudspeaker delivers maximum performance in a minimum footprint and excels in applications that require excellent speech intelligibility. The ALA15TAW’s transducer configuration combines fifteen tight packed 3" (76mm) full range drivers and four 22mm high frequency tweeters in an extruded aluminum housing to offer both durability and optimum sound reproduction. The lightweight and easy to install enclosure has contemporary aesthetics that are a compliment to any environment. The back of the enclosure incorporates vertical channels that accept the included wall mount allowing the installer to slide the mount to the location that provides the desired vertical tilt. An optional pole mount bracket enables the array to be used in portable applications coupled with a portable A-Line subwoofer system.
- 6Ω RMS Power600 Watts
- 70.7V Power Taps 60W (81 Ohm), 30W (163 Ohm), 15W (326 Ohm), 7.5W (653 Ohm) and Low Impedance (6Ω)
- 100V Power Taps 60W (163 Ohm) RNP, 30W (326 Ohm), 15W (653 Ohm) and Low Impedance (6Ω)
- Dispersion 135° H x 40° V
- Sensitivity 96dB (1W/1m)
- Sensitivity (EN54-24) 81dB (1W/4m)
- Frequency Response 160Hz - 20kHz (+/-5dB)
- Height 49.37" (1254mm)
- Depth 5.43 (137.9mm)
- Width 4.61" (117mm)
