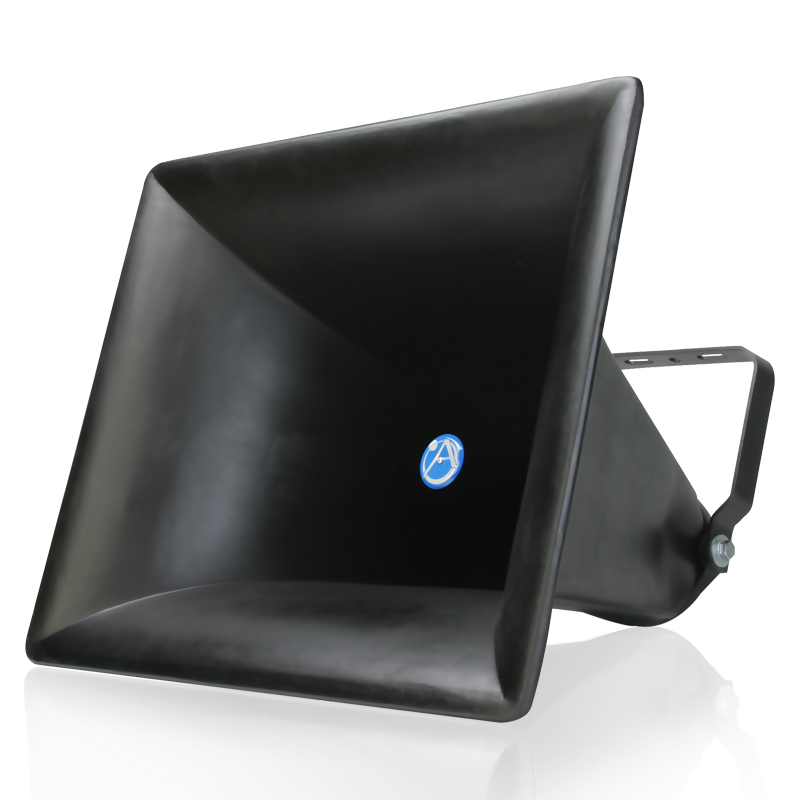

AtlasIED CD42 40° X 20° Constant Directivity Re-Entrant Paging Horn

AtlasIED CD42 40° X 20° Constant Directivity Re-Entrant Paging Horn

SoundPro Item: 14351 | Part Number: CD42

$573.99
$714.99 $573.99
Your Price Sold out
MSRP: $714.99 | MAP: $573.99

Usually ships in 5-7 business days

  • Coverage of 40° X 20° Across a Wide Frequency Range for Predictable Beamwidth Control
  • Nominal Frequency Response of 800Hz - 10kHz for High-Intelligibility Voice, Signaling
  • Environment-Resistant Construction for Outdoor/ Indoor Applications
  • Accepts All Atlas Sound and 1 3/8" - 18 Thread Compression Drivers with Throat Openings of 0.7" Dia.
  • Patented 180° Gimbal-Mount for Installation Flexibility
Log in or register for YOUR best price

The Industry's Only Constant Directivity Re-Entrant Horn, CD Series horns from AtlasIED provide greatly improved uniform sound coverage compared to conical designs. With all models the horizontal coverage pattern is precisely controlled over a frequency range. For mounting, the proven CJ46 style heavy-duty steel mounting bracket is utilized with positive lock for horizontal and vertical positioning in single or stacked multi-unit clusters. Construction is polyester resin and glass-fiber laminate integrally molded to a die-cast zinc throat section. Recommended AtlasIED Drivers: PD30 Series, PD-5 Series, PD60 Series.

View full details

Specifications

SPL (1W/1M) w/ PD60 Driver
113dB
Dispersion
H, 40°, ±10°, 800Hz-10kHz, V, 20°, ±10°, 2kHz-10kHz
Low Frequency Cut Off
300Hz
Air Column Length
5'
Height
21 1/4"
Width
25 1/2"
Depth
22"
Warranty Period
60 months from date of purchase
