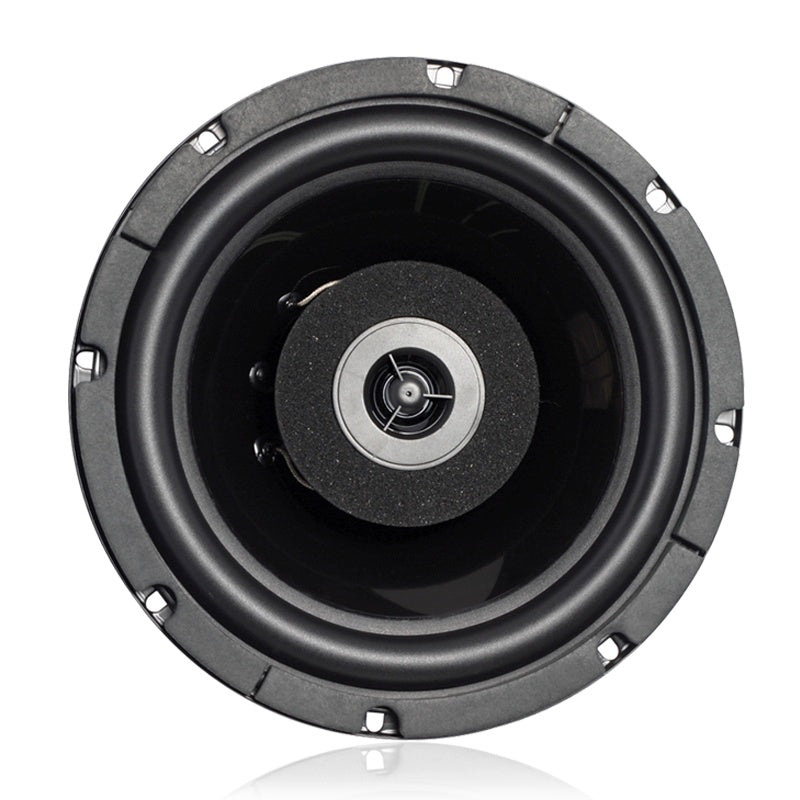

AtlasIED FA138 8" Coaxial 100-Watt 8 Ohm In-Ceiling Speaker

AtlasIED FA138 8" Coaxial 100-Watt 8 Ohm In-Ceiling Speaker

SoundPro Item: 15507 | Part Number: FA138

Regular price $86.99
Regular price $106.99 Sale price $86.99
Your Price Sold out
MSRP: $106.99 | MAP: $86.99

In stock and ready to ship

  • 100-Watt Unit Offers Extended Sound Pressure Levels for High/Vaulted Ceiling Applications
  • Conveniently Front Loads into Acoustically-Matched System Enclosures or Mounting Ring
  • Top-of-the-Line 8" Coaxial Loudspeaker Delivers Full-Frequency Response with Superior Fidelity
  • UL Certified, Safety Listed to UL1480

Model FA138 is AtlasIED's premium 8" coaxial speaker. This 100-watt unit includes a circuit board mounted high-pass/low-pass crossover which produces outstanding sound quality.

Model FA138 contains a reinforced polypropylene cone woofer, a custom butyl rubber surround, a 1 1/2" vented Kapton voice coil, a 21oz. magnet and a 1/2" mylar-dome ferrofluid tweeter for clean and powerful weather-resistant performance.

For optimum acoustic and application versatility the Strategy series has been engineered as a system offering both the FA97-8 Series high performance enclosures (.22ft3) with acoustic batting as well as the economy FA95-6 Series (.17ft3) backbox enclosures. The enclosure front-loads the speaker and installs quickly and easily into the ceiling using only a screwdriver to adjust the rotating clamps.
Speakers may also be ceiling or wall mounted into areas with minimum depth by using plaster ring Model FAPR-8 instead of an enclosure.

Baffle selection includes a choice of two attractive grilles which are equipped with three serrated studs for hardware-free, push-on installation into Strategy Series enclosures.

For limited depth installations when no enclosure is required mounting ring model FAPR-8 may be utilized. New construction ring model FA-TR8 is also available to serve as a pattern cut-out and location marker for drywall installers in new construction applications.

View full details

Specifications

Speaker Type
Coaxial
Sensitivity
89.5dB Average, 93dB Peak
Power Taps
8 ohms
Frequency Response
75Hz - 20kHz
Dispersion
110°
Diameter
8 1/4" (20.955 cm)
Depth
3 5/8" (9.144 cm)
Shipping Weight
5.20 lbs (2.36 kgs)
Safety Listed
1480 / 2043
Warranty Period
60 months from date of purchase
