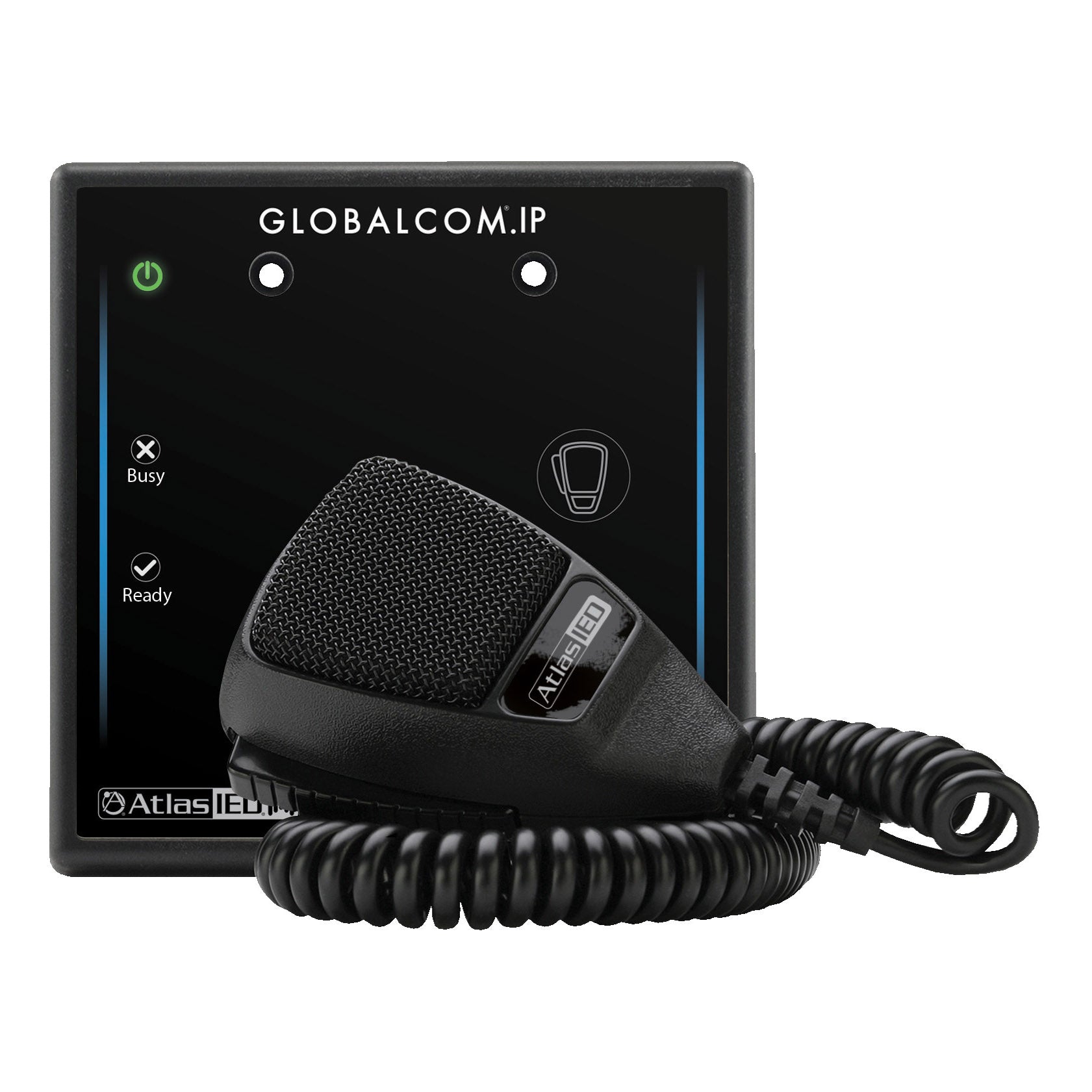

AtlasIED IPCSD1 Dante PTT Only Programmable Microphone Station
AtlasIED IPCSD1 Dante PTT Only Programmable Microphone Station
SoundPro Item: 115883 | Part Number: IPCSD1
Usually ships in 5-7 business days
The IPCSD1 is a push-to-talk switch only digital microphone station designed to work within a GLOBALCOM®.IP system. It is a network appliance with a unique IP address that requires no configuration. The IPCSD1 uses a single Ethernet interface for audio and control data. The IPCSD1 is fully compatible with IEEE 802.3af standard for Power over Ethernet (PoE), allowing the microphone station to be powered directly from any standard off-the-shelf PoE switch.
The IPCSD1 utilizes Dante™ technology for transporting high-quality, low-latency digital audio over Ethernet. The IPCSD1 microphone station may be used for emergency evacuation and life safety systems. Instead, in a dual-use system, these microphone stations may be used for everyday paging functions.
It is compatible with IP108-D or IP116-D ACS™ Controllers with Dante™ capability.
- Frequency Response +2dB, -5dB (22Hz - 22kHz, Input Level)
- Total Harmonic Distortion<1.0% (22Hz - 22kHz, Input Level)
- Signal to Noise Ratio>85dB (22Hz - 22kHz, Input Level)
- Sample Rate 48kHz
- Compression Threshold -14dBu
- Operating Temperature Range +32°F to +104°F (0°C to +40°C)
- Dimensions (W x H x D) 4.95 x 4.95 x 1.9 inches
- Analog-to-Digital Converter 24 Bit
- Storage Temperature Range –40°F to +158°F (–40°C to +70°C)
- Supply Voltage 48VDC
- Power Consumption < 4W
