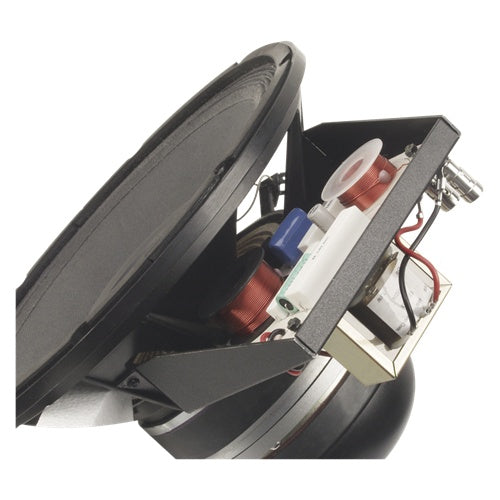

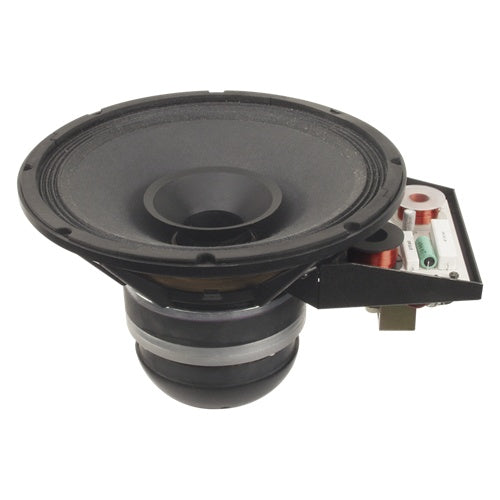

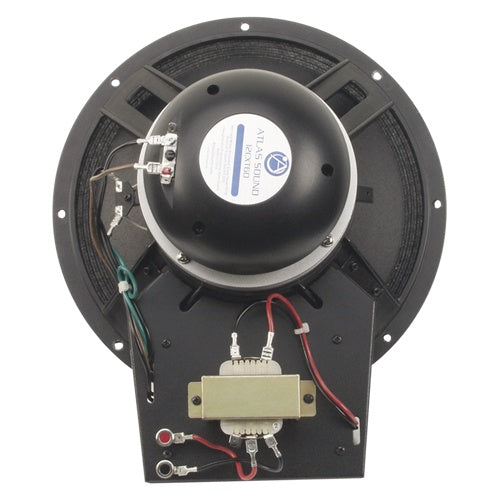

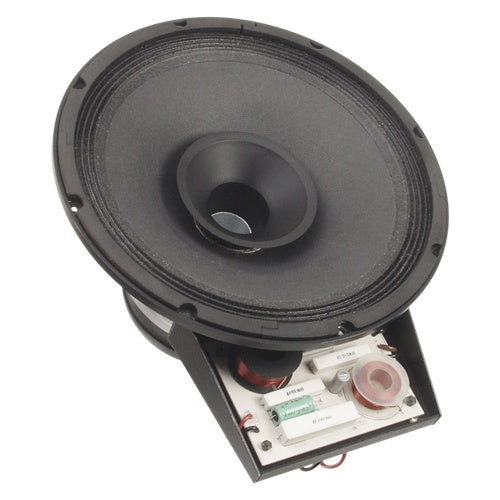

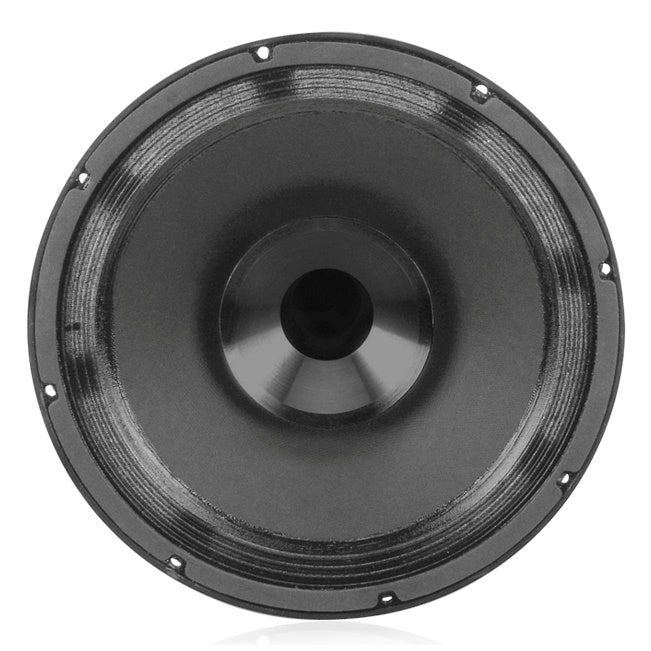

AtlasIED Coaxial Compression Driver with 60-Watt 70V/100V Transformer | 12"

The AtlasIED 12CXT60 is engineered for professional installed sound applications where a single coaxial transducer must deliver full-range reproduction across large distributed audio zones. By integrating a 12" curvilinear, treated paper cone woofer with a 1" exit true compression driver and a factory-installed 60W 70.7/100V step-down line transformer, this speaker eliminates the need for external transformer wiring while maintaining compatibility with standard 70V and 100V distributed systems common in commercial installations.

A built-in crossover network manages the transition between the low-frequency woofer and the high-frequency compression driver, with a specially designed conical wave-guide horn providing controlled 90-degree dispersion at the 2kHz octave band. This dispersion characteristic makes the 12CXT60 well-suited for venues requiring consistent coverage — including auditoriums, houses of worship, gymnasiums, and large conference spaces — where precise pattern control reduces acoustic interference.

The 12CXT60 is optimally matched for use with Atlas Sound Q Series enclosures, giving integrators a straightforward path to a complete, rack-compatible installed speaker solution. With a 250W power handling capacity, four selectable power taps, and a 60-month warranty, this driver is a reliable long-term choice for system designers specifying coaxial compression drivers in permanent installs.
