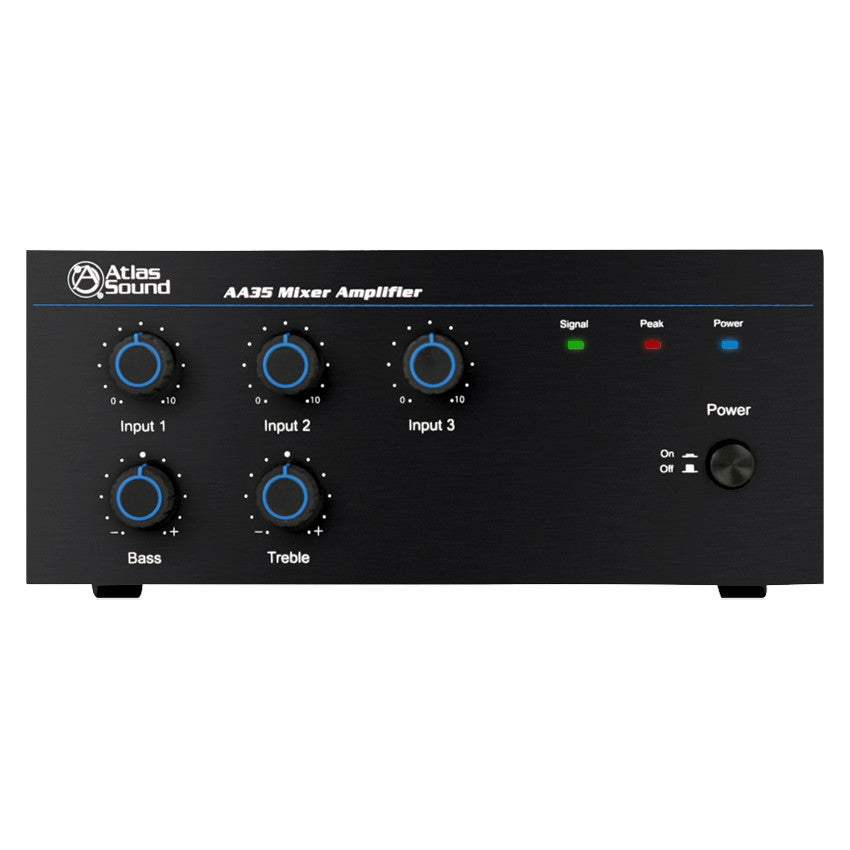

AtlasIED AA35 3-Input 35W Mixer Amplifier
AtlasIED AA35 3-Input 35W Mixer Amplifier
SoundPro Item: 47225 | Part Number: AA35G
Usually ships in 5-7 business days
- 1 Mic in w/phantom power
- 2 Stereo line inputs
- 35 Watts of true output power
- Dual line outputs
- Pre Out/ Power in patch
- Remote and VOX activated Mute
- Route any source combination or entire mix bus to Zone 2 (MOH Out)
- Special Low Cut filter is 6dBu / octave at 400Hz and also bypasses front panel bass control to allow use with paging horns like APX40TN and AP-15T
The AtlasIED AA35G is for distributed business paging and background music, small to med-sound masking systems, and where music on hold plus paging is required.
With one microphone input and two stereo line inputs, the AA35G will accommodate a variety of input sources including paging microphones, CD players, and digital music receivers. A dip switch selectable matrix allows the creation of a Zone 2 mix from any or all of the input sources for music or messaging on hold applications. 70.7V, 100V, and 8O outputs are provided.
- Frequency Response50Hz - 20kHz
- Connector TypePhoenix and RCA
- Output Power35 Watts
- Rack Units2 high 1/2 wide
- Height3 11/16" (9.2964 cm)
- Width8 1/4" (21.0058 cm)
- Depth10 7/8" (27.6098 cm)
- Shipping Weight10.2 lbs (4.63 kgs)
- Safety Listed60065-ROHS 2006 Compliant
- Voltage Compatibility110V - 120V
