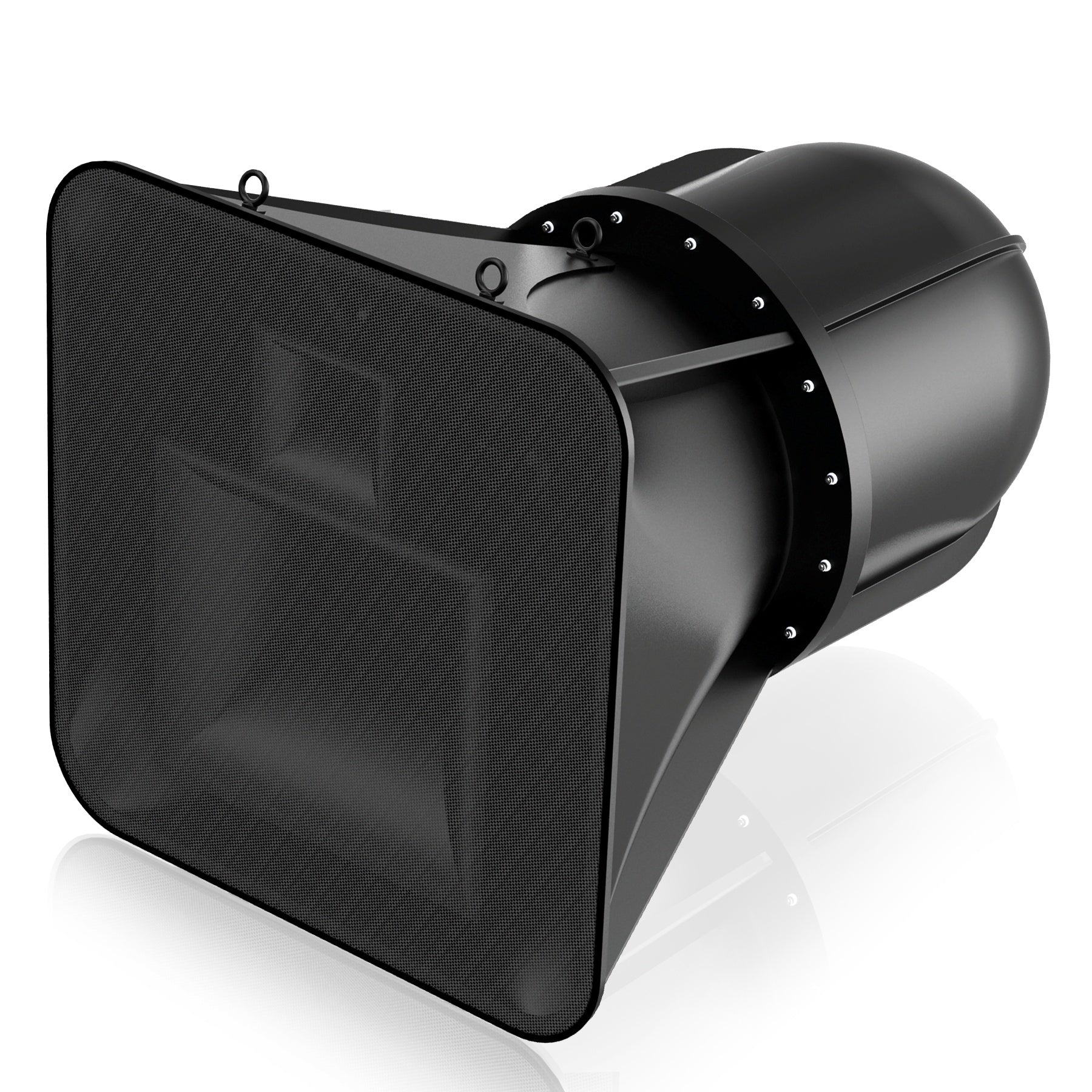

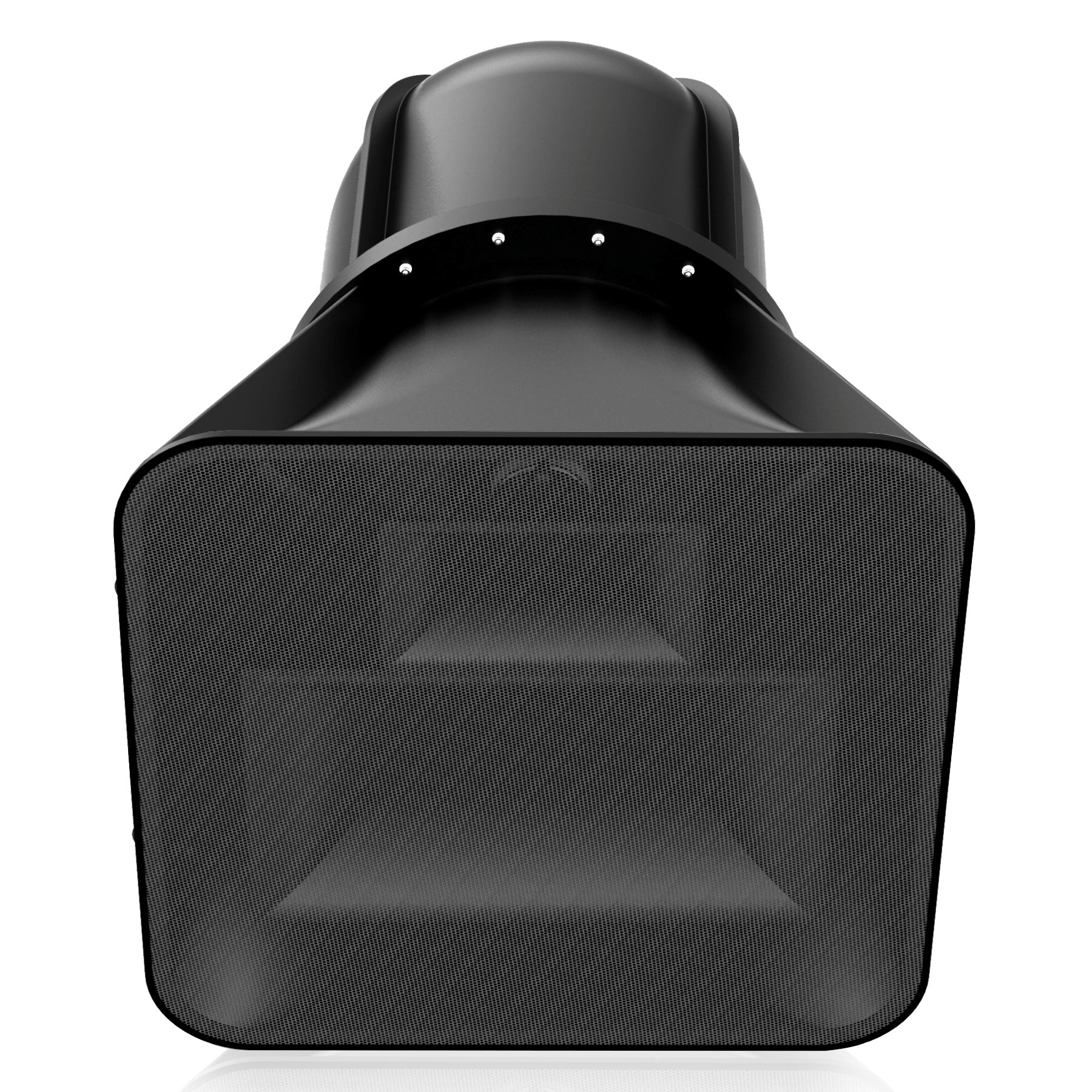

AtlasIED AH42-212 3-Way Stadium Horn System | Standard
AtlasIED AH42-212 3-Way Stadium Horn System | Standard
SoundPro Item: 13367 | Part Number: AH42-212
Usually ships in 5-7 business days
- 3-Way Driver Array Maximizes Intelligibility Across Full Frequency Range
- Dual Cast Frame Woofers Deliver Extended Low-Frequency Output For Stadium SPL
- UV-Resistant Fiberglass Enclosure Withstands Long-Term Outdoor Exposure
- Three-Stage Corrosion-Resistant Steel Mesh Filters Block Weather And Pest Intrusion
- Bi-Amp Capability Via Removable Jumper For High-Powered System Configurations
- Seven Internally Reinforced Forged Eyebolts Support Suspended Rigging Installations
- Recessed Weather-Resistant Terminal Block Protects Signal Connections At Installation
The AtlasIED AH42-212 is engineered for systems integrators and AV professionals who need reliable, high-output directional audio across large venues — stadiums, arenas, outdoor amphitheaters, and campus PA installations where weather exposure and pest intrusion are real operational concerns. The UV-resistant fiberglass enclosure paired with a three-stage corrosion-resistant steel mesh filtering system gives this system a durability profile that plastic-cabinet alternatives simply cannot match in long-term outdoor deployments.
The three-way driver configuration — dual 12" cast frame woofers on the low end, a 1.5" exit compression midrange driver, and a 1" exit high-frequency compression driver — delivers the kind of wideband coverage and intelligibility that single- or two-way horn systems compromise on. A purpose-built crossover manages frequency division and driver protection across all three bands. System designers working with high-powered racks can bi-amp the enclosure by removing the exterior LF/MF+HF jumper, with the Atlas ASP-MG24 speaker controller recommended for those configurations.
Installation teams benefit from seven internally reinforced 10mm forged eyebolts that support suspended rigging without the improvised hardware solutions common on lower-spec horns. The recessed weather-resistant terminal block on the enclosure bottom keeps signal connections protected from the elements while remaining accessible during service.
