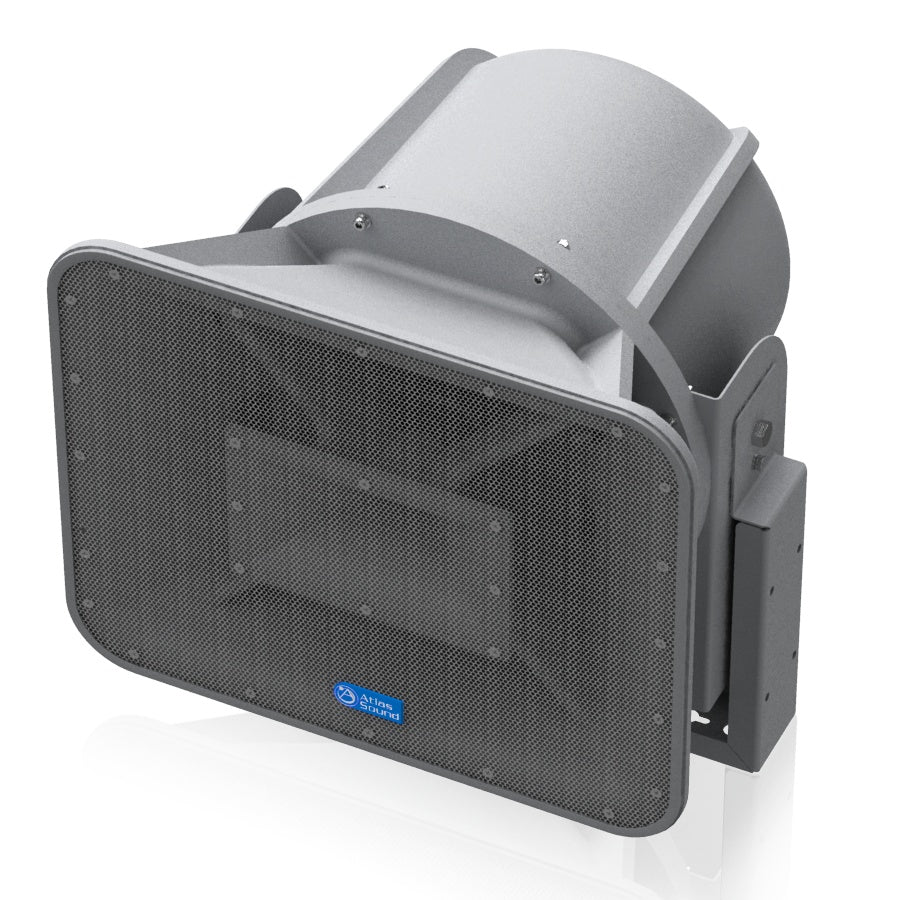

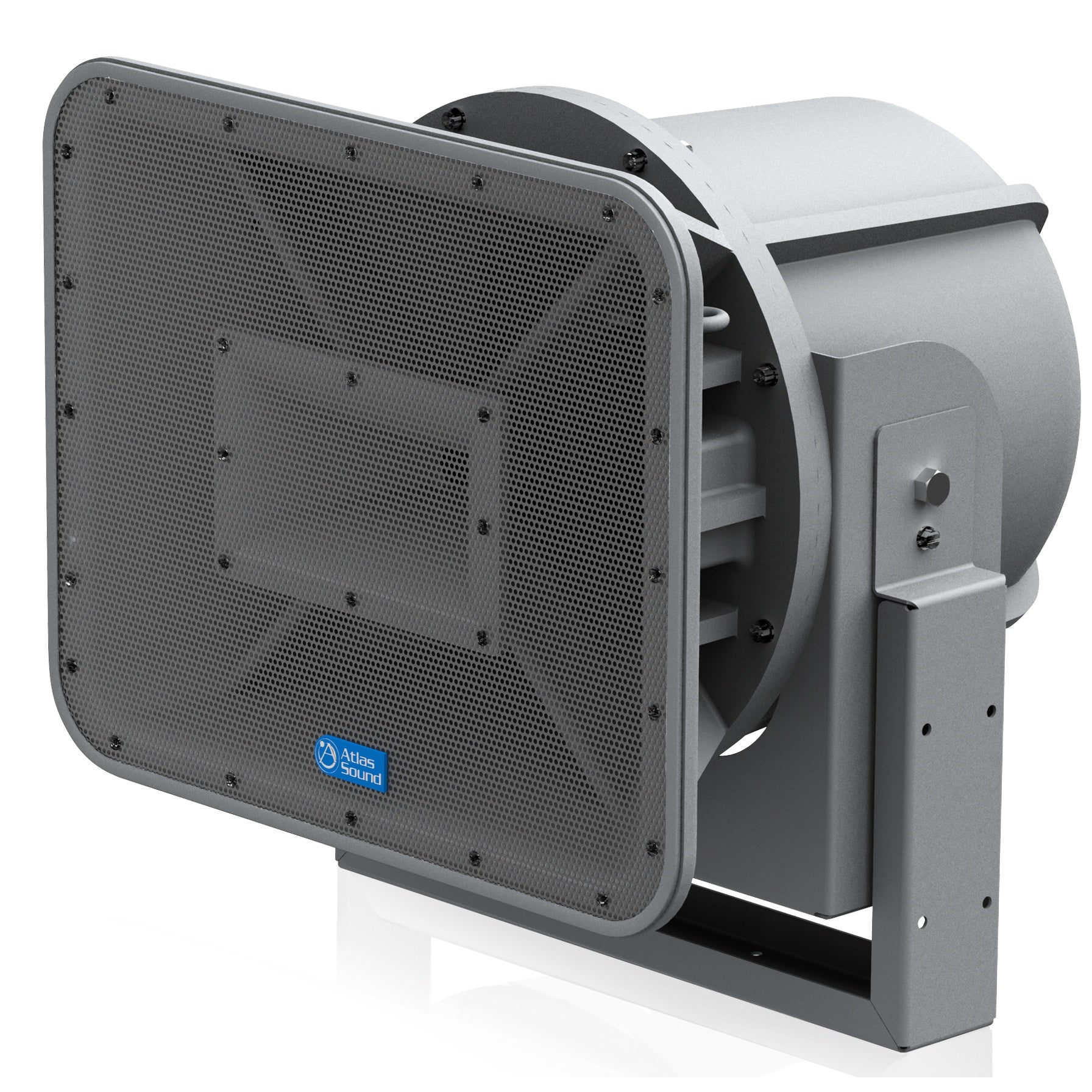

AtlasIED AH66-8T-BSG Stadium Horn 2-Way Speaker 65° x 65°
AtlasIED AH66-8T-BSG Stadium Horn 2-Way Speaker 65° x 65°
SoundPro Item: 13380 | Part Number: AH66-8T-BSG
Usually ships in 5-7 business days
- Constant Directivity Horn Delivers Predictable 65° x 65° Coverage For Accurate System Design
- Triple-Screen Weather Protection Shields All Drivers From Moisture And Environmental Exposure
- Weep Hole In Horn Bell Prevents Internal Condensation Buildup During Outdoor Operation
- Cast Frame Woofer With Concentrically Mounted Compression Driver Provides True Full-Range Output
- Multiple Transformer Tap Selections Enable Direct Integration Into 70V/100V Distributed Systems

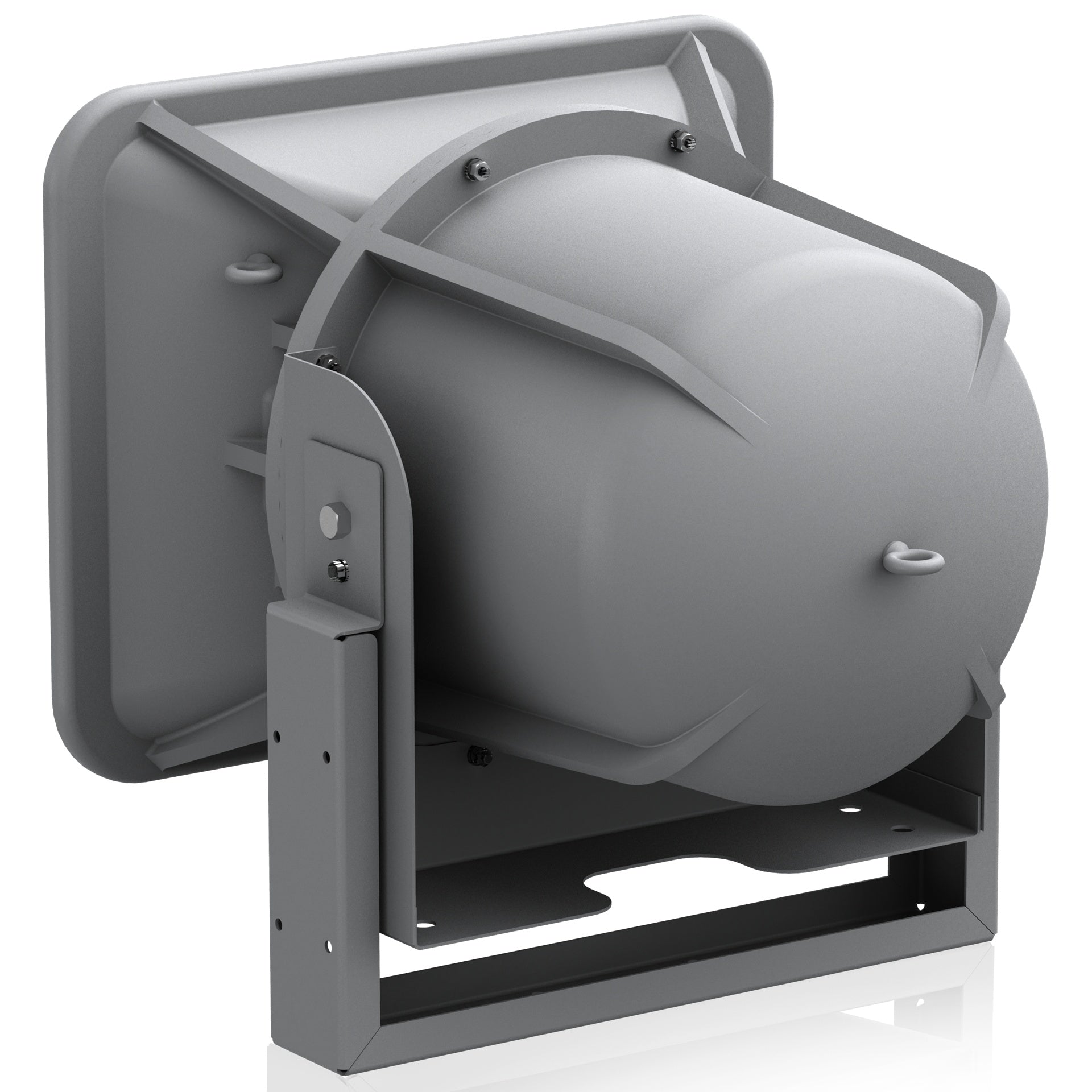

- Included Heavy-Duty Bracket Simplifies Mounting To Flat Structural Surfaces
- Battleship Gray Finish Blends With Stadium And Arena Infrastructure
The AtlasIED AH66-8T-BSG is built for integrators and system designers who need controlled, high-intelligibility audio coverage across large, reverberant spaces. Football stadiums, baseball fields, sports arenas, convention centers, and auditoriums are the primary targets — environments where uncontrolled dispersion destroys intelligibility and where equipment is exposed to the elements year-round.
A concentrically mounted 1" exit compression driver coupled to a constant directivity HF horn delivers consistent 65° horizontal by 65° vertical coverage, making aiming and system design predictable. The cast frame 8" woofer extends low-end response to 90Hz, giving this horn genuine full-range performance rather than the narrow-band output typical of pure paging horns. With a sensitivity of 100dB at 1W/1m and a maximum output of 120dB, the AH66-8T-BSG produces the SPL required to cut through crowd noise without over-driving the system.
Weather resistance is addressed at multiple levels: a perforated aluminum screen protects the horn mouth, a secondary screen shields the HF driver, a tightly perforated third screen guards the woofer, and a weep hole in the horn bell prevents condensation buildup. A heavy-duty mounting bracket is included, simplifying surface installation on concrete, steel, or structural framing common in stadium infrastructure. The 70V/100V transformer with multiple wattage taps integrates directly into distributed audio systems without additional hardware.
