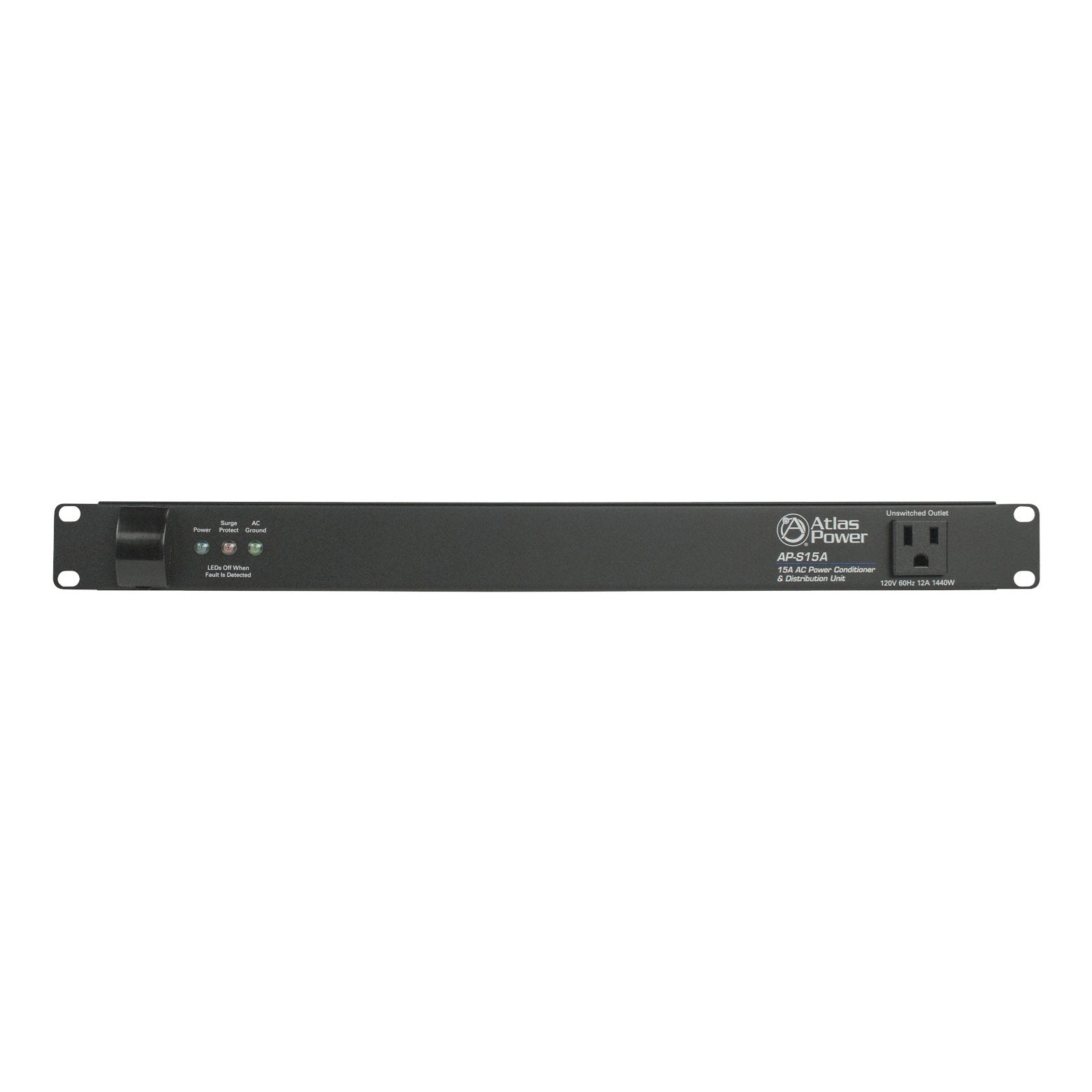

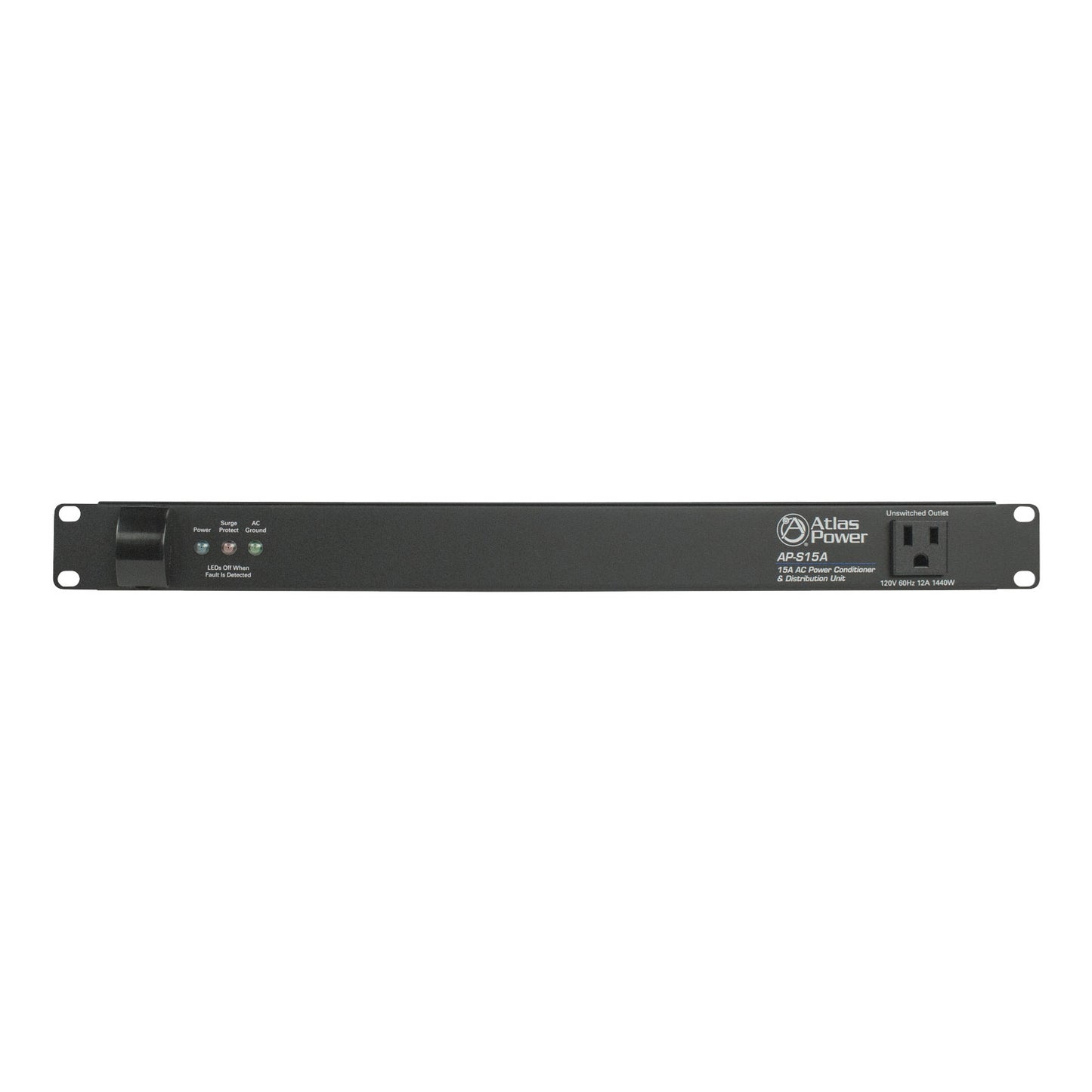

AtlasIED AP-S15A 15A Power Conditioner / Distribution Unit
AtlasIED AP-S15A 15A Power Conditioner / Distribution Unit
SoundPro Item: 13518 | Part Number: AP-S15A
Usually ships in 5-7 business days
- 9 Total Outlets
- 8 Rear Panel Outlets: 7 Switched and 1 Unswitched
- 1 Front Panel Outlet, Unswitched
- Radio Frequency and Electromagnetic Interference Filtering
- Circuit Breaker Protection @ 15A
- Spike Suppression Up to 6000V
- Removable 12' IEC Cord
The AP-S15A features noise filtering for unwanted Radio Frequency Interference (RFI) that is commonly introduced into AC lines by nearby radio transmitters or wireless products. EMI filters are also incorporated to reduce noise from Electromagnetic Interference (EMI) generated by items such as electric motors and switching power supplies.
Unstable AC Mains voltage is one of the main reasons for equipment failure. The amount of energy that can be injected into the power system can be immense with voltages reaching 6kV or amperage peaks of 3000A. These spikes are very fast and usually only last for a very short period of time. The AP-S15A's circuitry is very fast and can suppress unwanted energy within a nanosecond response and sustain the suppression up to 2 milliseconds. The AP-S15A includes a 12 foot removable IEC cord with retainer
- Current Rating 15 Amps
- Certified to Safety Listing MET (UL 1449)
- Operating Voltage 102-132VAC
- Minimum Spike Clamping Voltage 460 VRMS @ 3000A
- Maximum Spike Clamping Voltage 6000V
- Power Consumption 6 Watts
- AC Mains Power Cord 12' (4m)
- Height 1.75" (44.5mm)
- Width 19" (482.6mm)
- Depth 5" (127mm)
- Weight 5 lbs (2.27 kg)
