AtlasIED AP-S20RT 20A Power Distribution With Surge Suppression
AtlasIED AP-S20RT 20A Power Distribution With Surge Suppression
SoundPro Item: 13524 | Part Number: AP-S20RT
Usually ships in 5-7 business days
- Extreme Voltage Shutdown (EVS) Disconnects Switched Outlets During Unsafe Line Conditions
- Remote Activation Via Dry Contact Or DC Voltage Enables Control System Integration
- Emergency Power Down (EPD) Function Supports Integration With Fire Control Panels
- Nanosecond Spike Suppression Circuitry Sustained Up To 2 Milliseconds
- EMI And RFI Filtering Reduces Interference From Motors And Wireless Transmitters
- Rear XLR Connector Supplies 12VDC For Remote Status LED Monitoring
- Rear-Mounted Bypass Switch Overrides Remote Activation For Local Manual Control
The AtlasIED AP-S20RT is built for AV integrators and system designers who need more than passive surge protection in permanent installations. It addresses the full spectrum of AC power threats — RFI from nearby transmitters, EMI from motors and switching supplies, and destructive voltage spikes up to 6kV — through layered filtering and suppression circuitry that responds within a nanosecond and sustains protection up to 2 milliseconds. The Extreme Voltage Shutdown function continuously monitors line voltage and disconnects switched outlets if conditions fall outside safe thresholds, with a front-panel LED providing immediate visual confirmation of any shutdown event.

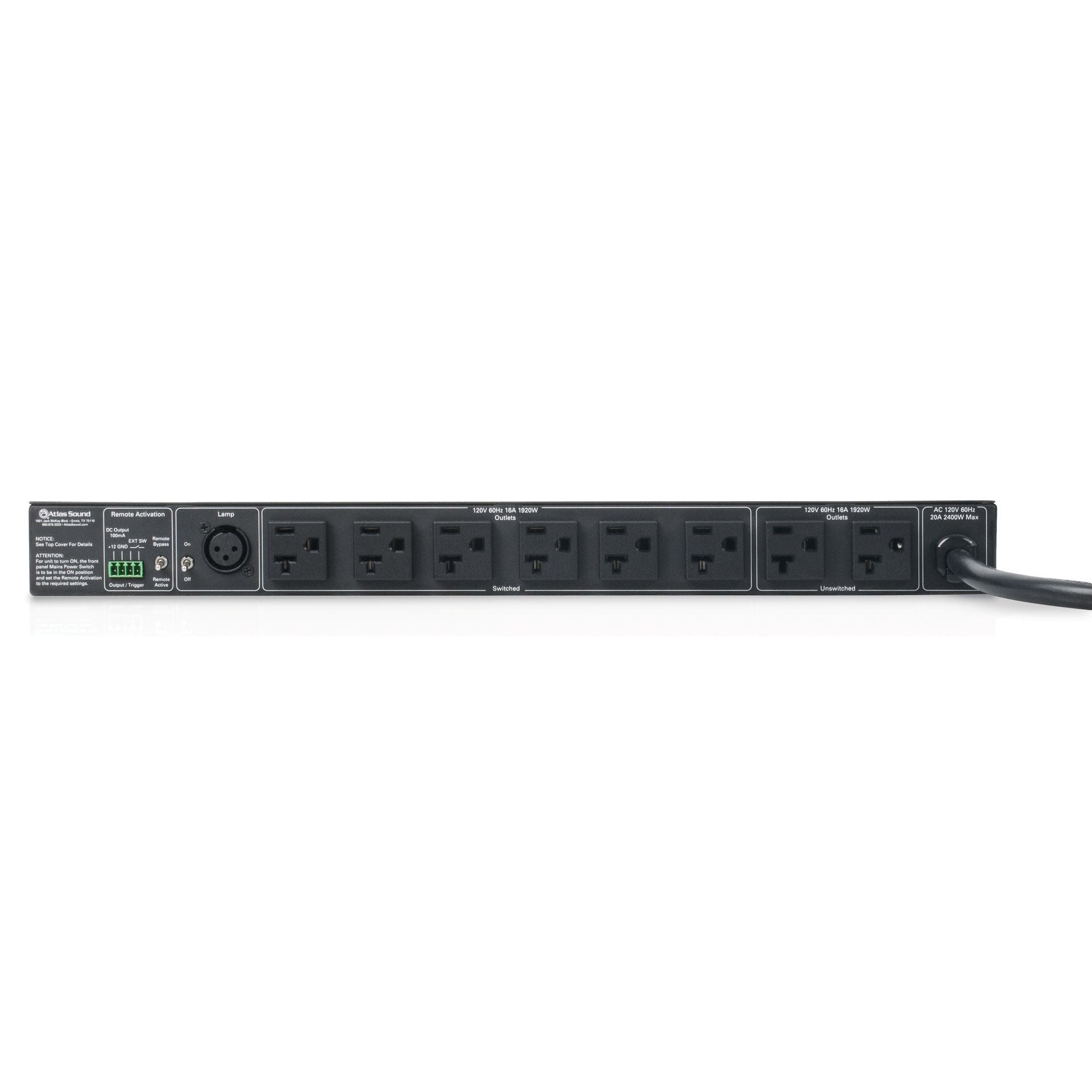

For controlled environments like conference rooms, courtrooms, and broadcast facilities, the Remote Activation input supports latched dry contact closure or 5V–24VDC triggering, allowing the entire switched outlet bank to be powered on or off from a control system, wall panel, or relay. The same circuit supports an Emergency Power Down function, making integration with fire control panels and life-safety systems straightforward. A rear-mounted bypass switch overrides remote activation when direct local control is needed, and a 12VDC output at the rear XLR connector powers a remote status LED to confirm system state at a distance.

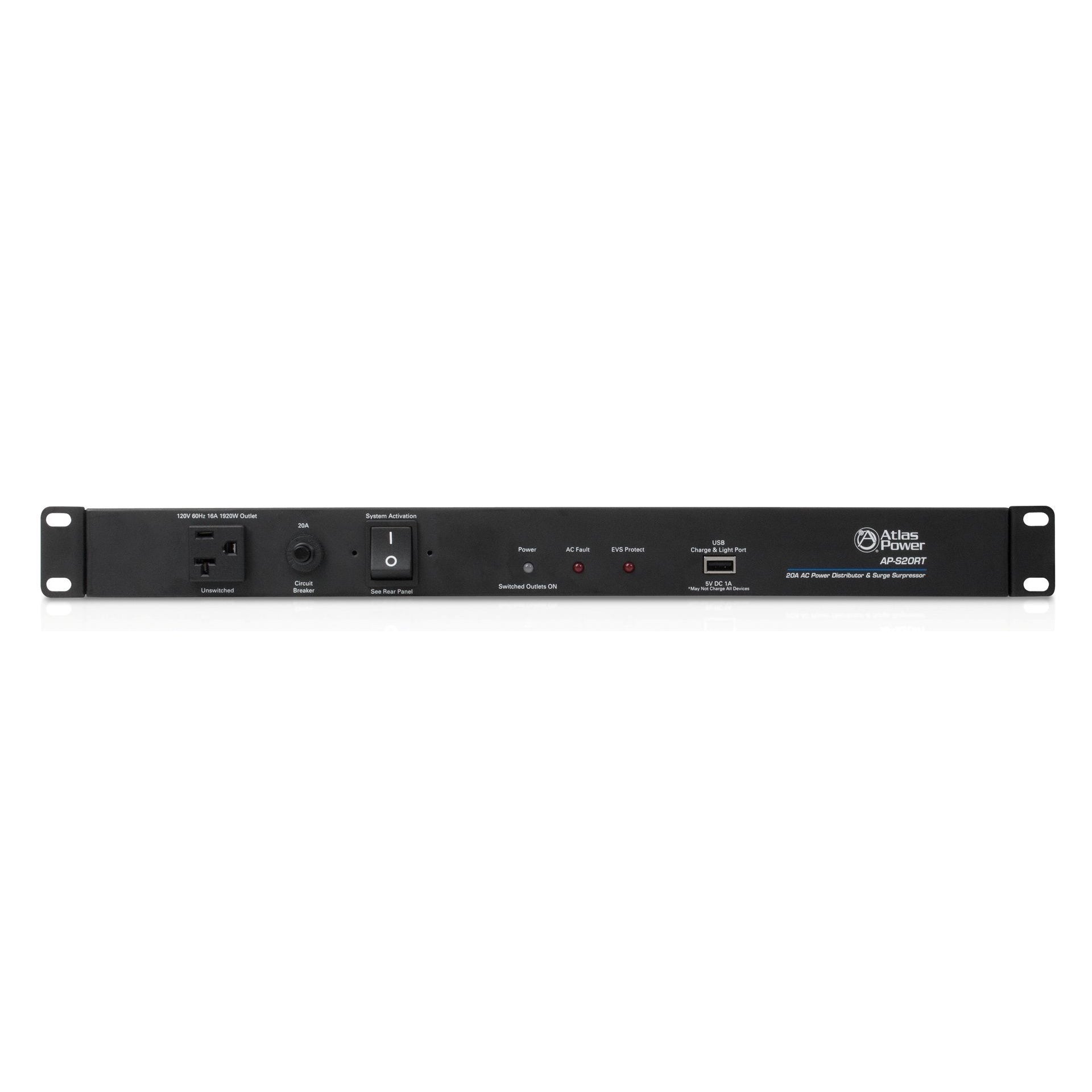

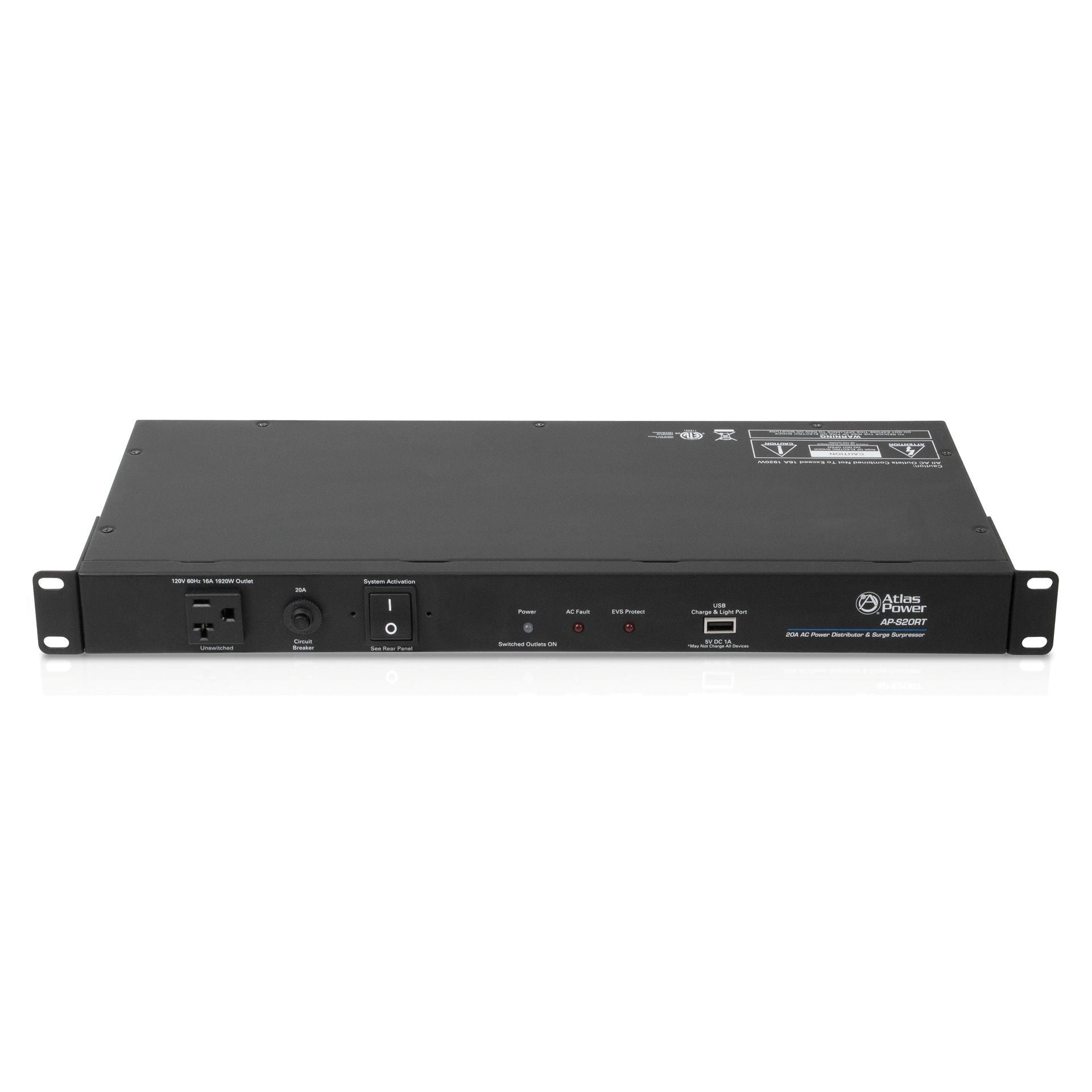

With a 1U rack form factor, nine total outlets distributed across front and rear panels, a front USB charging port, and a 20A circuit breaker, the AP-S20RT consolidates power conditioning, protection, and system control into a single rack space — eliminating the need for separate suppression, switching, and control hardware in professionally installed AV racks.
