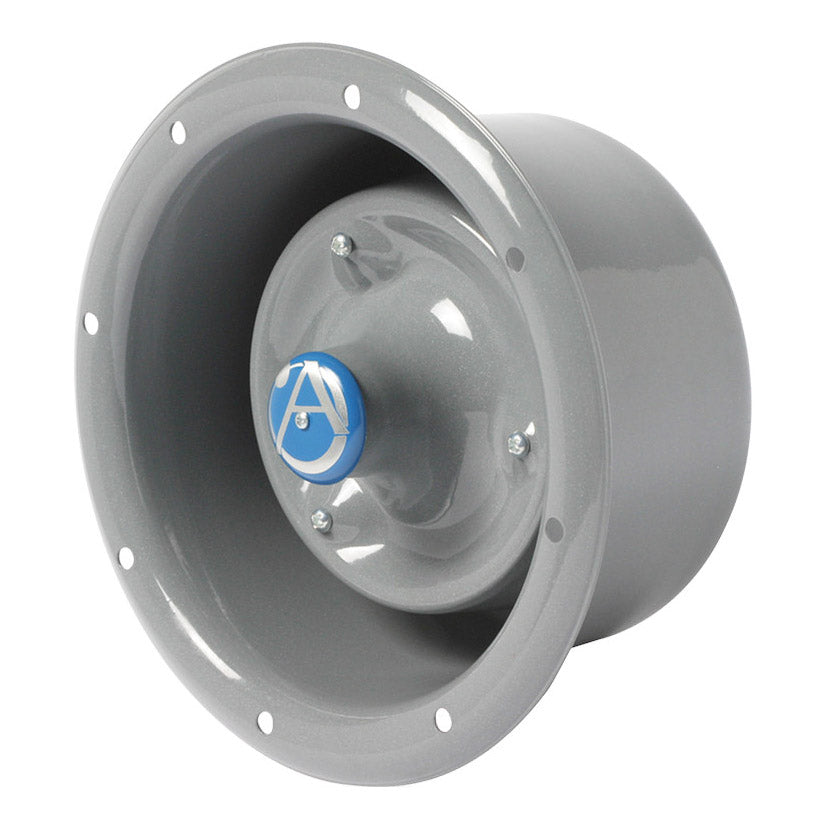

AtlasIED APF-15T 15W Flanged Horn Speaker

AtlasIED APF-15T 15W Flanged Horn Speaker

SoundPro Item: 13502 | Part Number: APF-15T

Regular price $162.99
Regular price $201.99 Sale price $162.99
Your Price Sold out
MSRP: $201.99 | MAP: $162.99

Usually ships in 5-7 business days

  • Choose from Matching Grilles, Enclosures and Mounting. Rings (Order Separately)
  • Double Re-Entrant Design Provides Superior Audibility of Voice and Tone Signaling
  • High-Efficiency, 15 Watt Compression Driver with Proven Record of Outstanding Service Reliability
  • May be Flange or Recess Mounted
  • Transformer(T) Equipped Version for 25, 70.7, or 100V Line
  • Vandal Resistant Metal Construction for Indoor Use

Provide 15 watts of continuous power handling with superior intelligibility and efficiency with the AtlasIED APF-15T 15W Flanged Horn Speaker. Vandal-resistant units are designed for flange or recessed mounting to panels, interior/exterior walls, or ceilings.

Metal construction withstands adverse temperatures, humidity and physical abuse. For flexibility and optimum adjustment convenience, transformer-equipped Model APF-15T includes the Vari-Tap® Control/connect center with 7 position, wattage/impedance selection switch.

Weather-resistant metal construction and enclosed wiring terminals eliminate the need and cost of a backbox. However, for aesthetic consideration and retrofit convenience, models will flange mount to any standard size ceiling or wall baffle and/or enclosure capable of accommodating conventional 6" or 8" diameter speakers. Model FAMT-6 mounting kit is required for 8" models.) Recessed installation may be accomplished by mounting Models APF-15 or APF-15T into a 4" or 5-1/2" deep opening, respectively, or to an L20 Series enclosure. L20 Series also includes mounting rings and baffles. Speakers are finished in gray baked epoxy.

View full details
  • Frequency Response 600Hz - 14kHz
  • Sensitivity104dB
  • Power Taps 1, 2, 3.8, 7.5, 15W @ 70.7V
  • Dispersion 95°
  • Power Rating15 Watts
  • Operating Temperature Range -40 to 70C
  • Depth 5 3/16" (13.18 cm)
  • Diameter 5 5/8" (14.29 cm)
  • Shipping Weight 4 lbs (1.81 kgs)
