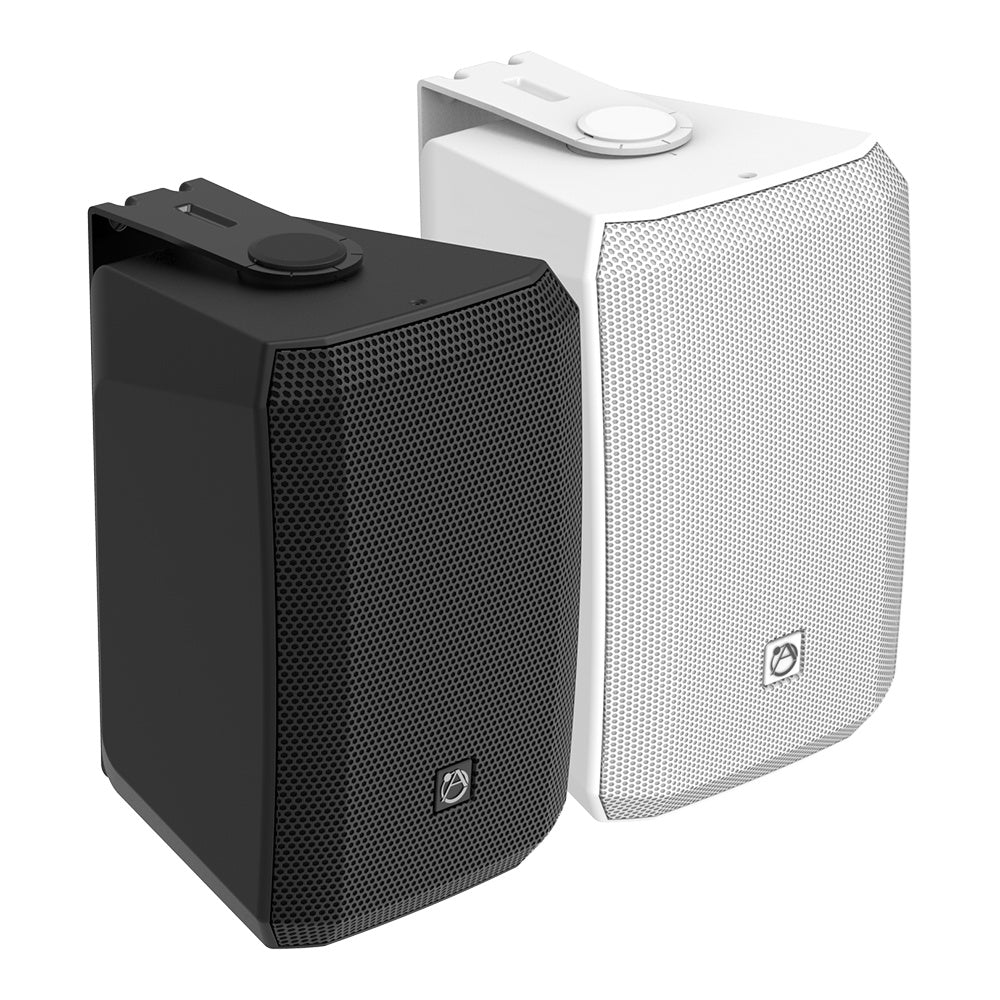

AtlasIED AS-5T 5.24" AS Series Surface Mount Speaker

AtlasIED AS-5T 5.24" AS Series Surface Mount Speaker

SoundPro Item: 200295 | Part Number: AS-5T-W

$285.99
$356.99 $285.99
Your Price Sold out
MSRP: $356.99 | MAP: $285.99

Usually ships in 5-7 business days

  • Wide 120° x 120° coverage for even listening
  • IP55 enclosure for indoor/outdoor reliability
  • 30W transformer supports distributed audio
  • Low-Z bypass adds system design flexibility
  • Included yoke mount speeds installation
  • White finish suits discreet architectural spaces
Log in or register for YOUR best price

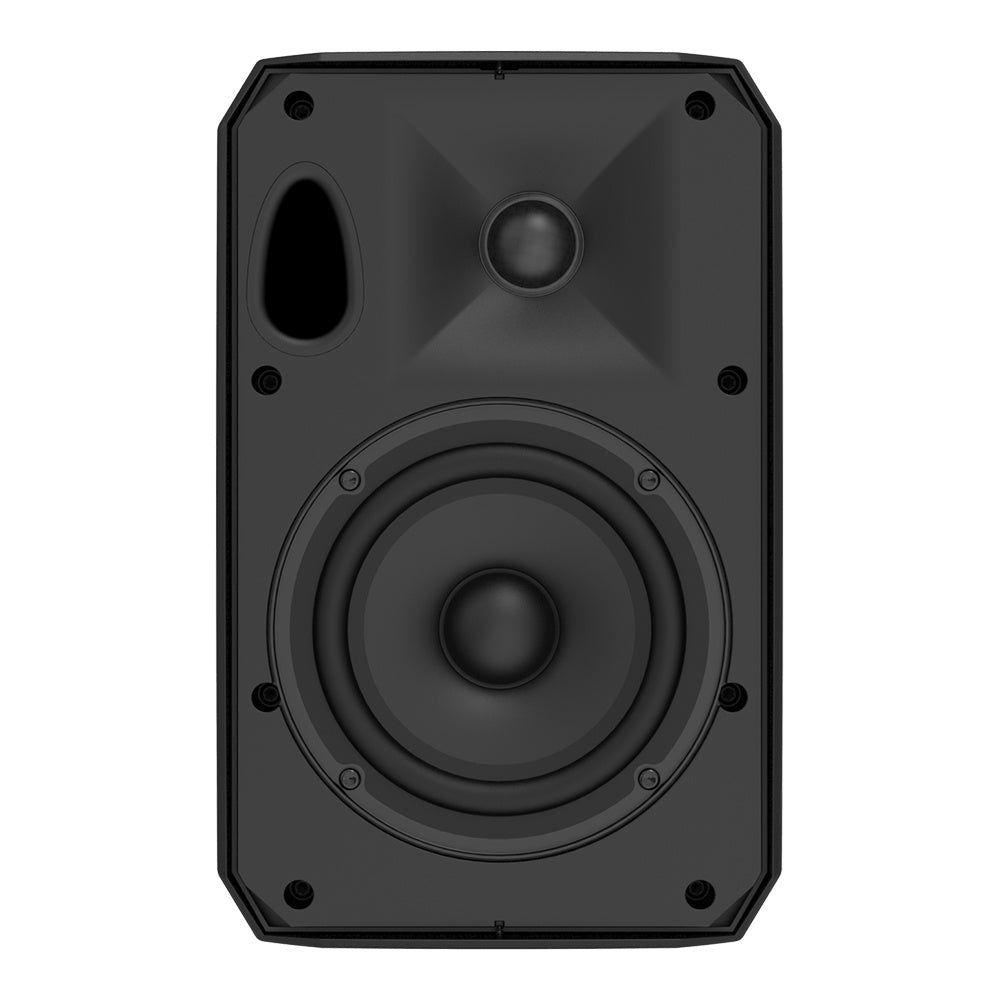

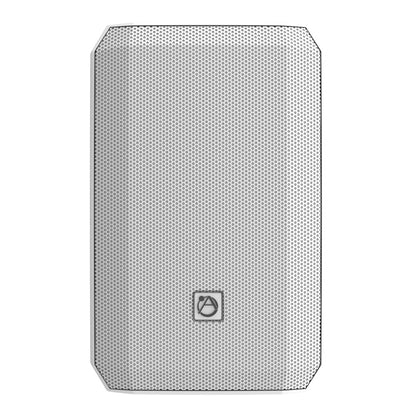

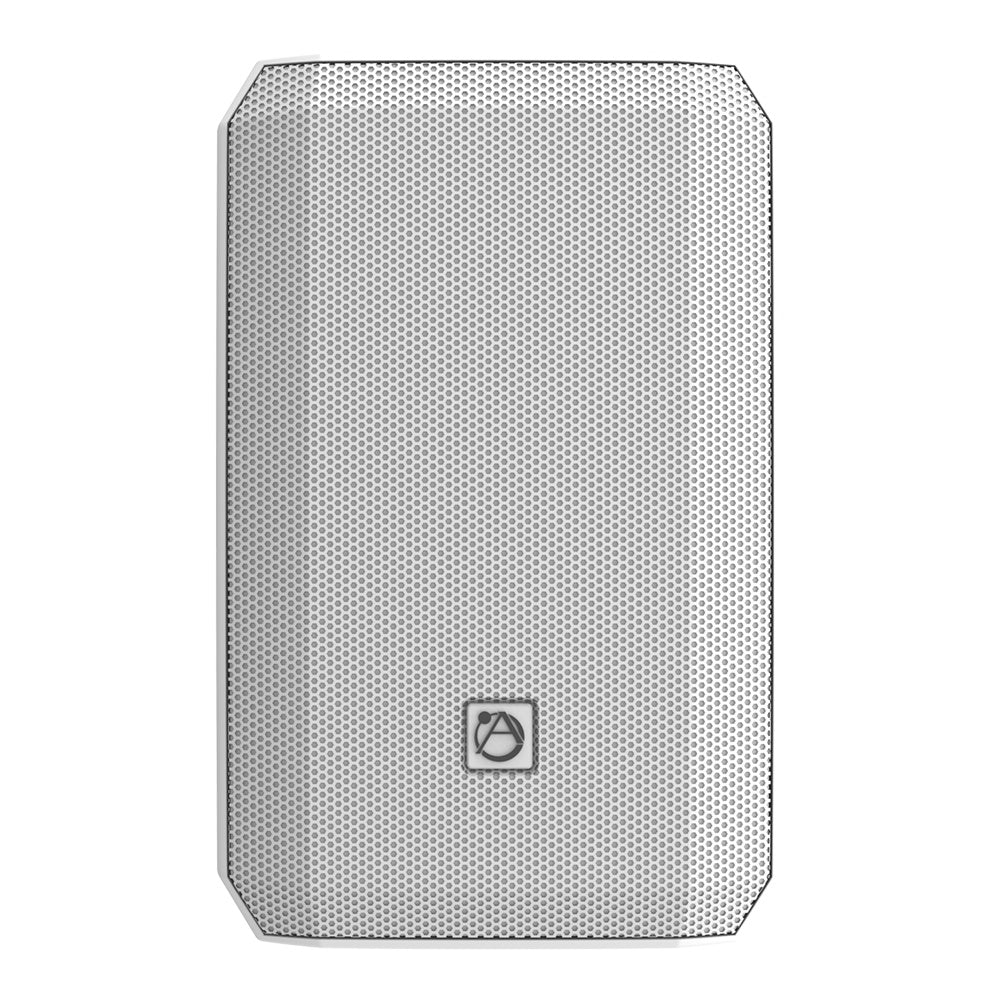

The AtlasIED AS-5T is a compact two-way surface-mount loudspeaker built for distributed audio systems that need clean appearance, dependable outdoor durability, and predictable coverage. Its white finish supports visually sensitive architectural spaces, while the weather-resistant IP55 enclosure and UV-inhibited ABS construction make it suitable for exposed installations where long-term reliability matters.

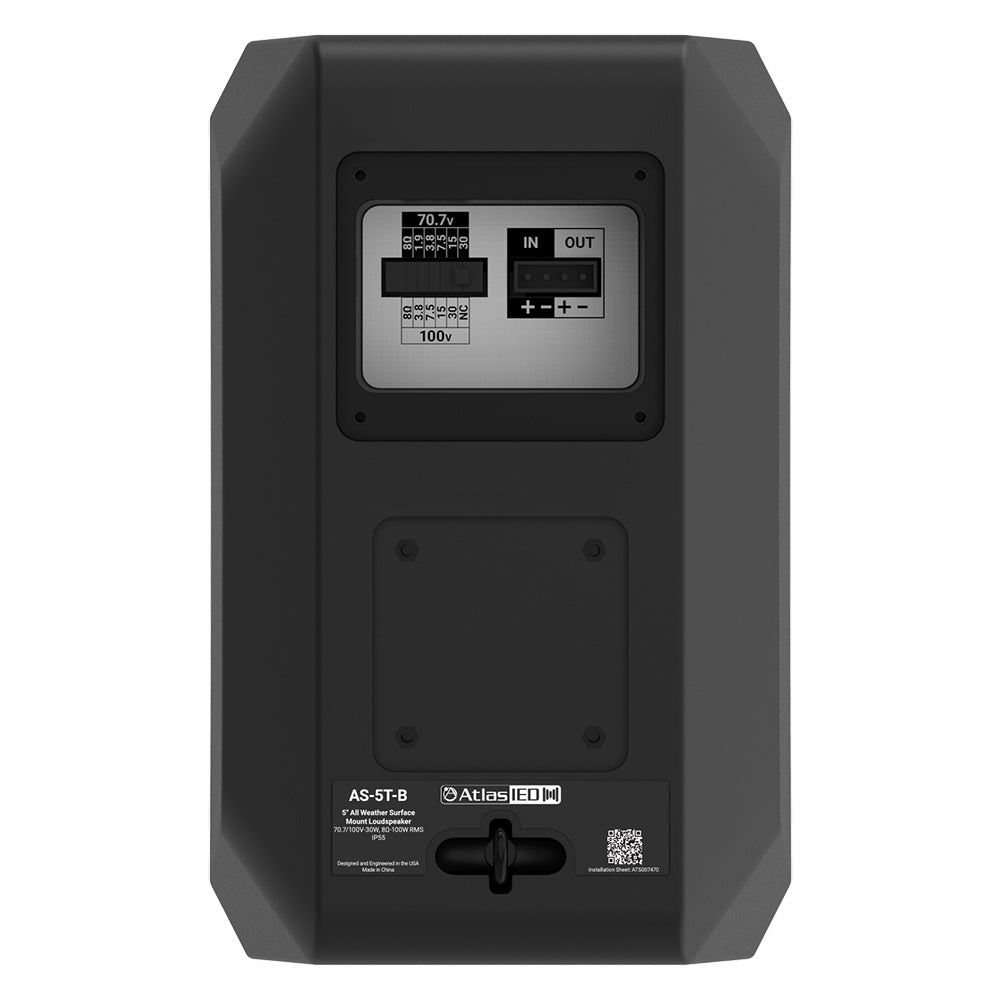

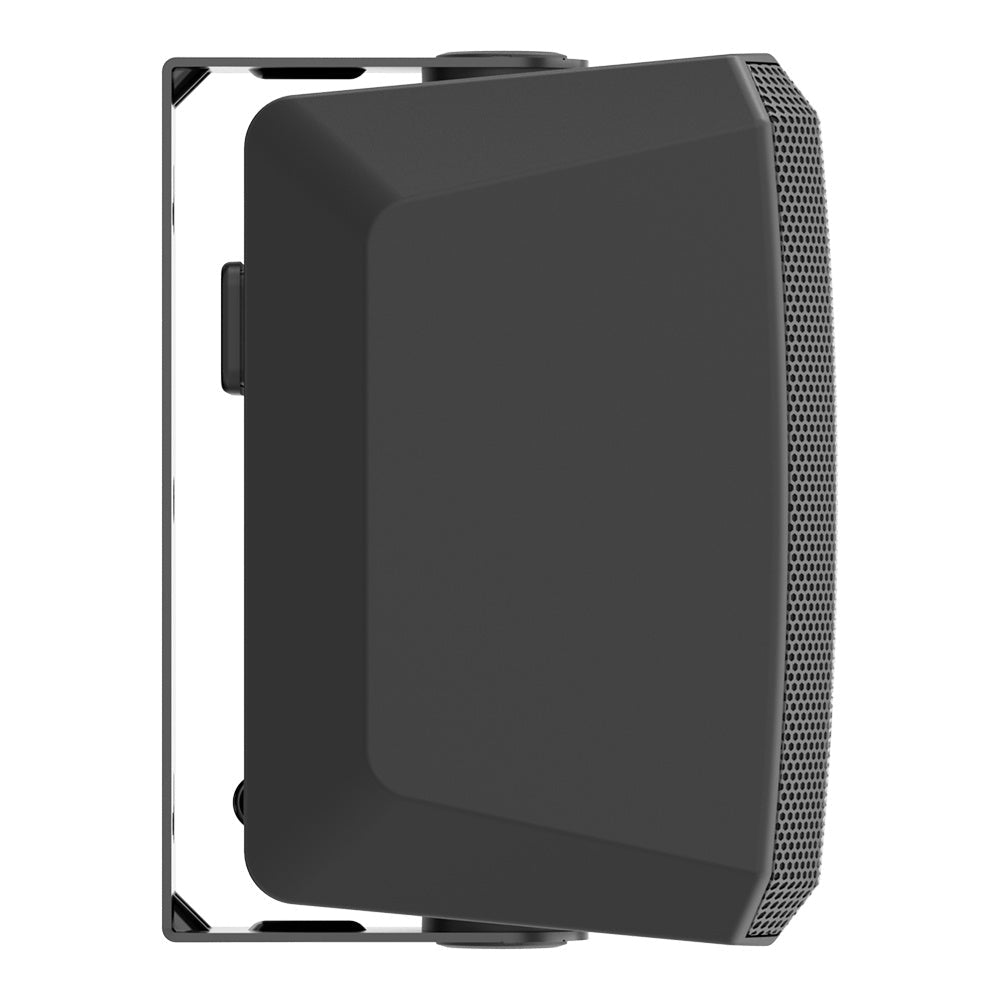

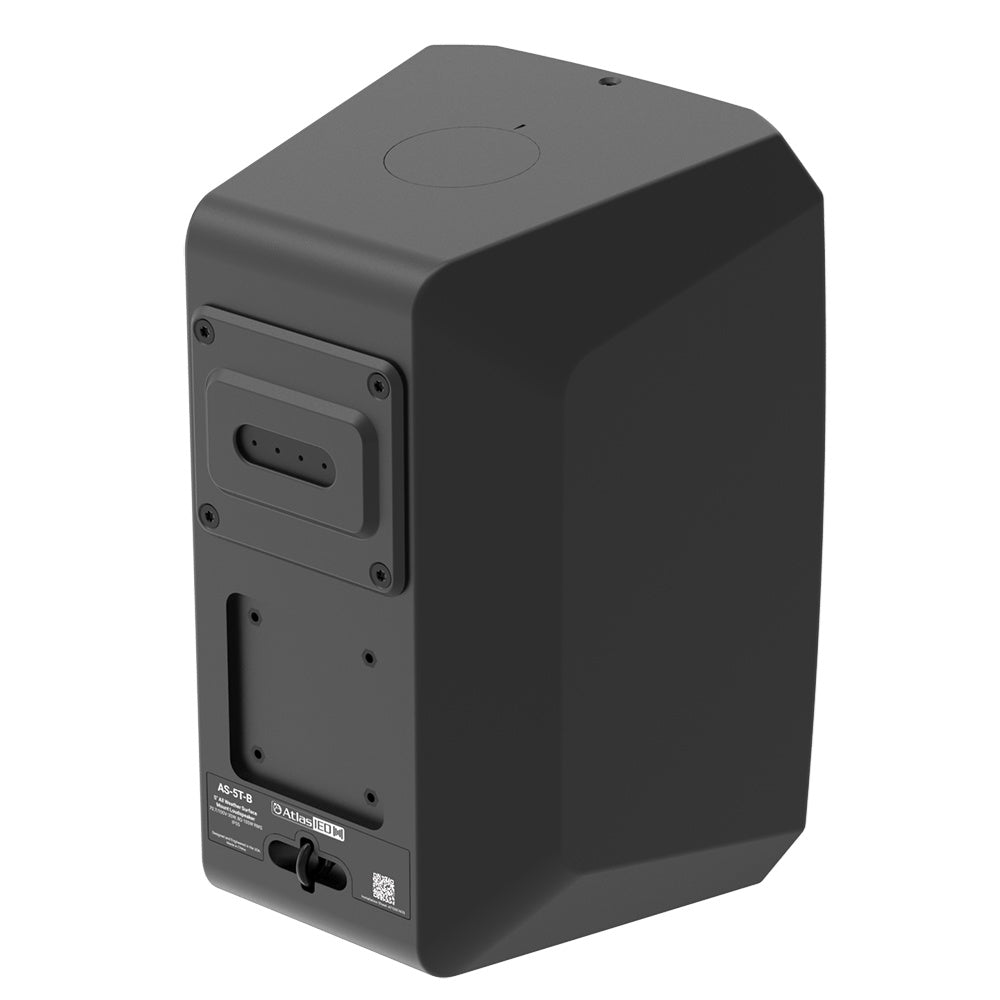

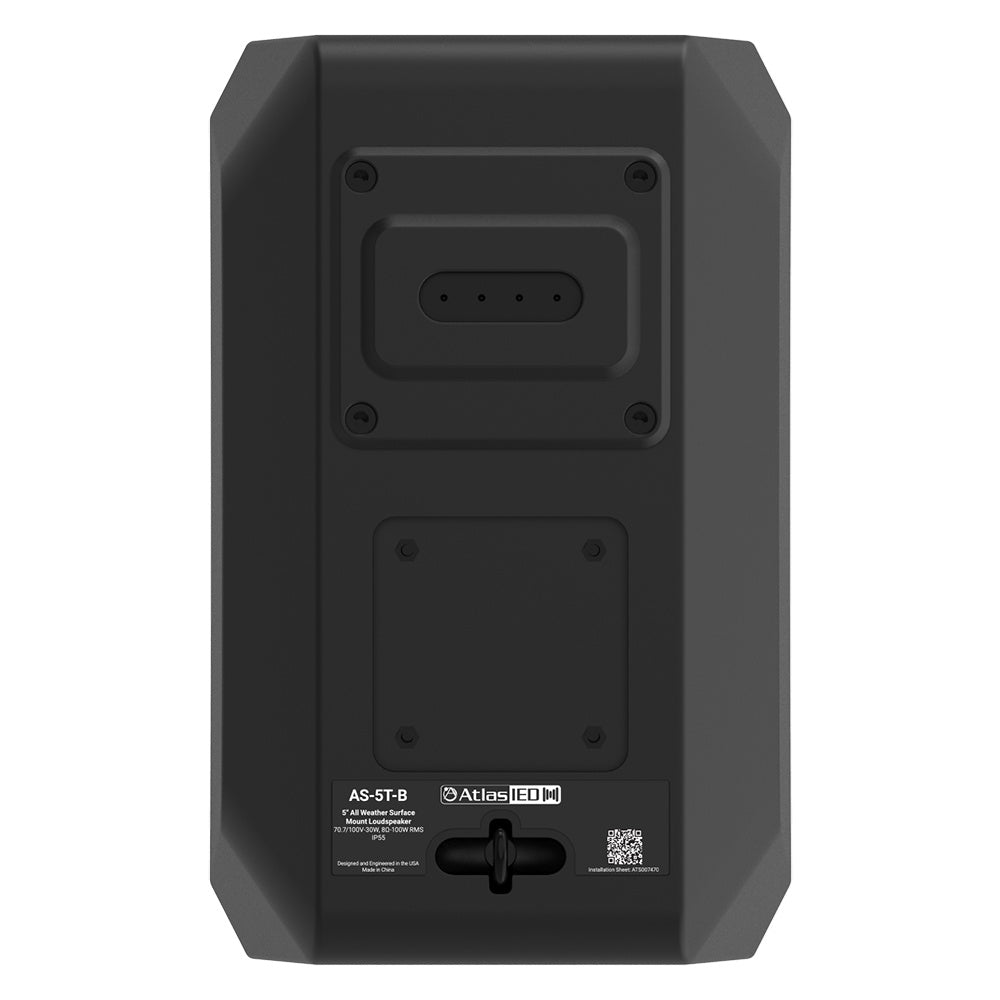

This model is designed for paging, background music, and foreground audio in hospitality, retail, education, and commercial environments. A rear slide selector allows quick configuration for 70V or 100V distributed systems, with a low-impedance bypass available when needed. The included slip-free yoke mount helps simplify wall installation, and compatibility with optional pan-and-tilt and VESA mounting solutions gives integrators added flexibility when speaker placement is constrained.

The AS-5T-W is also part of the broader AtlasIED AS Series, allowing tonal consistency across multi-speaker projects. For system design and deployment, support files including EASE, CF2, 3D CAD, and BIM/Revit resources are available, along with advanced tunings through the AtlasIED Atmosphere DSP platform.

View full details

Specifications

Performance
Frequency Range (-10dB)
63Hz-20kHz
Frequency Response (+/- 3dB)
95Hz-20kHz
System Sensitivity (1W @ 1m)
87dB
Nominal Coverage Angle (HxV -6dB)
120° x 120°
Average Power Handling
100W
Programme Power Handling
200W
Peak Power Handling
400W
Recommended Amplifier Power
200W @ 8 Ohms
Nominal Impedance
8 Ohms (Min 7.4 Ohms)
Maximum SPL, Average
107dB
Maximum SPL, Peak
113dB
Maximum SPL, With Max. Transformer Tap - Average
102dB
Directivity Index
7.3
Transformer
Transformer Taps - via slide selector switch
30W, 15W, 7.5W, 3.8W ( 1.9W 70V) & Low Z operation
Physical
Dimensions (HxWxD)
10.9" x 6.88" x 7.6" (276.9mm x 174.8mm x 193.0mm)
Weight
9.28 lbs (4.21kg)
Warranty Period
60 months from date of purchase
