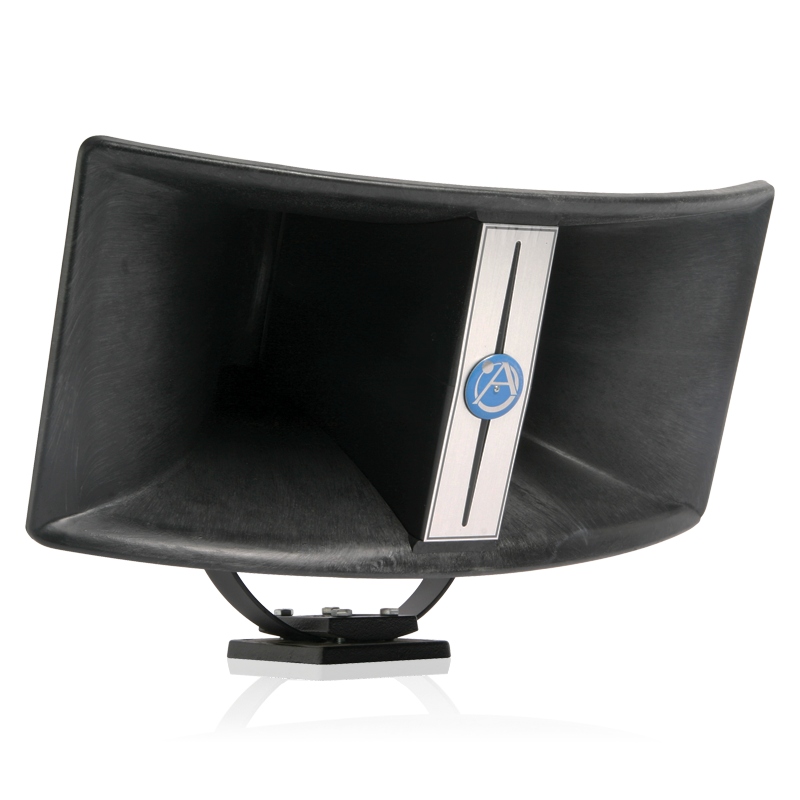

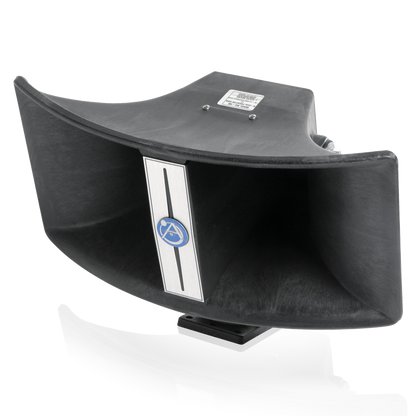

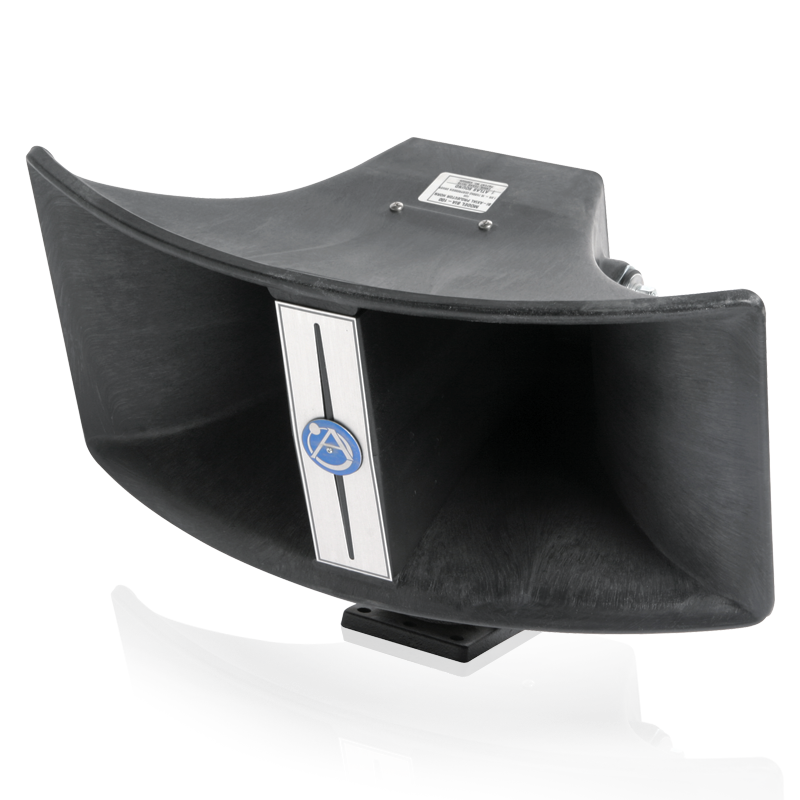

AtlasIED BIA-100 Bi-Axial Horn Speaker with Twin Reflex Air Column

AtlasIED BIA-100 Bi-Axial Horn Speaker with Twin Reflex Air Column

SoundPro Item: 13964 | Part Number: BIA-100

Regular price $266.99
Regular price $328.99 Sale price $266.99
Your Price Sold out
MSRP: $328.99 | MAP: $266.99

Usually ships in 5-7 business days

  • Accepts All Atlas Sound and 1 3/8" - 18 Thread Compression Drivers with Throat Openings of 0.7" Dia.
  • High-Efficiency Bi-Axial Horn Provides 130° x 60° Wide-Angle Sound Coverage
  • Nominal Frequency Response of 350-8,000 Hz for High-Intelligibility Voice, Signaling and Full-Range Music in Indoor/Outdoor Applications
  • Patented 180° Gimbal-Mount for Installation Flexibility
Model BIA-100 is the original reflex horn featuring a bi-axial design with twin air columns and exponential bell for wide-angle coverage with a linear frequency response. The horn provides excellent acoustic loading maintained to a 350 Hz low-frequency roll-off and optimizes delivery of high and mid-range signal levels. BIA-100 is designed for use with AtlasIED PD Series compression drivers and models having 13/8" -18 male threads and 0.707" dia. throat openings. The easily-mounted horn features the labor-saving patented gimbal-mount bracket assembly (U.S. Patent # 4,325,529) which allows for directional positioning up to 180° vertically and horizontally. It includes a steel bracket, cast-mounting base and provisions for flange installation. The weather-resistant, non-glare matte black foam horn is resistant to resonance. Bracket assembly is finished in durable epoxy.
View full details

Specifications

Dispersion
130° x 60°
Height
10 1/4" (26.035 cm)
Width
21" (53.34 cm)
Depth
19 1/4" (48.895 cm)
Shipping Weight
16.00 lbs (7.26 kgs)
Warranty Period
60 months from date of purchase
