AtlasIED C803AT87 8-Inch Ceiling Speaker
AtlasIED C803AT87 8-Inch Ceiling Speaker
SoundPro Item: 14228 | Part Number: C803AT87
Usually ships in 5-7 business days
- Ideal for Multi-Purpose Commercial, Industrial, and Institutional Use
- Industry Standard 8" (203mm) Coaxial, 16-Watt, Loudspeaker
- Offers Proven Performance with Wide Frequency Response
- Post-Mounted Tweeter Adds Strength and a More Attractive Appearance
- UL Certified, Safety Listed to UL1480A and UL2043

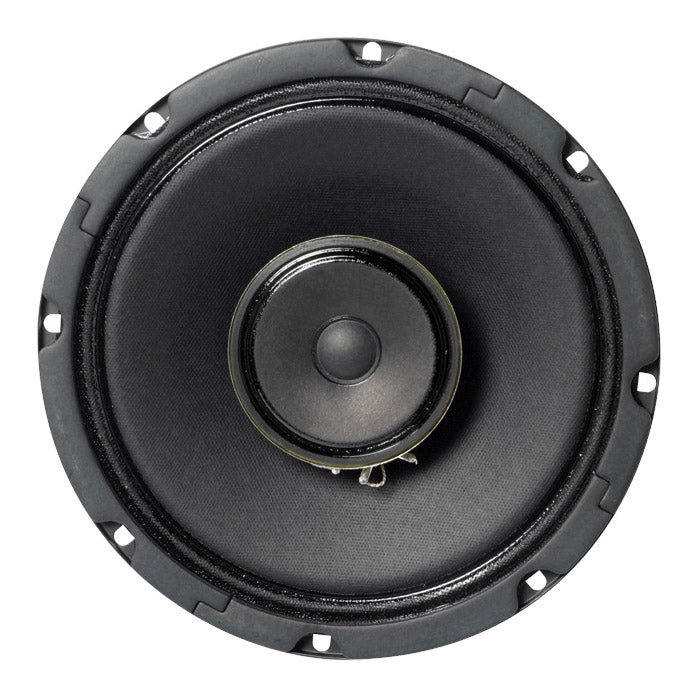

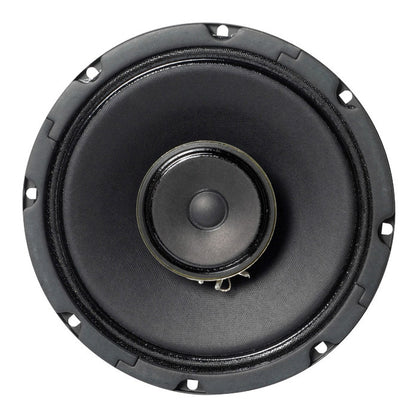

The AtlasIED C803AT87 8-Inch Ceiling Speaker utilizes a post mounted tweeter which adds strength to the assembly and provides an attractive appearance. This coaxial speaker features a 70Hz - 15.5kHz, frequency response and a broad, uniform dispersion pattern of 120°. Such provisions allow for highly intelligible sound reproduction and better distribution for high-quality sound systems.

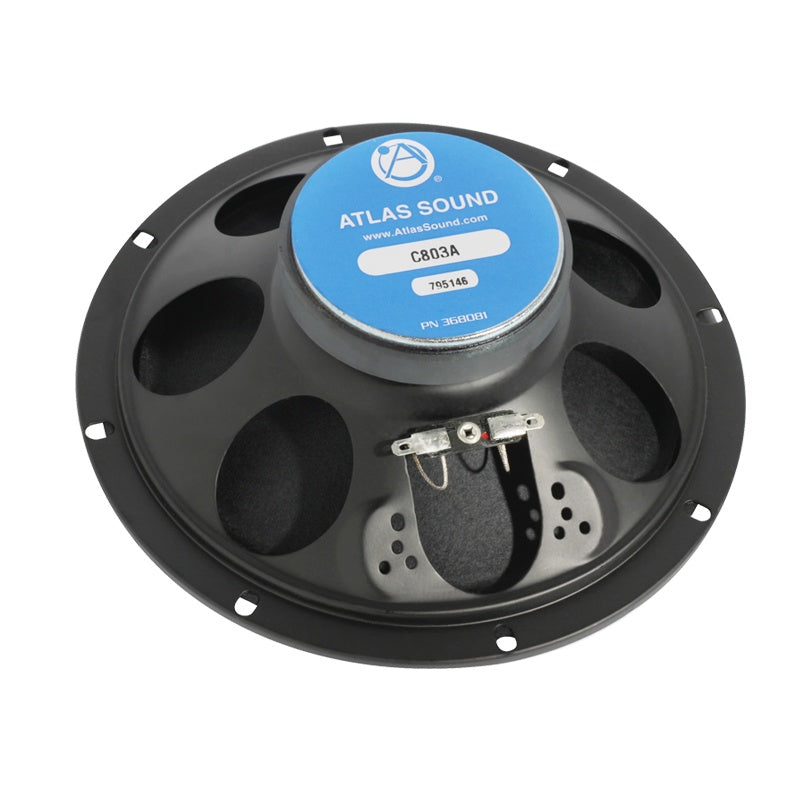

The C803A combines a full-size 8" (203mm) dia. low-frequency reproducer and a 3" (76mm) high-frequency reproducer. The two sections are coupled via a built-in crossover network. The woofer has a 10 oz. (260g) ceramic magnet; the tweeter has a 2.35 oz. (67g) ceramic magnet and the unit has a peak sensitivity of 98dB (at 1 watt, 1 meter).
Model C803A mounts a wide variety of AtlasIED baffles and enclosures, with the optimum sealed enclosure size being .36 cu. ft.
- Speaker Type Treated Paper
- Sensitivity 98dB (peak), 95dB (avg)
- Frequency Response 70Hz - 15kHz
- Power Taps 1, 2, 4, & 8 Watts
- Dispersion 120°
- Depth 2 7/8" (7.3025 cm)
- Diameter 8" (20.32 cm)
- Shipping Weight 4.33 lbs (1.96 kgs)
- Safety Listed 1480, 2043
