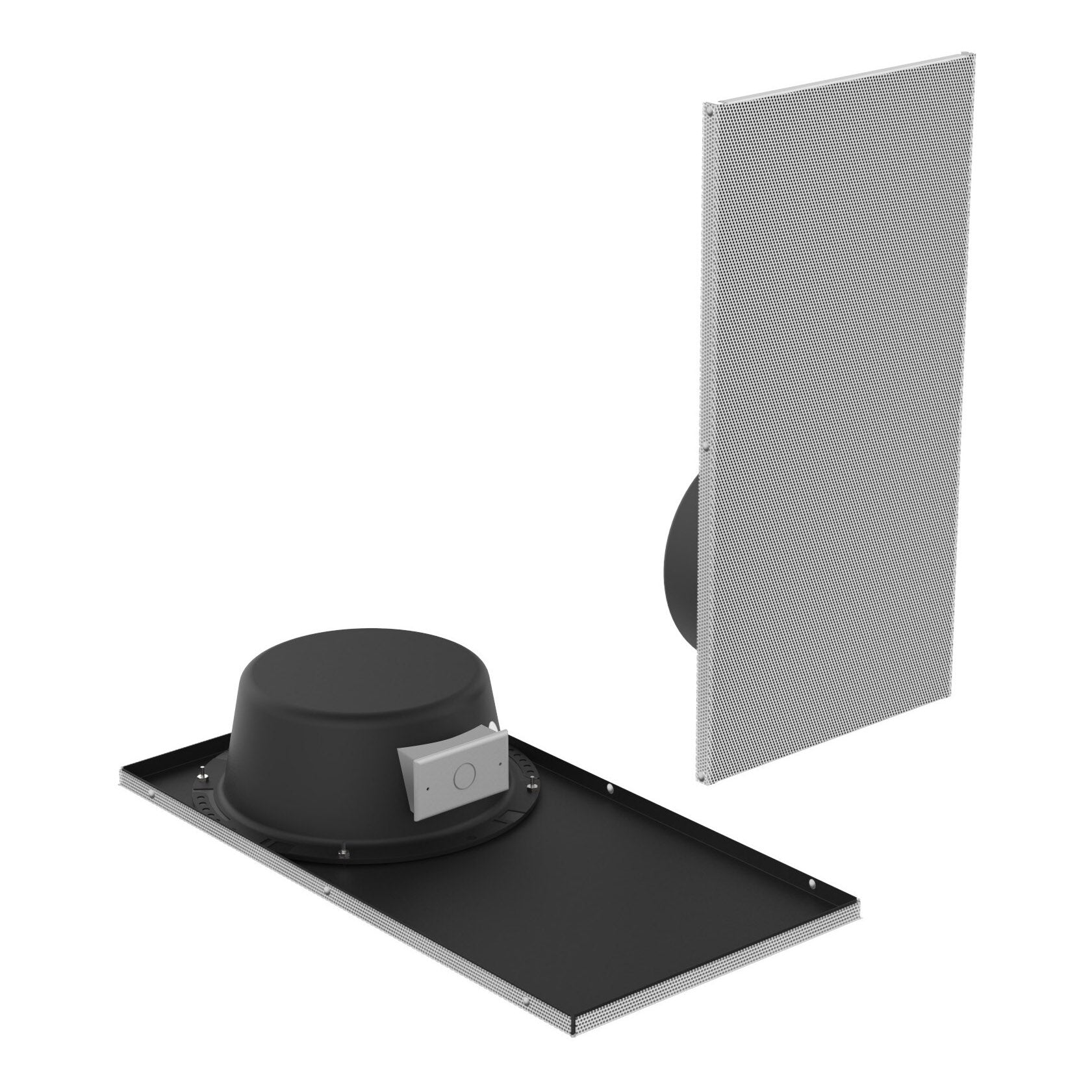

AtlasIED DT12 1x2-Inch Drop Tile Speaker Package
AtlasIED DT12 1x2-Inch Drop Tile Speaker Package
SoundPro Item: 15275 | Part Number: DT12
Usually ships in 5-7 business days
- Priced individually sold in quantities of 2
- 10oz 8" Dual Cone Speaker with 25V/ 70.7V Transformer
- External Tap Selector Switch
- Integral E.O. Box for Conduit or Plenum Wire Termination
- Low Profile Conical Enclosure
- 8O Bypass
- ETL Certified, Safety Listed to UL1480
The DT12 1x2-Inch Drop Tile Speaker Package from AtlasIED combines ease of installation with superb intelligibility for speech and music reproduction.

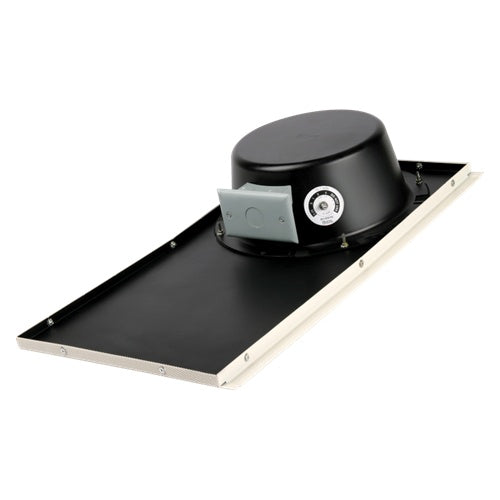

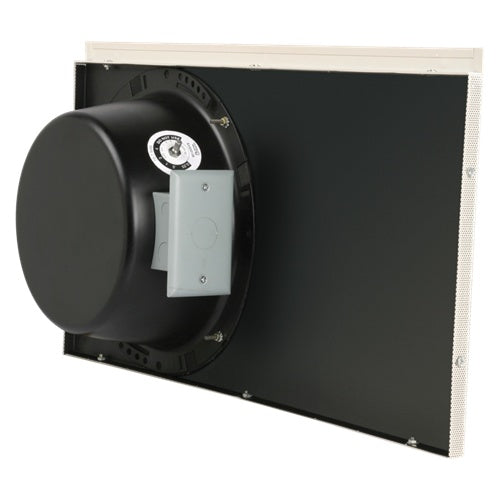

The 1' x 2' footprint allows quick installation into 2' x 2' or 2' x 4' acoustic tile ceilings. The E.O. box (with cover) is smartly positioned on the side of the conical enclosure to facilitate rigid or flexible conduit. An external tap selector switch (located on the side of the enclosure) allows for easy system tuning by providing quick installer access to the 70.7V tap settings ranging from .25 to 4 watts.
- Speaker Type 8", 10oz Dual Cone
- Sensitivity 97dB (1W/1m)
- Power Taps 0.25, .5, 1, 2, 4 Watts & 8Ω Bypass
- Length 23-7/8" (606mm)
- Frequency Response 85Hz - 8kHz
- Width 12-7/8" (327mm)
- Dispersion 105° - 2kHz Octave Band (-6dB)
- Depth 4-1/2" (114mm)
- Weight 9.5 lbs (4.3kg)
