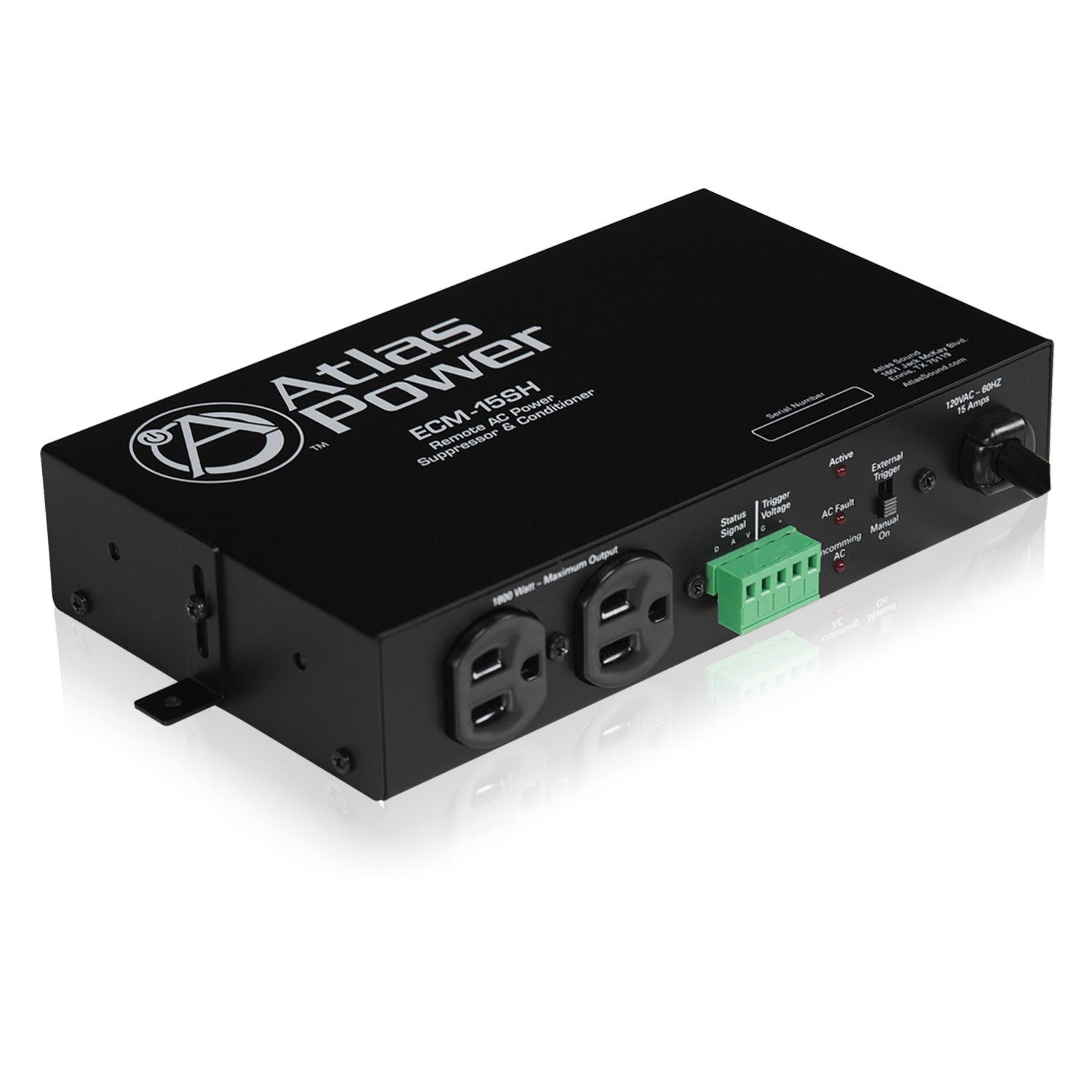

AtlasIED ECM-15SH Rackmount AC Power Conditioner and Spike Suppressor
AtlasIED ECM-15SH Rackmount AC Power Conditioner and Spike Suppressor
SoundPro Item: 15350 | Part Number: ECM-15SH
Usually ships in 5-7 business days
- RFI And EMI Noise Filtering Removes Interference From Motors And Switching Supplies
- Clamping Suppression Technology Blocks AC Spikes And Surges From Reaching AV Equipment
- Extreme Voltage Shutdown Circuitry Activates When Paired With ECS-6RM Sequencer
- Manual Bypass Switch Allows Maintenance Without Full Rack Power Down

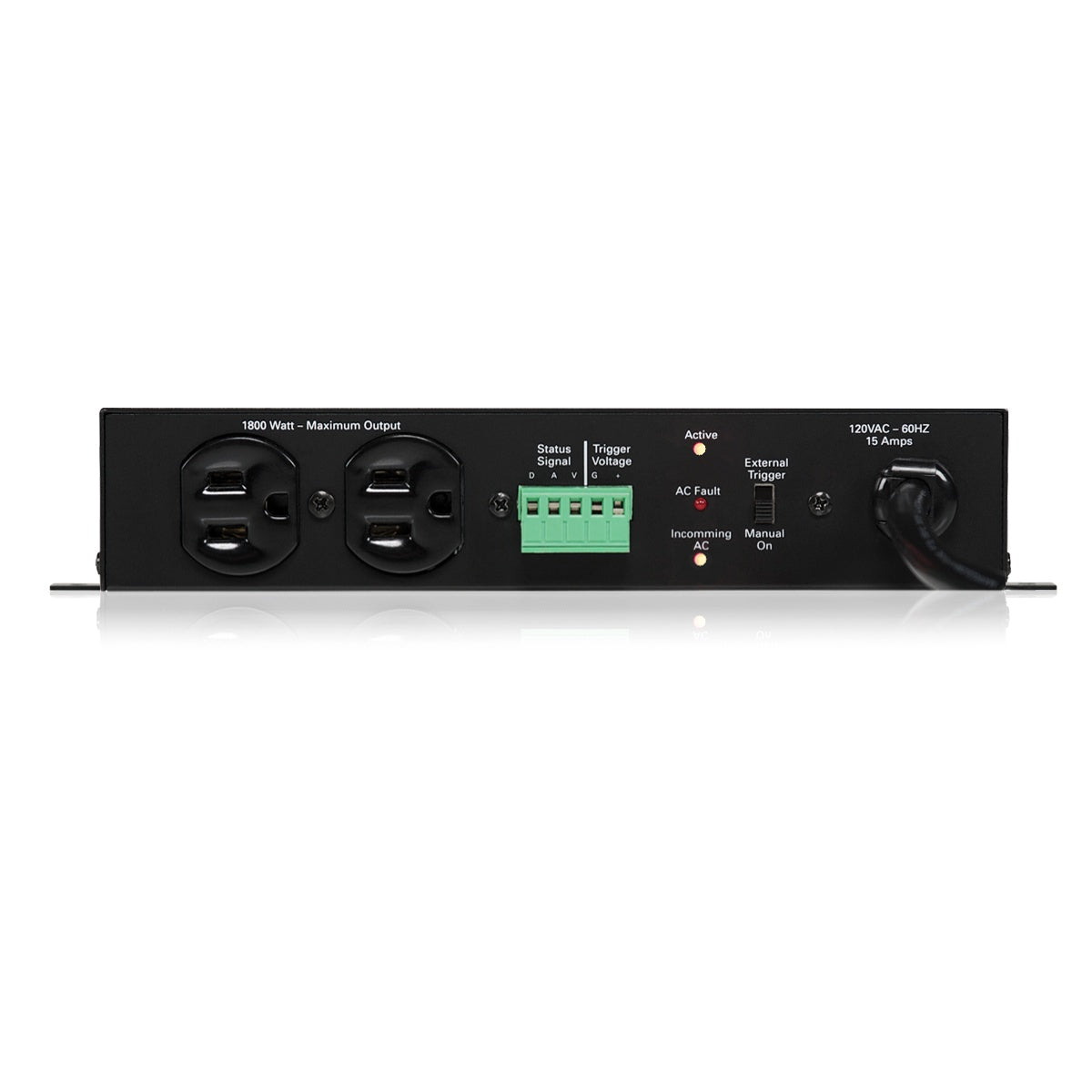

- AC Fault Indicator And Active Outlet LED Provide Immediate Front-Panel Status
- Fuse Protection With Slow Blow Fuse Prevents Nuisance Tripping Under Load
- ETL Listed To UL 1449 And RoHS Compliant For Commercial Installation Requirements
The AtlasIED ECM-15SH is a single-housing, 1U rackmount power conditioner built for AV system integrators and installation teams who need reliable power protection without a full sequencing chassis. Operating at 120V 60Hz, it functions as a standalone unit or integrates with the AtlasIED ECS-6RM or ECS-3 sequence controllers at distances up to 1,000 feet, making it well-suited for distributed AV installations where conditioned power endpoints must be located far from the control rack.
For installed AV environments where noise from electric motors, HVAC systems, or switching power supplies can contaminate audio and video signal chains, the ECM-15SH incorporates both RFI and EMI filters to address interference at the source. Its clamping suppression technology actively blocks AC spikes and surges before they reach downstream equipment, protecting amplifiers, DSPs, and signal processors from voltage transients.
When paired with the ECS-6RM sequencer, Extreme Voltage Shutdown Circuitry engages automatically if line voltage falls below 102V or exceeds 132V AC, shutting down connected loads before damage occurs. Front-panel indicators including an AC presence LED, active outlet LED, and AC fault indicator give technicians immediate visual status without requiring metering tools. The manual bypass switch provides a direct path for maintenance or troubleshooting without powering down the rack. ETL-listed to UL 1449 and RoHS compliant, the ECM-15SH meets certification requirements for commercial and institutional AV installations.
