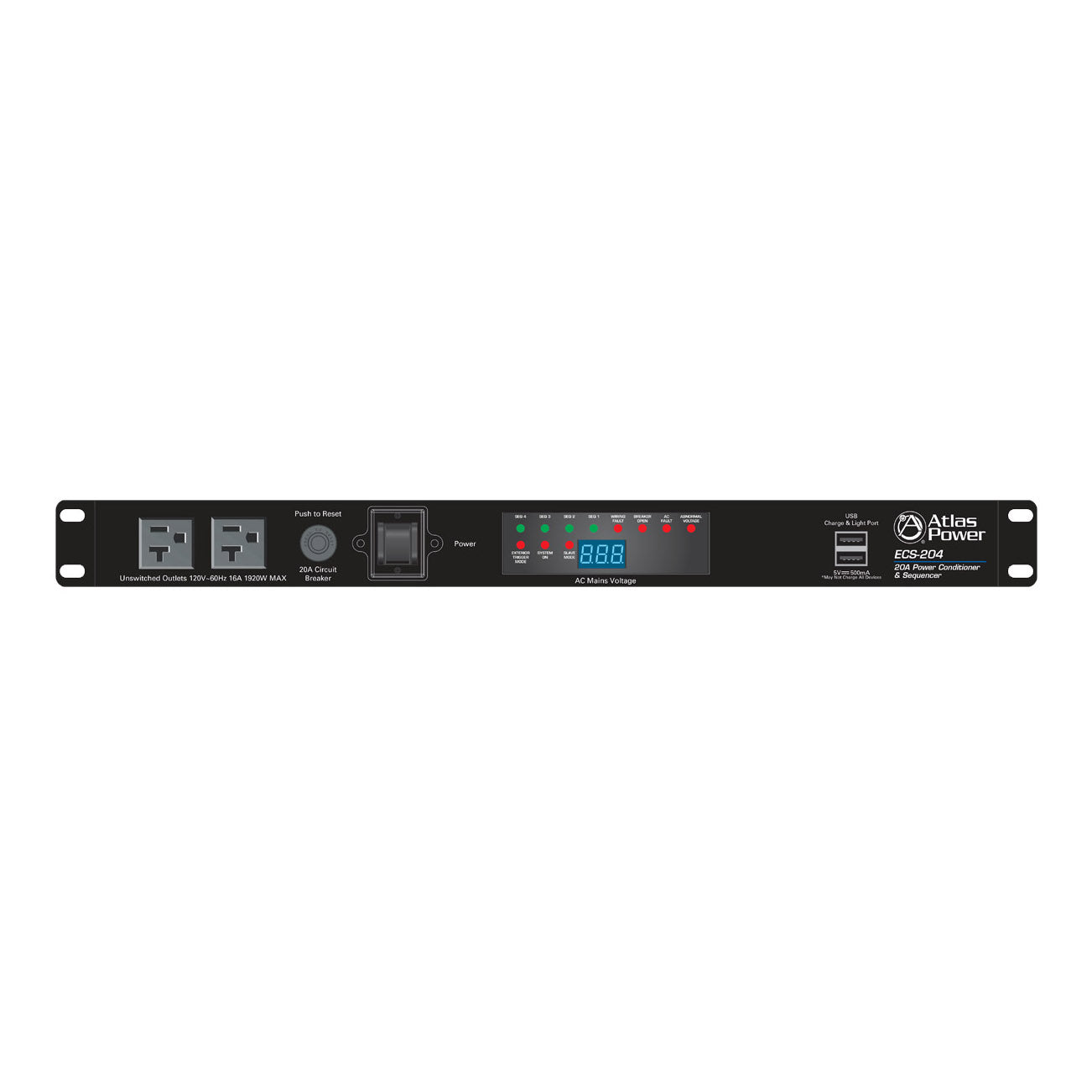

AtlasIED ECS-204 20A Power Conditioner

The AtlasIED ECS-204 is a 20 amp AC Power Sequencer and Conditioner. The ECS-204 has been designed to meet most installation requirements for AC power distribution and equipment power protection. The 20A compact 1 RU unit features four internal sequential timing sections, three on the unit and one to trigger an external device. All can be activated via the unit locally or remotely. Front panel activation is via a momentary switch, while rear activation can be accomplished via a remote momentary switch, latching switch, or by 5-24VDC. AC Mains Voltage can be monitored via the front panel from the precision Digital Volt Meter. The ECS-204 has incorporated dual front panel USB charge ports that can be used to charge devices such as cell phones or music players or the charge port also supports an optional USB gooseneck lamp. The rear of the rack can be illuminated by the optional Atlas Power 16" gooseneck LED lamp (AP-GNL18) connected via an XLR style socket.

The ECS-204 also features noise filtering for unwanted Radio Frequency Interference (RFI) that is commonly introduced into the AC lines by nearby radio transmitters or wireless products. EMI filters are incorporated to reduce noise from Electromagnetic Interference (EMI) from items such as electric motors, switching power supplies and lightning. The benefit of these filters can be seen on video products or audibly by reduced static pops and external signal interference.
