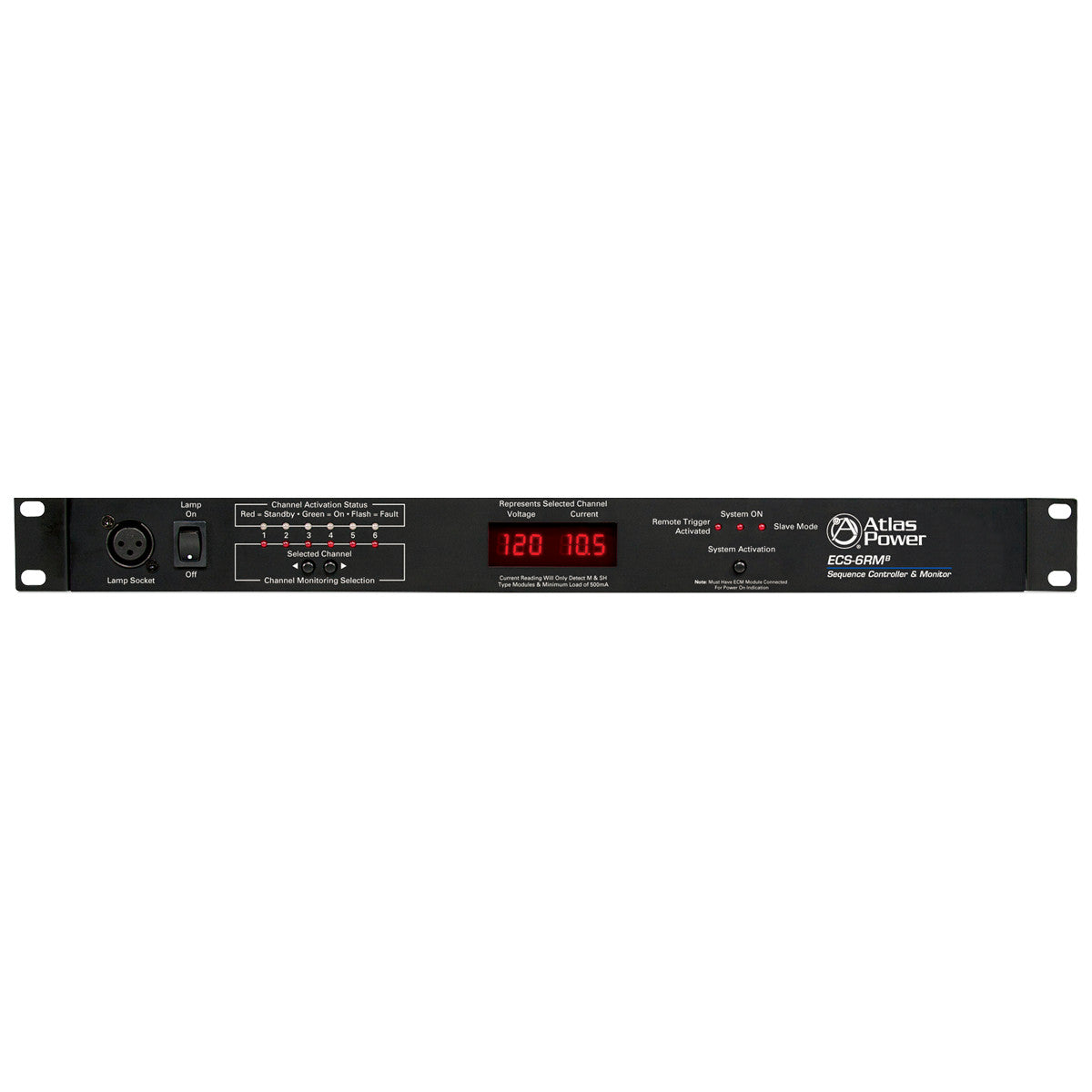

AtlasIED ECS-6RM AC Sequence Controller and Monitor

AtlasIED ECS-6RM AC Sequence Controller and Monitor

SoundPro Item: 46191 | Part Number: ECS-6RM

$844.99
$1,053.99 $844.99
Your Price Sold out
MSRP: $1,053.99 | MAP: $844.99

Usually ships in 5-7 business days

  • Six Sequencer Timing Sections, 1, 3, or 6 Second Intervals
  • Six Independent ECM Connections
  • Six Independent Contact Closures
  • Front Panel Digital AC Mains Voltage and Current Meter
  • External Switch Sequence Trigger Activation
  • External DCV Sequence Trigger Activation 5-24VDC
  • Abnormal AC Line Voltage Indicator
  • Front & Rear XLR Connector for 12VDC Gooseneck LED Lamp (AP-GNL18)
Log in or register for YOUR best price

The ECS-6RM modular system has been designed to meet most installation requirements for AC power distribution, equipment power conditioning and surge suppression protection.

The compact 1 RU unit features six sequential timing sections that can be activated via the unit, or remotely. Up to three ECS-6RM units can be daisy chained together with independent trigger timing settings giving you a total of 18 sequence triggered outlets.

The ECS-6RM unit is the activation controller/monitor portion of the system and requires a 120V AC Mains ECM (Electrical Controlled Module) module for each triggered output.

View full details
  • Sequencer Sections6
  • LightXLR Socket to Provide 12VDC for Optional 16" Gooseneck Lamp AP-GNL18
  • Sequence Timing Unit Settings of 1, 3 or 6 Seconds
  • Power SupplyExternal Wide Rage 100V–240VAC, UL Approval
  • Power Consumption 0.8 Watts
  • ROHS Compliant Yes
  • LED Light Switch Two Position On/Off
  • Activation Switch Momentary
  • AC Mains Voltmeter Three Digits Digital
  • Indicators System On, External Trigger Mode, Slave Mode
  • Remote Activation Trigger 5-24VDC Continuous 10 mA, Switch Contacts, Euro/Phoenix Type Connector
  • Height 1.75" (44.45mm)
  • Width 19" (482.6mm)
  • Depth 10" (254mm)
