AtlasIED EZSYS-BGM-C Easy System Background Music Kit
AtlasIED EZSYS-BGM-C Easy System Background Music Kit
SoundPro Item: 115993 | Part Number: EZSYS-BGM-C
Usually ships in 5-7 business days

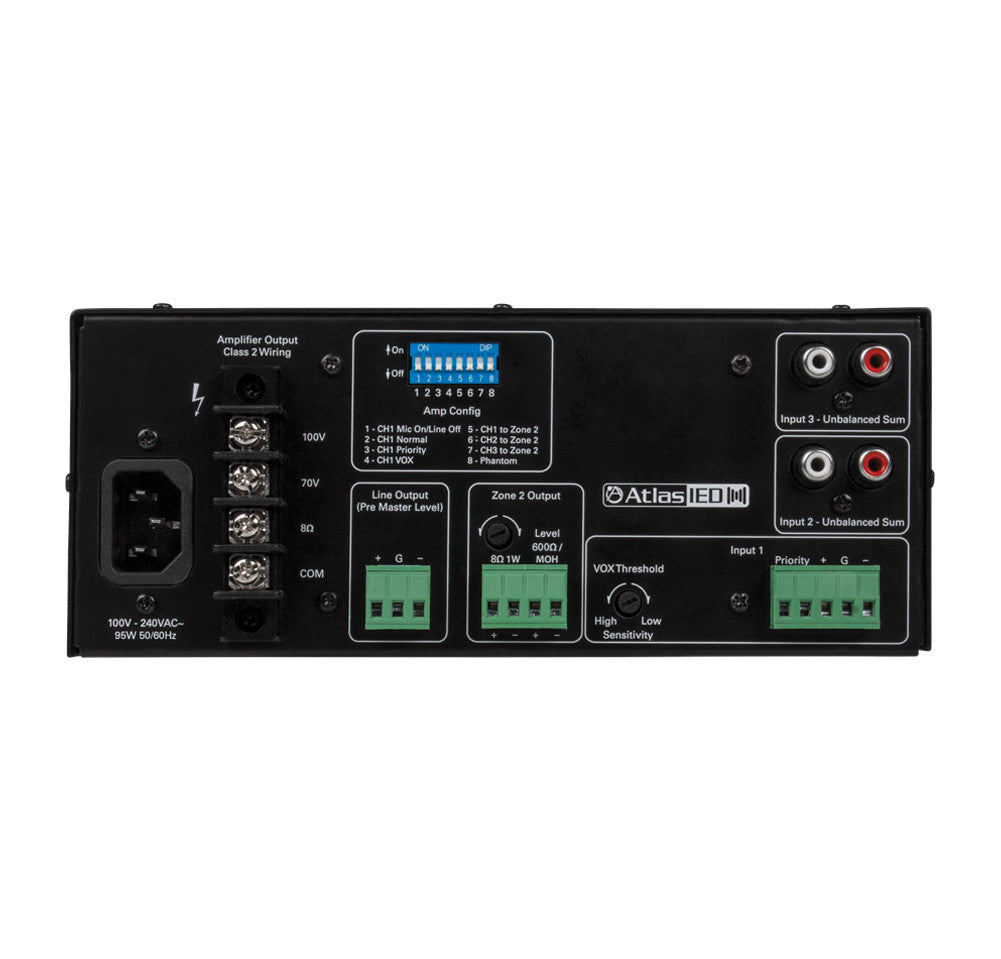

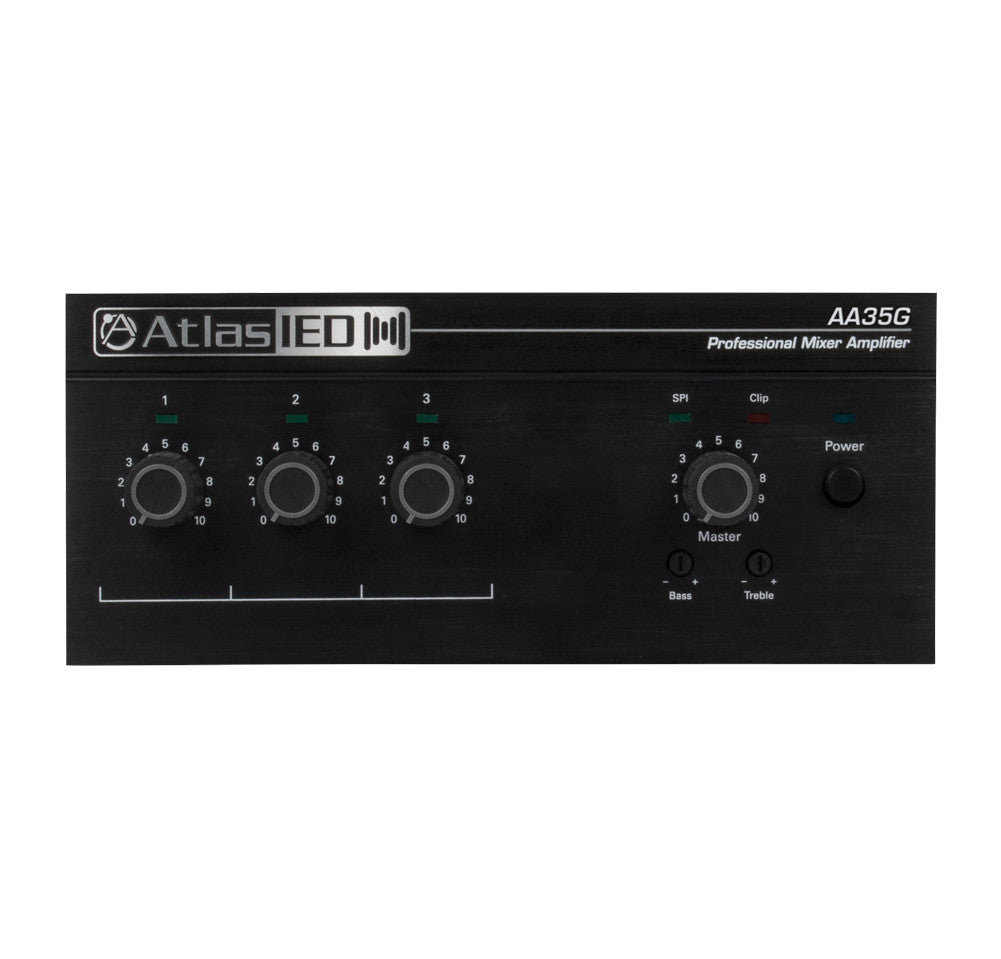

- Mixer amplifier
- Ideal for paging, background music, and music on-hold applications
- Three input channels, one output channel
- Balanced mic/line input, zone 2 and dual RCA stereo music inputs
- Priority muting by VOX or external switch
- Bass and treble controls on master output
- Universal AC power supply for 120V to 240V use
- Signal presence indicators

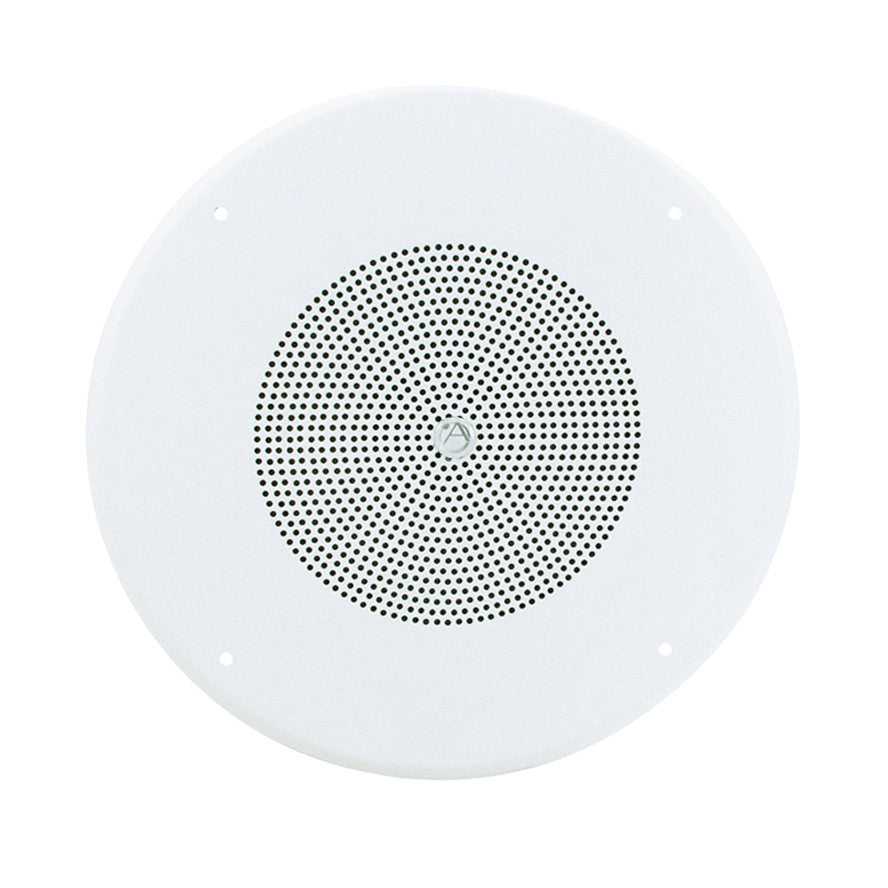

- In-ceiling loudspeakers
- 10 oz dual cone loudspeaker provides familiar response and performance
- 5-watt dual voltage transformer
- CRS white powder coat baffle

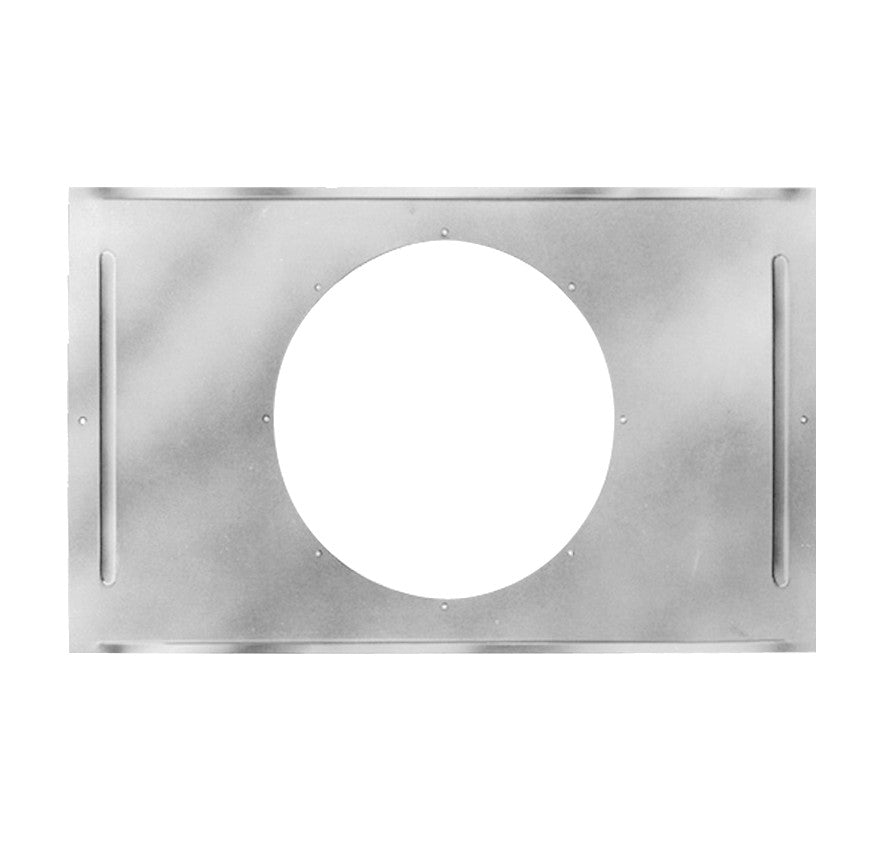

- T-bar bridges
- Load-bearing bridges eliminate ceiling tile sag by distributing assembly weight to ceiling's support system
- Round cutout suits baffles mounting the industry standard AtlasIED 95 Series enclosures
- Rust-resistant, 22-gauge, electrogalvanized steel construction

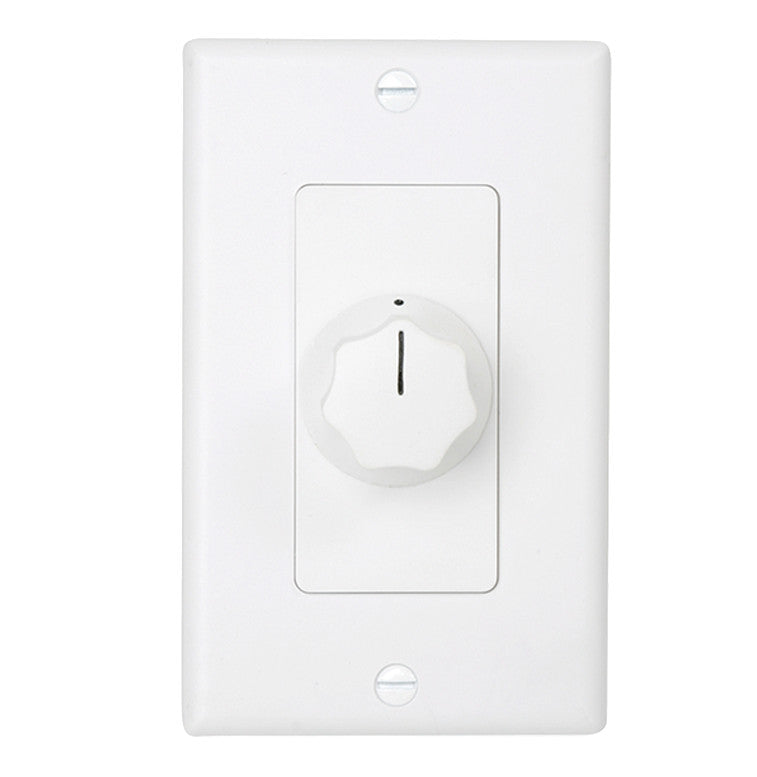

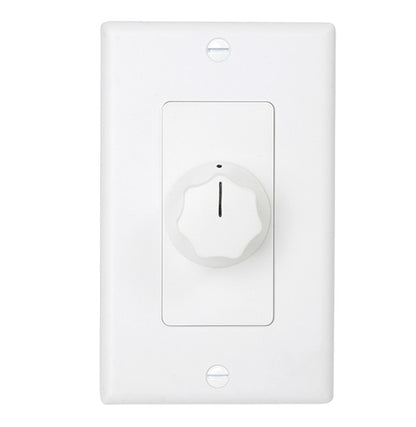

- Remote wall controller
- 1-gang size
- Clean look alternative to commercial series controllers

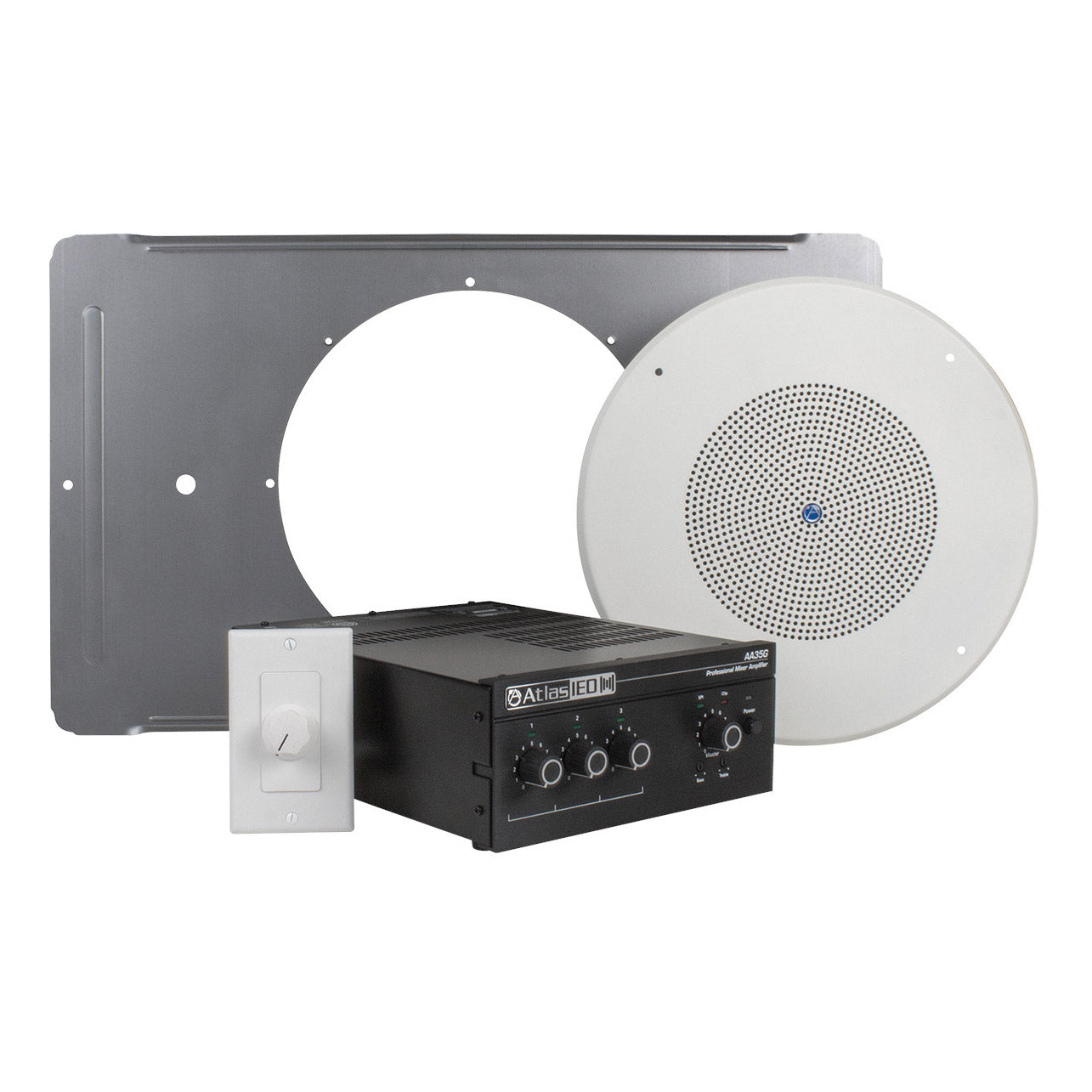

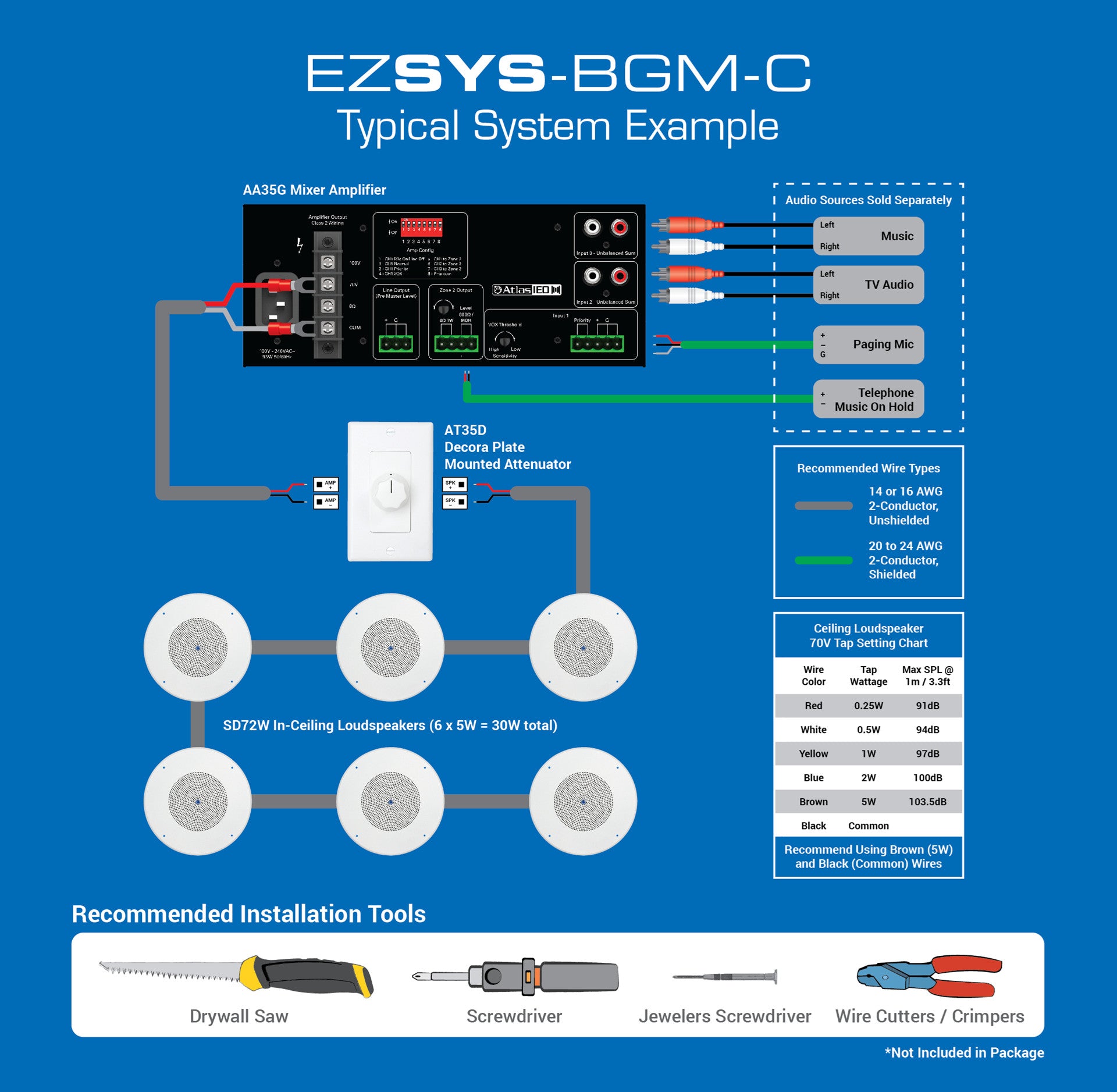

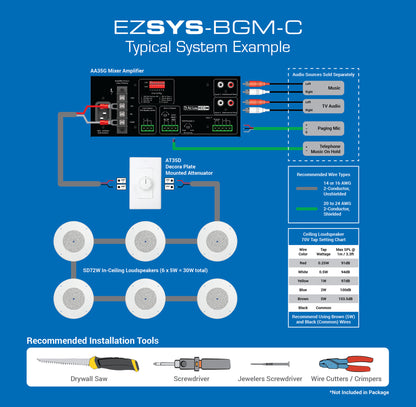

The EZSYS-BGM-C package is an entire business music and paging system. It includes the proper amplification, system control, and speakers. All you need are audio sources and cables. The box illustrates the proper way to connect the equipment including cable and tool requirements.
- AA35G
- Frequency Response: 50Hz - 20kHz
- Connector Type: Phoenix and RCA
- Output Power: 35 Watts
- Rack Units: 2 high 1/2 wide
- Height: 3.85" (98mm) Including Feet
- Width: 8.25" (210mm)
- Depth: 12.25" (311mm) Front of Knobs to Back Panel
- Shipping Weight: 8 lbs 2 oz (3.7kg)
- Safety Listed: 60065-ROHS 2006 Compliant
- Voltage Compatibility: Universal
- AT35D
- Plate Size: 1 gang
- Plate Color: White - Ivory
- Plate Type: Decora
- Power Rating: 35W
- Total Attenuation: 27dB
- Dimensions (H x W x D): 4 1/2 x 2 3/4 x 2 1/8 inches (11.43 x 6.985 x 5.3975 cm)
- Shipping Weight: 1.2 lbs (0.54 kgs)
- Safety Listed: 813, 2043
- SD72W
- Speaker Type: Treated Paper
- Sensitivity: 97dB Average
- Frequency Response: 55Hz - 8kHz
- Power Taps: .25, .5, 1, 2, & 5 Watts
- Dispersion: 105° (2kHz Octave Band, -6dB Points)
- Diameter: 8 1/8" (20.6375 cm)
- Safety Listed: 1480
- 81-8R
- Height: 14 1/8" (35.8775 cm)
- Width: 23 5/8" (60.0075 cm)
- Shipping Weight: 2.17 lbs (0.98 kgs)
- Mounts: 51-8, 60-8(W), 61-8W, 62-8, 63-8, 67-8(W), 68-8W, 170-8, M222(W), P900
