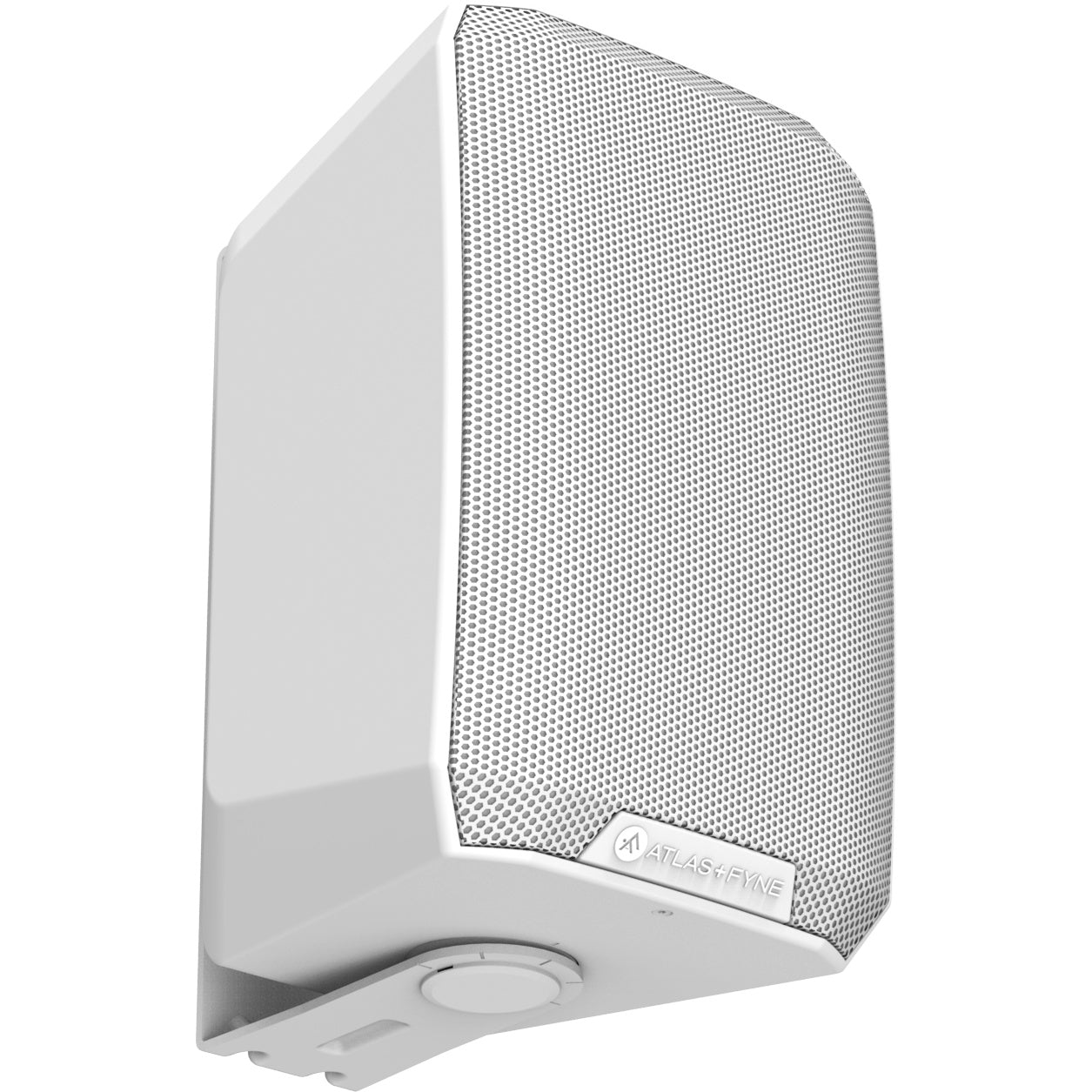

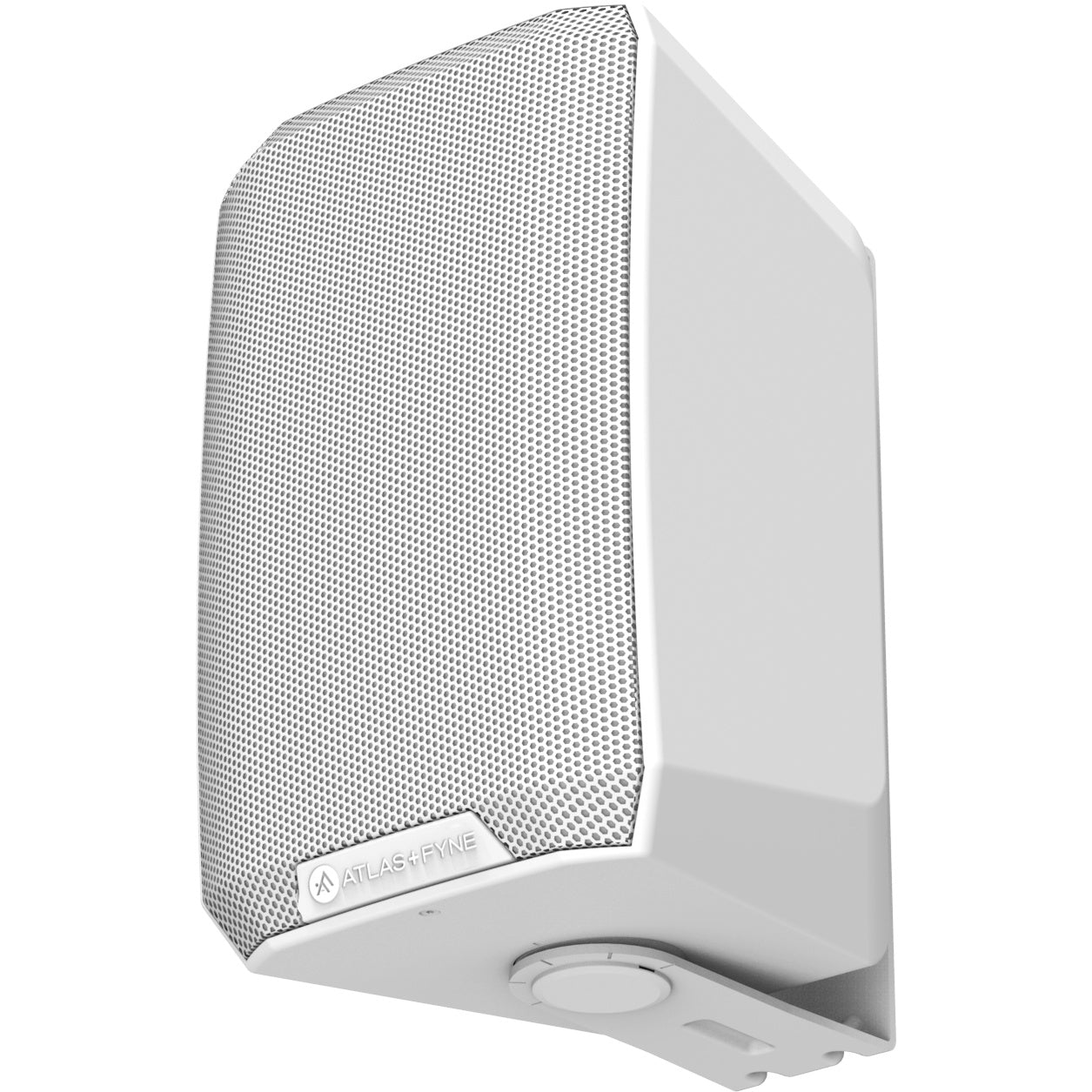

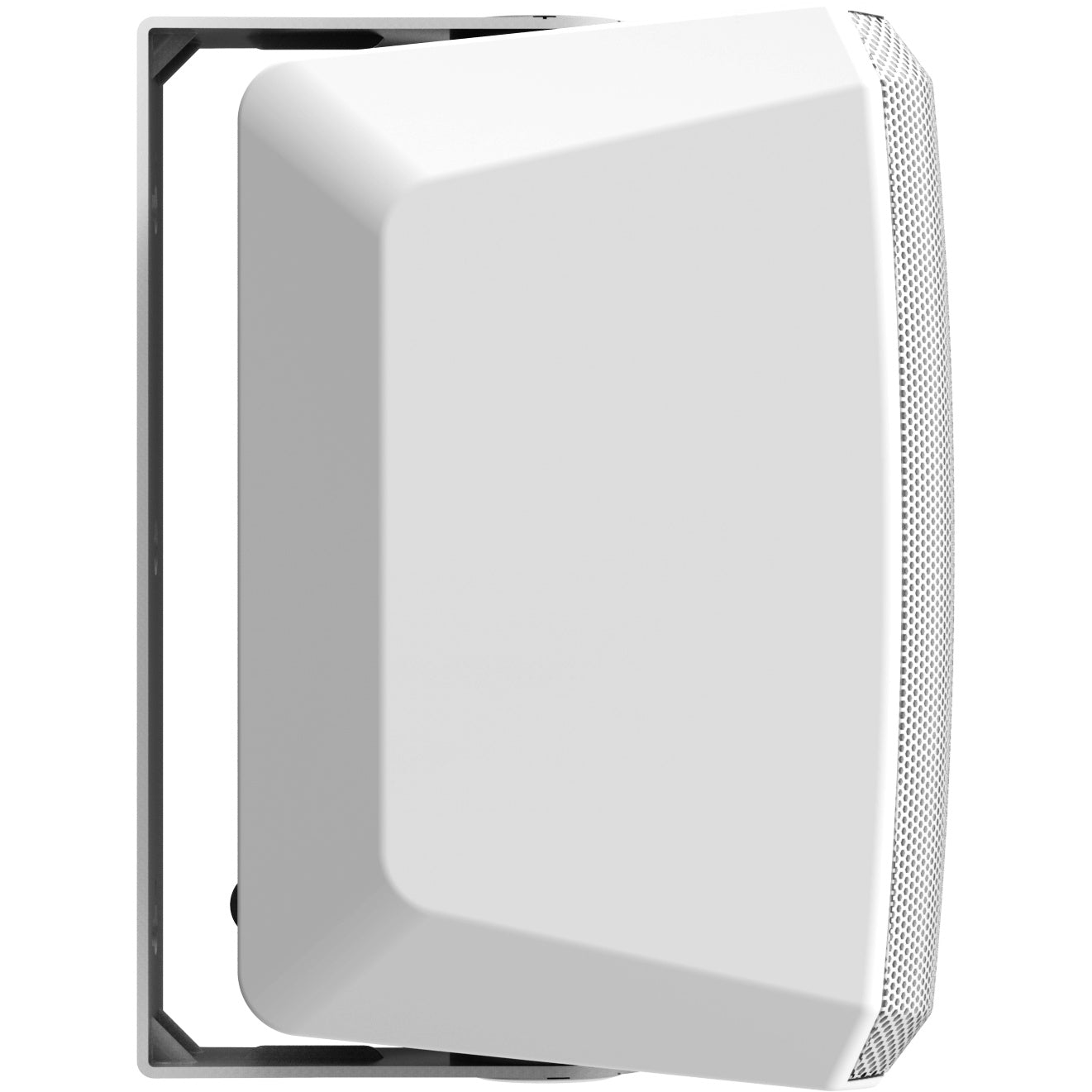

AtlasIED FS Series 4" Surface Mount Loudspeaker IsoFlare Point Source | White
AtlasIED FS Series 4" Surface Mount Loudspeaker IsoFlare Point Source | White
SoundPro Item: 208172 | Part Number: FS-4T-W
Usually ships in 5-7 business days
- IsoFlare Point Source Driver Ensures Consistent Tonal Balance On And Off Axis
- IP65 Rated Construction Suits Semi-Exposed And Humidity-Prone Locations
- Ferrofluid Cooled Titanium HF With Neodymium Magnet For Reliable High-Frequency Performance
- Fluted Surround Technology Eliminates Cone Reflections That Cause Coloration
- 70V And 100V Transformer With Rear Tap Selector Simplifies Distributed System Configuration
- High-Current Crossover With Air Core Inductors And Polypropylene Capacitors Preserves Signal Integrity
- Available In Black And White To Match Architectural Finishes
The AtlasIED FS Series 4" surface mount loudspeaker is engineered for AV integrators and system designers working in prestigious commercial environments where acoustic performance and architectural discretion are equally critical. Built around AtlasIED's IsoFlare point source driver, the loudspeaker achieves harmonic alignment between high-frequency and low-frequency sources that standard coaxial and discrete driver arrangements cannot match. The result is accurate, natural reproduction with consistent tonal balance whether the listener is on-axis or well off to the side, making it a reliable choice for open-plan offices, hospitality venues, houses of worship, retail spaces, and any installation where even coverage across a wide listening area is required.

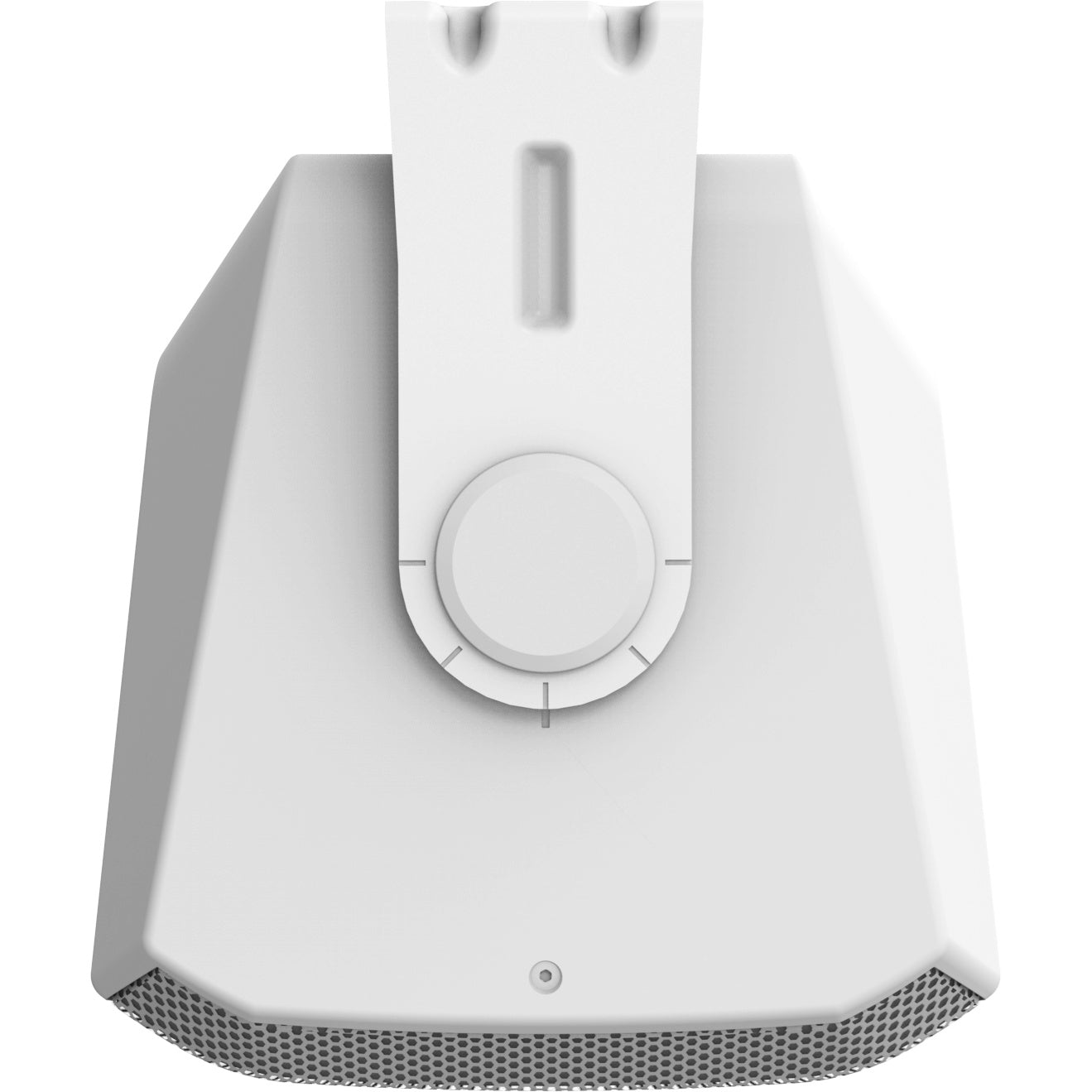

The FS Series integrates directly into 70V and 100V distributed systems via a full-bandwidth 30W transformer with rear-mounted tap selector and low-impedance bypass, giving installers the flexibility to configure wattage without opening the enclosure. The spherical wavefront propagation and constant time delay across the full frequency spectrum reduce comb filtering artifacts that complicate multi-speaker arrays, while the weather-treated driver components and IP65 rating make the loudspeaker suitable for semi-exposed or humidity-prone locations. The included slip-free yoke mount and compatibility with VESA-pattern brackets and optional pan-and-tilt hardware simplify aiming without specialized tools.
For system designers, full EASE, EASE Focus, CF2, 3D CAD, and BIM/Revit files are available from AtlasIED, streamlining the modeling and documentation workflow. Enhanced voicing presets are accessible through the AtlasIED Atmosphere platform, offering additional tuning control for integrators who need the speaker to match a specific room acoustic target. Available in black and white to suit different architectural finishes.
