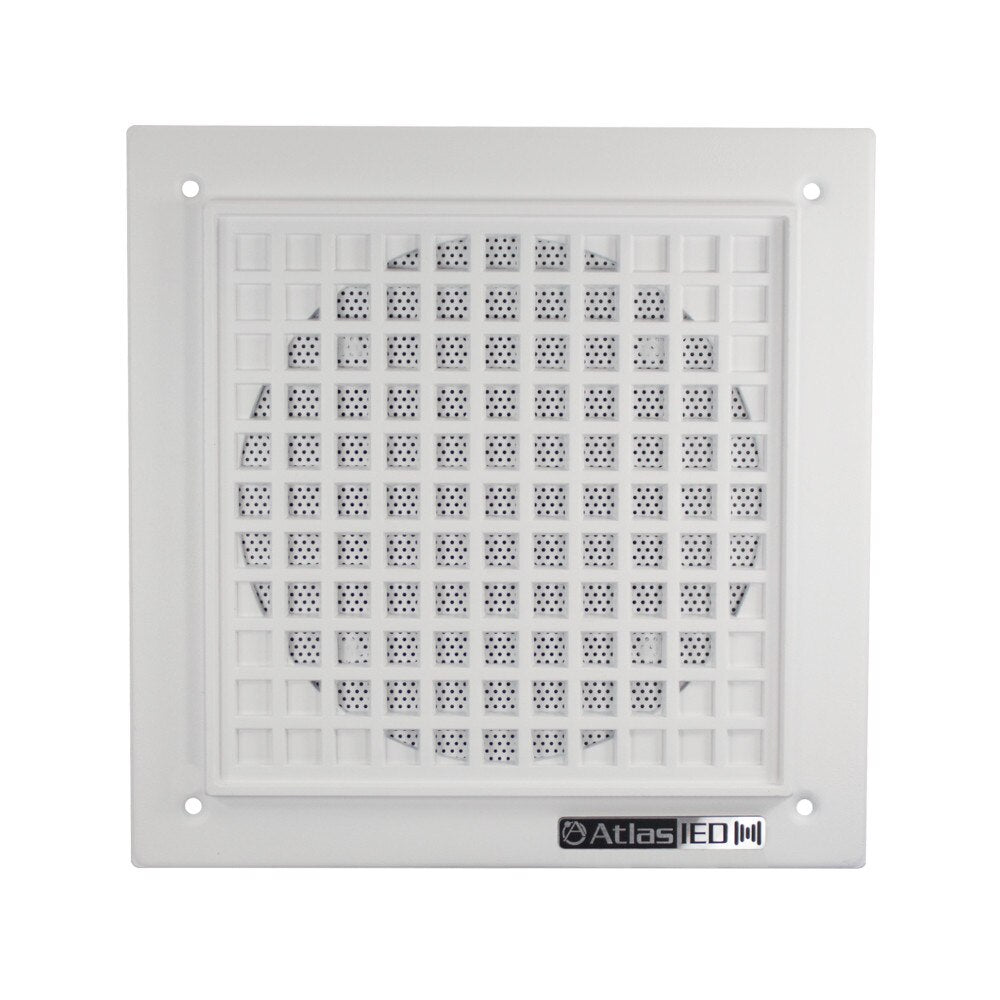

AtlasIED IP-HVP POE+ Wall Mount IP Speaker

AtlasIED IP-HVP POE+ Wall Mount IP Speaker

SoundPro Item: 55171 | Part Number: IP-HVP

Regular price $1,168.99
Regular price $1,457.99 Sale price $1,168.99
Your Price Sold out
MSRP: $1,457.99 | MAP: $1,168.99

Usually ships in 5-7 business days

  • Dynamic or Static IP Address
  • IEEE802.3 10/100Base-T Ethernet
  • IEEE 802.1q Tagging
  • IEEE 802.11AT Compliant
  • VoIP Standard Audio: G.711 u-law/a-law (64 kbit/s) or G.722 Wideband Audio (64 kbit/s)
  • Auto Provisioning: DHCP Option 66, 150, or TFTP Server or DHCP Option 72 for HTTP Server
  • Auto Registration: SLP for InformaCast or DHCP Option 72 for Revolution or GCK
  • Static Configuration: HTTP GUI for Static Configuration or Cisco SRST
  • Integrated Amplifier 15-Watt Total Power: Primary Speaker Output 8 ohm
  • Aux Audio Line-In Unbalanced (2.8Vpp 10K)
  • Aux Audio Line-Out Unbalanced (2.8Vpp 10K)
  • 2 General Purpose Inputs
  • 1 General Purpose Output (2A @ 30 VDC)
  • Phone/Night Loud Ringer
  • External Power Supply Option

The AtlasIED IP-HVP POE+ Wall Mount IP Speaker is a vandal proof, weather resistant, wall mount IP speaker. It leverages VoIP communication to extend tele-presence with enhanced audio for environments where network-wide communication is desired and high-output speakers are required to overcome high ambient noise and/or large spaces. The speaker grills are vandal and weather resistant. Manufactured of cast aluminum alloy, the grills provide security and durability in indoor and outdoor applications.

AtlasIED IP-HVP registers as a communication endpoint directly within InformaCast, GCK, and Revolution Advanced Notification applications, supporting audio broadcast to enhance physical security while improving day-to-day communications through advanced alerting, bell schedules, pre-recorded & scheduled announcements, while leveraging the WAN/ LAN Network Architecture.

When used within a Cisco Environment, the IP-HVP speakers can join Cisco's Unified Survivable Remote Site Telephony (SRST) as a supported device. Cisco's SRST provides remote location call-processing redundancy when access to the centralized Cisco Unified Communications Manager is interrupted because of a WAN outage. The ability of LAN communication between any combination of phones and speakers is particularly critical during an emergency (which may be the actual cause of the WAN outage).

View full details
  • Speaker Type Horn
  • Frequency Response 600Hz - 14kHz
  • Dispersion 95° (-6dB, 2000Hz Octave Band)
  • Max SPL 120dB @ 15-Watts (Peak)
  • Power Rating 12-Watts Max (802.3AF) / 25-Watts Max (802.3AT) THD <0.2%
  • Grille Powder Coated Steel
  • Connector Type RJ-45
  • Dimensions (H x W x D) 14.37 x 12.87 x 4.18 (365 x 327 x 106 mm)
  • Weight 5.21 lbs (2.36kg)
  • Shipping Weight 6.66 lbs (3.02kg)
  • Safety Listed 62368-1, CSA C22.2 #62368-1, IEC 62368-1 CB Scheme and FCC
