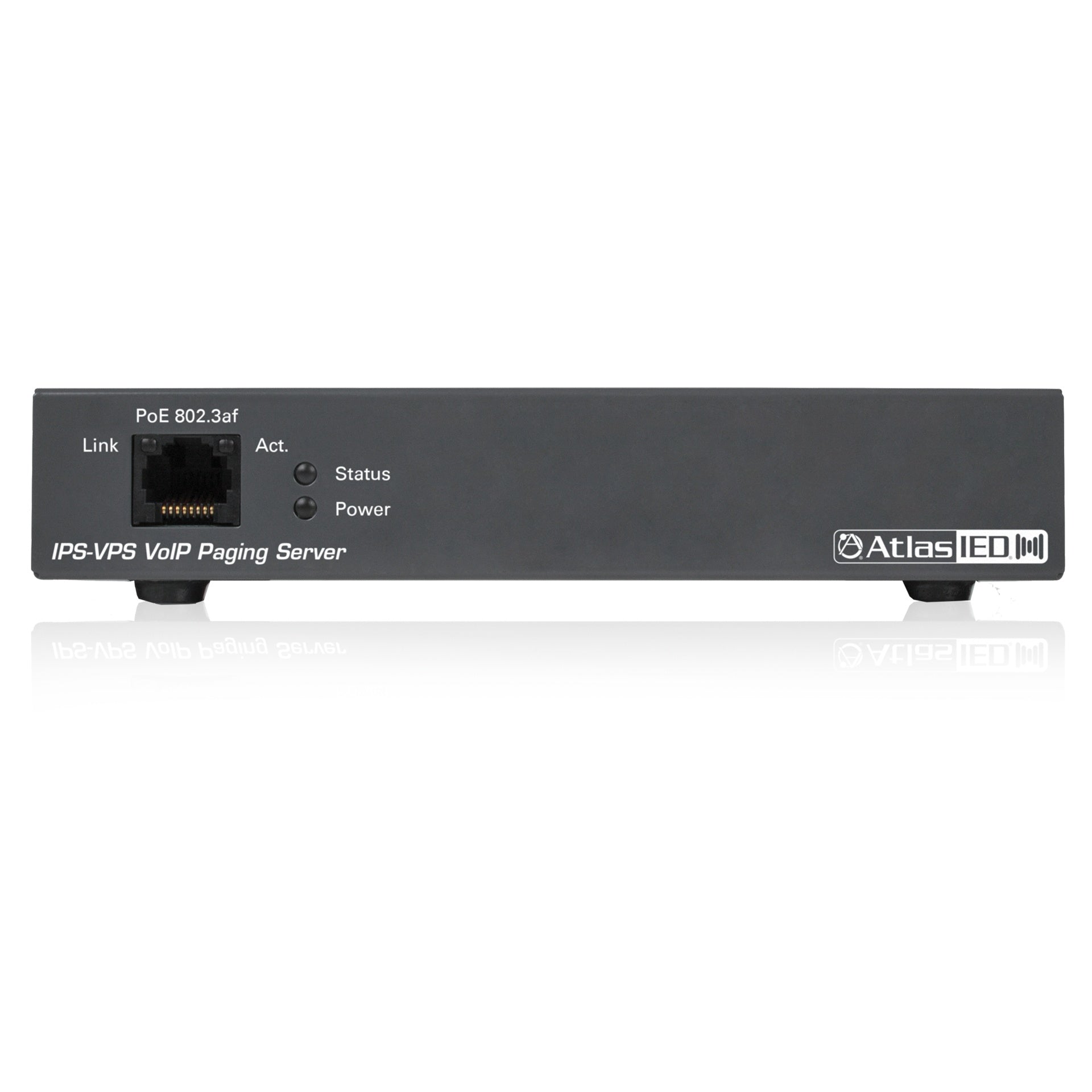

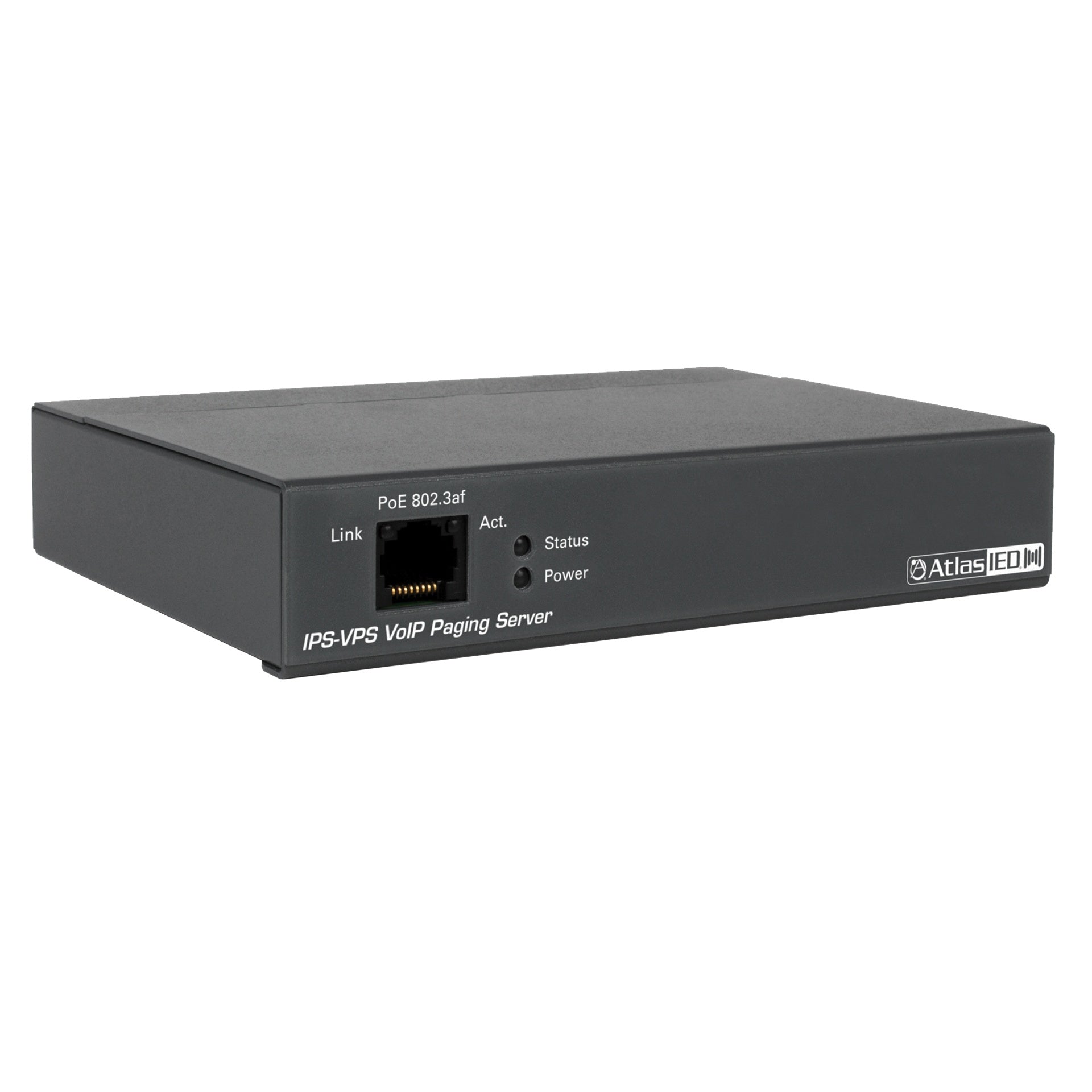

AtlasIED IPS-VPS VoIP Paging Server With SIP and Analog Output

AtlasIED IPS-VPS VoIP Paging Server With SIP and Analog Output

SoundPro Item: 47970 | Part Number: IPS-VPS

$1,299.99
$1,621.99 $1,299.99
Your Price Sold out
MSRP: $1,621.99 | MAP: $1,299.99

Usually ships in 5-7 business days

  • DTMF Zone Selection Enables Caller-Controlled Group Paging Without Additional Software
  • Simultaneous IP Multicast And Unicast Distribution Covers Mixed Network Topologies
  • Balanced Analog Line-Out Bridges SIP Infrastructure To Legacy Overhead Amp Systems
  • Line-In Connection Allows Background Music Multicasting Across The Network
  • Two SIP Endpoint Registrations Support Dedicated Night Ringer Functionality
  • User Uploadable Audio Files Allow Custom Voice Prompts And Alert Tones
  • Password-Controlled Zones Restrict Paging Access By Authorization Level
Log in or register for YOUR best price

The AtlasIED IPS-VPS is built for AV integrators and IT/AV professionals tasked with delivering reliable zone paging in environments where the existing VoIP communications manager lacks native paging group functionality or where third-party notification software is not in scope. By registering as a single SIP extension on the host system, it independently manages zone distribution via DTMF selection — removing the dependency on platform-specific paging features.

This server is well-suited for corporate campuses, K-12 and higher education facilities, healthcare environments, houses of worship, transportation hubs, and industrial facilities where both IP-connected devices and legacy analog overhead systems must coexist on a single paging infrastructure. Its simultaneous support for IP multicast, replicated unicast, and hybrid distribution ensures coverage reaches every endpoint regardless of network topology or device capability.

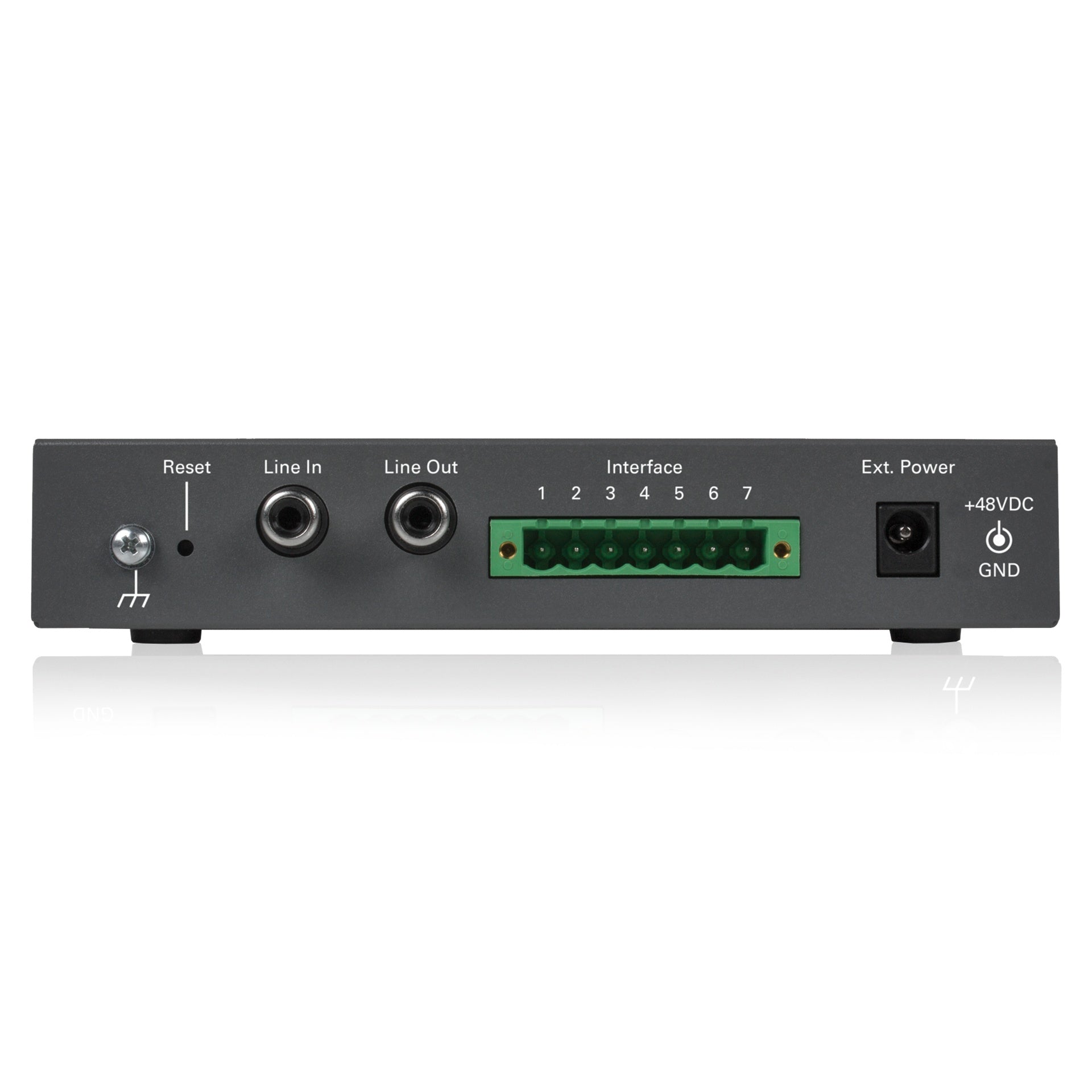

For integrators working in mixed environments, the line-in connection enables background music multicasting while the balanced analog line-out feeds existing amplifier infrastructure — bridging modern SIP-based systems with legacy installed audio without requiring a separate media bridge or additional hardware. PoE 802.3af powering simplifies rack or wall deployment where local power is limited.

Downloads

View full details

Specifications

Certifications
Regulatory Compliance
FCC Class A, UL 60950
Dimensions
Width
6.11" (155.19mm)
Height
1.15" (29.21mm)
Depth
4.05" (102.87mm)
Weight
Product Weight
1.8 lbs. (0.82kg)
Electrical
Power Input
PoE 802.3af or 48VDC
Audio
Page Port Output
Balanced 600Ω 5VPP
Line In: Input Signal Amplitudes
2.0 VPP Maximum
Line In: Input Impedance
10kΩ
Line Out: Output Signal Amplitudes
2.0 VPP Maximum
Line Out: Output Level
+2dBm Nominal
Line Out: Total Harmonic Distortion
0.5% Maximum
Line Out: Output Impedance
10kΩ
Connectivity
Ethernet I/F
10/100 Mbps
Performance
Protocol
SIP RFC 3261 Compatible
Payload Types
G711
Environmental
Operating Temperature Range
-30° to 55° C (-22° to 131° F)
Identifiers
Warranty Period
12 months from date of purchase
