• Attero Tech unD6IO 4x2 Dante Networked Audio Wall Plate
1 1

Attero Tech unD6IO 4x2 Dante Networked Audio Wall Plate

Attero Tech unD6IO 4x2 Dante Networked Audio Wall Plate

SoundPro Item: 42617 | Part Number: UND6IO

$1,240.00
$1,240.00 $1,240.00
Your Price Sold out
MSRP: $1,240.00 | MAP: $1,240.00

In stock and ready to ship

  • 2 x balanced XLR mic/line inputs, 2 x RCA and 1 x 3.5 mm input

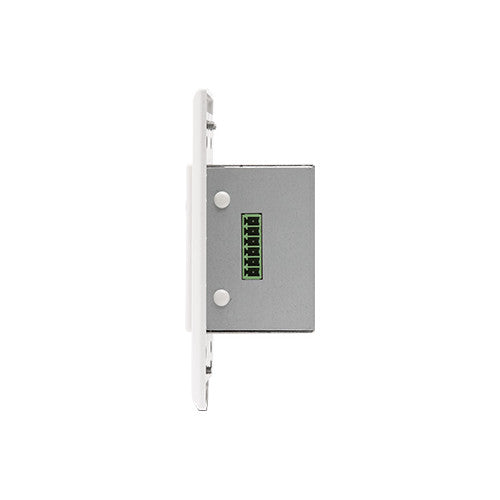

  • 1 x 3.5 mm output and 2x balanced outputs on a side-mounted depluggable connector, with software-controllable volume
  • Q-SYS Extension allows for drag-and-drop integration into your Q-SYS design
  • PoE capable
  • Three software-selectable gain levels are available on the XLR input to accommodate a wide variety of input levels and devices.
  • +48 V phantom power
  • Dante Domain Manager-ready
Log in or register for YOUR best price

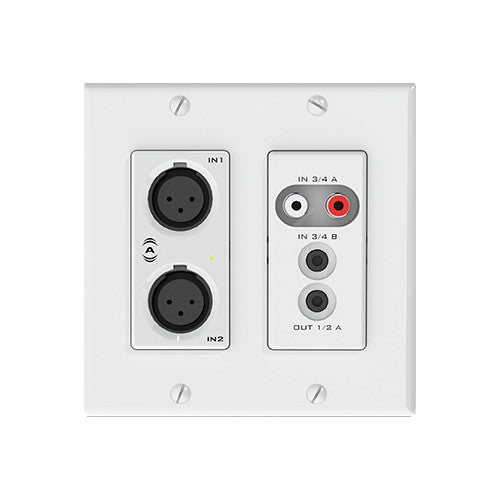

Attero Tech’s unD6IO multi-IO Dante network audio wallplate features XLR, RCA, and 3.5 mm IN with one 3.5 mm and two balanced OUTs in a dual-gang form factor. The unD6IO is PoE enabled, delivering all connectivity (power, control and audio data) with a single CAT-5e/6 cable. The size and I/O density of the unD6IO make it easy to put Dante connectivity wherever it is needed - near the audio source or sink - thereby eliminating costly and interference-prone analog wiring.

View full details
  • PowerPoE (802.3af)
  • Dimensions (HxWxD)
    • 4.2x3.5x2" (114.3x88.9x50.8 mm)
    • Decora wall plate (2-gang): 4.87x4.94x0.08" (123.7x125.48x2.03 mm)
  • Weight0.6 lb (.27 kg)
  • Audio Inputs
    • Input types
      • 2 x XLR (balanced and RF filtered)
      • 2 x RCA (stereo unbalanced)
      • 1 x 3.5 mm (stereo unbalanced)
    • Gain: -18 dB, -3 dB, +25 dB and +40 dB, software selectable (Inputs 1/2)
    • Maximum input levels
      • +20 dBu @ -18 dB gain, +6 dBu @ - 3 dB gain, -23 dBu @ +25 dB gain
      • -38 dBu @ +40 dB gain (Inputs 1/2)
      • +12 dBu ( Inputs 3/4 A & B)
    • Phantom power: +48 V (inputs 1 & 2 only)
  • Audio Outputs
    • Output type Two balanced line level with automatic muting on loss of Dante signal on 6-pin Depluggable Euroblock (Outputs 1/2 B) Two unbalanced line level outputs on stereo 3.5 mm TRS (Outputs 1/2 A) Attenuation range -60 dB to 0 dB (software-controlled) Maximum output levels +12 dBu at 0 dB attenuation (output 1/2 A) +20 dBu at 0 dB attenuation (output 1/2 B)
    • Dante Network
      • Physical level: Standard Ethernet
      • Connector: Single RJ-45
      • Cable type: CAT-5e or higher
      • Supported sample rates: 44.1 kHz, 48 kHz
