Attero Tech unDX4I 4x2 Channel Dante Network Audio Wall Plate

Attero Tech unDX4I 4x2 Channel Dante Network Audio Wall Plate

SoundPro Item: 42633 | Part Number: UNDX4I

$1,230.00
$1,230.00 $1,230.00
Your Price Sold out
MSRP: $1,230.00 | MAP: $1,230.00

Usually ships in 5-7 business days

  • Dante Domain Manager ready
  • Four balanced XLR mic/line inputs
  • Two balanced line outputs on Phoenix depluggable connectors
  • PoE powered
  • Three software-adjustable input gains accommodate common line levels, phantom power and dynamic microphones.
  • +48 V phantom power per channel
  • Q-SYS Extension allows for drag-and-drop integration into your Q-SYS design
Log in or register for YOUR best price

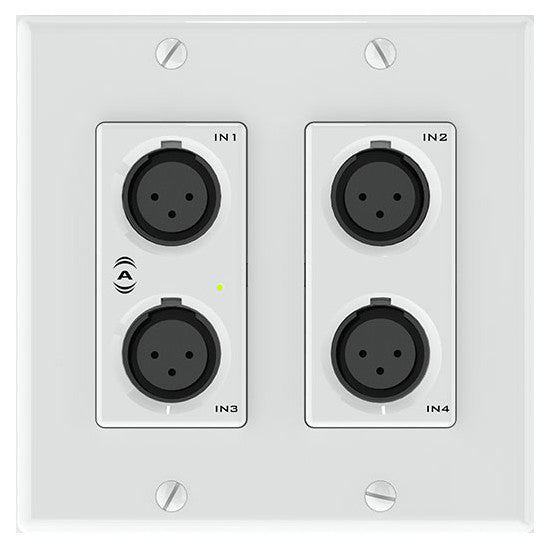

The Attero Tech unDX4I multi-IO Dante network audio I/O wall plate features 4 balanced mic/line XLR inputs and 2 balanced line outputs on a Phoenix connector. Designed to fit into most dual gang US junction boxes, the unDX4I is PoE enabled, so all connectivity (power and data) is provided by a single CAT-5 cable. The unDX4I’s size and I/O density make it easy to put Dante connectivity wherever it’s needed - near the audio source or sink - thereby eliminating costly and interference prone analog wiring.

View full details
  • Audio Inputs
    • Input types: 4x XLR (balanced and RF filtered)
    • Gain: -18 dB, -3 dB, +25 dB and +40 dB, software selectable
    • Maximum input level
      • +20 dBu @ -18 dB gain
      • +6 dBu @ - 3 dB gain
      • -23 dBu @ +25 dB gain
      • 38 dBu @ +40 dB gain
    • Phantom power +48 V, software selectable
  • Audio Outputs
    • Output type: Two balanced line level with automatic muting on loss of Dante signal on 3-pin depluggable Phoenix
    • Attenuation range: Software controlled volume (0 to -60 dB, 1 dB increments)
    • Maximum output levels: +20 dBu at 0 dB attenuation
  • Dante Network
    • Physical level: Standard ethernet
    • Connector: Single RJ-45
    • Cable quality: CAT-5e or higher
    • Transmission speed: 100 Mbps
    • Supported sample rates: 44.1 kHz, 48 kHz
  • PoE 802.3af PoE PD compliant
  • Dimensions (HxWxD)
    • 4.2x3.5x2" (114.3x88.9x50.8 mm)
    • Decora wall plate (2-gang): 4.87x4.94x0.08" (123.7x125.48x2.03 mm)
  • Weight0.6 lb (.27 kg)
