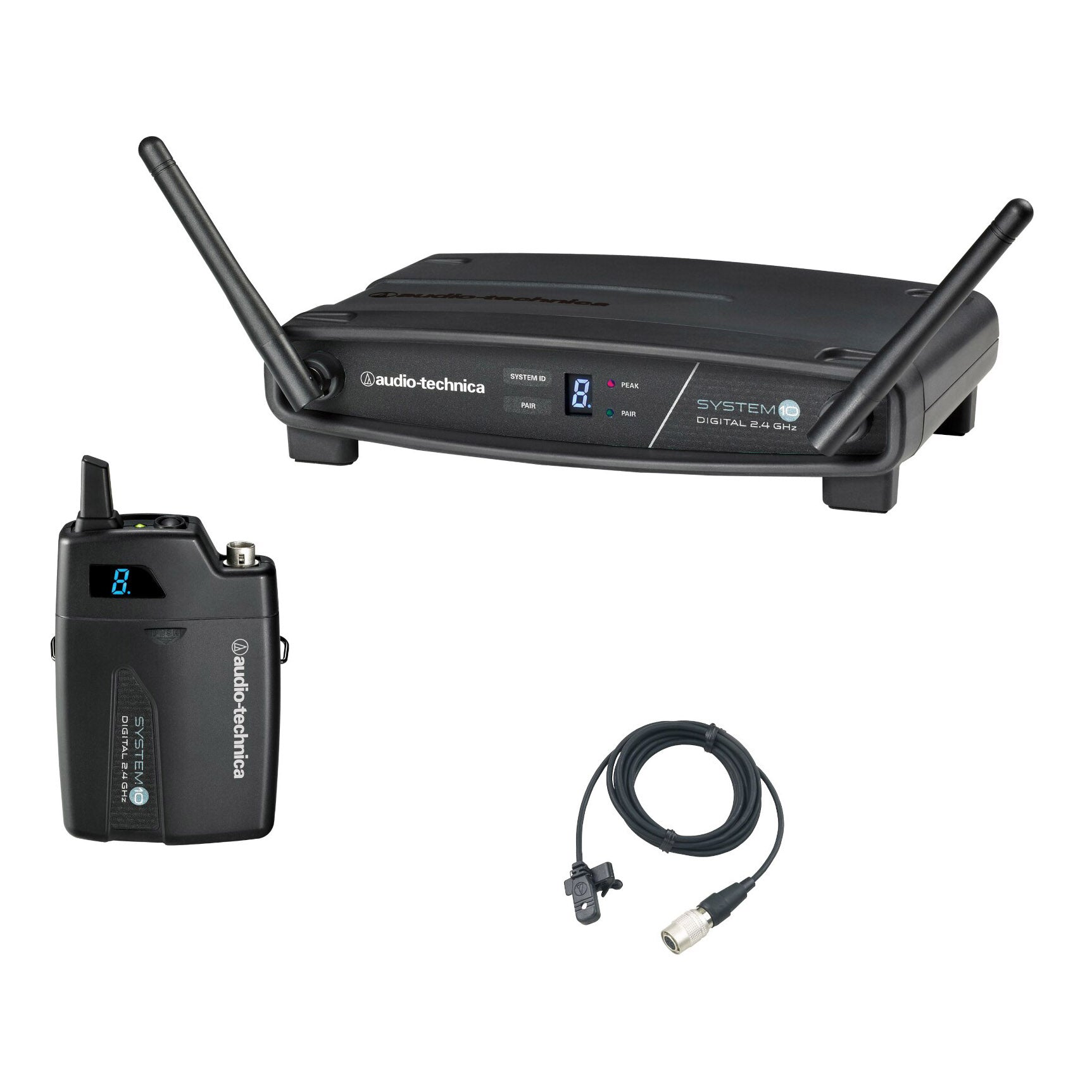

Audio-Technica ATW-1101/L Digital Wireless Lavalier Microphone System

Audio-Technica’s System 10 wireless system offers a stable audio solution for a variety of uses. Operating in the 2.4 GHz range keeps this system outside of TV and DTV interference. Operating range up to 100’ allows for mobile presentation. Up to eight channels can be used simultaneously. Three levels of diversity assurance – frequency, time, and space - support and protect the clear natural sound of the Audio-Technica ATW-1101/L Digital Wireless Lavalier Microphone System.

Receiver ATW-R1100 is the command center for the ATW-1101/L. Start quality audio production quickly with this receiver’s automatic frequency selection and pairing capabilities. Tabletop receiver has lightweight plastic housing, allowing multiple receivers to be stacked on top of it. Balanced XLR-type output and unbalanced ¼” TRS phone jack are on the back panel for connecting to other audio equipment. Connect to power source also from the rear panel. Receiver’s front panel features pairing switch, system ID select switch, and displays for system ID, pairing and AF peak.

Bodypack transmitter ATW-T1001 lends mobility and hands-free use to the ATW-1101/L system. Quickly and easily pair the transmitter with receiver from the pairing switch in the battery compartment. Power and mute functions are combined in one easily accessible button on top of the bodypack. Aside from the power/mute button, battery compartment cover slides over internal controls to prevent accidental activation. Microphone/instrument level control provides trim adjustment, and LED indicator displays status of different controls.

Attached to the bodypack transmitter is lavalier microphone MT830cW. Omnidirectional polar pattern is sensitive to sound all around the lapel mic, creating a sound capture of the overall atmosphere. From the benefits of this microphone to the overall system, it is ideal for in-depth interviews, theater performances, leading worship, and more.
