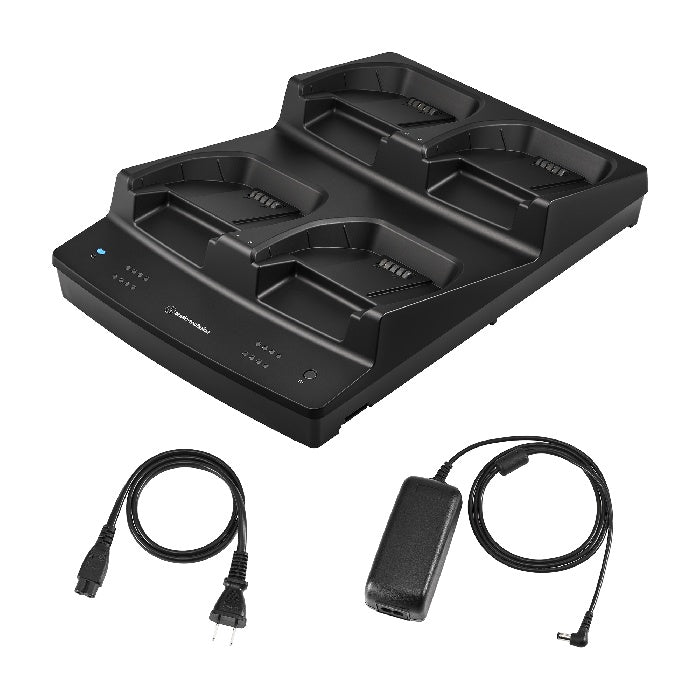

Audio-Technica D50 Charging Station Networkable Wireless Transmitter Dock | 4-Bay | Yes

Audio-Technica D50 Charging Station Networkable Wireless Transmitter Dock | 4-Bay | Yes

SoundPro Item: 206959 | Part Number: ATW-CHG7AD

$1,331.00
$1,565.88 $1,331.00
Your Price Sold out
MSRP: $1,565.88 | MAP: $1,331.00

Usually ships in 5-7 business days

  • Daisy-Chain Linking Connects Up To Four Units Via Cat5e Cable And Powers From A Single Adapter
  • PoE Plus Support Eliminates Dedicated Power Supplies In Network-Connected Rack Environments
  • Wireless Manager Integration Provides Remote Battery Monitoring And Charging Status Across Sites
  • Dual Microphone Hangers Deliver Organized Lavalier Storage Between Production Sessions
  • Firmware Update Capability Pushes Software Revisions To Docked Transmitters Without Field Removal
  • Flexible Mounting Orientation Accommodates Vertical Or Horizontal Installation In Equipment Racks
  • AT8620 Rack Tray Compatibility Fits Three Stations In A Single 2U Space For High-Density Deployments
Log in or register for YOUR best price

Designed for installed AV environments and live production workflows, this compact charging solution manages D50 wireless system transmitters with full network oversight. The station delivers real-time battery level reporting and charging status through both front-panel LEDs and Audio-Technica's Wireless Manager platform, enabling remote fleet management across broadcast studios, corporate installations, and multi-room facilities. Up to four stations can be daisy-chained via Cat5e cable and powered by a single adapter, or connected via PoE+ for streamlined rack integration without dedicated AC outlets.

The vertical or horizontal mounting flexibility accommodates equipment room constraints, while the optional AT8620 tray allows three units to occupy a single 2U rack space. Included microphone hangers provide organized lavalier storage between production shifts, and firmware updates can be pushed to docked transmitters without removing them from the field rotation. The Cat5e linking architecture reduces cable clutter in crowded racks and lets you scale charging infrastructure as your wireless system grows.

View full details

Specifications

Power
Power Supply
12 V DC, 3.0 A
Charging Output (1-4 Transmitters)
4.2 V DC 1.5 A
Charging Output (5-6 Transmitters)
4.2 V DC 1.1 A
Charging Output (7-8 Transmitters)
4.2 V DC 0.7 A
Maximum Power Consumption (4 Transmitters)
30.6 W
Charging Time
Charging Time (1-4 Transmitters)
Approx. 2 hours
Charging Time (5-6 Transmitters)
Approx. 2 hours 50 minutes
Charging Time (7-8 Transmitters)
Approx. 3 hours 40 minutes
Energy-Saving Mode
Approx. 3 hours 40 minutes
Connectivity
Network
100 Mbps
Environmental
Operating Temperature Range
0°C to 40°C (32°F to 104°F)
Storage Temperature Range
-20°C to 55°C (-4°F to 131°F)
Dimensions
Dimensions
8.3" x 12" x 2.6" (W x D x H)
Weight
Weight
866 g (31 oz)
Included Items
Included Accessories
Link cable, Link plate, Link plate screws, Power supply
Shipping
Package Weight
3.57 lbs
Package Dimensions
15.6" x 9.1" x 3.7"
