Audio-Technica D50 Wireless System Half-Rack Receiver | 2 | Body-Pack

Audio-Technica D50 Wireless System Half-Rack Receiver | 2 | Body-Pack

SoundPro Item: 206961 | Part Number: ATW-D50-DRX-2B

$2,347.00
$2,761.18 $2,347.00
Your Price Sold out
MSRP: $2,761.18 | MAP: $2,347.00

Usually ships in 5-7 business days

  • Audio-Technica LINK Network Integration Enables Centralized System Management And Remote Configuration
  • Switchable Diversity Architecture Provides MRC Robust Mode For High-Interference Environments
  • Dual-Mode Frequency Planning Supports Standard Or HD Modulation Density
  • Onboard DSP Processing Includes Parametric EQ And Dynamics Per Channel
  • AES256 Encryption Ensures Secure Transmission For Confidential Applications
  • PoE+ Redundant Power Input Maintains Operation During AC Interruptions
  • Spectrum Analyzer And Walk Test Tools Simplify Multi-System RF Coordination
Log in or register for YOUR best price

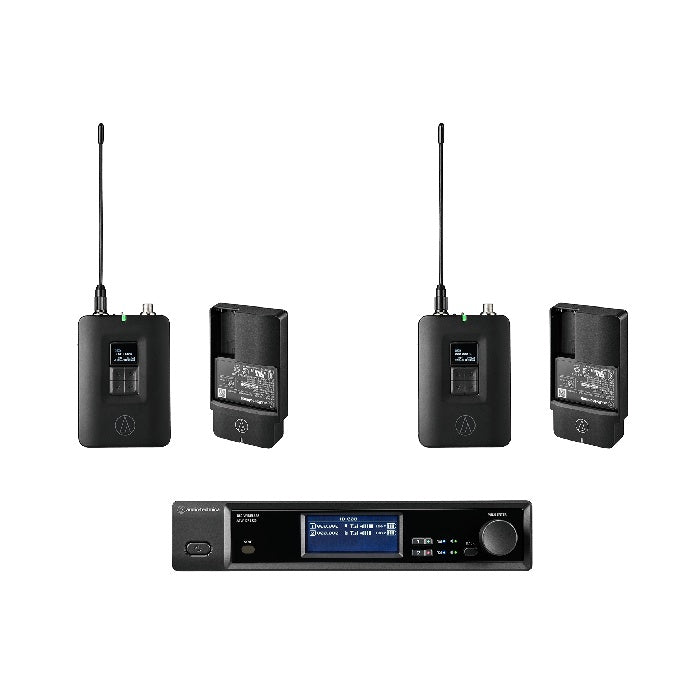

The Audio-Technica D50 Wireless System delivers professional RF performance for installed sound, live production, and corporate AV applications requiring secure, interference-resistant wireless transmission. The ATW-DR3220LK half-rack receiver features switchable diversity architecture—Normal mode for typical installations, Robust MRC mode when operating in RF-congested venues or multi-system deployments. Full tuning bandwidth spans the UHD broadcast range with selectable Standard or HD modulation modes, allowing integrators to deploy higher channel density when spectrum is constrained. Onboard DSP includes four-band parametric EQ, compressor, and high-pass filtering per channel, eliminating the need for external processing in many applications.

Dual power inputs accept standard AC or IEEE 802.3at PoE+, with automatic failover ensuring continuous operation during utility interruptions or rack power loss. Network connectivity enables centralized monitoring and configuration through Wireless Manager software, including advanced walk testing, multipoint receiver handoff, and spectrum analysis tools that simplify coordination across multi-room installations. The ATW-DT3201 body-pack transmitters feature locking cH-style four-pin connectors compatible with lavalier, headworn, and instrument cables, plus a SideTrack function for discrete IFB communication. Custom lithium-ion cells provide extended runtime, with included ATW-CHGA6 chargers supporting field-swappable battery operation.

TAA compliance and RED cybersecurity certification address procurement requirements for government and EU installations. Front-panel spectrum display and IR sync streamline frequency coordination without external tools, while included rack ears support both half-rack and joined full-rack configurations in standard 19-inch equipment racks.

View full details

Specifications

Certifications
TAA Compliant
Yes (U.S.)
RED Cybersecurity Compliant
Yes (EU)
Audio
Operating Frequencies
DF2: 470.125 to 607.875 MHz
Modulation Mode Standard
8-PSK
Modulation Mode HD
16QAM
Occupied Bandwidth Standard
192 kHz
Occupied Bandwidth HD
96 kHz
Frequency Response
20 to 20,000 Hz
Operating Range
100 m (328')
Dynamic Range Mic Input
120 dB, A-weighted
Dynamic Range Instrument Input
109 dB, A-weighted
Total Harmonic Distortion
0.1% or less (at 1 kHz, -20 dBFS)
Maximum Simultaneous Use Standard
17 channels / 6 MHz
Delay Standard
2.1 ms
Delay HD
3.3 ms
Audio Sampling Rate
48 kHz
Encryption System
AES256
Receiver ATW-DR3220LK
Receiving System Robust
MRC true diversity
Receiving System Normal
Antenna combining diversity
Image Rejection
70 dB
RF Sensitivity
-98 dBm (10⁻⁵ BER)
Maximum Output Level
+18 dBV
Antenna Input
BNC, 50 ohms
Antenna Power
12 V DC, 150 mA x2
Maximum Power Consumption AC
13 W (44 Btu/h)
Maximum Power Consumption PoE+
14 W (48 Btu/h)
Power Supply
100 to 240 V AC 50/60 Hz, PoE+ (IEEE 802.3at Class 4)
Network IP Control
100 Mbps
Network Audio-Technica Link
100 Mbps
Cooling Method
Fan-assisted air cooling
Airflow Direction
Front intake / Rear exhaust
Transmitter ATW-DT3201
RF Output Power Standard
20 mW, 10 mW, 1 mW
RF Output Power HD
1 mW
Input Connection
Four pin locking connector
High-pass Filter
120 Hz, 12 dB/octave
Battery
Lithium-ion battery LI-220 (included)
Battery Life
12 hours (10 mW)
Transmitter Dimensions
56 mm (2.2") × 80 mm (3.1") × 24 mm (0.94") (W x D x H)
Transmitter Weight With Battery
172 g (6.1 oz)
Battery LI-220
Battery Type
Lithium ion
Output Voltage
3.6 V DC
Capacitance
2,200 mAh
Battery Dimensions
39.7 mm (1.6") x 56.7 mm (2.2") x 13.5 mm (0.53") (W x D x H)
Battery Weight
49 g (1.7 oz)

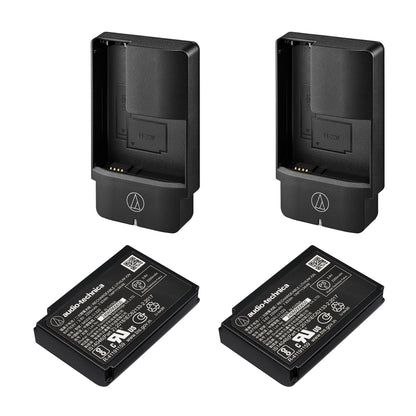

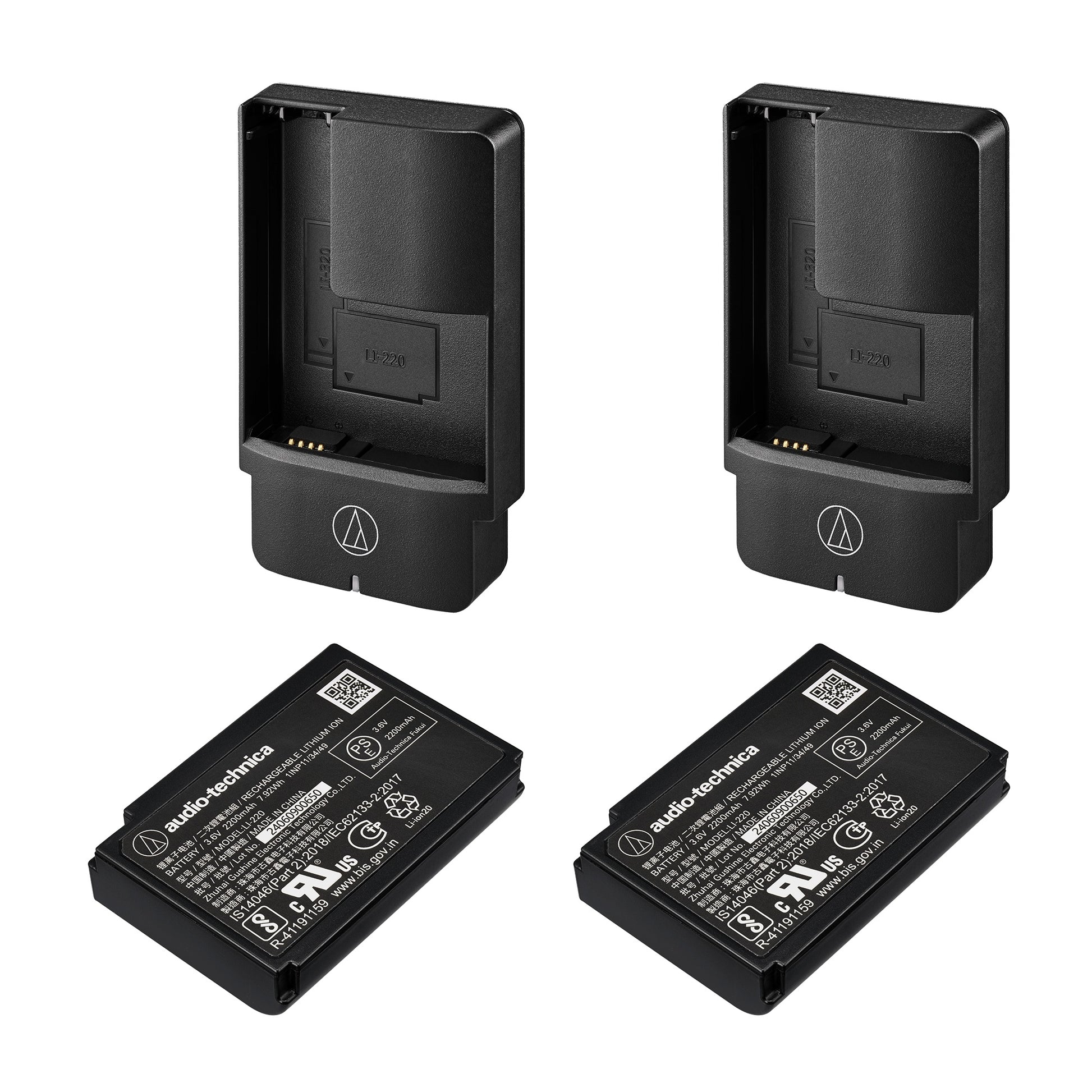

Charger ATW-CHGA6
Charger Power Supply
USB Type-C, ATW-CHG6
Charging Output USB Type-C
4.2 V 0.5 A
Charging Time LI-220 USB
Approx. 5 hours
Charger Dimensions
63.8 mm (2.5") × 106.8 mm (4.2") × 25 mm (0.98") (W × D × H)
Charger Weight
64 g (2.3 oz)
Environmental
Operating Temperature Range
-5°C to 40°C (23°F to 104°F)
Storage Temperature Range
-20°C to 55°C (-4°F to 131°F)
Dimensions
Receiver Dimensions
210 mm (8.3") × 288.2 mm (11") × 42.5 mm (1.7") (W x D x H)
Weight
Receiver Weight
2.1 kg (4.6 lbs)
Shipping
Package Weight
11.04 lbs
Package Dimensions
16.75" x 14.63" x 9.5" (W x L x H)
