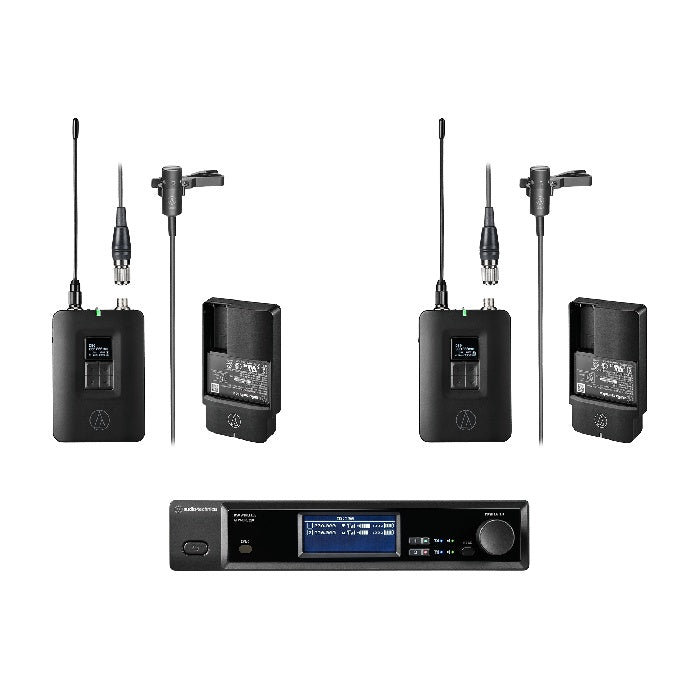

Audio-Technica D50 Wireless System Half-Rack Receiver | 2 | Body-Pack

Audio-Technica D50 Wireless System Half-Rack Receiver | 2 | Body-Pack

SoundPro Item: 206962 | Part Number: ATW-D50-DRX-2BL

$2,625.00
$3,088.24 $2,625.00
Your Price Sold out
MSRP: $3,088.24 | MAP: $2,625.00

Usually ships in 5-7 business days

  • Audio-Technica LINK Network Integration Enables Centralized System Management And Remote Configuration
  • Switchable Diversity Architecture Provides MRC Robust Mode For High-Interference Environments
  • Dual-Mode Frequency Planning Supports Standard Or HD Modulation Density
  • Onboard DSP Processing Includes Parametric EQ And Dynamics Per Channel
  • AES256 Encryption Ensures Secure Transmission For Confidential Applications
  • PoE+ Redundant Power Input Maintains Operation During AC Interruptions
  • Spectrum Analyzer And Walk Test Tools Simplify Multi-System RF Coordination
Log in or register for YOUR best price

The Audio-Technica D50 Wireless System delivers professional RF performance for installed sound, live production, and corporate AV applications requiring secure, interference-resistant wireless transmission. The ATW-DR3220LK half-rack receiver features switchable diversity architecture—Normal mode for typical installations, Robust MRC mode when operating in RF-congested venues or multi-system deployments. Full tuning bandwidth spans the UHD broadcast range with selectable Standard or HD modulation modes, allowing integrators to deploy higher channel density when spectrum is constrained. Onboard DSP includes four-band parametric EQ, compressor, and high-pass filtering per channel, eliminating the need for external processing in many applications.

Dual power inputs accept standard AC or IEEE 802.3at PoE+, with automatic failover ensuring continuous operation during utility interruptions or rack power loss. Network connectivity enables centralized monitoring and configuration through Wireless Manager software, including advanced walk testing, multipoint receiver handoff, and spectrum analysis tools that simplify coordination across multi-room installations. The ATW-DT3201 body-pack transmitters feature locking cH-style four-pin connectors compatible with lavalier, headworn, and instrument cables, plus a SideTrack function for discrete IFB communication. Custom lithium-ion cells provide extended runtime, with included ATW-CHGA6 chargers supporting field-swappable battery operation.

TAA compliance and RED cybersecurity certification address procurement requirements for government and EU installations. Front-panel spectrum display and IR sync streamline frequency coordination without external tools, while included rack ears support both half-rack and joined full-rack configurations in standard 19-inch equipment racks.

View full details

Specifications

Audio
Frequency Response
20 to 20,000 Hz
Dynamic Range (Mic Input)
120 dB, A-weighted
Dynamic Range (Instrument Input)
109 dB, A-weighted
Total Harmonic Distortion
0.1% or less (at 1 kHz, -20 dBFS)
Audio Sampling Rate
48 kHz
Performance
Operating Frequencies
470.125 to 607.875 MHz (DF2)
Modulation Mode
Standard: 8-PSK, HD: 16QAM
Occupied Bandwidth
Standard: 192 kHz, HD: 96 kHz
Operating Range
328'
Maximum Simultaneous Use
17 channels per 6 MHz (Standard mode)
Delay
Standard: 2.1 ms, HD: 3.3 ms
Receiver
Receiving System
Robust: MRC true diversity, Normal: Antenna combining diversity
Image Rejection
70 dB
RF Sensitivity
-98 dBm (10⁻⁵ BER)
Maximum Output Level
+18 dBV
Antenna Input
BNC, 50 ohms
Antenna Power
12 V DC, 150 mA x2
Cooling Method
Fan-assisted air cooling
Airflow Direction
Front intake / Rear exhaust
Transmitter
RF Output Power
Standard: 20 mW, 10 mW, 1 mW, HD: 1 mW
Input Connection
Four pin locking connector
High-pass Filter
120 Hz, 12 dB/octave
Battery Type
Lithium-ion LI-220
Battery Life
12 hours (10 mW)
Electrical
Power Supply
100 to 240 V AC 50/60 Hz, PoE+ (IEEE 802.3at Class 4)
Maximum Power Consumption (AC)
13 W (44 Btu/h)
Maximum Power Consumption (PoE+)
14 W (48 Btu/h)
Connectivity
Network
IP control: 100 Mbps, Audio-Technica Link: 100 Mbps
Certifications
Encryption System
AES256
Compliance
TAA (U.S.), RED cybersecurity (EU)
Dimensions
Receiver Dimensions
8.3" x 11" x 1.7" (W x D x H)
Transmitter Dimensions
2.2" x 3.1" x 0.94" (W x D x H)
Weight
Receiver Weight
4.6 lbs (without accessories)
Transmitter Weight
6.1 oz (with battery)
Environmental
Operating Temperature Range (Receiver)
-5°C to 40°C (23°F to 104°F)
Storage Temperature Range (Receiver)
-20°C to 55°C (-4°F to 131°F)
Operating Temperature Range (Transmitter)
-5°C to 45°C (23°F to 113°F)
Storage Temperature Range (Transmitter)
-20°C to 55°C (-4°F to 131°F)
Included Items
Receiver Accessories
Whip antenna x2, AC adapter (AD-SA1230XA), AC cable, Rubber foot x4, Rack-mount adapter (short), Rack-mount adapter (long), Fixing screw x7, BNC cable kit x2
Transmitter Accessories (per unit)

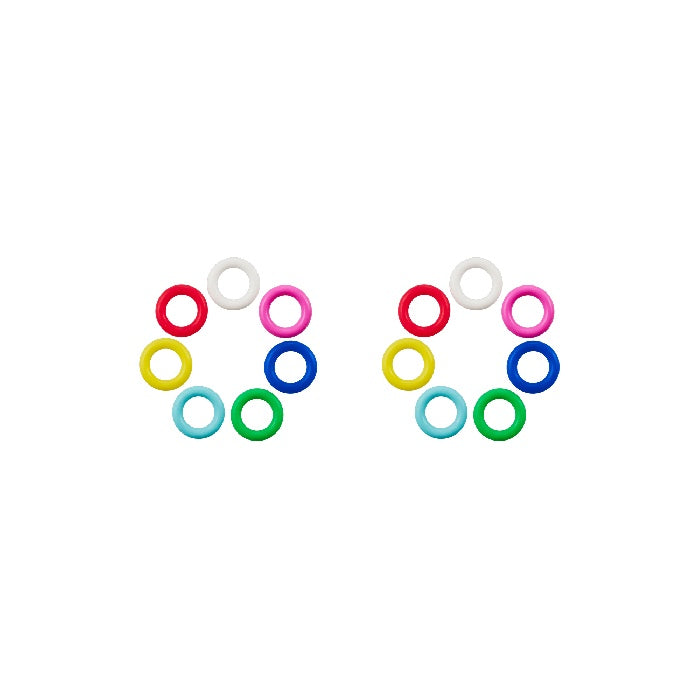

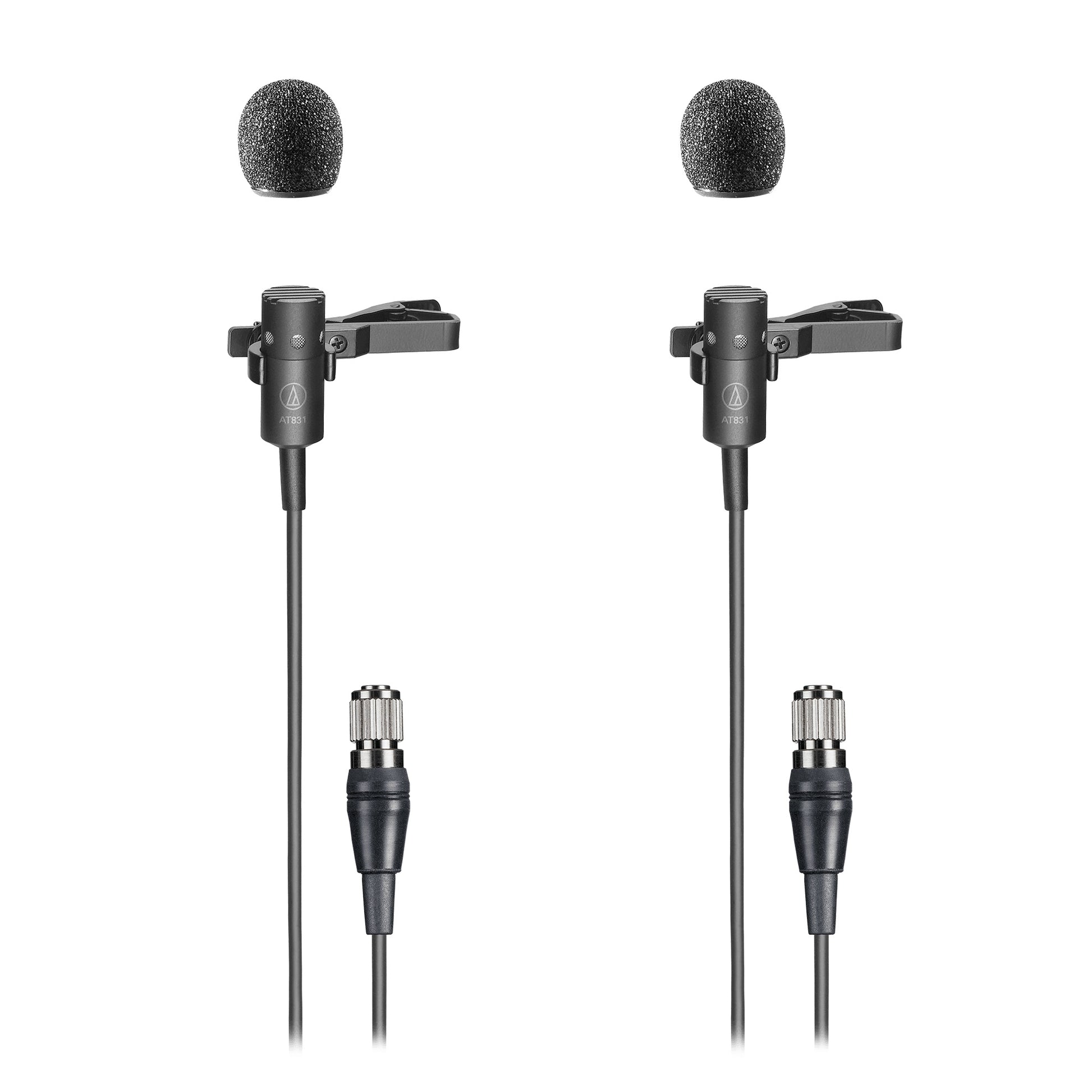

ATW-DT3201 body-pack transmitter, ATW-CHGA6 battery charger, LI-220 rechargeable lithium-ion battery, ATW-TI10 color ring indicator kit, AT831cH wireless cardioid condenser lavalier microphone, Pouch
Shipping
Package Weight
11.36 lbs
Package Dimensions
16.75" x 14.63" x 9.5"
