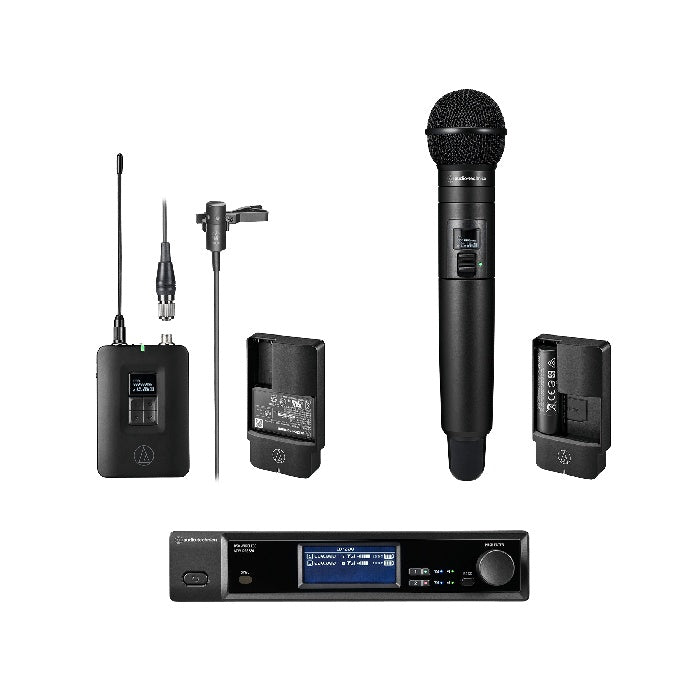

Audio-Technica D50 Wireless System Half-Rack Receiver | 2-Channel | 1 Body-Pack + 1 Handheld | Combo

Audio-Technica D50 Wireless System Half-Rack Receiver | 2-Channel | 1 Body-Pack + 1 Handheld | Combo

SoundPro Item: 206965 | Part Number: ATW-D50-DRX-BLH

$2,568.00
$3,021.18 $2,568.00
Your Price Sold out
MSRP: $3,021.18 | MAP: $2,568.00

Usually ships in 5-7 business days

  • Audio-Technica LINK Network Integration Enables Centralized System Management And Remote Configuration
  • Switchable Diversity Architecture Provides MRC Robust Mode For High-Interference Environments
  • Dual-Mode Frequency Planning Supports Standard Or HD Modulation Density
  • Onboard DSP Processing Includes Parametric EQ And Dynamics Per Channel
  • AES256 Encryption Ensures Secure Transmission For Confidential Applications
  • PoE+ Redundant Power Input Maintains Operation During AC Interruptions
  • Spectrum Analyzer And Walk Test Tools Simplify Multi-System RF Coordination
Log in or register for YOUR best price

The Audio-Technica D50 Wireless System delivers professional RF performance for installed sound, live production, and corporate AV applications requiring secure, interference-resistant wireless transmission. The ATW-DR3220LK half-rack receiver features switchable diversity architecture—Normal mode for typical installations, Robust MRC mode when operating in RF-congested venues or multi-system deployments. Full tuning bandwidth spans the UHD broadcast range with selectable Standard or HD modulation modes, allowing integrators to deploy higher channel density when spectrum is constrained. Onboard DSP includes four-band parametric EQ, compressor, and high-pass filtering per channel, eliminating the need for external processing in many applications.

Dual power inputs accept standard AC or IEEE 802.3at PoE+, with automatic failover ensuring continuous operation during utility interruptions or rack power loss. Network connectivity enables centralized monitoring and configuration through Wireless Manager software, including advanced walk testing, multipoint receiver handoff, and spectrum analysis tools that simplify coordination across multi-room installations. The ATW-DT3201 body-pack transmitters feature locking cH-style four-pin connectors compatible with lavalier, headworn, and instrument cables, plus a SideTrack function for discrete IFB communication. Custom lithium-ion cells provide extended runtime, with included ATW-CHGA6 chargers supporting field-swappable battery operation.

TAA compliance and RED cybersecurity certification address procurement requirements for government and EU installations. Front-panel spectrum display and IR sync streamline frequency coordination without external tools, while included rack ears support both half-rack and joined full-rack configurations in standard 19-inch equipment racks.

View full details

Specifications

Performance
Operating Frequency Range
470.125 to 607.875 MHz
Modulation Mode Standard
8-PSK
Modulation Mode HD
16QAM
Occupied Bandwidth Standard
192 kHz
Occupied Bandwidth HD
96 kHz
Frequency Response
20 to 20,000 Hz
Operating Range
328'
Dynamic Range Body-Pack Mic Input
120 dB, A-weighted
Dynamic Range Body-Pack Inst Input
109 dB, A-weighted
Dynamic Range Handheld
120 dB, A-weighted
Total Harmonic Distortion
0.1% or less at 1 kHz, -20 dBFS
Maximum Simultaneous Use Standard
17 channels per 6 MHz
Delay Standard
2.1 ms
Delay HD
3.3 ms
Audio Sampling Rate
48 kHz
Receiver
Model
ATW-DR3220LK
Receiving System Normal Mode
Antenna combining diversity
Receiving System Robust Mode
MRC true diversity
Image Rejection
70 dB
RF Sensitivity
-98 dBm at 10⁻⁵ BER
Maximum Output Level
+18 dBV
Antenna Input
BNC, 50 ohms
Antenna Power
12 V DC, 150 mA x2
Handheld Transmitter
Model
ATW-DT3202/C510
RF Output Power Standard 20 mW
20 mW
RF Output Power Standard 10 mW
10 mW
RF Output Power Standard 1 mW
1 mW
RF Output Power HD
1 mW
Microphone Capsule
ATW-C510 cardioid dynamic
High-Pass Filter
120 Hz, 12 dB/octave
Battery
LI-320 lithium-ion
Battery Life
17.5 hours at 10 mW
Handheld Dimensions Without Capsule
7.2" x 1.5" diameter
Handheld Dimensions With C510 Capsule
10" x 2.1" diameter
Handheld Weight Without Capsule
8.6 oz
Handheld Weight With C510 Capsule
13 oz
Body-Pack Transmitter
Model
ATW-DT3201
RF Output Power Standard 20 mW
20 mW
RF Output Power Standard 10 mW
10 mW
RF Output Power Standard 1 mW
1 mW
RF Output Power HD
1 mW
Input Connection
Four-pin locking connector
Pin 1
GND
Pin 2
INST. INPUT
Pin 3
MIC INPUT
Pin 4
DC BIAS +10V
High-Pass Filter
120 Hz, 12 dB/octave
Battery
LI-220 lithium-ion
Battery Life
12 hours at 10 mW
Body-Pack Dimensions
2.2" x 3.1" x 0.94"
Body-Pack Weight
6.1 oz
Electrical
Receiver Power Consumption AC Adapter
13 W
Receiver Power Consumption PoE+
14 W
Power Supply
100 to 240 V AC 50/60 Hz or PoE+ IEEE 802.3at Class 4
Battery LI-220 Type
Lithium ion
Battery LI-220 Output Voltage
3.6 V DC
Battery LI-220 Capacitance
2,200 mAh
Battery LI-320 Type
Lithium ion
Battery LI-320 Output Voltage
3.6 V DC
Battery LI-320 Capacitance
2,200 mAh
Connectivity
Network IP Control
100 Mbps
Network Audio-Technica Link
100 Mbps
Certifications
Encryption
AES256
Compliance
TAA-compliant (U.S.), Radio Equipment Directive (RED) cybersecurity-compliant (EU)
Construction
Cooling Method
Fan-assisted air cooling
Airflow Direction
Front intake, rear exhaust
Environmental
Receiver Operating Temperature
-5°C to 40°C (23°F to 104°F)
Receiver Storage Temperature
-20°C to 55°C (-4°F to 131°F)
Transmitter Operating Temperature
-5°C to 45°C (23°F to 113°F)
Transmitter Storage Temperature
-20°C to 55°C (-4°F to 131°F)
Dimensions
Receiver
8.3" x 11" x 1.7"
Battery LI-220
1.6" x 2.2" x 0.53"
Battery LI-320
1.6" x 2.2" x 0.53"
Weight
Receiver
4.6 lbs
Shipping
Package Weight
11.84 lbs
Package Dimensions
16.75" x 14.63" x 9.5"
