Audio-Technica D50 Receiver Digital UHF Half-Rack Wireless | 2-Channel | No

Audio-Technica D50 Receiver Digital UHF Half-Rack Wireless | 2-Channel | No

SoundPro Item: 206966 | Part Number: ATW-DR3220LKDF2

$1,099.00
$1,292.94 $1,099.00
Your Price Sold out
MSRP: $1,292.94 | MAP: $1,099.00

Usually ships in 5-7 business days

  • Switchable Diversity Modes Optimize RF Performance Between Antenna Combining And MRC True Diversity
  • Full Tuning Bandwidth Enables Flexible Channel Planning In Congested Broadcast Spectrum
  • Dual Power Input With PoE+ And AC Adapter Provides Redundancy If Primary Source Fails
  • Audio-Technica LINK Networking Supports System-Wide Monitoring And Wireless Manager Control
  • Onboard DSP Provides High-Pass Filter, 4-Band EQ, And Compressor For Each Channel
  • AES256 Encryption Secures Wireless Transmission Against Unauthorized Access
  • Multipoint Receiver Function Automatically Switches To Strongest Signal Among Networked Units
Log in or register for YOUR best price

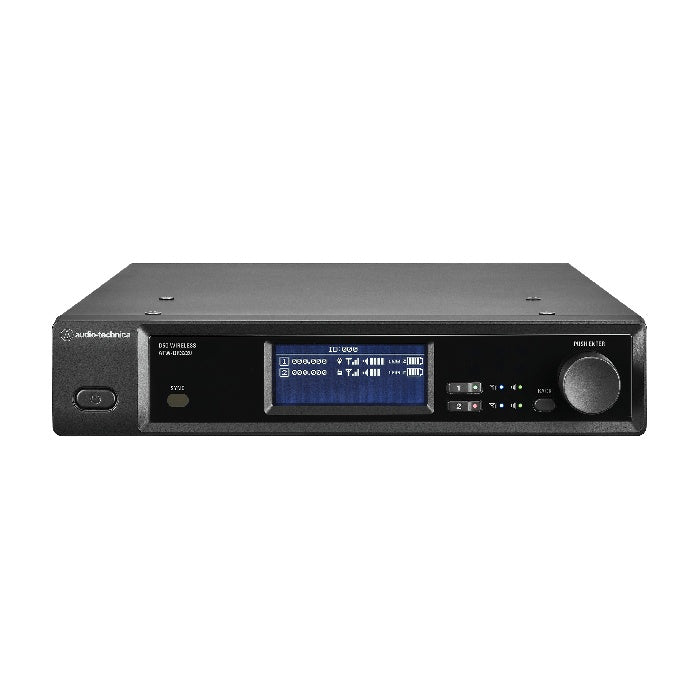

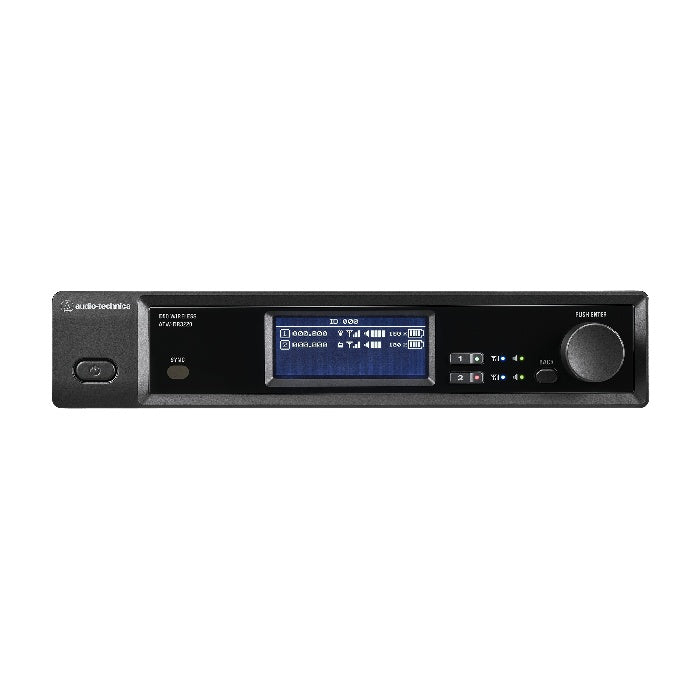

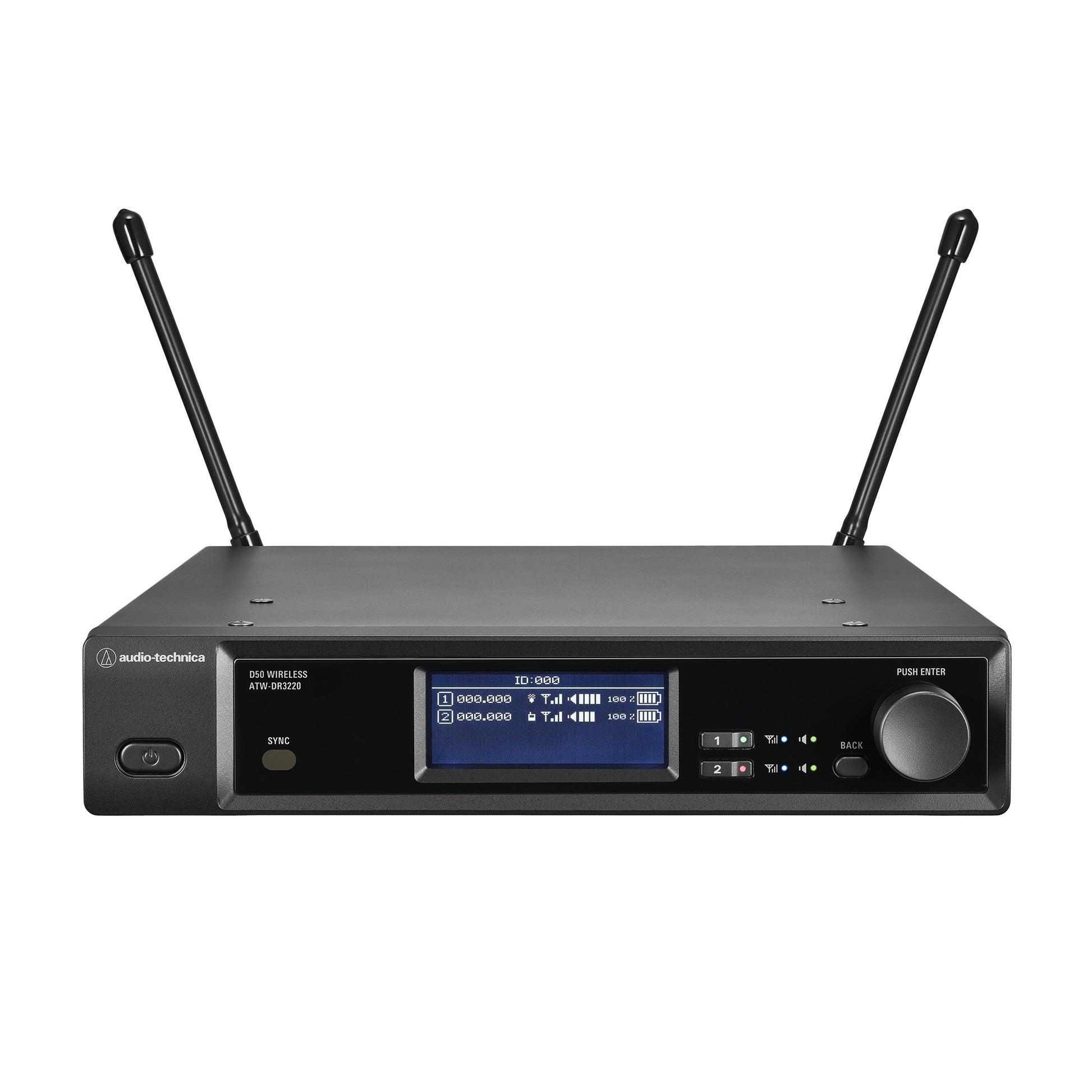

The Audio-Technica D50 half-rack wireless receiver delivers professional UHF operation with switchable diversity architecture. Users can select between antenna combining diversity for typical RF environments or MRC true diversity for complex interference scenarios. The receiver operates across a full tuning bandwidth up to 138 MHz in the U.S. (244 MHz internationally), offering flexible frequency planning in congested spectrum. Standard mode delivers 17 frequencies per 6 MHz TV channel; HD mode increases density to 47 frequencies when urban RF demands higher packing efficiency.

Onboard DSP includes a high-pass filter, 4-band EQ, and compressor for each channel, accessible through the front-panel display or Wireless Manager software. AES256 encryption secures transmissions. PoE+ power and AC adapter inputs provide dual-redundant powering; if AC drops out, PoE+ maintains operation. Audio-Technica LINK networking enables system-wide monitoring and configuration, including spectrum analysis, IR sync, and advanced walk test functions. Multipoint receiver operation allows a transmitter to be detected by multiple networked receivers, with Wireless Manager automatically switching to the best signal source.

The included short and long rack-mount adapters allow one receiver to occupy half a rack space, or two receivers to be joined across a full space. Fan-assisted cooling and front intake/rear exhaust airflow support continuous operation in touring racks and fixed installations. Wireless Manager handles firmware updates and system-wide EQ and compression configuration for integrated workflow management.

View full details

Specifications

Certifications
TAA Compliant
Yes (U.S.)
RED Cybersecurity Compliant
Yes (EU)
Audio
Frequency Response
20 to 20,000 Hz (Standard and HD modes)
Dynamic Range
120 dB A-weighted typical (ATW-DT3201 Mic, ATW-DT3202, ATW-DT3207)
Dynamic Range (Instrument)
109 dB A-weighted typical (ATW-DT3201 Inst. input)
Total Harmonic Distortion
0.1% or less at 1 kHz, -20 dBFS
Audio Sampling Rate
48 kHz (Standard and HD modes)
Maximum Output Level
+18 dBV
RF Performance
Operating Frequencies
470.125 to 607.875 MHz (DF2)
Modulation Mode
8-PSK (Standard), 16QAM (HD mode)
Occupied Bandwidth
192 kHz (Standard), 96 kHz (HD mode)
Image Rejection
70 dB
RF Sensitivity
-98 dBm at 10⁻⁵ BER
Operating Range
328' in open range environment with no interfering signals
Maximum Simultaneous Use
17 channels per 6 MHz (Standard mode)
Delay
2.1 ms typical (Standard), 3.3 ms typical (HD mode)
Encryption
AES256
Connectivity
Receiving System
Antenna Combining Diversity (Normal), MRC True Diversity (Robust)
Antenna Input
BNC, 50 ohms
Antenna Power
12 V DC, 150 mA x2
Network
IP control: 100 Mbps; Audio-Technica LINK: 100 Mbps
Power
Power Supply
100 to 240 V AC 50/60 Hz, PoE+ (IEEE 802.3at Class 4)
Maximum Power Consumption
AC adapter: 13 W (44 Btu/h); PoE+: 14 W (48 Btu/h)
Construction
Cooling Method
Fan-assisted air cooling
Airflow Direction
Front intake / Rear exhaust
Operating Temperature Range
-5°C to 40°C (23°F to 104°F)
Storage Temperature Range
-20°C to 55°C (-4°F to 131°F)
Dimensions
Dimensions (W x D x H)
8.3" x 11" x 1.7"
Weight
Weight (without included accessories)
4.6 lbs
Included Items
Included Accessories
Whip antenna (2), AC adapter (AD-SA1230XA), AC cable, Rubber foot (4), Rack-mount adapter short, Rack-mount adapter long, Fixing screw (7), BNC cable kit (2)
Shipping
Package Weight
8.5 lbs
Package Dimensions (W x L x H)
16.7" x 12.6" x 3.9"
