Specifications
Audio
Frequency Response
20 to 20,000 Hz
Dynamic Range
120 dB, A-weighted
Total Harmonic Distortion
0.1% or less (at 1 kHz, -20 dBFS)
Sampling Rate
48 kHz
Performance
Operating Frequencies
470.125 to 607.875 MHz
Modulation Mode
Standard: 8-PSK / HD: 16QAM
Occupied Bandwidth
Standard: 192 kHz / HD: 96 kHz
Operating Range
328'
Maximum Simultaneous Use
17 channels / 6 MHz
Delay
Standard: 2.1 ms / HD: 3.3 ms
Encryption
AES256
Power
RF Output Power
Standard: 20 mW, 10 mW, 1 mW / HD: 1 mW
Battery Type
Lithium-ion LI-320
Battery Life
17.5 hours (10 mW)
Construction

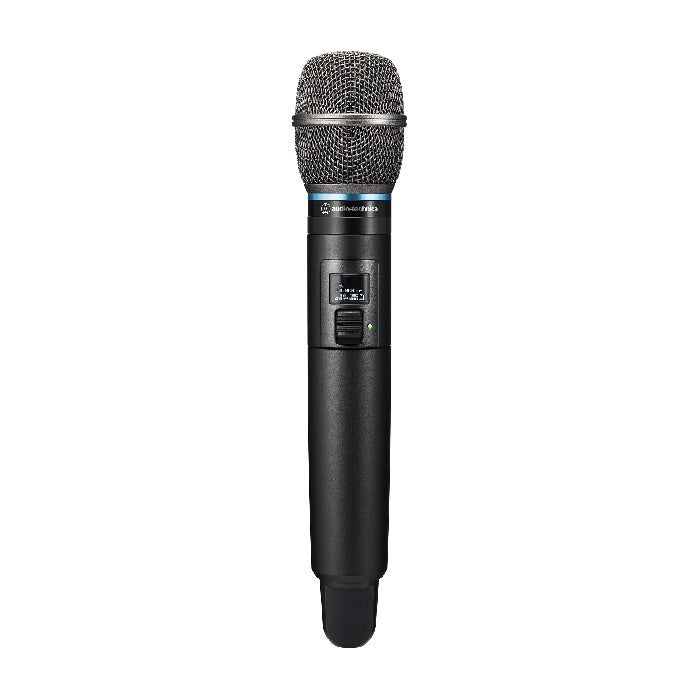

Microphone Capsule
ATW-C3300 cardioid condenser
High-pass Filter
120 Hz, 12 dB/octave
Dimensions

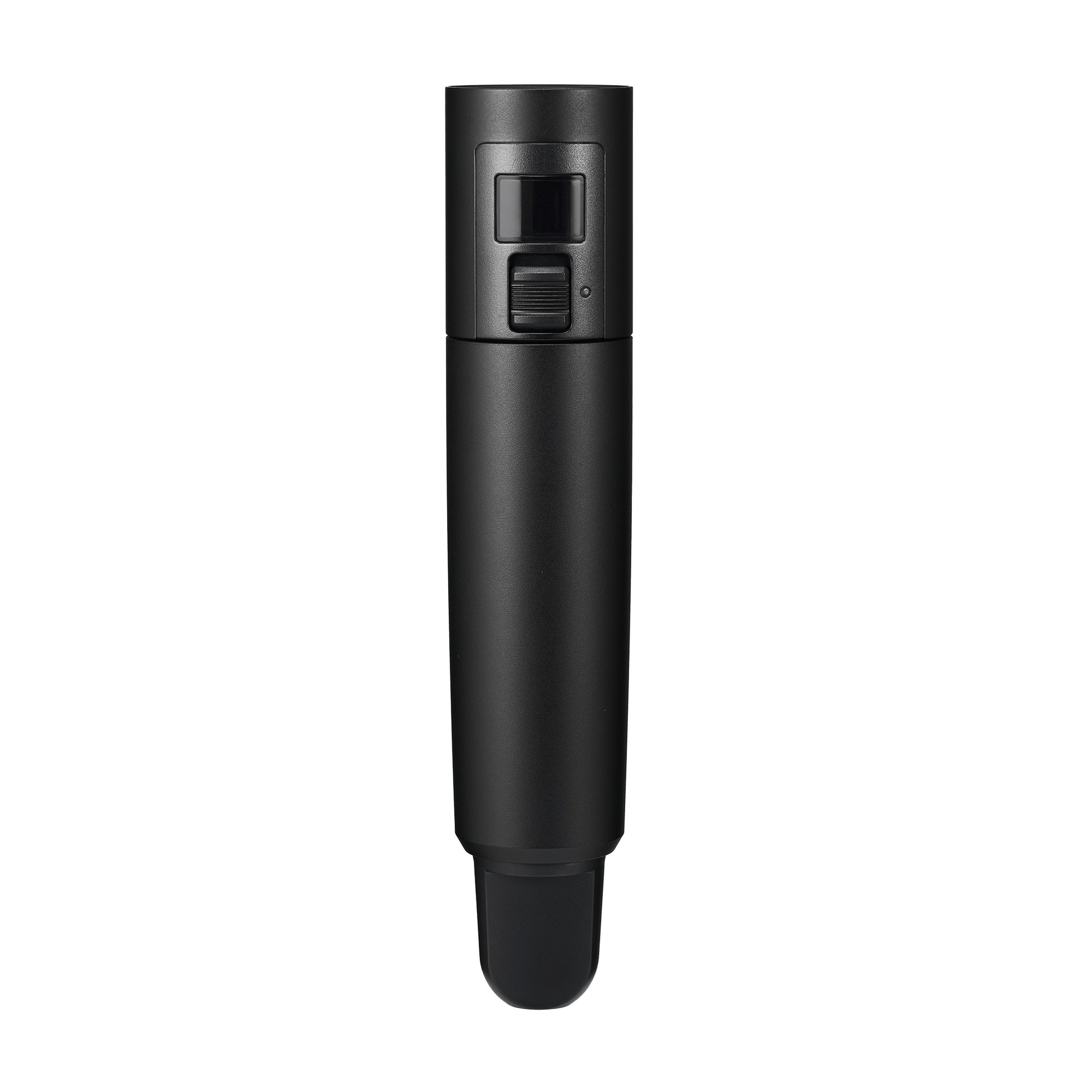

Dimensions (without capsule)
7.2" × 1.5" diameter
Weight
Weight (without capsule)
245 g (8.6 oz)
Environmental
Operating Temperature Range
-5°C to +45°C (23°F to 113°F)
Storage Temperature Range
-20°C to 55°C (-4°F to 131°F)
Shipping
Package Weight
1.66 lbs
Package Dimensions
13.86" x 4.92" x 2.68"
Included Items

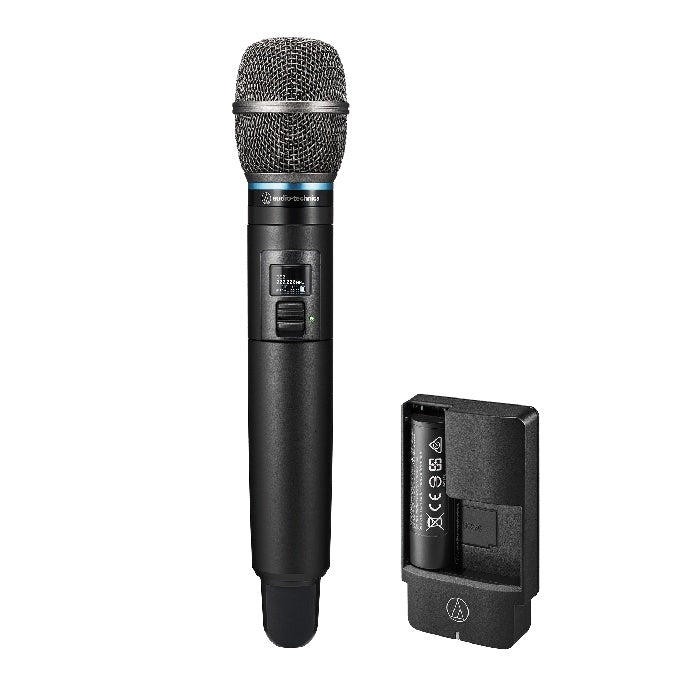

Included Accessories
AT8456a mic clamp, 5/8"-27 to 3/8"-16 adapter, ATW-RR1 anti-rolling ring, ATW-CHGA6 battery charger, LI-220 battery, ATW-TI20 color ring set, storage pouch
