Specifications
Audio
Frequency Response
20 to 20,000 Hz
Dynamic Range
120 dB, A-weighted
Total Harmonic Distortion
0.1% or less (at 1 kHz, -20 dBFS)
Audio Sampling Rate
48 kHz
High-Pass Filter
120 Hz, 12 dB/octave
RF Performance
Operating Frequencies
470.125 to 607.875 MHz (DF2)
Modulation Mode (Standard)
8-PSK
Modulation Mode (HD)
16QAM
Occupied Bandwidth (Standard)
192 kHz
Occupied Bandwidth (HD)
96 kHz
Operating Range
100 m (328')
RF Output Power (Standard)
20 mW, 10 mW, 1 mW
RF Output Power (HD)
1 mW
Encryption
AES256
Image Rejection
70 dB
RF Sensitivity
-98 dBm (10⁻⁵ BER)
Performance
Delay (Standard)
2.1 ms typ.
Delay (HD)
3.3 ms typ.
Maximum Simultaneous Use
17 channels / 6 MHz (Standard)
Construction

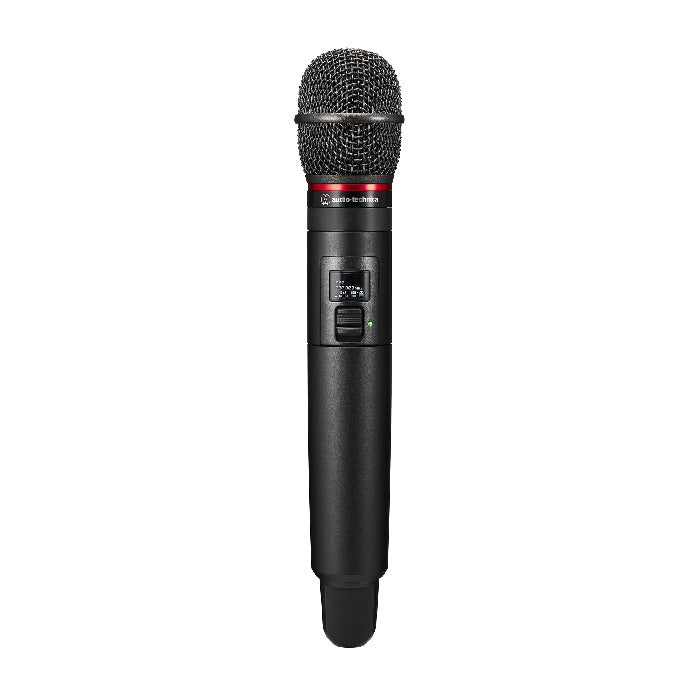

Microphone Capsule
ATW-C4100 cardioid dynamic (interchangeable)
Power
Battery Type
Lithium-ion LI-320
Battery Life
17.5 hours (10 mW)
Dimensions

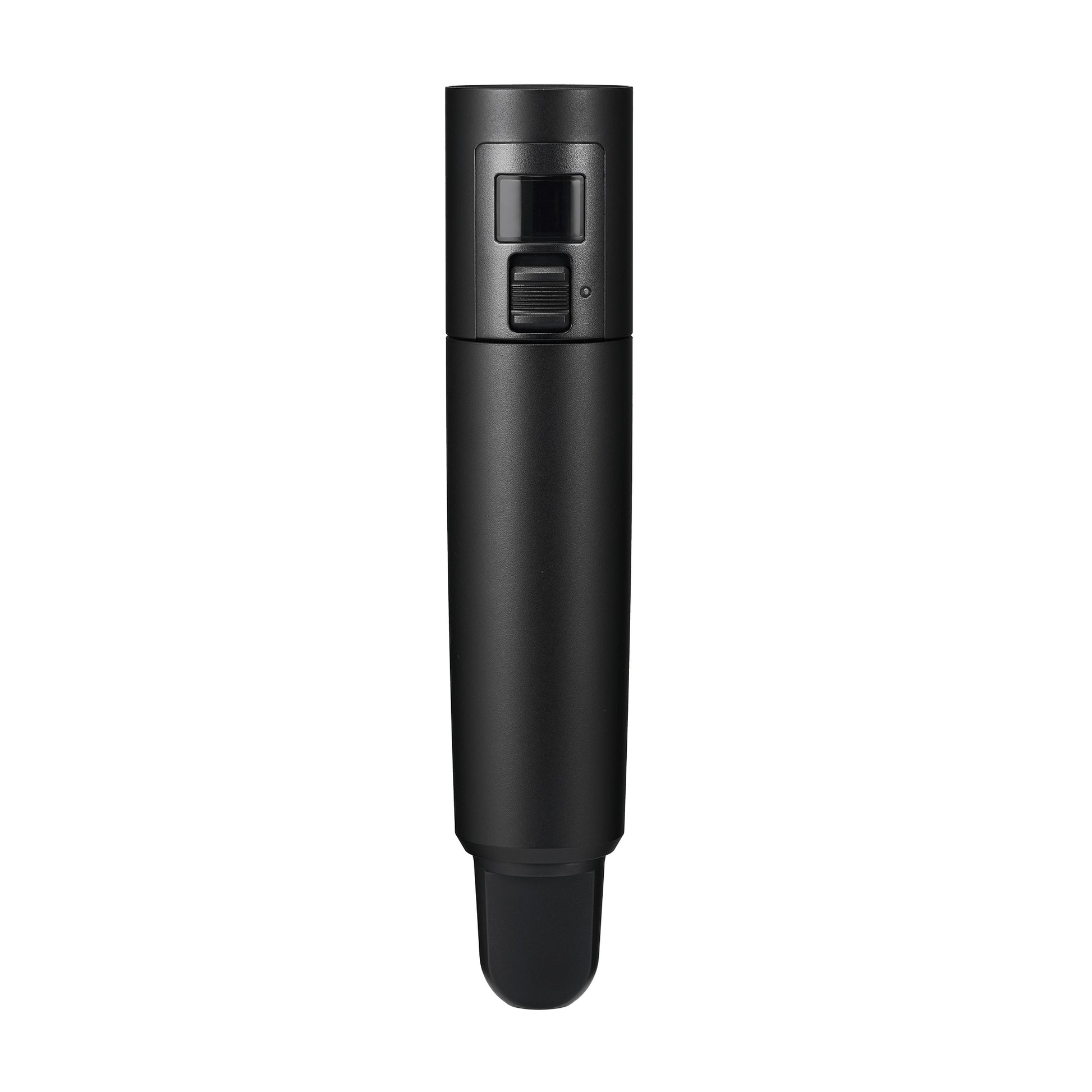

Dimensions (without capsule)
183.5 mm (7.2") length × 37 mm (1.5") diameter
Weight
Weight (with battery, without capsule)
245 g (8.6 oz)
Environmental
Operating Temperature
-5°C to +45°C (23°F to 113°F)
Storage Temperature
-20°C to 55°C (-4°F to 131°F)
Shipping
Package Weight
1.67 lbs
Package Dimensions
13.86" × 4.92" × 2.68" (L × W × H)
Included Items
Included Accessories

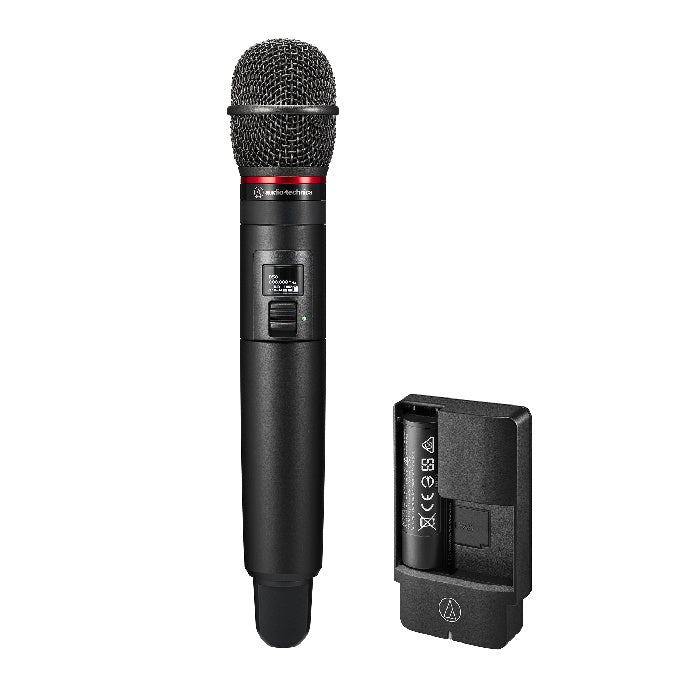

ATW-DT3202/C4100 handheld transmitter, AT8456a Quiet-Flex microphone stand clamp, 5/8"-27 male to 3/8"-16 female threaded screw adapter, ATW-RR1 anti-rolling ring, ATW-CHGA6 battery charger, LI-220 rechargeable lithium-ion battery, ATW-TI20 color ring indicator kit (seven colors), storage pouch
