Specifications
Audio
Frequency Response
20 to 20,000 Hz
Dynamic Range
120 dB, A-weighted, typical
Total Harmonic Distortion
0.1% or less (at 1 kHz, -20 dBFS)
Audio Sampling Rate
48 kHz
High-pass Filter
120 Hz, 12 dB/octave
RF Performance
Operating Frequencies
470.125 to 607.875 MHz
Modulation Mode
Standard: 8-PSK, HD mode: 16QAM
Occupied Bandwidth
Standard: 192 kHz, HD mode: 96 kHz
RF Output Power
Standard: 20 mW, 10 mW, 1 mW, HD mode: 1 mW
Operating Range
100 m (328')
Maximum Simultaneous Use
Standard: 17 channels / 6 MHz
Delay
Standard: 2.1 ms typ., HD mode: 3.3 ms typ.
Encryption System
AES256
Dimensions
ATW-DT3202/C510
255 mm (10") × 53.7 mm (2.1") in diameter
Weight
With Included Battery
374 g (13 oz)
Power
Battery
Lithium-ion battery LI-320 (included)
Battery Life
17.5 hours (10 mW)
Construction
Microphone
Interchangeable microphone capsule-compatible
Environmental
Operating Temperature Range
-5°C to +45°C (23°F to 113°F)
Storage Temperature Range
-20°C to 55°C (-4°F to 131°F)
Included Items

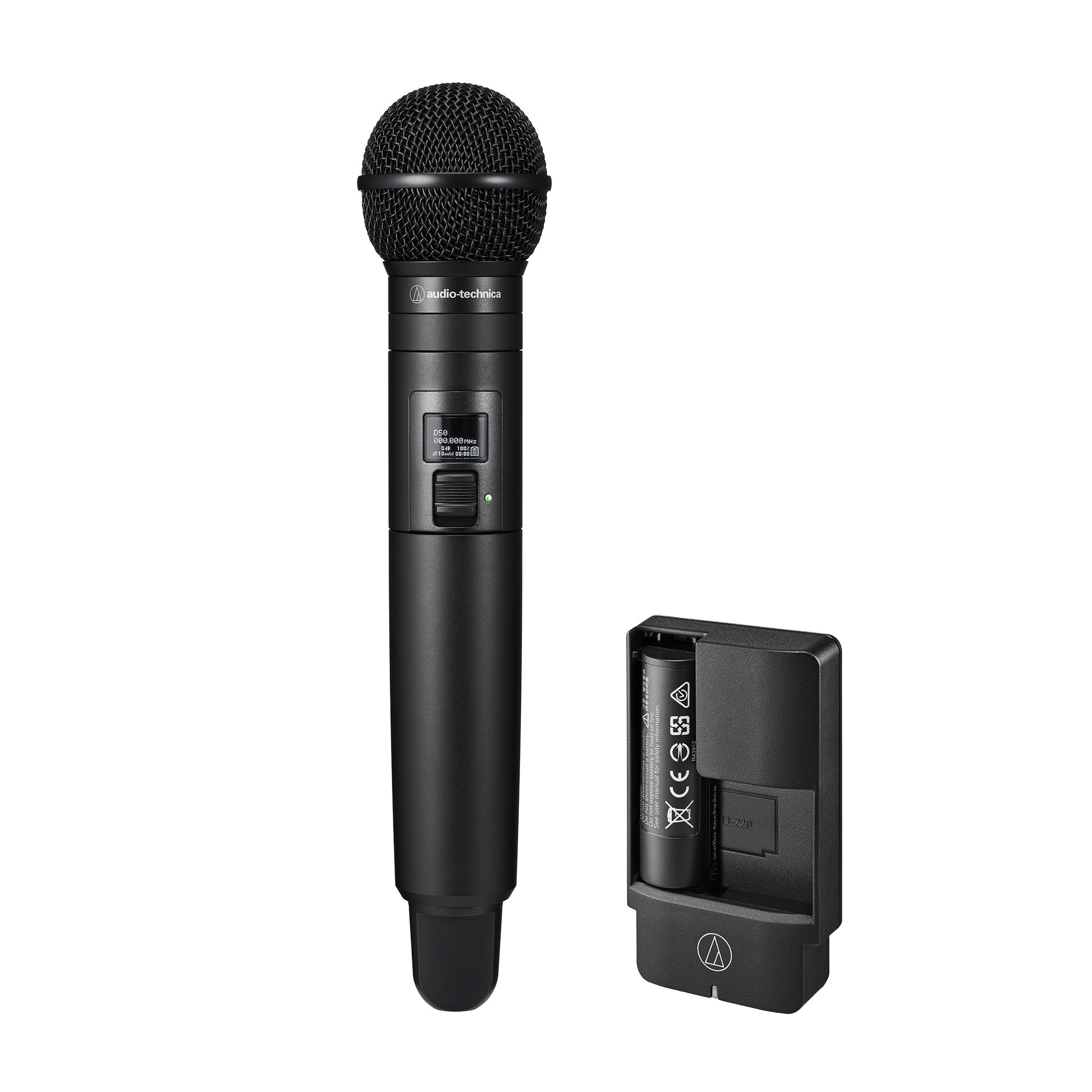

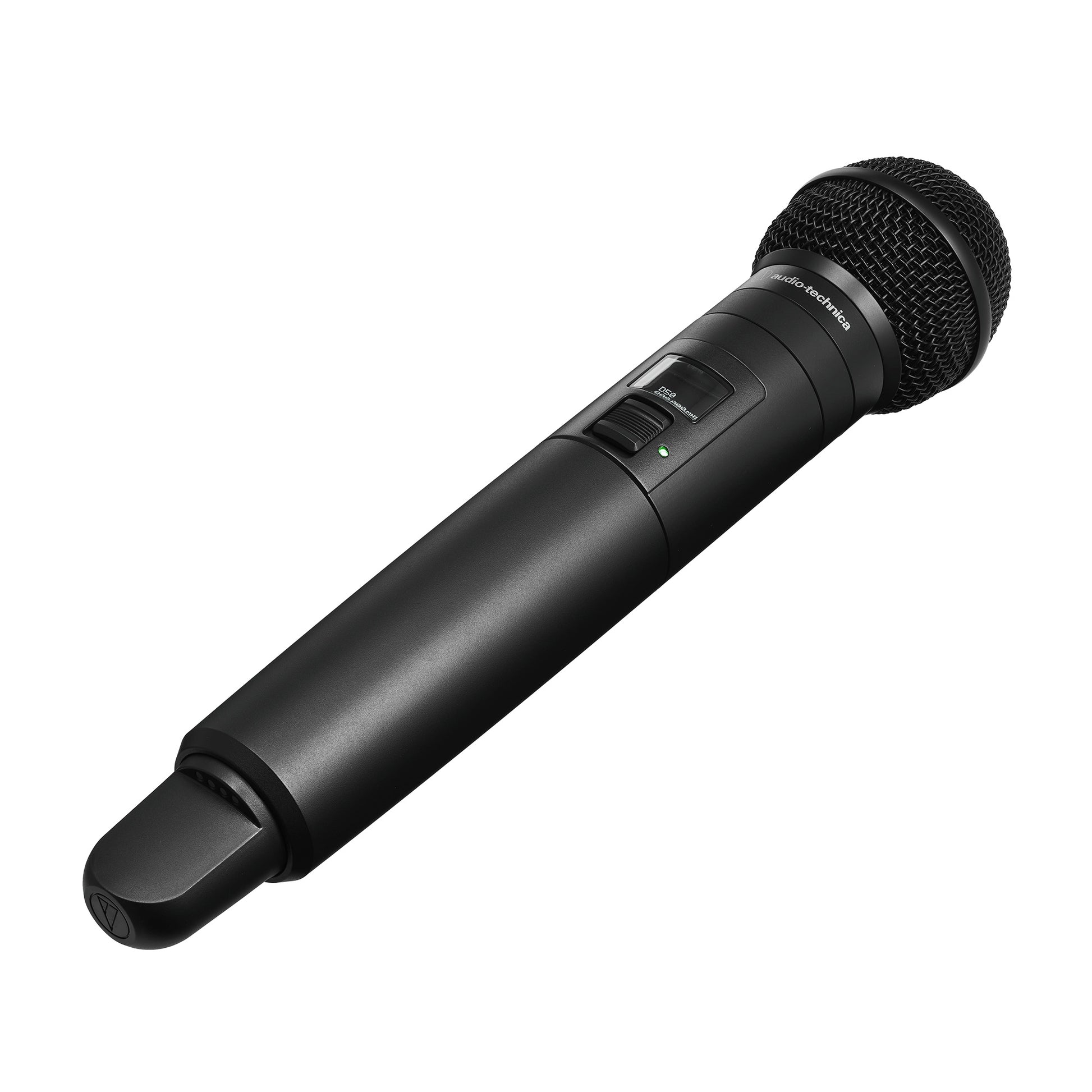

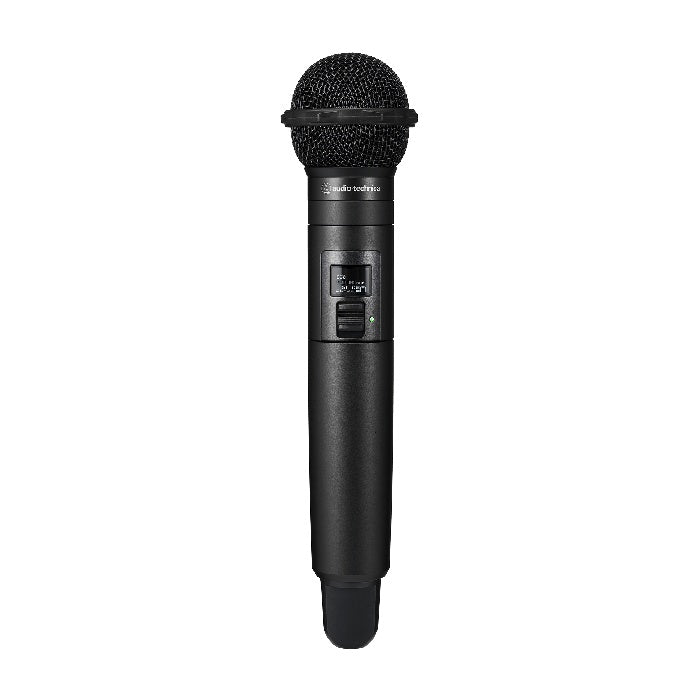

ATW-DT3202/C510 Cardioid Dynamic Handheld Transmitter
Yes
Mic Clamp
Yes
Stand Adapter
Yes
ATW-RR1 Removable Anti-Rolling Ring
Yes
ATW-CHGA6 Battery Charger
Yes
LI-220 Rechargeable Lithium-Ion Battery
Yes
ATW-TI20 Color Ring Indicator Kit
Yes
Handheld Transmitter Storage Pouch
Yes
Shipping
Package Weight
1.63 lbs
Package Dimensions
13.86" × 4.92" × 2.68"
