Audio-Technica D50 Handheld Transmitter Digital UHF Wireless | No Capsule | No

Audio-Technica D50 Handheld Transmitter Digital UHF Wireless | No Capsule | No

SoundPro Item: 206978 | Part Number: ATW-DT3202DF2

$522.00
$614.12 $522.00
Your Price Sold out
MSRP: $614.12 | MAP: $522.00

Usually ships in 5-7 business days

  • AES256 Encryption Protects Audio From Interception In Crowded RF Environments
  • Interchangeable Capsule System Supports Multiple Voicing Options Without Transmitter Replacement
  • Dual Modulation Modes Enable Trade-Off Between Channel Density And Frequency Extension
  • IR Sync Functionality Eliminates Manual Frequency Entry And Reduces Setup Time
  • Programmable Mute Switch Integrates With Existing Cue And Talkback Workflows
  • Seven-Color LED And Physical Ring System Simplifies Multichannel Identification
  • All-Metal Housing Delivers Tour-Grade Durability For Permanent And Mobile Deployments
Log in or register for YOUR best price

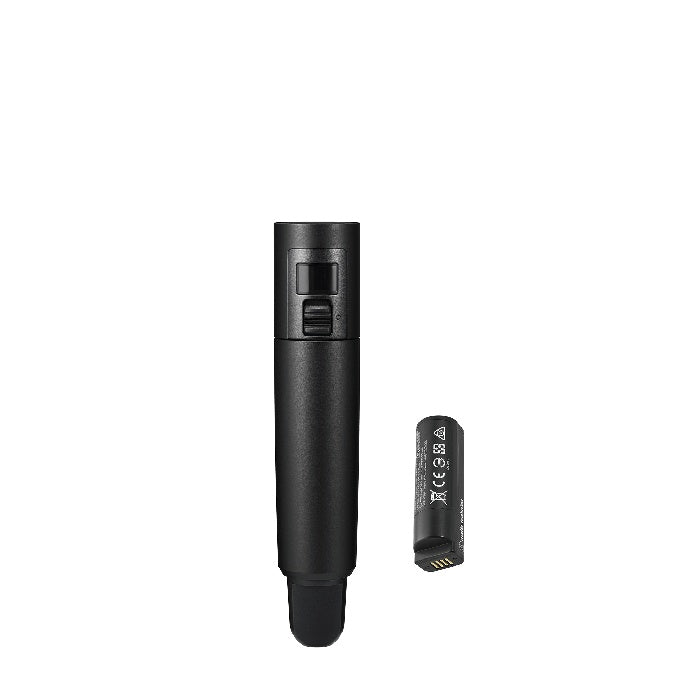

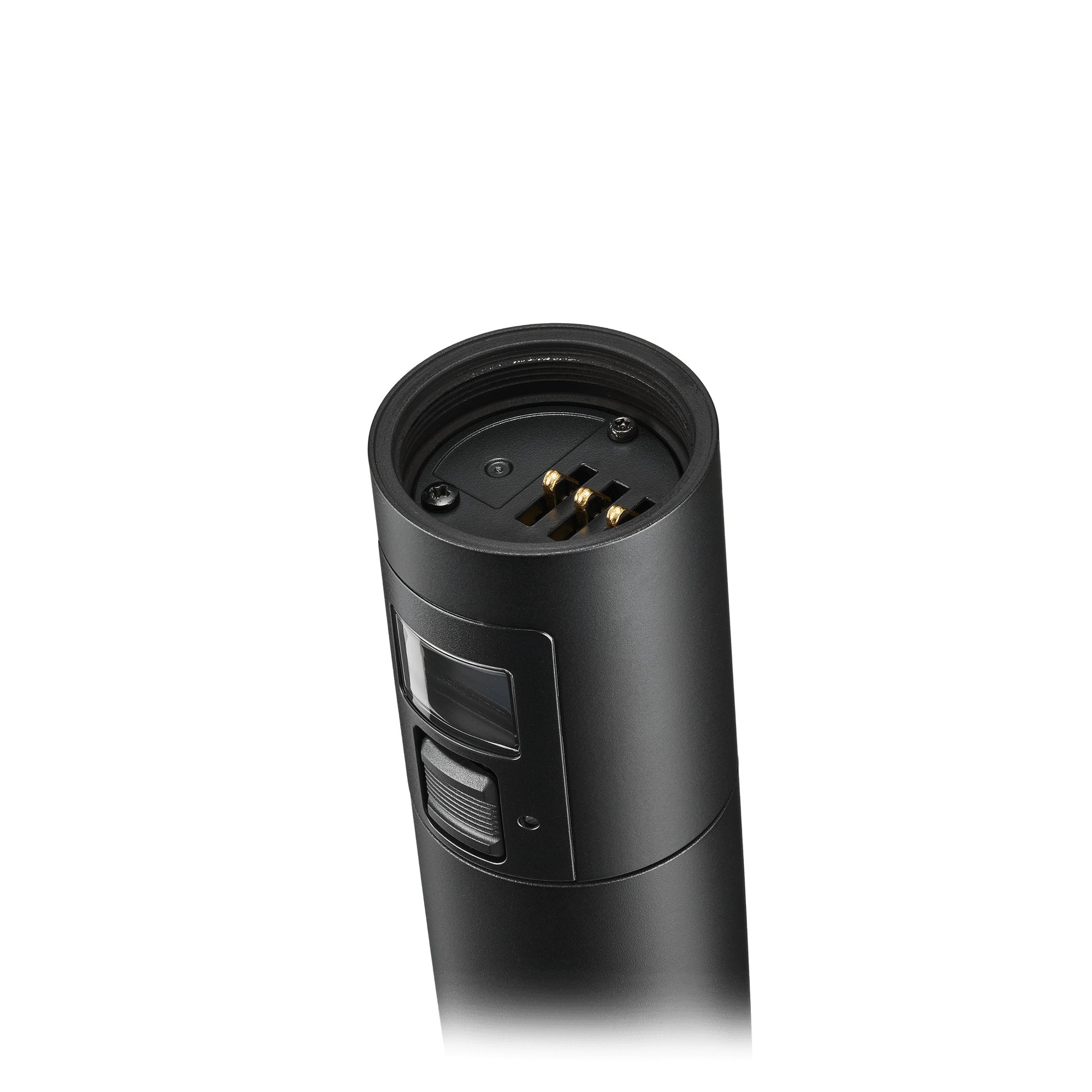

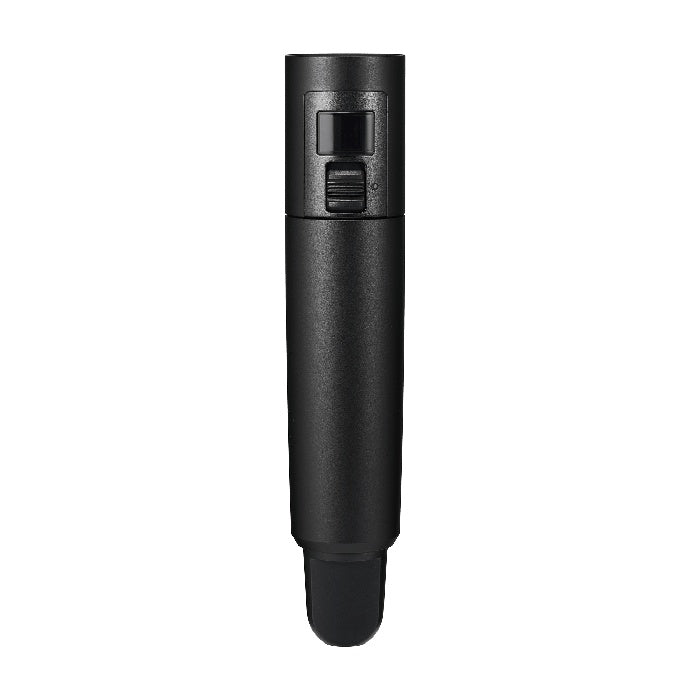

The Audio-Technica D50 Handheld Transmitter is built for live production and fixed installation environments where RF security, battery life, and capsule flexibility are non-negotiable. With AES256 encryption, your audio remains secure even in dense wireless environments. The lithium-ion battery delivers industry-leading runtime, and the transmitter body accepts Audio-Technica's full catalog of interchangeable capsules—from dynamic to condenser—so you can tailor voicing to the application without replacing the entire transmitter.

The platform operates in the UHF spectrum with dual modulation modes: standard 8-PSK for maximum channel count, or HD 16QAM for extended frequency response. External controls, an OLED display, and a seven-color LED/ring system streamline multichannel setup and identification during showtime. IR sync eliminates manual frequency entry, and the programmable mute switch integrates with existing cue workflows. All-metal construction ensures durability across touring and permanent install scenarios.

View full details

Specifications

Audio
Frequency Response
20 to 20,000 Hz
Dynamic Range
120 dB, A-weighted, typical
Total Harmonic Distortion
0.1% or less (at 1 kHz, -20 dBFS)
Audio Sampling Rate
48 kHz
High-pass Filter
120 Hz, 12 dB/octave
Performance
Operating Frequencies
DF2: 470.125 to 607.875 MHz
Modulation Mode
Standard: 8-PSK / HD mode: 16QAM
Occupied Bandwidth
Standard: 192 kHz / HD mode: 96 kHz
RF Output Power
Standard: 20 mW, 10 mW, 1 mW / HD mode: 1 mW
Operating Range
328'
Maximum Simultaneous Use
17 channels / 6 MHz
Delay
Standard: 2.1 ms typ. / HD mode: 3.3 ms typ.
Image Rejection
70 dB
Connectivity
Microphone
Interchangeable microphone capsule-compatible
Construction
Encryption System
AES256
Battery
Lithium-ion battery LI-320 (included)
Battery Life
17.5 hours (10 mW)
Dimensions
Dimensions (Without Capsule)
7.2" × 1.5" diameter
Weight
Weight (With Included Battery, Without Capsule)
245 g (8.6 oz)
Environmental
Operating Temperature Range
-5°C to +45°C (23°F to 113°F)
Storage Temperature Range
-20°C to 55°C (-4°F to 131°F)
Shipping
Package Weight
1.12 lbs
Package Dimensions
13.86" x 4.92" x 2.68"
Included Items
Included Accessories
Transmitter indicator set (seven colors), AT8456a Quiet-Flex microphone stand clamp, 5/8"-27 male to 3/8"-16 female threaded screw adapter, ATW-RR1 anti-rolling ring, Pouch
