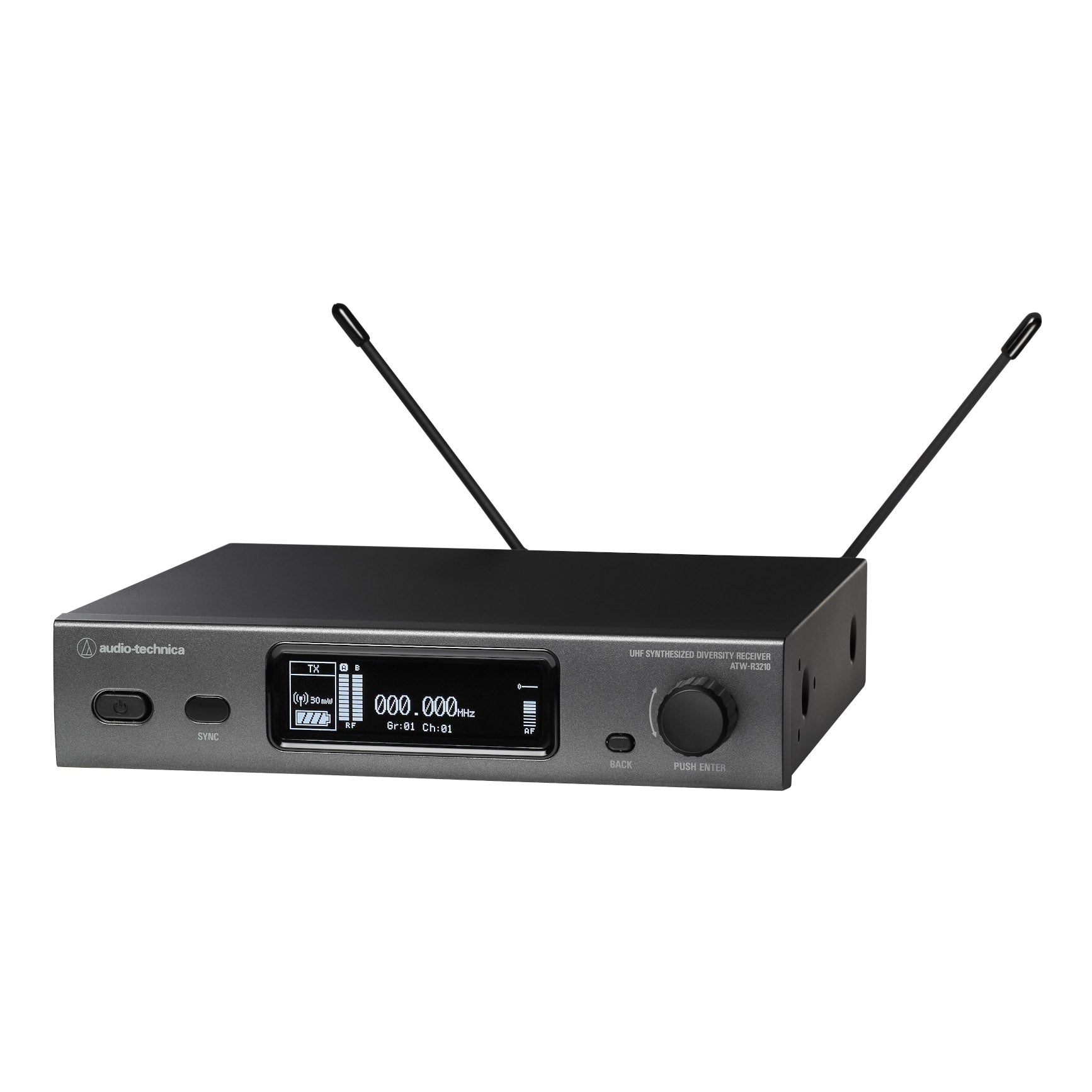

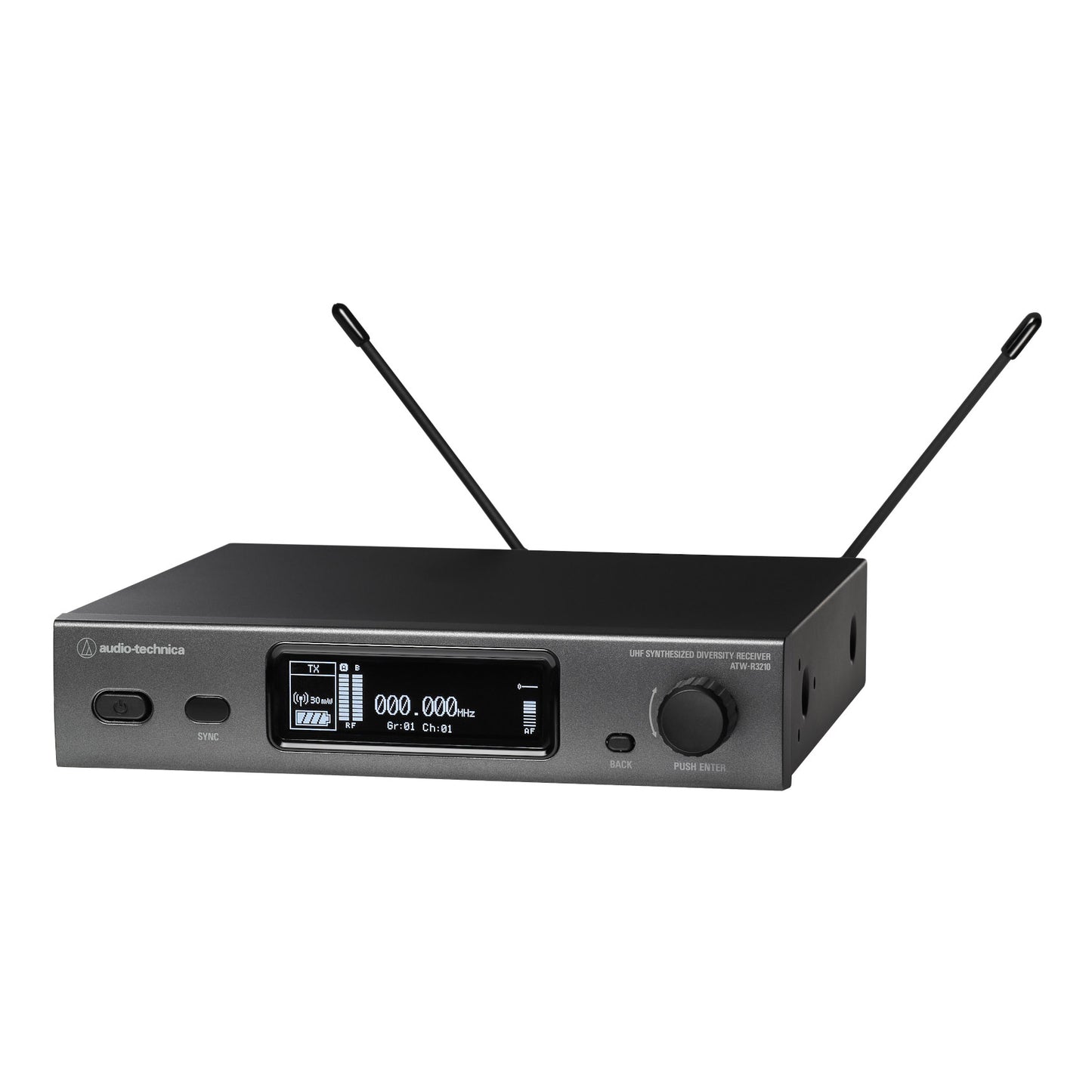

Audio-Technica ATW-R3210 Diversity Receiver | Frequency: DE2 (470 to 530 MHz)

Audio-Technica's wireless ATW-R3210 receiver is one choice for the command center of the 3000 Series. Operating on 12V DC, the receiver includes connections for balanced XLR and unbalanced ¼” outputs on the rear panel. Antennas are detachable BNC ¼” wave, and switchable 12V DC antenna power is available on BNC-type connectors for use with powered antenna accessories.

With Audio-Technica’s 3000 Series you can mix and match components to create the wireless system that works best for you. Options of two receivers and two transmitters establish solid audio quality at the heart of any sound setup. Choose between bodypack transmitter (ATW-T3201) or handheld transmitter (ATW-T3202). Both battery-operated transmitters offer high and low level RF output settings, gain adjustment, high-pass filter, OLED screen, and more. Operating range of 300’ (line of sight) between receiver and transmitter allows for a very mobile wireless solution. Whatever elements you use, you will hear excellent audio quality enjoyed by artists, broadcasters, and presenters.

Sound control options are part of either transmitter choice, but the bulk of the power is in the receiver. Scan feature establishes desired frequencies, and IR sync functionality pairs the receiver and transmitters to the same frequency. 60 MHz tuning bandwidth in one of two available frequency bands allows maximum versatility in congested RF environments, with DE2 at 470-530 MHz and EE1 at 530-590 MHz. In an open-range environment without interfering signals, the receiver can host up to 40 simultaneous channels per band. Auto squelch feature automatically adjusts noise setting, maximizing operating range while minimizing interference.

True diversity reception provides better sound quality and reduces the potential for dropouts. Reception works with RF inputs feeding two completely independent RF sections, and automatic logic circuitry constantly comparing and selecting the superior received signal.

Front panel receiver display indicates information to stay aware of system status. Display can switch between standard view – indicating RF signal strength, frequency, mute status, audio modulation level of the received signal, and transmitter information – and performance view, which highlights key metering. Functions of the receiver are easily accessible from buttons and the control-dial on the front panel. The receiver has rugged housing and takes up a standard 1U 19” rack mount, making it work well for professional tours, one of the 3000 Series most common uses.

Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.
