Specifications
Microphone
Element
Back electret condenser
Polar Pattern
Cardioid
Frequency Response
60 - 15,000 Hz (at 2 cm (0.79"))
Output Impedance
100 ohms
Maximum Input Sound Level
140 dB SPL (1 kHz THD1%)
Sensitivity
–45 dB (5.6 mV) (0 dB = 1 V/Pa, 1 kHz)
Dynamic Range
106 dB (1 kHz at Max S.P.L.)
Signal-to-Noise Ratio
60 dB (1 kHz at 1 Pa, A-weighted)
Phantom Power Requirements
11 - 52V DC, 2 mA
Dimensions
Height: 12.7 mm (0.5"),
Minimum width: 12 mm (0.47")
Output Connector
TB6M
Notes
During a wired connection with the product. Performance varies depending on the device used, 1 Pascal = 10 dynes/cm2 = 10 microbars = 94 dB SPL
Headphones
Type
Closed-back Dynamic
Driver Diameter
45 mm
Frequency Response
15-28,000 Hz
Maximum Output
1,600 mW
Sensitivity
102 dB/mW
Impedance
38 ohms
Weight
240 g (8.5 oz)
Cable

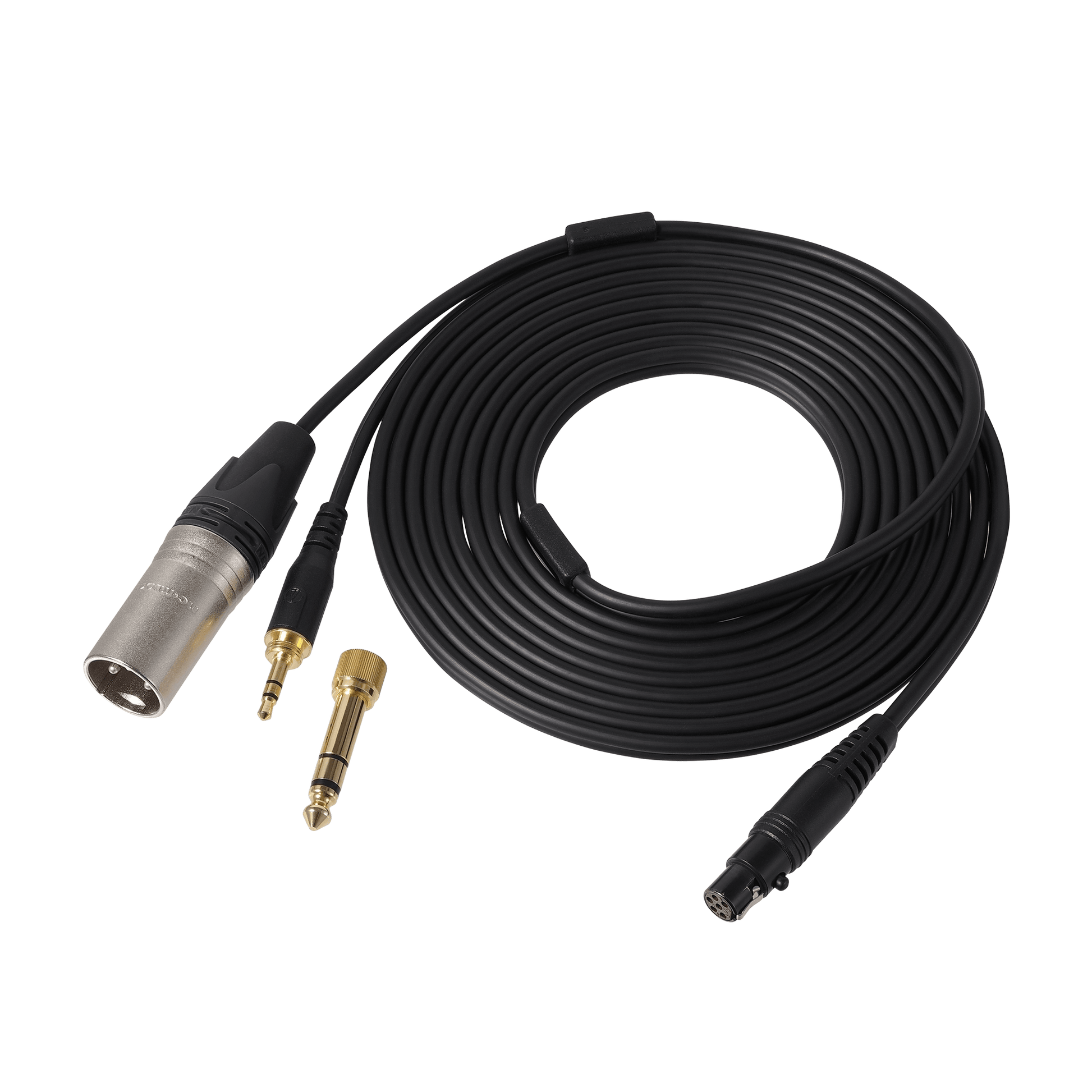

Detachable 3.0 m (9.8') long cable with 6-pin connector at headset end; 3-pin XLRM-type connector (microphone) and 3.5 mm (1/8") phone plug (headphone) outputs
Connector
TB6M jack
Accessories Included

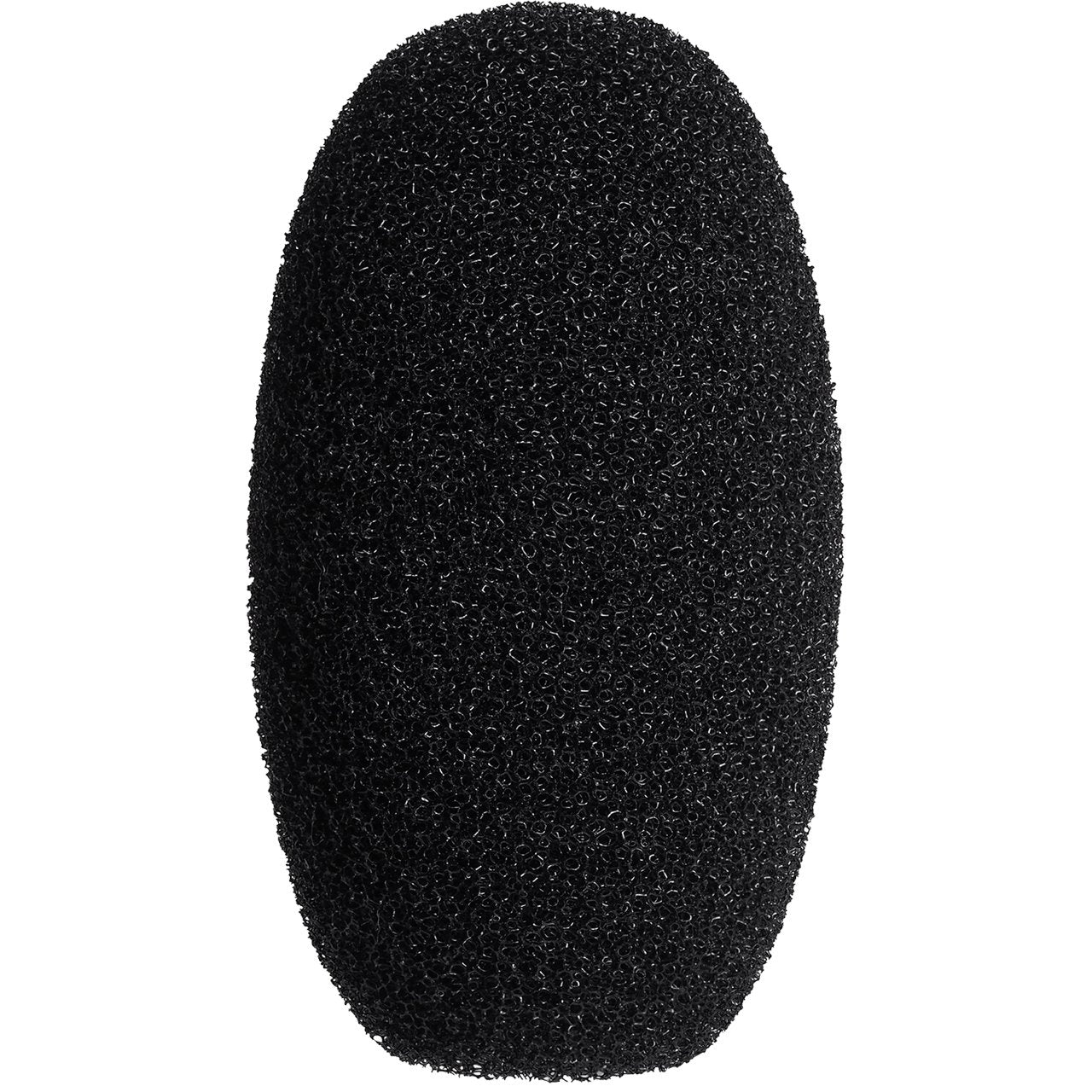

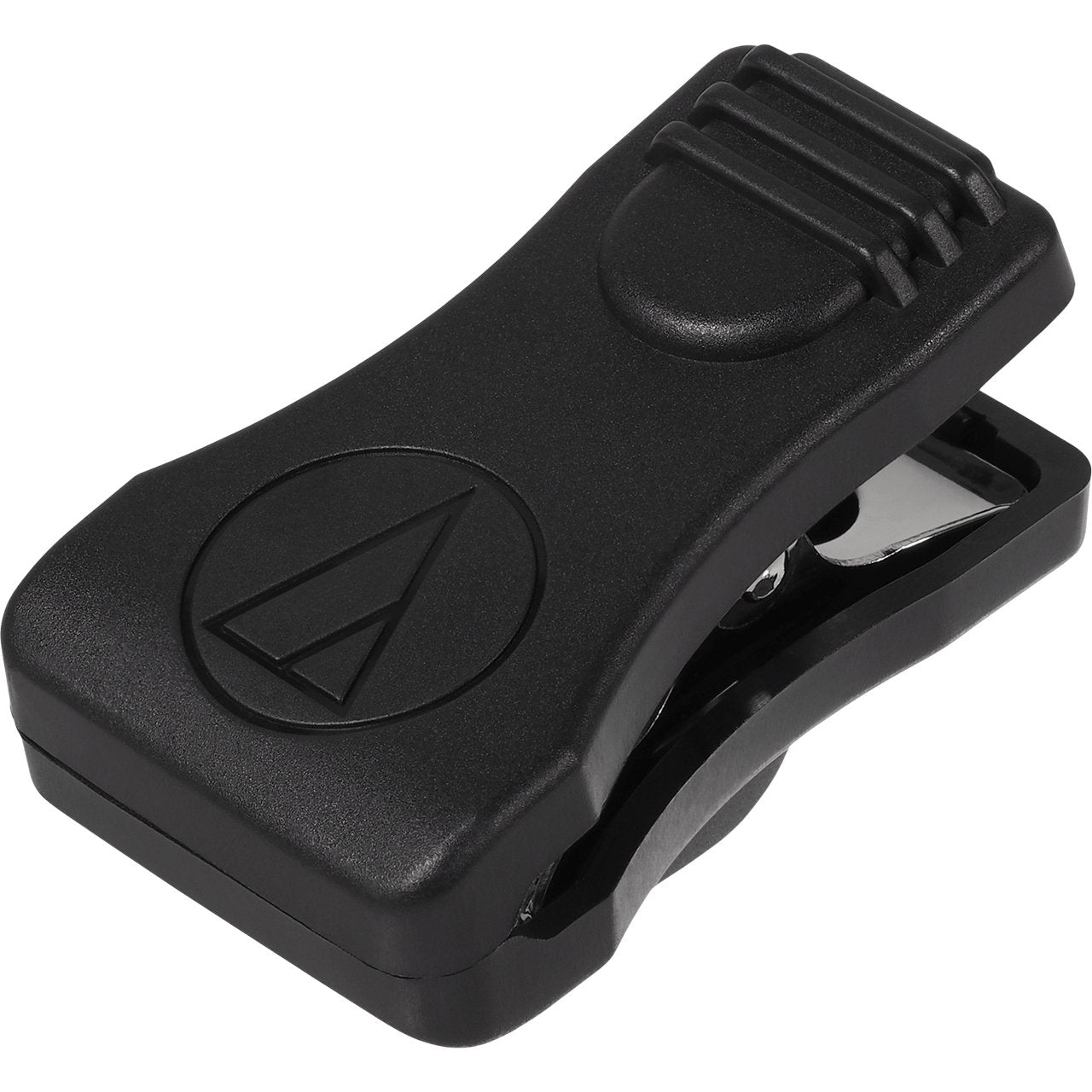

Pouch; 3 windscreens; cable clip
Notes
The BPHS2a/BPHS2Ca/BPHS2Sa have some specification changes from the BPHS2/BPHS2C/BPHS2S and are not equipped with a limiter switch. For product improvement, the product is subject to modification without notice
