Specifications
Microphone
Element
Dynamic
Polar Pattern
Hypercardioid
Frequency Response
50 - 14,000 Hz (at 2 cm (0.79”))
Output Impedance
550 ohms
Sensitivity
–57 dB (1.4 mV) (0 dB = 1 V/Pa, 1 kHz)
Dimensions
Height: 18.0 mm (0.71"),
Main unit maximum diameter: 23.4 mm (0.92")
Output Connector
TB6M
Notes
During a wired connection with the product. Performance varies depending on the device used. ?1 Pascal = 10 dynes/cm2 = 10 microbars = 94 dB SPL
Headphones
Type
Closed-back Dynamic
Driver Diameter
45 mm
Frequency Response
15-28,000 Hz
Maximum Output
1,600 mW
Sensitivity
102 dB/mW
Impedance
38 ohms
Weight
190 g (6.7 oz)
Cable

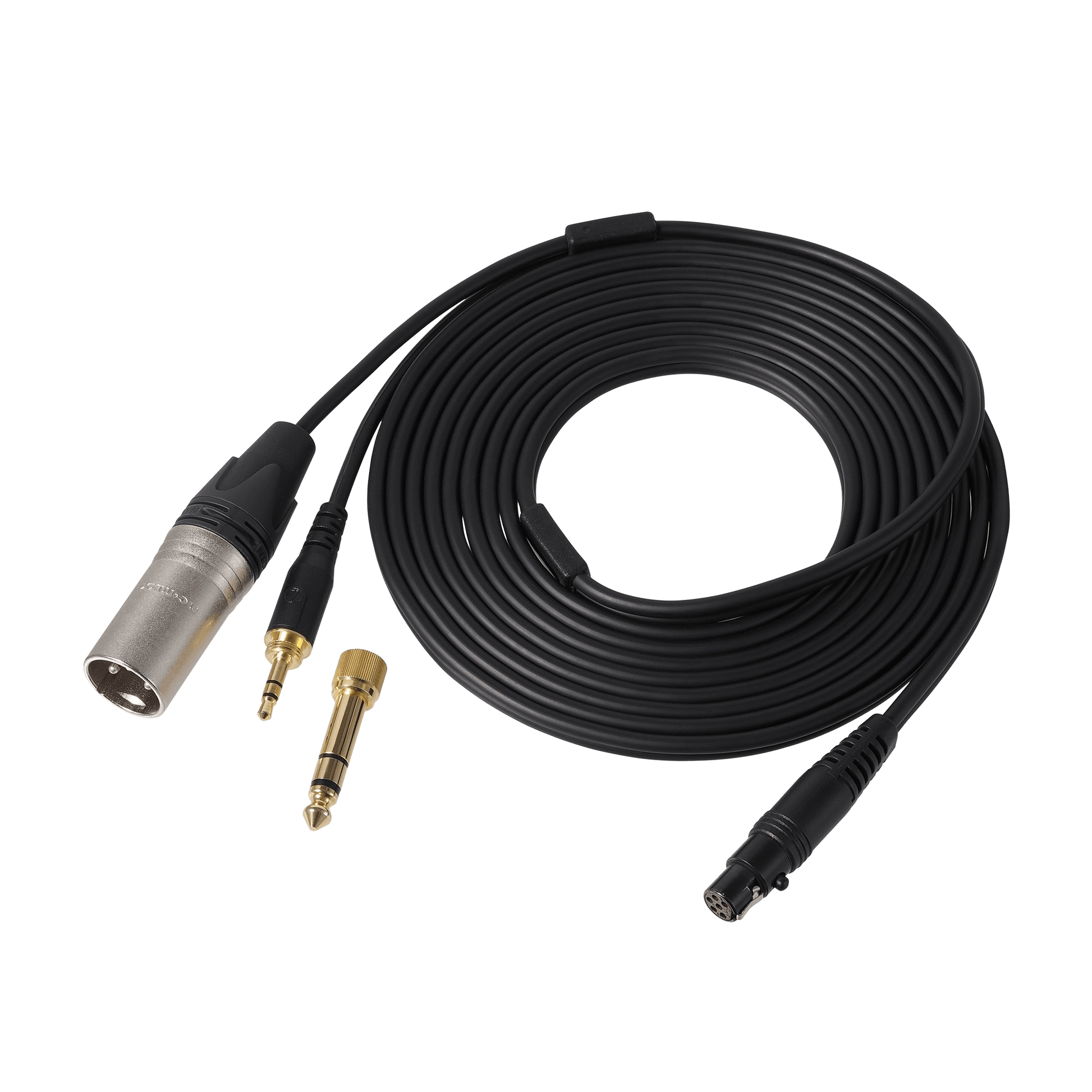

Detachable 3.0 m (9.8') long cable with 6-pin connector at headset end; 3-pin XLRM-type connector (microphone) and 3.5 mm (1/8") phone plug (headphone) outputs
Connector
TB6M jack
Accessories Included

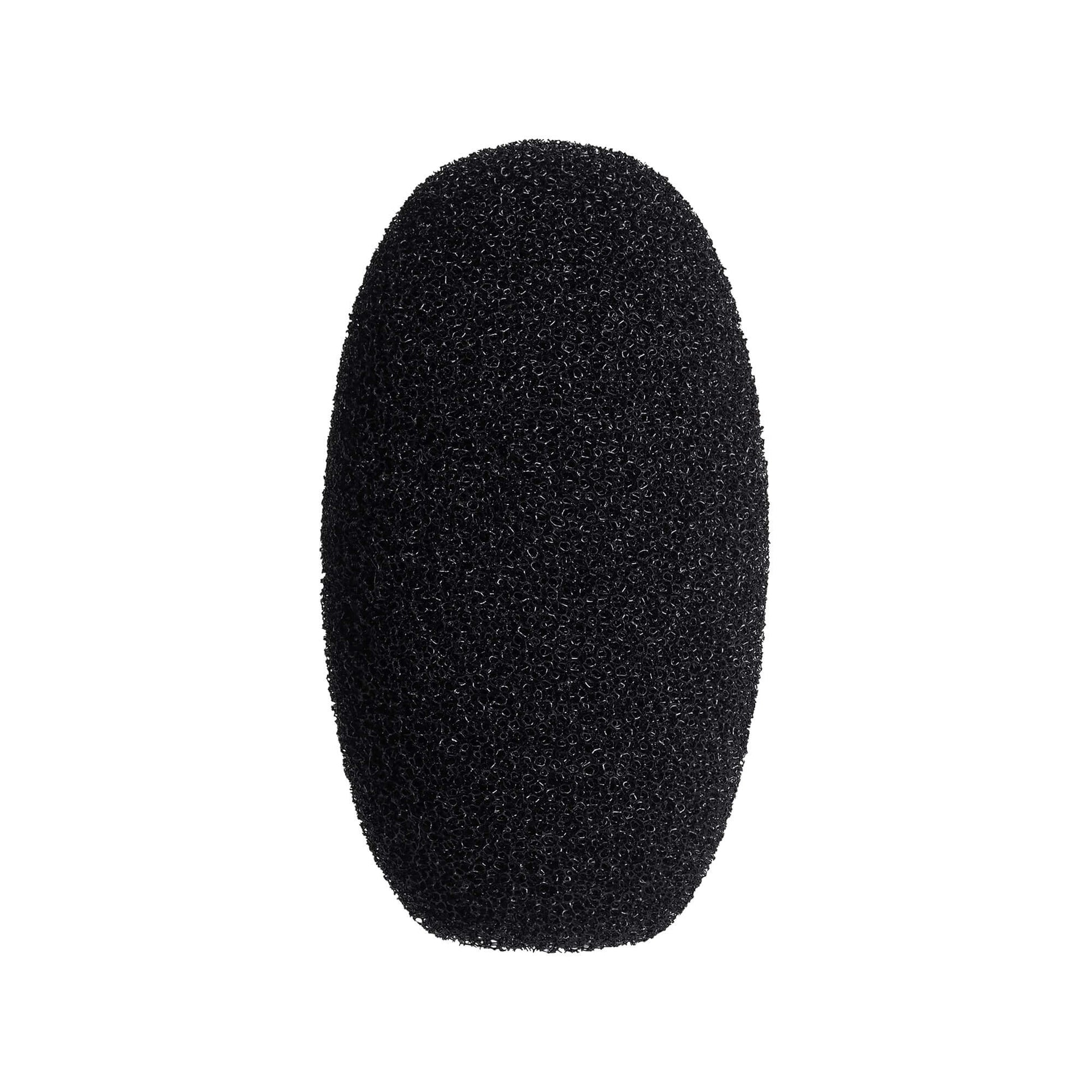

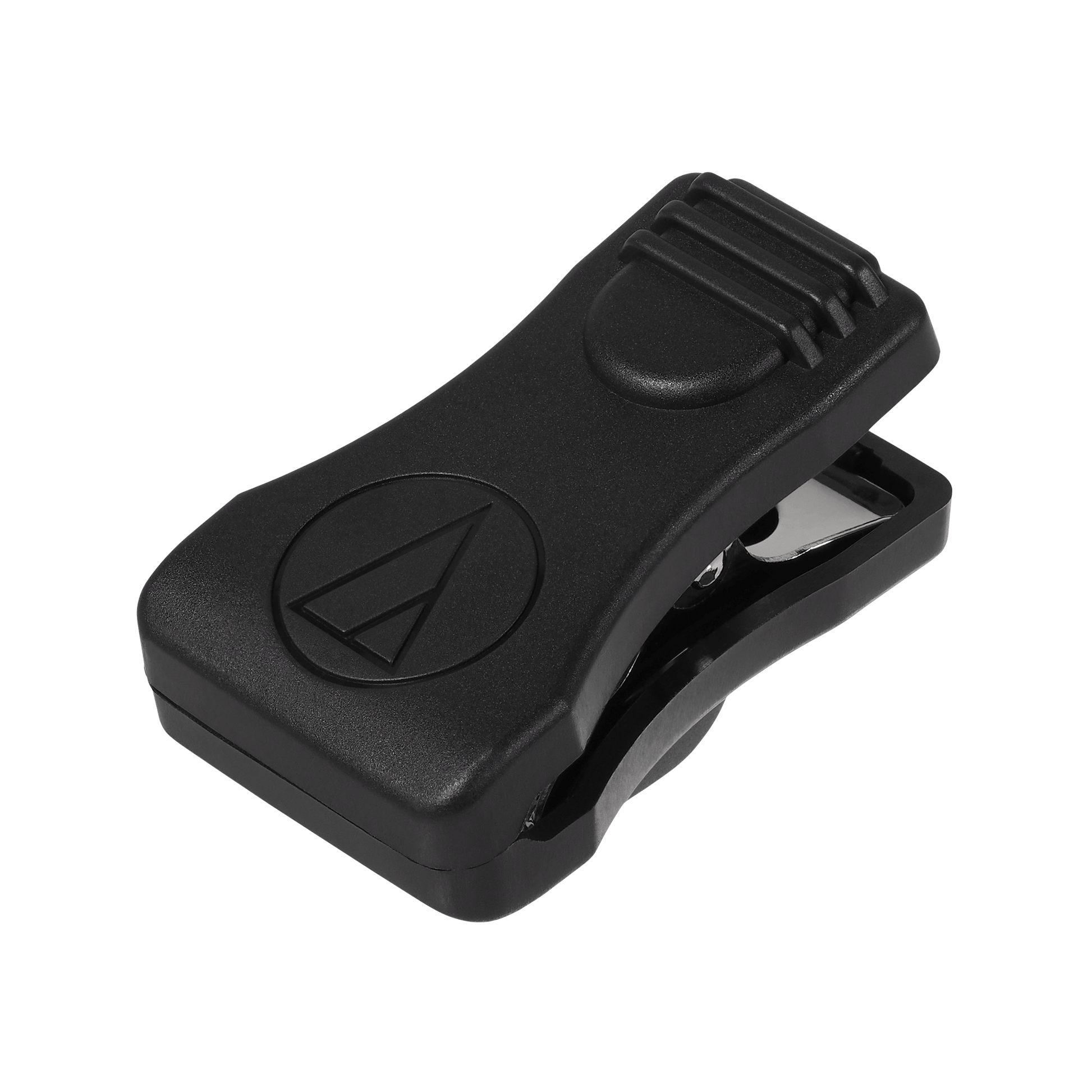

Pouch; 3 windscreens; cable clip
Notes
The BPHS2a/BPHS2Ca/BPHS2Sa have some specification changes from the BPHS2/BPHS2C/BPHS2S and are not equipped with a limiter switch. For product improvement, the product is subject to modification without notice.
