Audix AP41 L10 Wireless Lavalier Microphone System | Frequency: A (522-554 MHz)
Audix AP41 L10 Wireless Lavalier Microphone System | Frequency: A (522-554 MHz)
SoundPro Item: 28412 | Part Number: AP41L10A
Usually ships in 5-7 business days
- 32 MHz Wide spectrum receiver
- 106 Pre-coordinated frequencies on the receiver for quick, easy, and reliable set up
- One-touch auto scan searches for clear channel
- One-touch sync links transmitter to the receiver via infrared beam
- 64 MHz Wide spectrum transmitter
- Transmitter can run for up to 14 hours on AA batteries

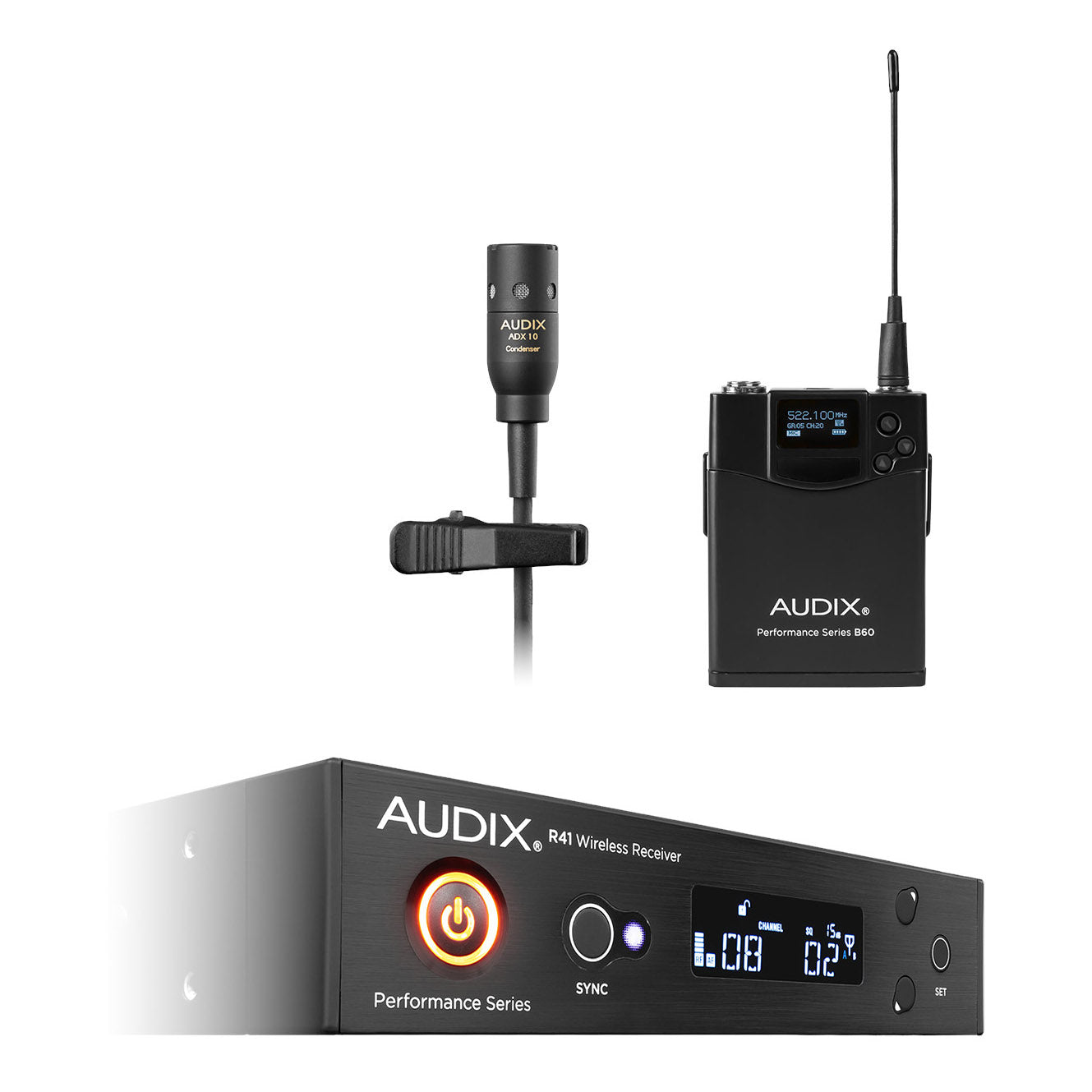

The Audix AP41 L10 Wireless Lavalier Microphone System features the ADX10 cardioid miniature condenser microphone.
The ADX10 is a lightweight, low-profile mic designed for lavalier applications such as speech, presentation, and theatrical production. With the ability to accurately capture and reproduce vocals from a comfortable distance of 4-8 inches, the ADX10 has a natural sound with an exceptional response that is resistant to feedback and easy to use.
- R41 Receiver
- Frequency Range
- A: 522MHz- 554MHz
- B: 554MHz - 586MHz
- Bandwidth: 32MHz
- Compatible Systems: up to 16 systems
- Switchable Frequencies: 106 pre-coordinated frequencies
- Frequency Response: 45Hz - 18,000Hz
- Compander System: 2:1
- Pilot Tone: 32kHz
- Receiving System: single tuner, antenna diversity
- Signal-to-Noise Ratio: 105dB at 30kHz deviation (A-weighted)
- THD: ≤0.7% (33 kHz deviation at 1 kHz
- Sensitivity: 5 dBμV (S/N 60 dB at 25 kHz deviation, A-weighted)
- Audio Output (Level=6)
- Balanced: -12 dbv @ 25 kHz deviation, 600 ohm load
- 1/4": -18 dbv @ 25 kHz deviation, 10 ohm load
- Output Connectors: 1/4", XLR
- Audio Level Adjustment: -12 to +9 in 3dB steps
- Range: 300 ft (91 m)
- Power Supply: 100 - 240 V / 50 - 60 Hz, 12 V DC, 1A
- Dimensions (WxDxH): 8.07" x 8.11" x 1.73"
- Weight: 1.92 pounds
- B60
- RF Power Output: 10 mW, 30 mW
- Frequency Bandwidth: 64 MHz
- Gain Controls: 0dB, -6dB, -12dB, -24dB
- Input Connector: 3 pin mini-XLR
- Batteries Included: 2 AA 1.5 V
- Current Consumption: 110 mA typical
- Battery Life: approx. 14 hours
- Input Impedance
- Mic: 10kΩ
- Line: 1MΩ
- Max. SPL: approx. 128 - 140 dB (depending on microphone)
- Dimensions (WxLxD): 2.6" x 3.5" x 0.67"
- Weight: 3 oz (without batteries)
