Audix AP41 BP Wireless Microphone Bodypack System | Frequency: B (554-586 MHz)
Audix AP41 BP Wireless Microphone Bodypack System | Frequency: B (554-586 MHz)
SoundPro Item: 28377 | Part Number: AP41BPB
Usually ships in 5-7 business days
- 32 MHz Wide spectrum receiver
- 106 Pre-coordinated frequencies on the receiver for quick, easy, and reliable set up
- One-touch auto scan searches for clear channel
- One-touch sync links transmitter to the receiver via infrared beam
- 64 MHz Wide spectrum transmitter
- Transmitter can run for up to 14 hours on AA batteries

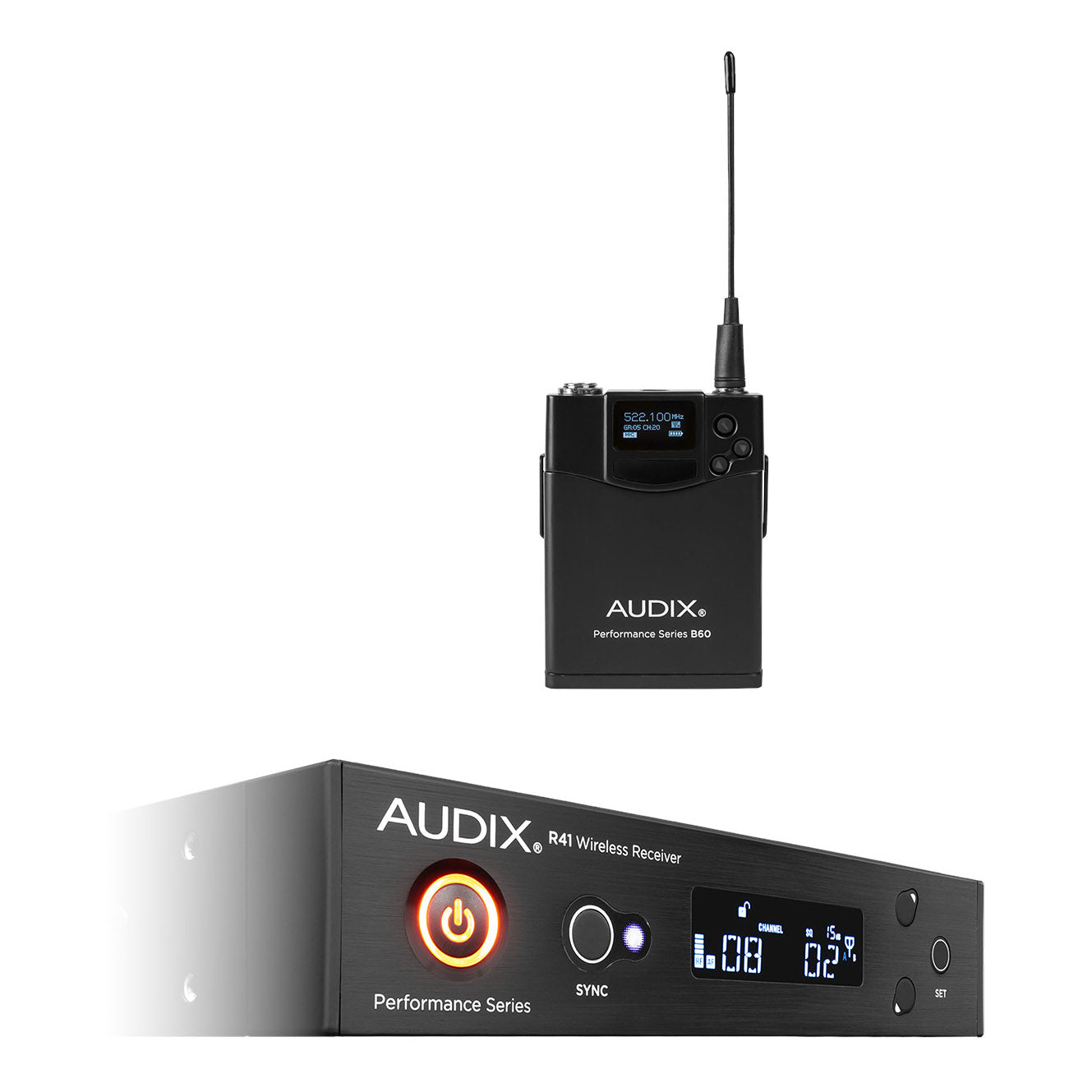

The Audix AP41 BP Wireless Microphone Bodypack System features the B60 bodypack transmitter.
The AP41 bodypack may be used with any lavalier, head-worn, or instrument microphone in the Audix line, as well as guitar and bass. Optional accessories include a single space rack mount kit with BNC cables for front mounting antennas, rackmount kit for mounting two systems in one rack space, active directional antennas, and antenna distribution system for up to four systems (4 channels).
- R41 Receiver
- Frequency Range
- A: 522MHz- 554MHz
- B: 554MHz - 586MHz
- Bandwidth: 32MHz
- Compatible Systems: up to 16 systems
- Switchable Frequencies: 106 pre-coordinated frequencies
- Frequency Response: 45Hz - 18,000Hz
- Compander System: 2:1
- Pilot Tone: 32kHz
- Receiving System: single tuner, antenna diversity
- Signal-to-Noise Ratio: 105dB at 30kHz deviation (A-weighted)
- THD: ≤0.7% (33 kHz deviation at 1 kHz
- Sensitivity: 5 dBμV (S/N 60 dB at 25 kHz deviation, A-weighted)
- Audio Output (Level=6)
- Balanced: -12 dbv @ 25 kHz deviation, 600 ohm load
- 1/4": -18 dbv @ 25 kHz deviation, 10 ohm load
- Output Connectors: 1/4", XLR
- Audio Level Adjustment: -12 to +9 in 3dB steps
- Range: 300 ft (91 m)
- Power Supply: 100 - 240 V / 50 - 60 Hz, 12 V DC, 1A
- Dimensions (WxDxH): 8.07" x 8.11" x 1.73"
- Weight: 1.92 pounds
- B60
- RF Power Output: 10 mW, 30 mW
- Frequency Bandwidth: 64 MHz
- Gain Controls: 0dB, -6dB, -12dB, -24dB
- Input Connector: 3 pin mini-XLR
- Batteries Included: 2 AA 1.5 V
- Current Consumption: 110 mA typical
- Battery Life: approx. 14 hours
- Input Impedance
- Mic: 10kΩ
- Line: 1MΩ
- Max. SPL: approx. 128 - 140 dB (depending on microphone)
- Dimensions (WxLxD): 2.6" x 3.5" x 0.67"
- Weight: 3 oz (without batteries)
