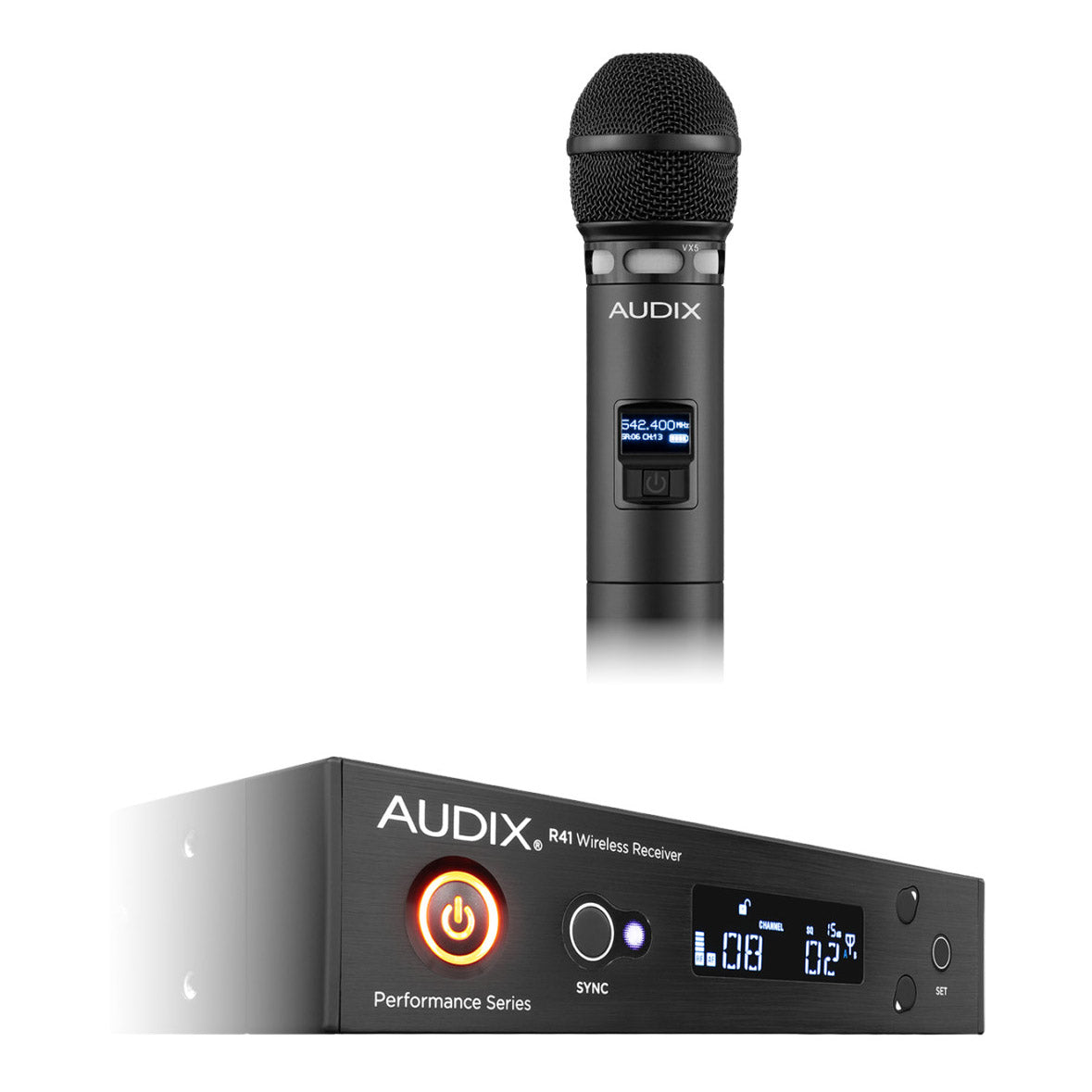

Audix AP41 VX5 Wireless Handheld Microphone System | Frequency: B (554-586 MHz)
Audix AP41 VX5 Wireless Handheld Microphone System | Frequency: B (554-586 MHz)
SoundPro Item: 28451 | Part Number: AP41VX5B
Usually ships in 5-7 business days
- 32 MHz Wide spectrum receiver
- 64 MHz Wide spectrum transmitter with VX5 dynamic capsule module
A highly detailed handheld diversity wireless system featuring the Audix VX5.
The VX5 is a multi-purpose, professional vocal condenser microphone designed for stage, studio, and broadcast applications. With an ability to duplicate studio-quality sound on stage, the VX5 has a smooth and detailed frequency response, resistant to feedback, and handles very high SPLs without distortion.
- R41 Receiver
- Frequency Range: 522 MHz – 554 MHz / 554 MHz - 586 MHz
- Bandwidth: 32 MHz
- Compatible Systems: 16 Compatible system operation
- Switchable Frequencies: 106 Preset frequencies
- Frequency Response: 45 Hz – 18 kHz
- Compander System: 2:1
- Pilot Tone: 32 kHz
- Receiving System: Single tuner, diversity
- Signal-to-Noise Ratio: 105 dB at 30 kHz deviation (A-weighted)
- Total Harmonic Distortion: ≤.7% (33 kHz deviation at 1 kHz)
- Sensitivity: 5 dBμV (S/N 60 dB at 25 kHz deviation, A-weighted)
- Audio Output (AF=0)
- Balanced: -12 dBv @ 25 kHz deviation, 600 ohm load
- 1/4": -18 dBv @ 25 kHz deviation, 10 kohm load
- Output Connectors: 1/4", XLR
- Audio Level Adjust
- Balanced: -12 to +9 dBu
- Line: -24 to +4 dBu (adjustable in 3 dB-steps)
- Range: 300' (91m)
- Power Supply: 100 - 240V / 50 - 60 Hz, 12V DC, 1A
- Dimensions (DxHxW): 205x206x44mm
- Net Weight
- 1.92 lbs (870g)
- 4.4 lbs (2kg)
- H60 Handheld Transmitter
- RF Power Output: 10 mW, 40 mW
- Frequency Bandwidth: 64 MHz
- Gain Controls: 0 dB, -6 dB, -12 dB
- Batteries Included: 2 AA 1.5 V
- Current Consumption: 110 mA typical
- Battery Life: 14 hours
- Max SPL: >140 dB (depending on capsule)
- Dimensions: 2.1” diameter body, 10.43” (L), 53 mm diameter body, 265 mm (L)
- Net Weight (without battery): 11oz (312g)
