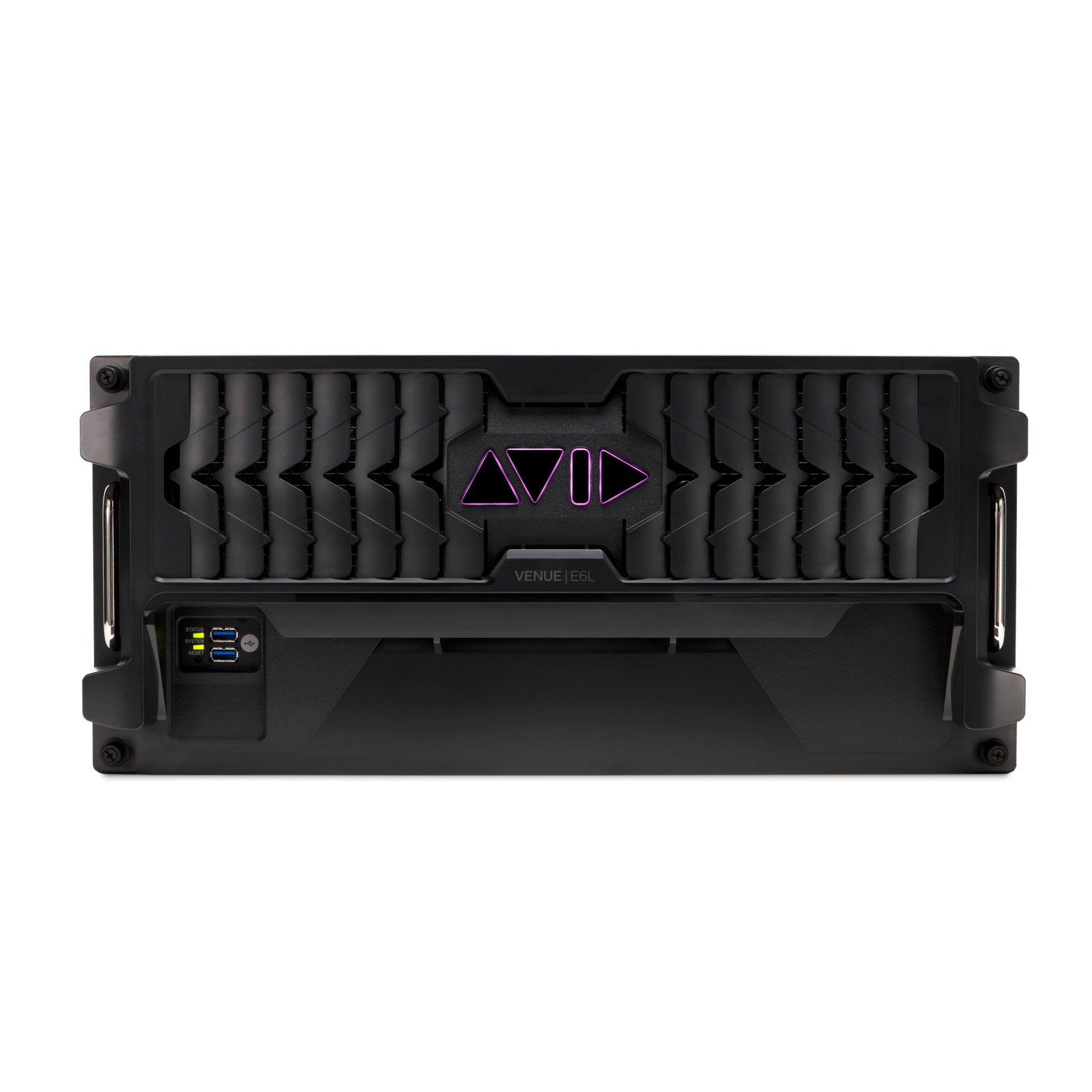

Avid VENUE E6L-112 Control Surface Engine

Avid VENUE E6L-112 Control Surface Engine

SoundPro Item: 10206 | Part Number: 9935-72563-00

$24,995.00
$24,995.00 $24,995.00
Your Price Sold out
MSRP: $24,995.00 | MAP: $24,995.00

Usually ships in 5-7 business days

  • 112 input channels
  • 48 mix busses + LCR
  • 100 plugin rack slots
  • 16 x 16 matrix
  • Includes 1 HDX-192 DSP card for sound processing (supports up to 2)
  • 2 expansion slots to add capabilities through option cards, including Waves SoundGrid support, Ethernet AVB, and MADI I/O
Log in or register for YOUR best price

The Avid VENUE | E6L-112 Control Surface Engine offers the power and performance you need to handle any small- to mid-size live production in a more affordable engine that supports up to 112 input channels.

View full details
  • Sample Rates96 kHz
  • Input Channels112
  • Input ProcessingHEAT, HPF, LPF, 4-band PEQ, Expander/Gate, Compressor/Limiter, Delay, 4 plugin inserts, hardware insert
  • Mix Busses48 + LCR
  • Output Processing7-band PEQ, Compressor/Limiter, Delay, 4 plugin inserts, hardware insert
  • Matrix16 x 16
  • VCAs48
  • Stereo Solo Busses2, with independent control
  • Graphic EQs (31-band)32
  • Digital Signal ProcessingSupports up to two HDX-192 DSP Expansion Cards for plugin processing; includes one card
  • Plugin Support64-bit AAX DSP; also supports Waves SoundGrid systems through the WSG-HD Option Card for full integration with S6L, or over MADI
  • Plugin Slots400
  • Pro Tools IntegrationRecord/play back up to 128 audio tracks via Ethernet AVB
  • Expansion Option Card Slots2 max
  • Ethernet AVB PortsIncludes two AVB-192 Ethernet AVB Network Cards with two ports (per card), selectable as etherCON (copper) or SFP (fiber), with redundant ring topology; supports Luminex GigaCore 26i and GigaCore 10 AVB switches for redundant star configuration
  • I/O SharingSupports up to three S6L systems, up to 192 inputs total (requires two AVB-192 Ethernet AVB Network Cards to share I/O)
  • Word Clock I/OClock I/O BNC, 75 Ohm coaxial
  • USB Ports5 USB 2.0 ports (2 front, 2 back, 1 internal)
  • Power SupplyDual redundant, internal (The E6L-112 power supply is not compatible/swappable with S6L-48D, 32D, and 24D control surface power supplies, or with E6L-192 and 144 engine power supplies)
  • Dimensions (H x W x D)8.6 x 16.9 x 19 inches (218 x 430 x 483 mm)
  • Rack Spaces5U
  • Weight74 lbs (33 kg)
