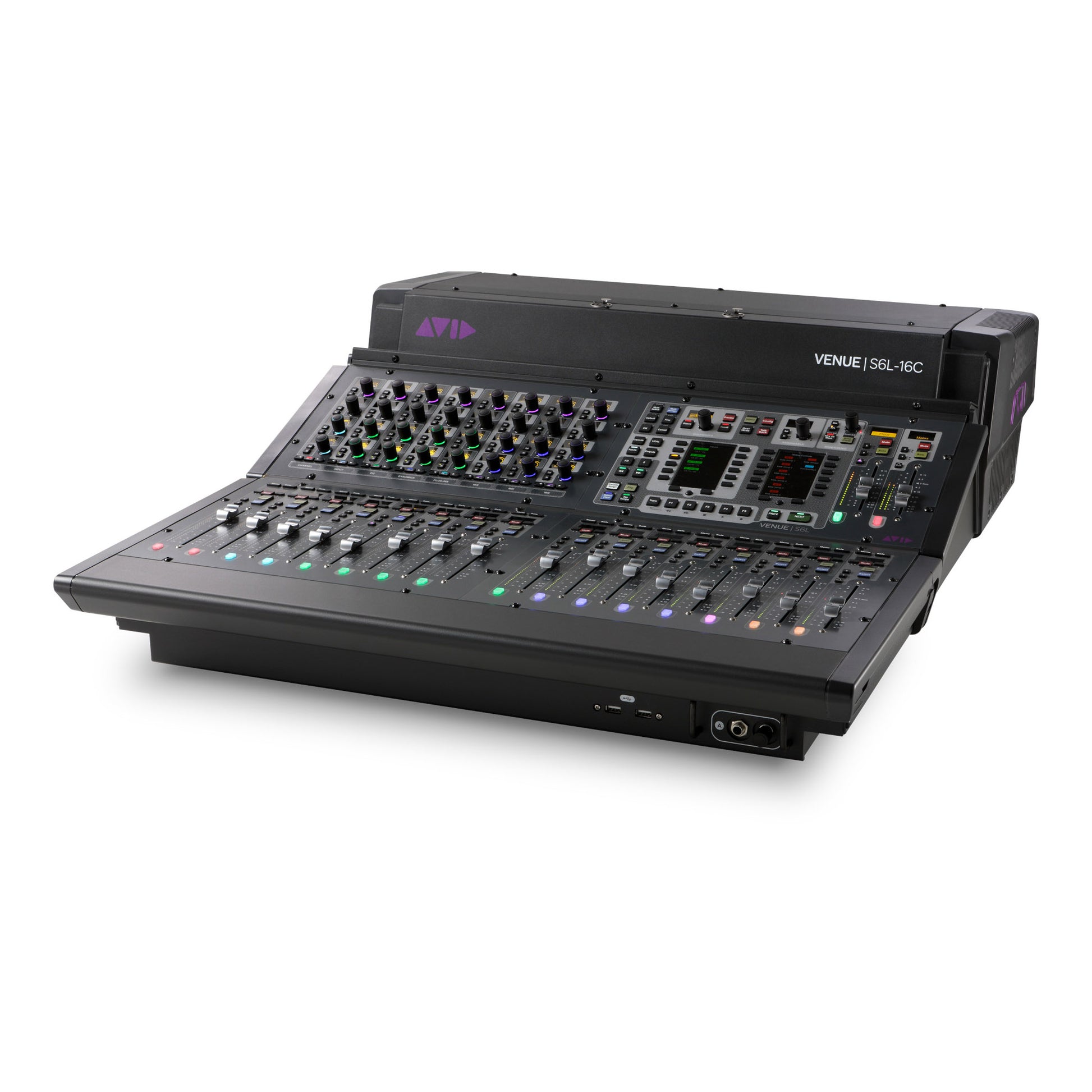

• Avid VENUE | S6L-16C Control Surface Angle View
1 1

Avid VENUE S6L-16C Control Surface

Avid VENUE S6L-16C Control Surface

SoundPro Item: 10204 | Part Number: 9935-72562-00

$25,995.00
$25,995.00 $25,995.00
Your Price Sold out
MSRP: $25,995.00 | MAP: $25,995.00

Usually ships in 5-7 business days

  • 16 channel faders across 1 Channel Fader Module, plus 2 assignable faders in the Master Live Module
  • 32 assignable channel knobs (encoders) across 1 Channel Knob Module
  • 1 Master Live Module (provides control over global system parameters, such as channel banking, snapshots, and monitoring)
  • Local analog I/O and ancillary I/O, including ECx for remote control and DVI for connecting an external monitor (sold separately) for VENUE software display
Log in or register for YOUR best price

Get all the hallmarks of VENUE in a compact control surface that offers powerful performance in a portable solution for smaller spaces and budgets. Get the easiest entry into VENUE | S6L with a 16-fader control surface that’s ultra-portable, but expansive in its capabilities. It’s ideal for corporate events and live applications where space is tight.

View full details
  • 12-inch daylight-visible touchscreensnone (requires user-provided external touchscreen)
  • Faders16 + 2
  • Knob Modules with high-resolution OLEDs and tri-color function indicators32 assignable knobs across 1 Channel Knob Module
  • Master Live ModuleGraphic TFTs with soft buttons; Touch and Turn assignable encoder; 2 assignable faders; monitoring, layout and snapshot controls; transport controls and function buttons
  • Metering30-segment meters per channel, with pre- and post-fade metering options; Nominal indicator, Expander/Gate status and Compressor/Limiter gain reduction meters
  • Analog inputs 1 XLR mic/line input
  • Analog outputs2 XLR outputs
  • Digital inputsnone
  • Digital outputsnone
  • Headphone outputs1 1/4" TRS stereo headphone jack
  • Ancillary I/ODVI-D video out, 5 USB 2.0 (2 rear, 2 front, 1 internal), ECx Ethernet port for wired/wireless remote control, GPIO (8 in/8 out), 2 footswitch, Linear Time Code input, MIDI I/O
  • Ethernet AVB ports2 etherCON (copper), 2 selectable as etherCON (copper) or SFP (fiber); redundant ring topology; supports Luminex GigaCore 26i and GigaCore 10 AVB switches for redundant star configuration
  • Power supplyDual redundant, internal
  • Height (front, rear)3.6, 8 inches (91, 205 mm)
  • Width26.4 inches (671 mm)
  • Depth31 inches (787 mm)
  • Weight72 lbs (33 kg)
