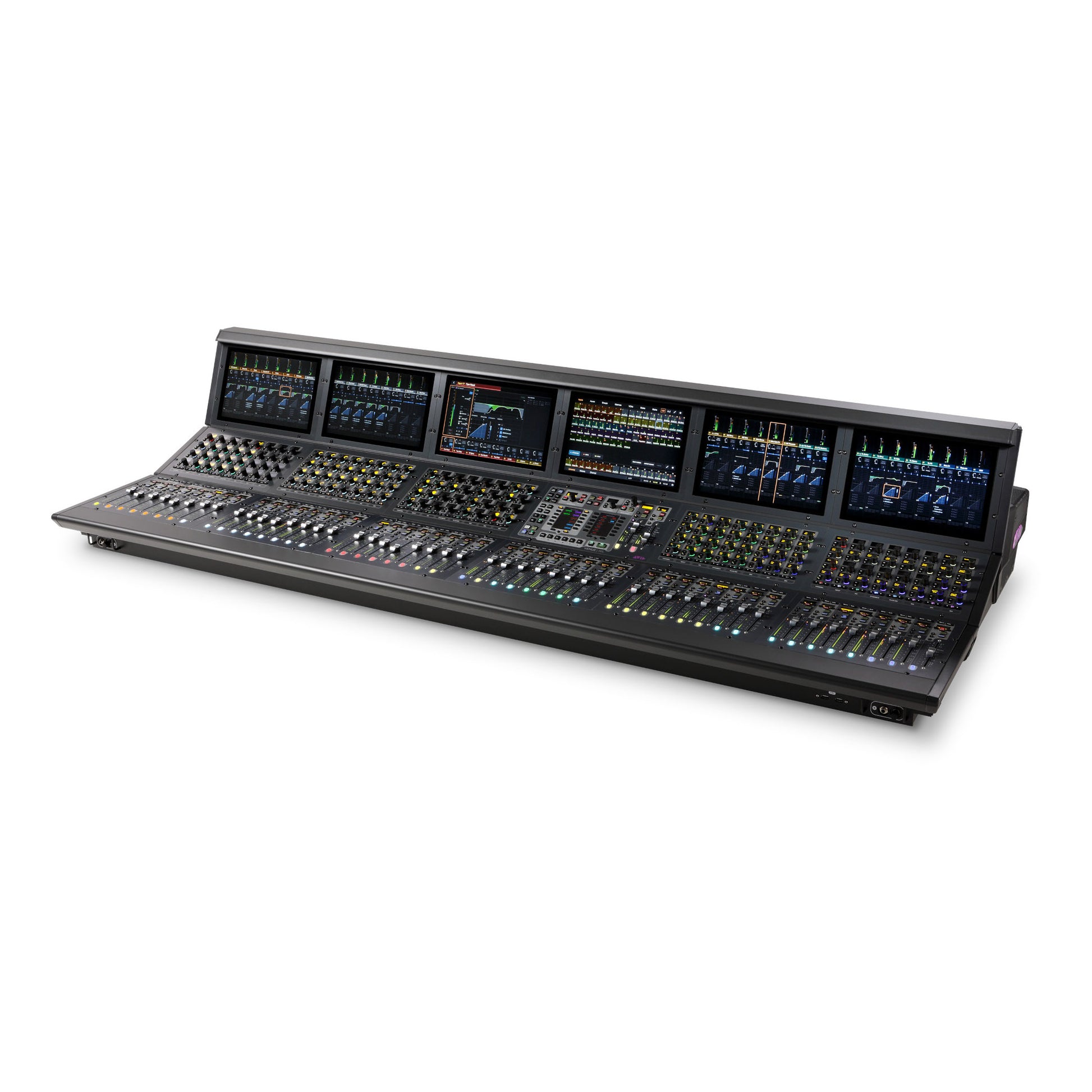

• Avid VENUE | S6L-48D Control Surface Angled View
1 1

Avid VENUE S6L-48D Control Surface

Avid VENUE S6L-48D Control Surface

SoundPro Item: 39148 | Part Number: 9935-72560-00

$108,995.00
$108,995.00 $108,995.00
Your Price Sold out
MSRP: $108,995.00 | MAP: $108,995.00

Usually ships in 5-7 business days

  • 48 channel faders across 6 Channel Fader Modules, plus 2 assignable faders in the Master Live Module
  • 160 assignable channel knobs (encoders) across 5 Channel Knob Modules
  • 1 Master Touchscreen (central screen for quick navigation, parameter identification, and control)
  • 1 Master Live Module (provides control over global system parameters, such as channel banking, snapshots, and monitoring)
  • 5 Channel Touch Modules (touchscreen display provides access and control to parameters in Meters view and Channel view)
  • Local analog I/O, digital I/O, and ancillary I/O, including ECx for remote control and DVI for connecting an external monitor (sold separately) for VENUE software display
Log in or register for YOUR best price

When working with a large number of performers and channel inputs that require complex routing, S6L-48D provides the extended control and ease you need in a large-format control surface.

Have the maximum number of faders and controls at your fingers to handle large-scale concert performances, broadcast events, and high-end theater productions. It’s ideal for dual-operator workflows to handle large broadcast events and theater productions.

View full details
  • 12-inch daylight-visible touchscreens1 Master Touchscreen, 5 Channel Touch Modules
  • Faders48 + 2
  • Knob Modules with high-resolution OLEDs and tri-color function indicators160 assignable knobs across 5 Channel Knob Modules
  • Master Live ModuleGraphic TFTs with soft buttons; Touch and Turn assignable encoder; 2 assignable faders; monitoring, layout and snapshot controls; transport controls and function buttons
  • Metering30-segment meters per channel, with pre- and post-fade metering options; Nominal indicator, Expander/Gate status and Compressor/Limiter gain reduction meters
  • Analog inputs 8 XLR mic/line inputs with 48V and signal present LEDs
  • Analog outputs8 XLR outputs with mute and signal present LEDs
  • Digital inputs4 pairs of XLR stereo AES/EBU (8 channels total)
  • Digital outputs4 pairs of XLR stereo AES/EBU (8 channels total)
  • Headphone outputs2 independent 1/4" TRS stereo headphone jacks
  • Ancillary I/ODVI-D video out, 5 USB 2.0 (2 rear, 2 front, 1 internal), ECx Ethernet port for wired/wireless remote control, GPIO (8 in/8 out), 2 footswitch, Linear Time Code input, MIDI I/O
  • Ethernet AVB ports2 etherCON (copper), 2 selectable as etherCON (copper) or SFP (fiber); redundant ring topology; supports Luminex GigaCore 26i and GigaCore 10 AVB switches for redundant star configuration
  • Power supplyDual redundant, internal hot-swappable PSUs
  • Height (front, rear)3.6, 15.3 inches (91, 388 mm)
  • Width76.1 inches (1,934 mm)
  • Depth31 inches (787 mm)
  • Weight212 lbs (96 kg)
