• Aviom D400 A-Net Distributor
1 1

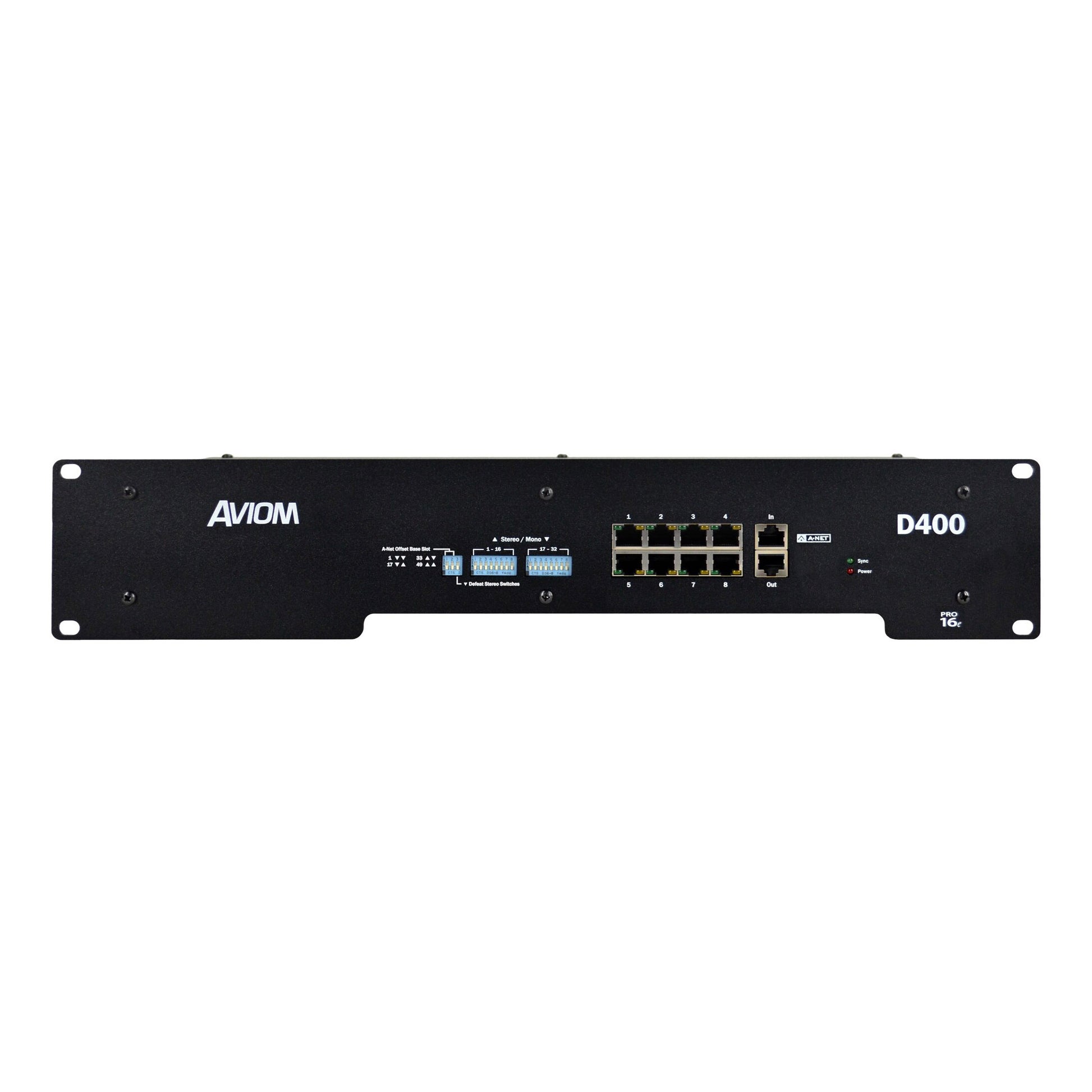

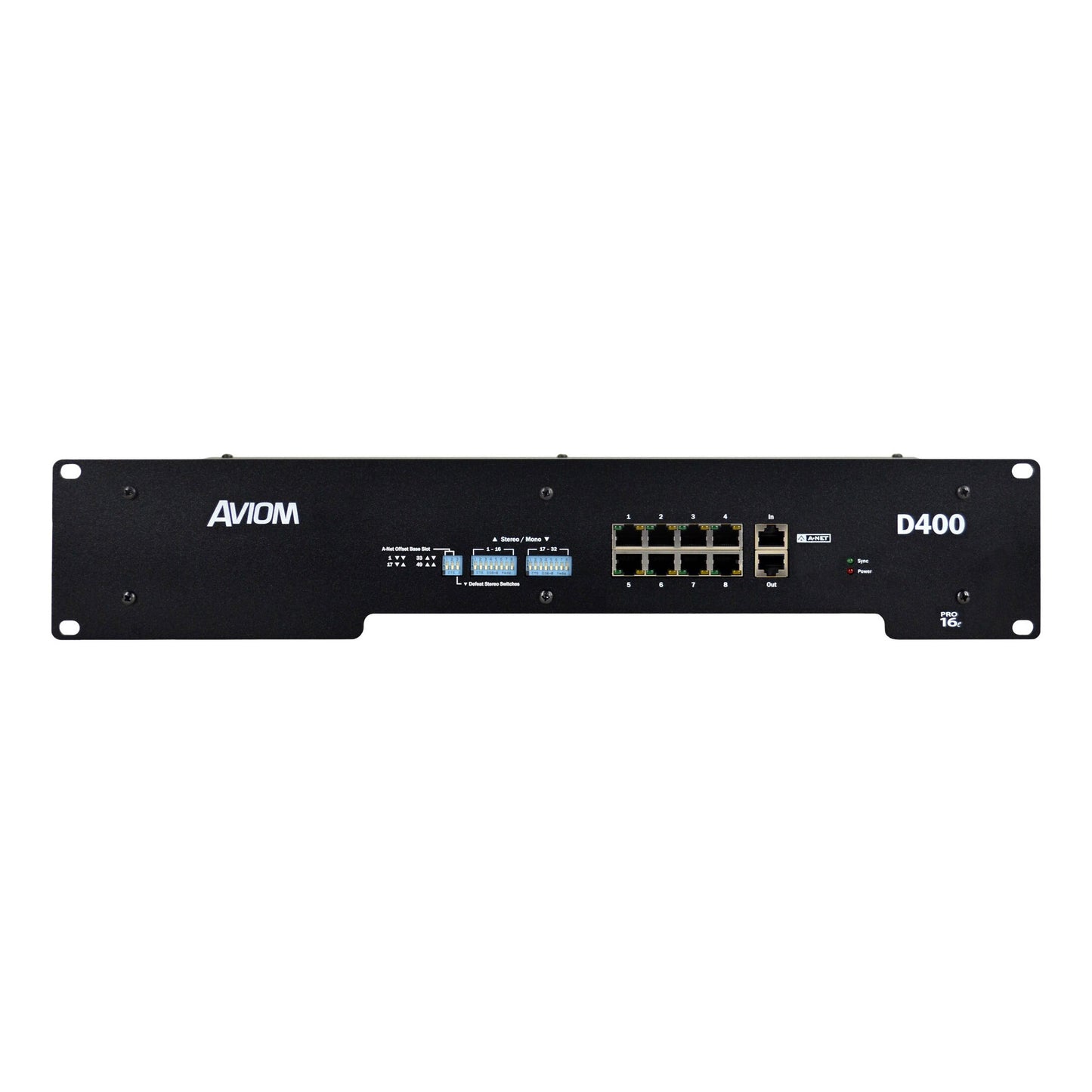

Aviom D400 A-Net Distributor

Aviom D400 A-Net Distributor

SoundPro Item: 20985 | Part Number: D400

$999.00
$1,299.00 $999.00
Your Price Sold out
MSRP: $1,299.00 | MAP: $999.00

Usually ships in 5-7 business days

  • Distributes power and audio to up to eight A320 and A360 Personal Mixers
  • One unpowered Pro16e A-Net Out for thru connections
  • A-Net Offset switches to set the range of Pro16e network slots to be sent to Personal Mixers
  • Stereo Link DIP switches simplify stereo channel assignments
  • Supports legacy A-16II and A-16R Personal Mixers
Log in or register for YOUR best price

The D400 A-Net Distributor links between the personal mixing system's inputs, providing power and a copy of the digital audio stream to Aviom Personal Mixers.

The standard D400 has an Aviom A-Net input, perfect for using with Aviom's analog input modules or digital console cards from Aviom or our third party partners. The D400 can be used with A-16II, A320, and A360 Personal Mixers in any combination.

View full details
  • A-Net Out to Personal MixersEight RJ45 connectors, powered; Compatible with A640, A360, A320, and A-16II Personal Mixers
  • A-Net Out
    • Pro16e A-Net; RJ45 connector, unpowered
    • Supports system expansion and the A-16II, A320, and A360 Personal Mixers
  • LEDsPower On (red); Network Sync (green)
  • Stereo LinkTwo 8-position DIP switch blocks (1-16, 17-32)
  • Output Voltage for Personal Mixers
    • 24VDC, 0.5 amp;
    • Transmitted over the Cat-5e cable
  • A-Net Cables
    • Front Panel Connections: Shielded Cat-5e (or better) cable must be used to stay below the CISPR 22 Class B, ICES-003, and FCC 47 CFR Part 15 Class B emissions limits.
    • Unshielded Cat-5e cable may be used on all other network connections
  • Power SupplyInternal, IEC connector
  • Input Voltage100-120 VAC or 200-240 VAC (with selector switch); 50-60Hz @220 W max
  • AC Fuse Types
    • 115V range: T2.5AL/250V, slow-acting
    • 230V range: T1.25AL/250V; slow-acting
  • Dimensions19" (482.6 mm) wide x 7.25" (182 mm) deep; 2U, 3.5" (88.9 mm) high
  • Weight12 lbs (5.44 kg)
  • Dante Interface32 channels from a Dante network (44.1/48kHz Sample Rate only)
  • Dante Primary I/ORJ45 connector
  • Dante Secondary I/ORJ45 connector
  • Dante LEDsNetwork Activity (green); 1GB Network Connection Active (yellow)
  • Static IP supportYes
  • AES67 SupportYes
