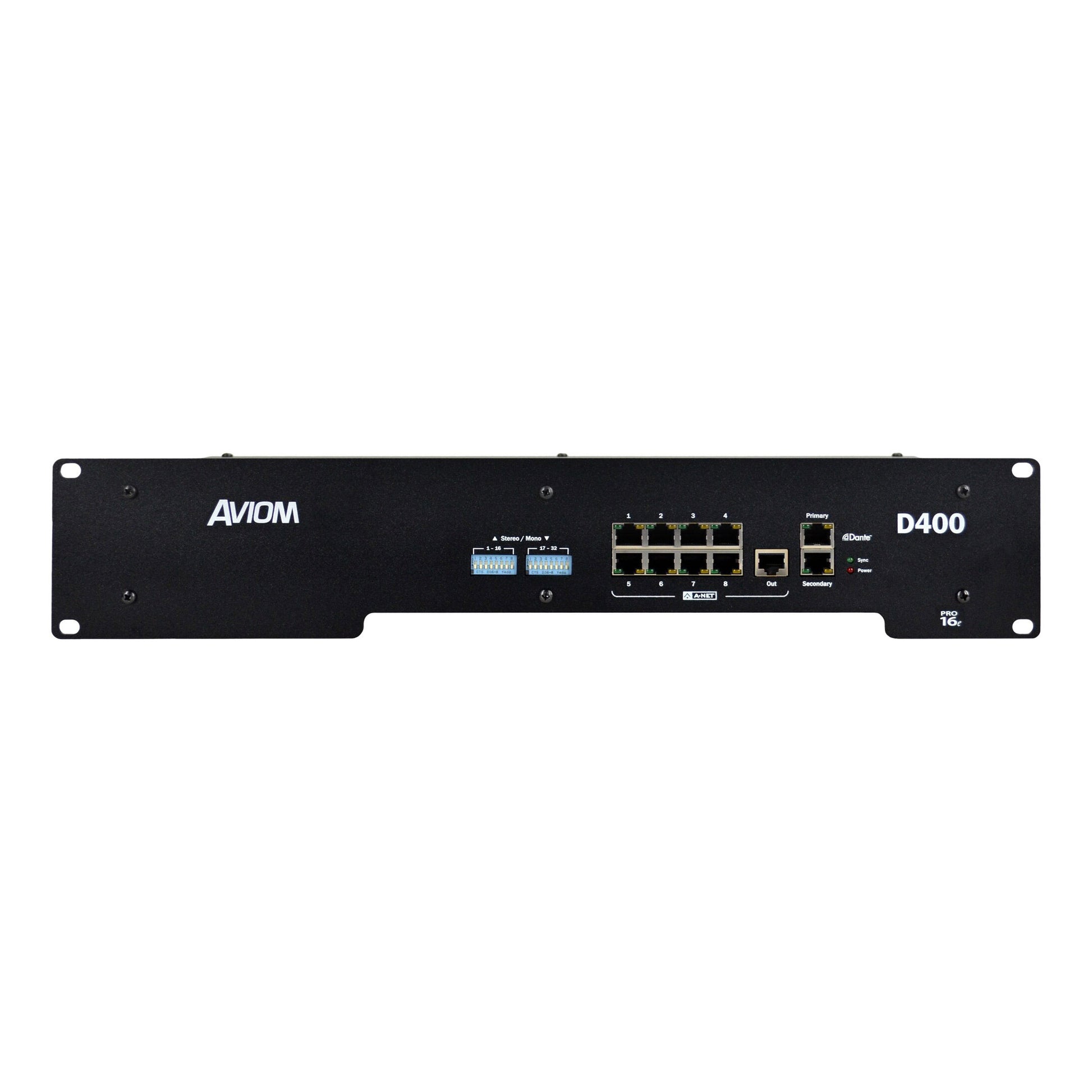

Aviom D400-Dante A-Net Distributor

Aviom D400-Dante A-Net Distributor

SoundPro Item: 20986 | Part Number: D400-DANTE

$1,399.00
$1,799.00 $1,399.00
Your Price Sold out
MSRP: $1,799.00 | MAP: $1,399.00

Usually ships in 5-7 business days

  • Distributes power and audio to up to eight A320 and A360 Personal Mixers
  • One unpowered Pro16e A-Net Out for thru connections
  • Stereo Link DIP switches simplify stereo channel assignments
  • Supports legacy A-16II and A-16R Personal Mixers
Log in or register for YOUR best price

The D400-Dante A-Net Distributor from Aviom provides the link between the personal mixing system's inputs and the Personal Mixers, providing power and a copy of the digital audio stream to your Aviom Personal Mixers, utilizing standard Cat-5e cables.

The D400-Dante has a Dante input and allows up to 32 channels (at 44.¼8kHz) to be routed from a Dante-enabled console or digital audio network to the Personal Mixers. The D400-Dante can be used with A-16II, A320, and A360 Personal Mixers in any combination.

View full details
  • A-Net InputPro16e Aviom A-Net; RJ45 connector
  • A-Net Offset Base Slot3-position DIP switch selects the starting channel that Personal Mixers will receive from the network (1, 17, 33, or 49)
  • A-Net Out to Personal Mixers
    •  Eight (8) RJ45 connectors, powered
    • Compatible with A-16II, A320, and A360 Personal Mixers
  • A-Net Out
    • Pro16e A-Net
    • RJ45 connector, unpowered
    • Supports system expansion and the A-16II, A320, and A360 Personal Mixers
  • LEDsPower On (red); Network Sync (green)
  • Stereo LinkTwo 8-position DIP switch blocks (1-16, 17-32)
  • Output Voltage for Personal Mixers
    • 24VDC, 0.5 amp
    • Transmitted over the Cat-5e cable
  • A-Net Cables
    • Front Panel Connections: Shielded Cat-5e (or better) cable must be used to stay below the CISPR 22 Class B, ICES-003, and FCC 47 CFR Part 15 Class B emissions limits
    • Unshielded Cat-5e cable may be used on all other network connections
  • Power SupplyInternal, IEC connector
  • Input Voltage100-120 VAC or 200-240 VAC (with selector switch); 50-60Hz @220 W max
  • AC Fuse Types
    • 115V range: T2.5AL/250V, slow-acting
    • 230V range: T1.25AL/250V; slow-acting
  • Dimensions19 inches (482.6 mm) wide x 7.25 inches (182 mm) deep; 2U, 3.5 inches (88.9 mm) high
  • Weight12 lbs (5.44 kg)
