Aviom Mix320-Y Personal Mixing System
Aviom Mix320-Y Personal Mixing System
SoundPro Item: 21002 | Part Number: MIX320-Y
Usually ships in 5-7 business days
- Mix320-Y gets its inputs from a Y1 A-Net card installed into Yamaha digital mixing console
- Designed for 6 performers
- Simple, intuitive control over monitor mixes
- 16 mono or stereo mix channel buttons, individual volume controls, and Stereo Placement controls
- Power and audio over Cat-5

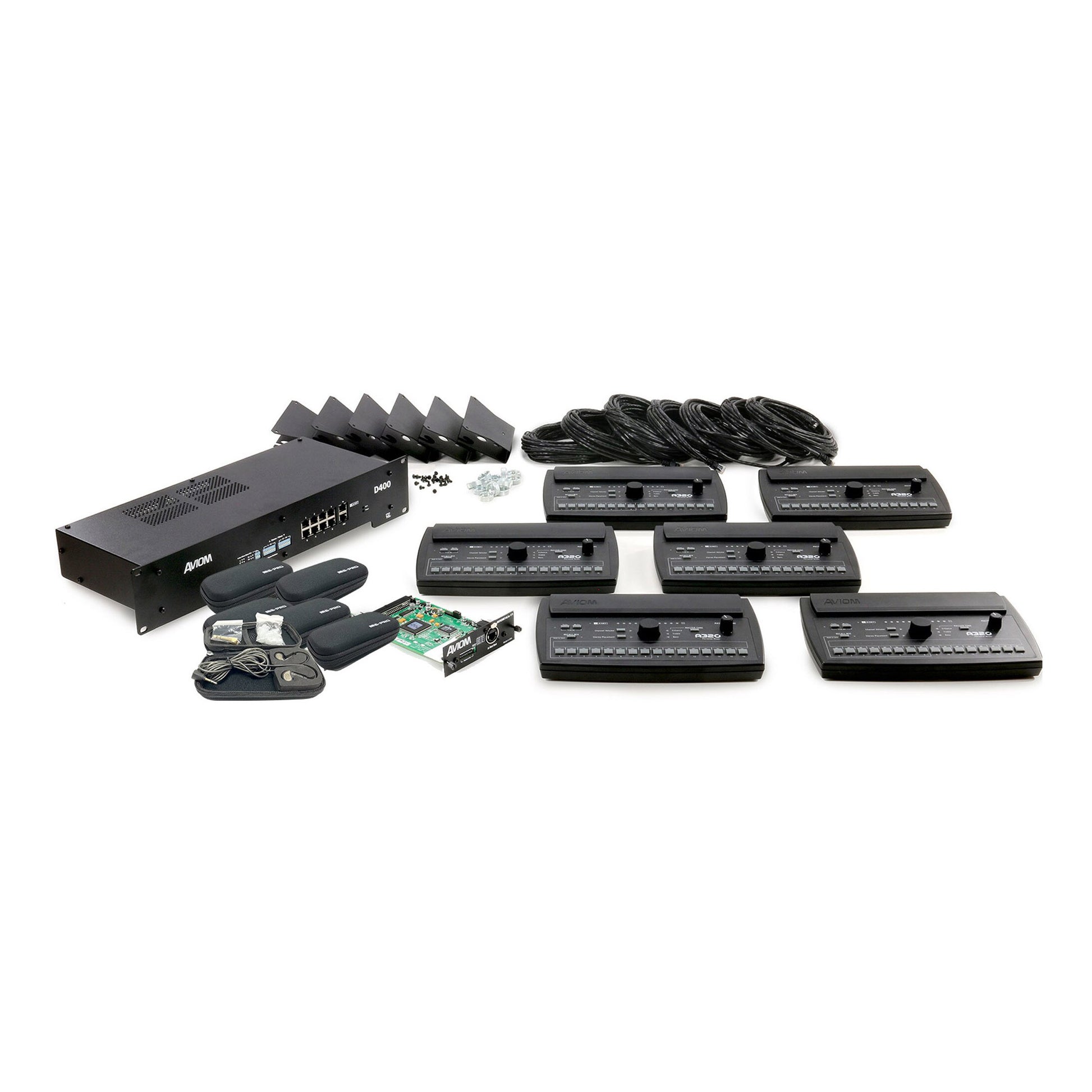

The Aviom Mix320-Y Personal Mixing System is a complete personal mixing system for six performers, designed for users of Yamaha® digital mixing consoles.
The Y1 A-Net Card plugs into any open MY expansion slot on your Yamaha console. There's nothing to configure-just assign sources from the Yamaha user interface to the card's 16 channels and they will appear on the Personal Mixer's channel buttons.
The A320 Personal Mixers get their digital data and power over the same cable, so all you need to do is connect a Cat-5 cable and you're ready to start using the system.
The A320 Personal Mixers get their digital data and power over the same cable, so all you need to do is connect a Cat-5 cable and you're ready to start using the system.
- A320
- Audio Output: 1/4" TRS stereo, headphone or line level
- Stereo Mix Output, Headphone/Line
- Tip: audio left
- Ring: audio right
- Sleeve: ground
- A-Net I/O: 1 A-Net In, RJ45 connector; Supports Pro16 and Pro16e
- D/A Conversion: 44.1/48kHz, 24-bit
- Stereo Operation: Stereo Link, per channel pair; Set at the input module; Variable pan per mono channel or pan/spread per stereo channel pair
- Headphone Output: 275 mW per side into 50 Ohms (both sides driven)
- Output Impedance: 5Ω
- Frequency Response: 3Hz - 22kHz +0.2dB/-3dB at 50Ω
- THD+N: <0.003%
- Output Voltage for Personal Mixers: 24VDC, 0.5 amp transmitted over the Cat-5e cable
- Signal to Noise (unweighted): -106dB (measured with zero data into all channels)
- Latency: 0.880 msec (measured from analog input to analog output)
- Pro16e A-Net: Use Cat-5e (or better) cable; Max. 400 ft between devices; Supports Power Over A-Net
- Cat-5 Cable: Use shielded Cat-5e (or better) cable to stay below the CISPR 22 Class B, ICES-003, and FCC 47 CFR Part 15 Class B emissions limits
- Power: 24 VDC, 0.5 amp; Power is supplied over the Cat-5 cable when connected to an Aviom A-Net Distributor
- Dimensions (WxDxH): 10.26" x 6.14" x 1.91"
- Weight: 1.3 pounds
- Y1 A-Net Card
- A-Net Pro16 Output: 16 channels of A-Net digital data
- Interface Format: Yamaha mini-YGDAI (MY) Expansion Card
- Max. Expansion: limited only by the number of available MY expansion slots in the digital mixer
- Sample Rate: 44.1kHz to 48kHz, +/-10%
- Digital Conversion: 24-bit
- A-Net Output: A-Net Out: 1; EtherCon® RJ45 connector
- DIP Switch
- Switch 1-8: Stereo Link on/off
- Switch 9-10: A-Net mode
- A-Net Modes: 8-channel, 16-channel, Aviom, Test
- Default is switch 9 up, 10 down
- A-Net Pro16: A-Net allows 16 channels of audio to be transmitted over one Cat-5e cable use unshielded Cat-5e UTP (or better) cable; max. length 500 feet (150m) between devices
- Latency: <0.880 msec (measured from analog input to analog output)
- Power Supply: none required (uses Yamaha host device)
- Dimensions (WxDxH): 4.75" x 6.25" x 1.5"
- Weight: 0.8 pounds
- D400
- A-Net Input: Pro16 or Pro16e A-Net; RJ45 connector
- A-Net Offset Base Slot: 2-position DIP switch selects the starting channel that Personal Mixers will receive from the network (1, 17, 33, or 49)
- Defeat Stereo Switches: Chooses between local (front panel) stereo links (up) or network stereo links (down)
- A-Net Out to Personal Mixers: eight RJ45 connectors, powered
- A-Net Out: Pro16e A-Net; RJ45 connector, unpowered
- LEDs: power on (red), network sync (green)
- Output Voltage for Personal Mixers: 24VDC, 0.5 amp Transmitted over the Cat-5e cable
- A-Net Cables: Front Panel Connections: Shielded Cat-5e (or better) cable must be used to stay below the CISPR 22 Class B, ICES-003, and FCC 47 CFR Part 15 Class B emissions limits. Unshielded Cat-5e cable may be used on all rear panel connections
- Power Supply: internal, IEC connector
- Input Voltage: 100-120 VAC or 200-240 VAC (with selector switch); 50-60Hz @220 W max
- AC Fuse Types
- 115V range: T2.5AL/250V
- 230V range: T1.25AL/250V
- Dimensions (WxDxH): 19x7.386x3.5"
- Weight: 12 pounds
